Bosch PBM 7.2 V-1 / 0603933270 / GB 7.2 Volt Spare Parts

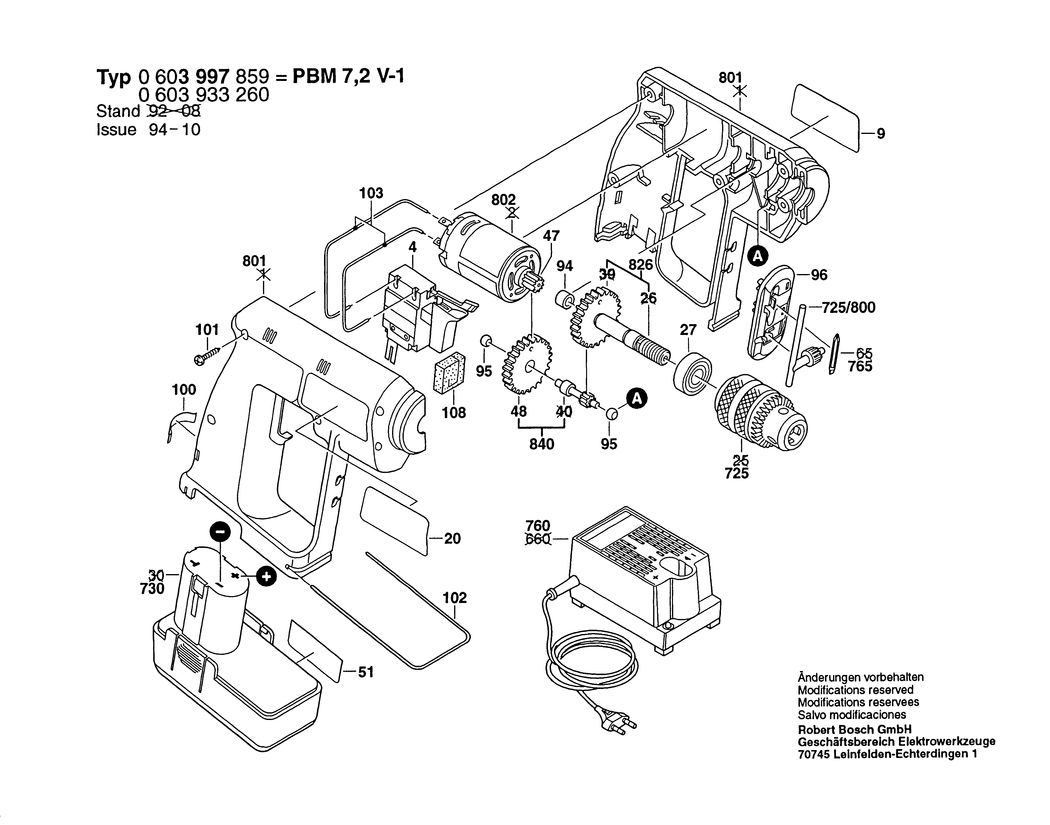

An exploded drawing and listing for the Bosch PBM 7.2 V-1 / 0603933270 / GB 7.2 Volt

	Ex VAT	Inc VAT
4 - ON-OFF SWITCH BSD-2607200317.A12 2607200317	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118681.A0 2601118681	-
20 - REFERENCE PLATE BSD-2601118682.A1 2601118682	-
27 - GROOVE BALL BEARING 10x26x8 BSD-1900905120.A257 1900905120	-
47 - PINION Z=14 BSD-2606316142.A1 2606316142	£3.72	£4.47
51 - STICKER BSD-2601118420.A1 2601118420	-
94 - SINTERED-METAL BUSHING BSD-2600301011.A93 2600301011	£1.75	£2.10
95 - SINTERED-METAL BUSHING BSD-2600302002.A156 2600302002	£1.75	£2.10
96 - INSERT BSD-2600290022.A25 2600290022	-
100 - CLAMP SPRING BSD-2601322016.A264 2601322016	£2.52	£3.02
101 - SCREW 4x16 BSD-2603490022.A1605 2603490022	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A273 2601329041	£2.33	£2.80
103 - CABLE L=79 MM BSD-2604413004.A106 2604413004	-
108 - DUST PROTECTION BSD-2601010038.A101 2601010038	-
725 - KEY CHUCK dia 1-10 MM.3/8 BSD-2608571032.A3 2608571032	-
725/800 - CHUCK WRENCH SG1. 80 MM BSD-1607950055.A15 1607950055	-
730 - SLIDE-IN ACCU PACKAGE 7.2V.1.5Ah.NiCd BSD-2607336141.A51 2607336141	-
760 - FAST CHARGER USA 120/7.2-14.4V. 30 MIN. BSD-2607224708.A17 2607224708	-
760 - FAST CHARGER USA 120/7.2-24V. 1h BSD-2607224431.A35 2607224431	£135.25	£162.30
760 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A297 2607224701	£88.07	£105.68
760 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A333 2607224425	£88.07	£105.68
765 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A189 1609200147	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398010.A4 2601398010	-
801 - HOUSING SECTION BSD-2605104860.A5 2605104860	-
802 - DC MOTOR 7.2V BSD-2607022913.A3 2607022913	-
826 - DRILLING SPINDLE 3/8 BSD-2606135918.A11 2606135918	-
840 - INTMD. TRANSMISSION HSG Z= 12/63 BSD-2606308916.A30 2606308916	-
899 - CORDLESS DRILL BSD-0603933270.A0 0603933270	-

Attribute Name	Value
Brand	Bosch
