Stanley FME380 Type 1 Saw Spare Parts

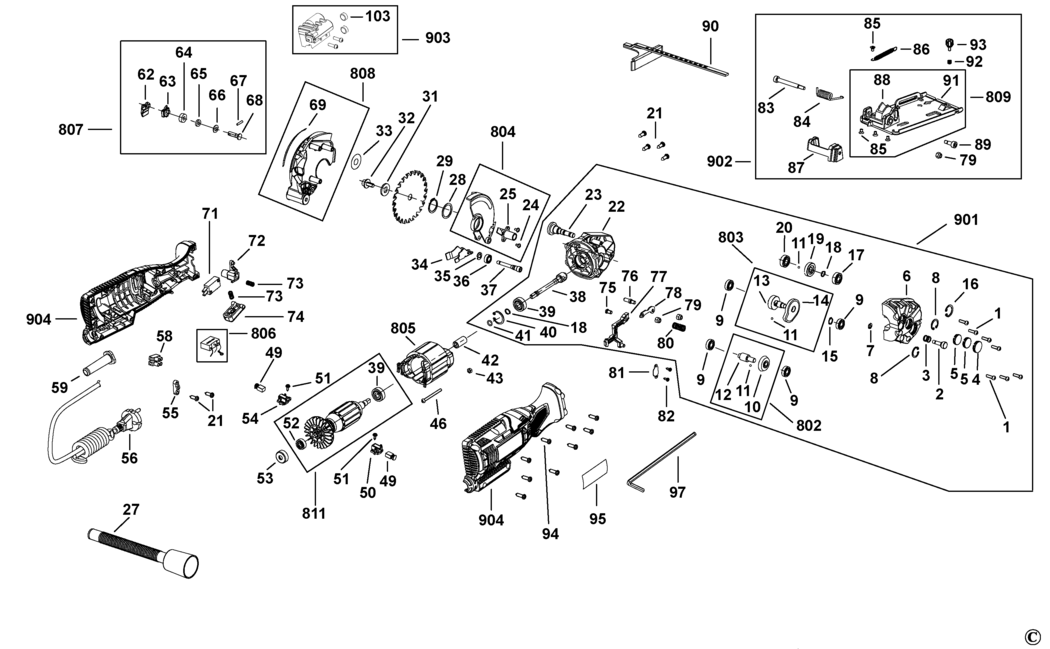

An exploded drawing and spare parts listing for the Stanley FME380 Type 1 Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-1004721-25 1004721-25	£1.50	£1.80
2 - SPINDLE LOCK BDE-1004721-26 1004721-26	£1.50	£1.80
3 - SPRING BDE-1004721-27 1004721-27	£1.50	£1.80
4 - CAP BDE-1004721-28 1004721-28	£1.50	£1.80
5 - CAP BDE-1004721-29 1004721-29	£1.50	£1.80
6 - GEARCASE COVER BDE-1004721-30 1004721-30	£9.41	£11.29
7 - HALF WASHER BDE-1004721-31 1004721-31	£1.50	£1.80
8 - CIRCLIP BDE-1004721-32 1004721-32	£1.50	£1.80
9 - BEARING BDE-1004721-33 1004721-33	£3.80	£4.56
10 - BEVEL GEAR BDE-1004721-34 1004721-34	£12.17	£14.60
11 - BALL STEEL BDE-1004721-35 1004721-35	£1.50	£1.80
12 - GEARSHAFT BDE-1004721-36 1004721-36	£9.41	£11.29
13 - SHAFT BDE-1004721-37 1004721-37	£12.17	£14.60
14 - GEAR BDE-1004721-38 1004721-38	£10.85	£13.02
15 - CIRCLIP BDE-1004721-39 1004721-39	£1.50	£1.80
16 - CIRCLIP BDE-1004721-40 1004721-40	£1.50	£1.80
17 - BEARING BDE-1004721-41 1004721-41	£2.78	£3.34
18 - CIRCLIP BDE-1004721-42 1004721-42	£1.50	£1.80
19 - GEAR BDE-1004721-43 1004721-43	£7.85	£9.42
20 - BEARING BDE-1004721-44 1004721-44	£3.80	£4.56
21 - SCREW BDE-1004721-45 1004721-45	£1.50	£1.80
22 - GEARBOX BDE-1004721-46 1004721-46	£16.03	£19.24
23 - SPINDLE BDE-1004721-47 1004721-47	£7.18	£8.62
24 - SCREW BDE-1004721-48 1004721-48	£1.50	£1.80
25 - ADAPTOR BDE-1004721-49 1004721-49	£1.50	£1.80
27 - PIPE BDE-1004721-50 1004721-50	£1.82	£2.19
28 - WASHER BDE-1004721-51 1004721-51	£1.50	£1.80
29 - CIRCLIP BDE-1004721-52 1004721-52	£1.50	£1.80
31 - OUTER FLANGE BDE-1004721-54 1004721-54	£1.82	£2.19
32 - LOCK SCREW BDE-1004721-55 1004721-55	£1.50	£1.80
33 - WASHER BDE-1004721-56 1004721-56	£1.50	£1.80
34 - BAFFLE BDE-1004721-57 1004721-57	£1.50	£1.80
35 - HALF WASHER BDE-1004721-58 1004721-58	£1.50	£1.80
36 - BEARING BDE-1004721-59 1004721-59	£3.30	£3.96
37 - SCREW BDE-1004721-60 1004721-60	£2.78	£3.34
38 - CONNECTING ROD BDE-1004721-61 1004721-61	£10.85	£13.02
39 - BEARING BDE-1004721-62 1004721-62	£2.78	£3.34
40 - CIRCLIP BDE-1004721-63 1004721-63	£1.50	£1.80
41 - O RING BDE-1004721-64 1004721-64	£1.50	£1.80
42 - SLEEVE BDE-1004721-65 1004721-65	£5.88	£7.06
43 - NUT BDE-1004721-66 1004721-66	£1.50	£1.80
46 - SCREW BDE-1004721-69 1004721-69	£1.50	£1.80
49 - BRUSH PAIR SA BDE-1004721-72 1004721-72	£3.30	£3.96
50 - HOLDER BDE-1004721-73 1004721-73	£2.26	£2.71
51 - SCREW BDE-1004721-74 1004721-74	£1.50	£1.80
52 - BEARING BDE-1004721-75 1004721-75	£2.78	£3.34
53 - SLEEVE BDE-1004721-76 1004721-76	£1.50	£1.80
54 - HOLDER BDE-1004721-77 1004721-77	£2.26	£2.71
55 - CORD CLAMP BDE-1004721-78 1004721-78	£1.50	£1.80
56 - CORDSET GB BDE-1004721-80 1004721-80	£24.39	£29.27
58 - CONNECTOR BDE-1004721-82 1004721-82	£1.50	£1.80
59 - CORD PROTECTOR BDE-1004721-83 1004721-83	£1.50	£1.80
62 - LOCK KNOB BDE-1004721-86 1004721-86	£1.50	£1.80
63 - INDICATOR BDE-1004721-87 1004721-87	£1.50	£1.80
64 - GUIDE BLOCK BDE-1004721-88 1004721-88	£1.50	£1.80
65 - LINER BDE-1004721-89 1004721-89	£1.50	£1.80
66 - WASHER BDE-1004721-90 1004721-90	£1.50	£1.80
67 - PIN BDE-1004721-91 1004721-91	£1.50	£1.80
68 - LOCK PIN BDE-1004721-92 1004721-92	£1.82	£2.19
69 - GAUGE BDE-1004721-93 1004721-93	£1.50	£1.80
71 - SWITCH BDE-1004721-94 1004721-94	£9.41	£11.29
72 - LEVER BDE-1004721-95 1004721-95	£1.50	£1.80
73 - SPRING BDE-1004721-96 1004721-96	£1.50	£1.80
74 - TRIGGER BDE-1004721-97 1004721-97	£1.50	£1.80
75 - SCREW BDE-1004721-98 1004721-98	£1.50	£1.80
76 - PIN BDE-1004722-00 1004722-00	£1.50	£1.80
77 - LINK BDE-1004722-01 1004722-01	£1.50	£1.80
78 - CONNECTOR BDE-1004722-02 1004722-02	£3.80	£4.56
79 - NUT BDE-1004722-03 1004722-03	£1.50	£1.80
80 - SPRING BDE-1004722-04 1004722-04	£1.50	£1.80
81 - CLAMP BDE-1004722-05 1004722-05	£1.50	£1.80
82 - SCREW BDE-1004722-06 1004722-06	£1.50	£1.80
83 - SCREW BDE-1004722-07 1004722-07	£1.50	£1.80
84 - SPRING TORSION BDE-1004722-08 1004722-08	£1.50	£1.80
85 - SCREW BDE-1004722-09 1004722-09	£1.50	£1.80
86 - SPRING BDE-1004722-10 1004722-10	£1.50	£1.80
87 - COVER BDE-1004722-11 1004722-11	£1.50	£1.80
88 - BLOCK BDE-1004722-12 1004722-12	£3.30	£3.96
89 - SCREW BDE-1004722-13 1004722-13	£1.50	£1.80
90 - GUIDE BDE-1004722-14 1004722-14	£2.78	£3.34
91 - BASE PLATE BDE-1004722-15 1004722-15	£12.17	£14.60
92 - SPRING BDE-1004722-16 1004722-16	£1.50	£1.80
93 - PLATE LOCK BDE-1004722-17 1004722-17	£1.50	£1.80
94 - SCREW BDE-1004722-18 1004722-18	£1.50	£1.80
95 - RATING PLATE GB BDE-1004722-19 1004722-19	£1.50	£1.80
97 - HEX KEY BDE-1004722-21 1004722-21	£1.50	£1.80
103 - BATTERY CELL BDE-1004722-22 1004722-22	£1.50	£1.80
802 - GEAR SA BDE-1004722-24 1004722-24	£18.91	£22.69
803 - GEAR SA BDE-1004722-25 1004722-25	£18.91	£22.69
804 - GUARD SA BDE-1004722-26 1004722-26	£12.17	£14.60
805 - FIELD SA BDE-1004722-27 1004722-27	£34.00	£40.80
806 - CAPACITOR SA BDE-1004722-28 1004722-28	£1.50	£1.80
807 - GAUGE BDE-1004722-29 1004722-29	£3.80	£4.56
808 - GUARD BDE-1004722-30 1004722-30	£12.17	£14.60
809 - BASEPLATE SA BDE-1004722-31 1004722-31	£16.03	£19.24
811 - ARMATURE SA BDE-1004722-32 1004722-32	£38.80	£46.56
901 - GEARBOX SA BDE-1004722-33 1004722-33	£104.31	£125.17
902 - SHOE SA BDE-1004722-34 1004722-34	£17.48	£20.97
903 - LASER BDE-1004722-35 1004722-35	£16.03	£19.24
904 - CLAMSHELL PAIR BDE-1004722-36 1004722-36	£45.14	£54.17

Attribute Name	Value
Brand	Stanley
