Dewalt DC305K Type 1 Cordless Reciprocating Saw Spare Parts

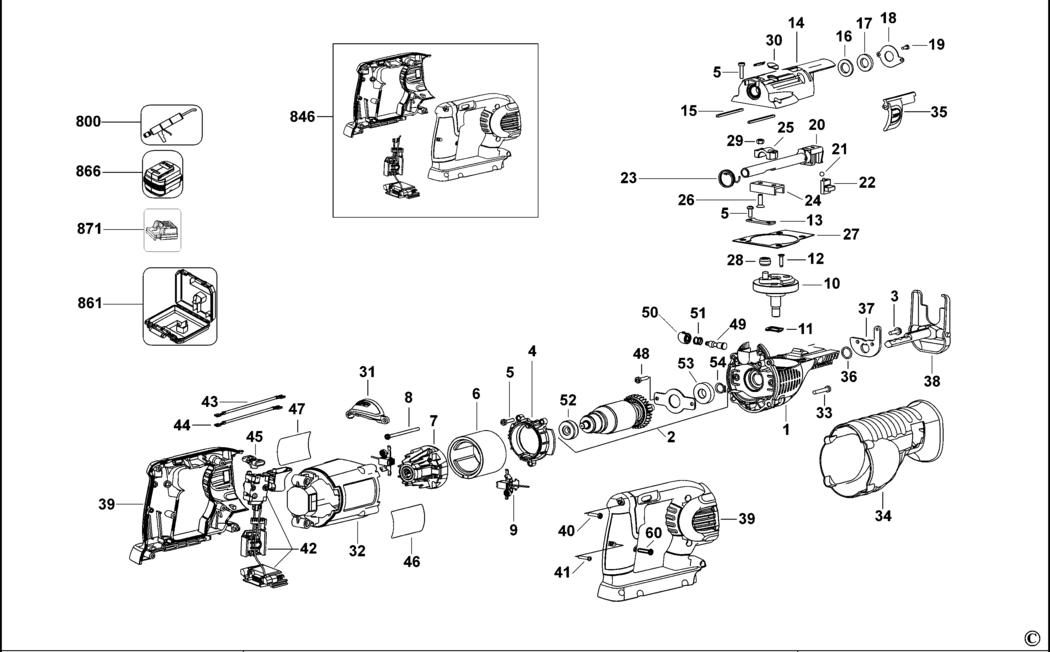

An exploded drawing and spare parts listing for the Dewalt DC305K Type 1 Cordless Reciprocating Saw

	Ex VAT	Inc VAT
1 - GEARCASE SA INCL.495051 BDE-613138-00SV.A6 613138-00SV	£47.08	£56.49
1 - GEARCASE SA INCL.495051 BDE-613138-00SV.A7 613138-00SV	£47.08	£56.49
2 - ARMATURE SA BDE-629923-00SV.A0 629923-00SV	£57.22	£68.66
2 - ARMATURE SA BDE-629923-00SV.A1 629923-00SV	£57.22	£68.66
3 - SCREW BDE-142940-00.A15 142940-00	£1.50	£1.80
3 - SCREW BDE-142940-00.A16 142940-00	£1.50	£1.80
4 - BAFFLE FAN BDE-613137-00.A1 613137-00	£3.22	£3.86
4 - BAFFLE FAN BDE-613137-00.A2 613137-00	£3.22	£3.86
5 - SCREW BDE-613619-00.A29 613619-00	£1.50	£1.80
5 - SCREW BDE-613619-00.A30 613619-00	£1.50	£1.80
6 - MAGNET BDE-611202-00SV.A22 611202-00SV	-
6 - MAGNET BDE-611202-00SV.A23 611202-00SV	-
7 - SUPPORT BEARING BDE-N171820.A24 N171820	-
7 - SUPPORT BEARING BDE-N171820.A25 N171820	-
8 - SCREW BDE-330019-25.A12 330019-25	£1.50	£1.80
8 - SCREW BDE-330019-25.A13 330019-25	£1.50	£1.80
9 - BRUSHBOX SA BDE-610126-00.A29 610126-00	£7.85	£9.42
9 - BRUSHBOX SA BDE-610126-00.A30 610126-00	£7.85	£9.42
10 - GEAR & SPINDLE BDE-615940-00SV.A7 615940-00SV	£41.24	£49.49
10 - GEAR & SPINDLE BDE-615940-00SV.A8 615940-00SV	£41.24	£49.49
11 - WASHER SPECIAL BDE-619618-00.A1 619618-00	£1.50	£1.80
11 - WASHER SPECIAL BDE-619618-00.A2 619618-00	£1.50	£1.80
12 - SCREW BDE-622484-00.A11 622484-00	£1.50	£1.80
12 - SCREW BDE-622484-00.A12 622484-00	£1.50	£1.80
13 - SUPPORT PLATE BDE-621173-00.A0 621173-00	£1.50	£1.80
13 - SUPPORT PLATE BDE-621173-00.A1 621173-00	£1.50	£1.80
14 - GEARCASE COVER BDE-N027851SV.A4 N027851SV	£34.00	£40.80
14 - GEARCASE COVER BDE-N027851SV.A5 N027851SV	£34.00	£40.80
15 - STRIP BDE-621979-00.A6 621979-00	£1.50	£1.80
15 - STRIP BDE-621979-00.A7 621979-00	£1.50	£1.80
16 - SEAL BDE-618733-00.A6 618733-00	£1.50	£1.80
16 - SEAL BDE-618733-00.A7 618733-00	£1.50	£1.80
17 - FELT SEAL BDE-618477-00.A4 618477-00	£1.50	£1.80
17 - FELT SEAL BDE-618477-00.A5 618477-00	£1.50	£1.80
18 - COVERPLATE BDE-N020720.A4 N020720	£1.50	£1.80
18 - COVERPLATE BDE-N020720.A5 N020720	£1.50	£1.80
19 - SCREW BDE-330045-43.A18 330045-43	£1.50	£1.80
19 - SCREW BDE-330045-43.A19 330045-43	£1.50	£1.80
20 - SHAFT SA BDE-N026647.A0 N026647	£38.80	£46.56
20 - SHAFT SA BDE-N026647.A1 N026647	£38.80	£46.56
21 - BALL BDE-000903-00.A92 000903-00	£12.17	£14.60
21 - BALL BDE-000903-00.A93 000903-00	£12.17	£14.60
22 - SLIDER BDE-622647-00.A14 622647-00	£4.69	£5.63
22 - SLIDER >2016 WK09 BDE-N252639.A13 N252639	£7.85	£9.42
22 - SLIDER <=2016 WK09 BDE-622647-00.A13 622647-00	£4.69	£5.63
23 - SPRING TORSION BDE-622659-00.A2 622659-00	£1.50	£1.80
23 - SPRING TORSION <=2016 WK09 BDE-622659-00.A3 622659-00	£1.50	£1.80
23 - SPRING >2016 WK09 BDE-N426742.A11 N426742	£1.50	£1.80
24 - SHAFT SA BDE-N026647.A2 N026647	£38.80	£46.56
24 - YOKE BDE-658115-00.A6 658115-00	£5.88	£7.06
25 - SADDLE BDE-617000-00.A6 617000-00	£3.30	£3.96
25 - SADDLE BDE-617000-00.A7 617000-00	£3.30	£3.96
26 - SCREW BDE-622486-00.A8 622486-00	£1.50	£1.80
26 - SCREW BDE-622486-00.A9 622486-00	£1.50	£1.80
27 - GASKET BDE-N063272.A3 N063272	£1.50	£1.80
27 - GASKET BDE-N063272.A4 N063272	£1.50	£1.80
28 - BEARING BDE-N021857.A6 N021857	£9.41	£11.29
29 - LOCK NUT BDE-622485-00.A1 622485-00	£1.50	£1.80
29 - LOCK NUT BDE-622485-00.A2 622485-00	£1.50	£1.80
30 - COVER BDE-621927-00.A5 621927-00	£1.50	£1.80
30 - COVER BDE-621927-00.A6 621927-00	£1.50	£1.80
31 - INSERT BDE-630958-00.A0 630958-00	£2.21	£2.65
31 - INSERT BDE-630958-00.A1 630958-00	£2.21	£2.65
32 - HOUSING MOTOR BDE-629919-00.A1 629919-00	£12.17	£14.60
32 - HOUSING MOTOR BDE-629919-00.A2 629919-00	£12.17	£14.60
33 - SCREW BDE-330019-45.A5 330019-45	£1.50	£1.80
33 - SCREW BDE-330019-45.A6 330019-45	£1.50	£1.80
34 - BOOT BDE-N084697.A5 N084697	£10.85	£13.02
34 - BOOT BDE-N084697.A6 N084697	£10.85	£13.02
35 - LEVER SA BDE-631014-00SV.A0 631014-00SV	£10.85	£13.02
35 - LEVER SA BDE-631014-00SV.A1 631014-00SV	£10.85	£13.02
36 - RING BDE-050049-00.A55 050049-00	£1.50	£1.80
36 - RING BDE-050049-00.A56 050049-00	£1.50	£1.80
37 - BRACKET BDE-617008-00.A4 617008-00	£1.50	£1.80
37 - BRACKET BDE-617008-00.A5 617008-00	£1.50	£1.80
38 - SHOE SA BDE-623511-01.A0 623511-01	£19.90	£23.88
38 - SHOE SA BDE-623511-01.A1 623511-01	£19.90	£23.88
39 - NO LONGER AVAILABLE - REF ITEM 846 UPTO DC 2006-(44-49) BDE-000000-07.A0 000000-07	-
39 - REPAIR KIT UPTO DC 2006-(44-49) BDE-649186-00.A2 649186-00	£112.86	£135.43
39 - CLAMSHELL SET FROM DC2006-49 BDE-648208-00.A1 648208-00	£25.70	£30.84
39 - NO LONGER AVAILABLE UPTO DC 2006-(44-49) BDE-000000-00.A94213 000000-00	-
39 - CLAMSHELL SET FROM DC2006-49 BDE-648208-00.A0 648208-00	£25.70	£30.84
40 - SCREW BDE-90611830.A172 90611830	£1.50	£1.80
40 - SCREW BDE-90611830.A173 90611830	£1.50	£1.80
41 - SCREW BDE-682211-00.A375 682211-00	£1.50	£1.80
41 - SCREW BDE-682211-00.A376 682211-00	£1.50	£1.80
42 - EXCHANGE UNIT UPTO DC 2006-(44-49) BDE-000000-02.A3 000000-02	-
42 - SWITCH SA FROM DC2006-49 BDE-628930-01 628930-01	£87.82	£105.39
42 - SWITCH SA FROM DC2006-49 BDE-N309759 N309759	-
42 - NO LONGER AVAILABLE - REF ITEM 846 UPTO DC 2006-(44-49) BDE-000000-07.A1 000000-07	-
43 - LEAD BROWN BDE-634813-00.A1 634813-00	£1.42	£1.70
43 - LEAD BROWN BDE-634813-00.A2 634813-00	£1.42	£1.70
44 - FUSE & HOLDER BDE-700000-00.A0 700000-00	£17.03	£20.44
44 - FUSE & HOLDER BDE-700000-00.A1 700000-00	£17.03	£20.44
45 - BUTTON LOCK-OFF BDE-630830-00.A2 630830-00	£1.42	£1.70
45 - BUTTON LOCK-OFF BDE-630830-00.A3 630830-00	£1.42	£1.70
46 - IDENTITY LABEL BDE-632248-00.A0 632248-00	£1.42	£1.70
46 - IDENTITY LABEL BDE-632248-00.A1 632248-00	£1.42	£1.70
47 - RATING PLATE GB BDE-N049654 N049654	£2.71	£3.25
48 - SCREW BDE-330045-45.A42 330045-45	£1.50	£1.80
48 - SCREW BDE-330045-45.A43 330045-45	£1.50	£1.80
49 - LOCK PIN BDE-615983-00.A4 615983-00	£1.50	£1.80
49 - LOCK PIN BDE-615983-00.A5 615983-00	£1.50	£1.80
50 - CAP BDE-617733-00.A2 617733-00	£1.50	£1.80
50 - CAP BDE-617733-00.A3 617733-00	£1.50	£1.80
51 - SPRING BDE-618427-00.A5 618427-00	£1.50	£1.80
51 - SPRING BDE-618427-00.A6 618427-00	£1.50	£1.80
52 - BEARING & SEAL BDE-391032-00.A10 391032-00	£3.80	£4.56
52 - BEARING & SEAL BDE-391032-00.A11 391032-00	£3.80	£4.56
53 - BEARING BDE-330003-64.A46 330003-64	£4.69	£5.63
53 - BEARING BDE-330003-64.A47 330003-64	£4.69	£5.63
54 - RETAINER BDE-696060-00.A17 696060-00	£1.50	£1.80
54 - RETAINER BDE-696060-00.A18 696060-00	£1.50	£1.80
55 - WARNING LABEL BDE-646547-00.A0 646547-00	-
60 - SCREW BDE-330019-03.A238 330019-03	£1.50	£1.80
60 - SCREW BDE-330019-03.A239 330019-03	£1.50	£1.80
800 - GREASE BDE-286436-00.A174 286436-00	£126.63	£151.96
800 - GREASE BDE-286436-00.A175 286436-00	£126.63	£151.96
846 - REPAIR KIT UPTO DC 2006-(44-49) BDE-649186-00.A0 649186-00	£112.86	£135.43
846 - REPAIR KIT UPTO DC 2006-(44-49) BDE-649186-00.A1 649186-00	£112.86	£135.43
861 - KITBOX BDE-648633-00.A1 648633-00	£91.27	£109.53
861 - KITBOX BDE-648633-00.A2 648633-00	£91.27	£109.53
866 - BATTERY 36V - 4.0AH - 144WH DC305M2 GB BDE-N394595.A7 N394595	£209.59	£251.51
866 - BATTERY 36V - 4.0AH - 144WH DC305KL GB BDE-N394595.A8 N394595	£209.59	£251.51
871 - CHARGER GB GB BDE-1006633-00.A17 1006633-00	£131.95	£158.34
