Dewalt D21585 Type 1 Diamond Drill Spare Parts

Home Details Reviews Delivery

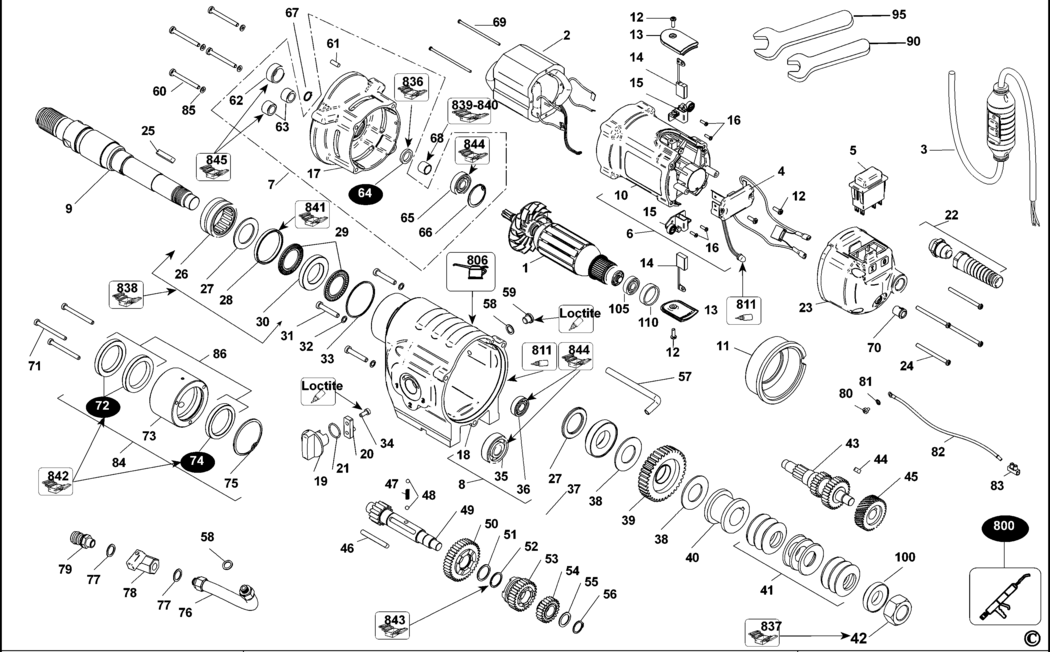

An exploded drawing and spare parts listing for the Dewalt D21585 Type 1 Diamond Drill

	Ex VAT	Inc VAT
1 - ROTOR GB BDE-1002677-00 1002677-00	£828.52	£994.22
1 - ROTOR LX BDE-1002678-00 1002678-00	£828.52	£994.22
2 - STATOR 230V GB BDE-1002679-00 1002679-00	£405.18	£486.22
2 - STATOR 115V LX BDE-1002680-00 1002680-00	£405.18	£486.22
3 - CORDSET GB BDE-493659-00 493659-00	£450.25	£540.30
3 - CORDSET LX BDE-493660-00 493660-00	£427.34	£512.81
4 - PCB LX BDE-1002682-00 1002682-00	£405.18	£486.22
4 - PCB GB BDE-1002681-00 1002681-00	£405.18	£486.22
5 - SWITCH BDE-1002683-00 1002683-00	£122.90	£147.48
6 - MOTOR HOUSING SA BDE-1002577-00.A3 1002577-00	£56.97	£68.36
7 - GEARCASE COVER BDE-1002684-00 1002684-00	£427.34	£512.81
8 - HOUSING GEARBOX BDE-1002685-00 1002685-00	£509.69	£611.63
9 - CLUTCH KIT BDE-1004442-00 1004442-00	£450.25	£540.30
9 - SPINDLE BDE-1002686-00 1002686-00	£346.79	£416.15
10 - HOUSING MOTOR BDE-492277-00.A1 492277-00	£56.97	£68.36
11 - BAFFLE BDE-1002687-00 1002687-00	£60.46	£72.55
12 - SCREW BDE-330065-06.A362 330065-06	£1.66	£1.99
13 - BRUSH COVER BDE-492282-00.A1 492282-00	£1.66	£1.99
14 - BRUSH & LEAD GB BDE-1002581-00.A3 1002581-00	£25.12	£30.15
14 - BRUSH & LEAD LX BDE-1002864-00.A2 1002864-00	£20.50	£24.60
15 - BRUSH HOLDER BDE-1002582-00.A0 1002582-00	£26.47	£31.76
16 - SCREW BDE-330065-25.A14 330065-25	£1.66	£1.99
17 - GEARCASE COVER BDE-492556-00 492556-00	£328.80	£394.56
18 - HOUSING GEARBOX BDE-492555-00 492555-00	£479.76	£575.71
19 - ACTUATOR BDE-1002688-00 1002688-00	£60.46	£72.55
20 - LEVER BDE-1002689-00 1002689-00	£42.48	£50.98
21 - O RING BDE-1002585-00.A2 1002585-00	£1.66	£1.99
22 - CORD PROTECTOR BDE-1002690-00 1002690-00	£15.63	£18.76
23 - END CAP BDE-492554-00 492554-00	£25.12	£30.15
24 - SCREW BDE-330019-19.A188 330019-19	£1.66	£1.99
25 - KEY BDE-1002691-00 1002691-00	£6.06	£7.27
26 - BEARING NEEDLE BDE-1002692-00 1002692-00	£135.41	£162.49
27 - WASHER BDE-1002693-00 1002693-00	£26.47	£31.76
28 - RING BDE-1002694-00 1002694-00	£19.48	£23.37
29 - BEARING NEEDLE BDE-1002695-00 1002695-00	£25.12	£30.15
30 - DISC BDE-1002696-00 1002696-00	£73.58	£88.30
31 - SCREW BDE-493897-00 493897-00	£1.66	£1.99
32 - WASHER LOCK BDE-1002697-00 1002697-00	£1.66	£1.99
33 - RING BDE-1002698-00 1002698-00	£3.39	£4.07
34 - SCREW BDE-1002654-00.A1 1002654-00	£1.66	£1.99
35 - BEARING BDE-1002699-00 1002699-00	£45.47	£54.56
36 - BEARING BDE-1002700-00 1002700-00	£18.91	£22.69
37 - DISC BDE-1002701-00 1002701-00	£62.77	£75.32
38 - BRAKE BDE-1002702-00 1002702-00	£9.69	£11.63
39 - GEAR BDE-1002703-00 1002703-00	£215.88	£259.06
40 - SLEEVE BDE-1002704-00 1002704-00	£122.90	£147.48
41 - WASHER BOW BDE-1002705-00 1002705-00	£16.52	£19.82
42 - NUT BDE-1002706-00 1002706-00	£11.18	£13.41
42 - NUT BDE-1004443-00 1004443-00	£16.52	£19.82
43 - SPINDLE & GEAR BDE-1002707-00 1002707-00	£239.35	£287.22
44 - KEY BDE-1002708-00 1002708-00	£1.66	£1.99
45 - GEAR BDE-1002709-00 1002709-00	£179.88	£215.85
46 - KEY BDE-1002710-00 1002710-00	£7.40	£8.88
47 - SPRING BDE-1002711-00 1002711-00	£3.39	£4.07
48 - BALL BDE-1002712-00 1002712-00	£1.66	£1.99
49 - GEAR & PINION BDE-1002713-00 1002713-00	£239.35	£287.22
50 - GEAR BDE-1002714-00 1002714-00	£239.35	£287.22
51 - DISC BDE-1002715-00 1002715-00	£3.39	£4.07
52 - CIRCLIP BDE-1002716-00 1002716-00	£3.39	£4.07
53 - GEAR BDE-1002717-00 1002717-00	£215.88	£259.06
54 - GEAR BDE-1002718-00 1002718-00	£239.35	£287.22
55 - RING BDE-1002719-00 1002719-00	£1.66	£1.99
56 - CIRCLIP BDE-1002720-00 1002720-00	£1.66	£1.99
57 - TUBE OIL BDE-1002721-00 1002721-00	£46.49	£55.79
58 - SEAL BDE-1002630-00.A0 1002630-00	£1.66	£1.99
59 - SCREW BDE-1002655-00.A0 1002655-00	£7.40	£8.88
60 - SCREW BDE-1002722-00 1002722-00	£3.30	£3.96
61 - PIN BDE-1002723-00 1002723-00	£1.66	£1.99
62 - BEARING BDE-1002724-01 1002724-01	£30.98	£37.18
63 - BEARING BDE-1002725-01 1002725-01	£38.48	£46.17
64 - SEAL BDE-1002623-10.A3 1002623-10	£18.00	£21.60
65 - BEARING BDE-1002726-00 1002726-00	£35.02	£42.02
66 - CIRCLIP BDE-1002727-00 1002727-00	£1.66	£1.99
67 - CIRCLIP BDE-1002728-00 1002728-00	£1.66	£1.99
68 - BUSH BDE-1002729-00 1002729-00	£30.98	£37.18
69 - SCREW BDE-1002730-00 1002730-00	£6.06	£7.27
70 - HOLDER BDE-1002624-00.A0 1002624-00	£3.39	£4.07
71 - SCREW BDE-493898-00 493898-00	£1.66	£1.99
72 - SEAL BDE-1002731-00 1002731-00	£71.44	£85.73
73 - RING BDE-1002732-00 1002732-00	£46.49	£55.79
74 - SEAL BDE-1002733-00 1002733-00	£73.58	£88.30
75 - CIRCLIP BDE-1002640-00.A1 1002640-00	£3.39	£4.07
76 - HOSE SA BDE-1002629-00.A0 1002629-00	£45.47	£54.56
77 - SEAL BDE-1002626-00.A2 1002626-00	£1.66	£1.99
78 - VALVE BDE-1002734-00 1002734-00	£45.47	£54.56
79 - CONNECTOR BDE-1002628-00.A1 1002628-00	£18.00	£21.60
80 - SCREW BDE-1002735-00 1002735-00	£1.66	£1.99
81 - WASHER LOCK BDE-1002594-00.A1 1002594-00	£1.66	£1.99
82 - LEAD EARTH BDE-1002736-00 1002736-00	£6.06	£7.27
83 - TERMINAL BLOCK BDE-1002737-00 1002737-00	£1.66	£1.99
84 - COLLAR SA BDE-1002738-00 1002738-00	£239.35	£287.22
85 - SEAL BDE-1002750-00 1002750-00	£1.66	£1.99
86 - SEAL SA BDE-1003197-00 1003197-00	£206.80	£248.16
90 - SPANNER BDE-1004303-00.A0 1004303-00	£19.48	£23.37
95 - SPANNER BDE-1004304-00.A1 1004304-00	£35.02	£42.02
100 - SPACER BDE-1004444-00 1004444-00	£12.53	£15.04
105 - BEARING BALL BDE-1003777-00.A3 1003777-00	£30.98	£37.18
110 - SLEEVE INSULATING BDE-1003776-00.A0 1003776-00	£12.53	£15.04
800 - GREASE BDE-1003362-00.A0 1003362-00	£26.47	£31.76
806 - OIL BDE-1003363-00.A3 1003363-00	£86.95	£104.34
811 - TUBE SILICONE BDE-1003464-00.A2 1003464-00	£80.46	£96.55
836 - S.T.SEAL FITTING TOOL BDE-559673-99.A1 559673-99	£19.48	£23.37
837 - S.T.SUPPORT JIG BDE-559676-99.A2 559676-99	£67.48	£80.98
838 - S.T.BEARING EXTRACTOR BDE-559679-99 559679-99	£42.48	£50.98
839 - S.T.MANDREL BDE-559682-99 559682-99	£10.85	£13.02
840 - S.T.SUPPORT JIG BDE-559683-99 559683-99	£10.85	£13.02
841 - S.T.INSERTION TOOL BDE-559684-99 559684-99	£9.41	£11.29
842 - S.T.SEAL FITTING TOOL BDE-559685-99 559685-99	£30.98	£37.18
843 - S.T.CIRCLIP INSERTER BDE-559688-99 559688-99	£17.48	£20.97
844 - S.T.BEARING INSERTOR BDE-559689-99.A0 559689-99	£60.46	£72.55
845 - S.T.BEARING INSERTOR BDE-559690-99.A0 559690-99	£26.47	£31.76

Attribute Name	Value
Brand	Dewalt
