Dewalt D21582K Type 1 Diamond Drill Spare Parts

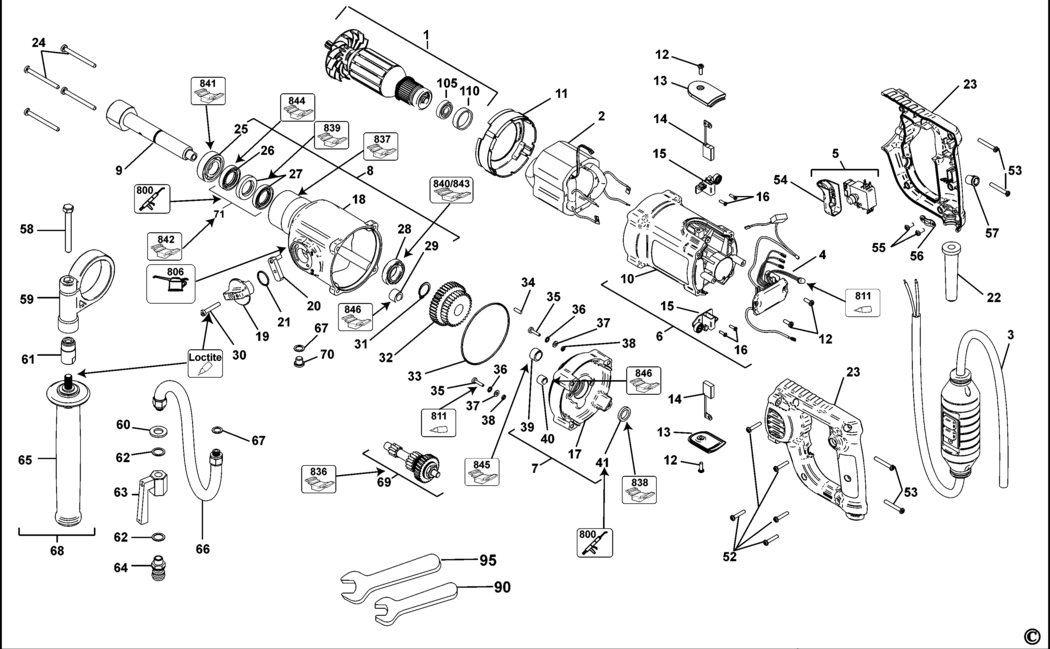

An exploded drawing and spare parts listing for the Dewalt D21582K Type 1 Diamond Drill

	Ex VAT	Inc VAT
1 - ROTOR LX BDE-1002572-00.A1 1002572-00	£218.32	£261.98
1 - ROTOR GB BDE-1002571-00.A0 1002571-00	£218.32	£261.98
2 - STATOR 230V GB BDE-1002575-00.A0 1002575-00	£104.31	£125.17
2 - STATOR 115V LX BDE-1002576-00.A2 1002576-00	£144.10	£172.92
3 - CORDSET GB BDE-1002742-00.A1 1002742-00	£437.13	£524.56
3 - CORDSET LX BDE-1002743-00.A0 1002743-00	£465.78	£558.94
4 - PCB LX BDE-1002618-00.A1 1002618-00	£174.63	£209.56
4 - PCB GB BDE-1002617-00.A1 1002617-00	£218.32	£261.98
5 - SWITCH BDE-492301-00.A1 492301-00	£58.69	£70.43
6 - MOTOR HOUSING SA BDE-1002577-00.A0 1002577-00	£55.30	£66.36
7 - GEARCASE COVER BDE-1002578-00.A1 1002578-00	£232.38	£278.85
8 - HOUSING GEARBOX BDE-1002620-00 1002620-00	£523.98	£628.77
9 - SPINDLE BDE-1002621-00 1002621-00	£209.59	£251.51
10 - HOUSING MOTOR BDE-492277-00.A2 492277-00	£55.30	£66.36
11 - GUIDE BDE-492283-00.A1 492283-00	£16.03	£19.24
12 - SCREW BDE-330065-06.A219 330065-06	£1.50	£1.80
13 - BRUSH COVER BDE-492282-00.A2 492282-00	£1.50	£1.80
14 - BRUSH & LEAD GB BDE-1002581-00.A1 1002581-00	£24.39	£29.27
14 - BRUSH & LEAD LX BDE-1002864-00.A0 1002864-00	£19.90	£23.88
15 - BRUSH HOLDER BDE-1002582-00.A2 1002582-00	£25.70	£30.84
16 - SCREW BDE-330065-25.A50 330065-25	£1.50	£1.80
17 - GEARCASE COVER BDE-492281-00.A1 492281-00	£115.77	£138.92
18 - HOUSING GEARBOX BDE-1002739-00 1002739-00	£258.10	£309.72
19 - SELECTOR BDE-1002583-00.A1 1002583-00	£38.80	£46.56
20 - LEVER BDE-1002584-00.A0 1002584-00	£41.24	£49.49
21 - O RING BDE-1002585-00.A1 1002585-00	£1.50	£1.80
22 - CORD PROTECTOR BDE-1002586-00.A1 1002586-00	£9.41	£11.29
23 - HOUSING HANDLE BDE-492273-00.A1 492273-00	£38.80	£46.56
24 - SCREW BDE-330019-19.A137 330019-19	£1.50	£1.80
25 - BEARING BDE-1002587-00.A1 1002587-00	£41.24	£49.49
26 - SEAL BDE-1002588-00.A0 1002588-00	£71.44	£85.73
27 - SEAL BDE-1002622-00 1002622-00	£37.35	£44.82
28 - BEARING BDE-1002590-00.A0 1002590-00	£51.90	£62.28
29 - BEARING NEEDLE BDE-1002589-00.A1 1002589-00	£38.80	£46.56
30 - SCREW BDE-493899-00.A0 493899-00	£1.50	£1.80
31 - CIRCLIP BDE-1002591-00.A1 1002591-00	£1.50	£1.80
32 - GEAR BDE-1002592-00.A0 1002592-00	£131.46	£157.75
33 - RING BDE-1002597-00.A1 1002597-00	£7.18	£8.62
34 - PIN BDE-1002598-00.A1 1002598-00	£1.50	£1.80
35 - SCREW BDE-1002593-00.A1 1002593-00	£1.50	£1.80
36 - WASHER LOCK BDE-1002594-00.A2 1002594-00	£1.50	£1.80
37 - DISC BDE-1002595-00.A1 1002595-00	£1.50	£1.80
38 - RING BDE-1002596-00.A1 1002596-00	£1.50	£1.80
39 - BEARING NEEDLE BDE-1002599-00.A1 1002599-00	£19.90	£23.88
40 - BEARING NEEDLE BDE-1002600-00.A0 1002600-00	£25.70	£30.84
41 - SEAL BDE-1002623-10.A0 1002623-10	£17.48	£20.97
52 - SCREW BDE-330065-09.A51 330065-09	£1.50	£1.80
53 - SCREW BDE-330019-15.A60 330019-15	£1.50	£1.80
54 - TRIGGER BDE-492302-00.A0 492302-00	£3.30	£3.96
55 - SCREW BDE-330065-05.A62 330065-05	£1.50	£1.80
56 - CORD CLAMP BDE-1002613-00.A2 1002613-00	£3.30	£3.96
57 - HOLDER BDE-1002624-00.A3 1002624-00	£3.30	£3.96
58 - SCREW BDE-1002614-00.A0 1002614-00	£3.30	£3.96
59 - COLLAR BDE-492326-00.A1 492326-00	£47.08	£56.49
60 - DISC BDE-1002625-00 1002625-00	£18.91	£22.69
61 - ADAPTOR BDE-492548-00.A1 492548-00	£45.14	£54.17
62 - SEAL BDE-1002626-00.A0 1002626-00	£1.50	£1.80
63 - VALVE BDE-1002627-00 1002627-00	£37.35	£44.82
64 - CONNECTOR BDE-1002628-00.A0 1002628-00	£17.48	£20.97
65 - HANDLE BDE-N021120.A37 N021120	£14.57	£17.48
66 - HOSE SA BDE-1002629-00.A1 1002629-00	£44.14	£52.97
67 - SEAL BDE-1002630-00.A2 1002630-00	£1.50	£1.80
68 - HANDLE SIDE SA BDE-1002615-00.A1 1002615-00	£119.32	£143.19
69 - CLUTCH SA BDE-1002616-00 1002616-00	£245.11	£294.13
70 - SCREW BDE-1002655-00.A2 1002655-00	£7.18	£8.62
71 - SEAL SA BDE-1003199-00 1003199-00	£135.36	£162.43
90 - SPANNER BDE-1004303-00.A2 1004303-00	£18.91	£22.69
95 - SPANNER BDE-868111-00.A1 868111-00	£7.85	£9.42
105 - BEARING BALL BDE-1003777-00.A1 1003777-00	£30.08	£36.10
110 - SLEEVE INSULATING BDE-1003776-00.A2 1003776-00	£12.17	£14.60
800 - GREASE BDE-1003362-00.A2 1003362-00	£25.70	£30.84
806 - OIL BDE-1003363-00.A1 1003363-00	£84.42	£101.30
811 - TUBE SILICONE BDE-1003464-00.A0 1003464-00	£78.12	£93.74
836 - S.T.ASSEMBLY JIG BDE-559671-99.A1 559671-99	£41.24	£49.49
837 - S.T.SUPPORT JIG BDE-559672-99.A1 559672-99	£41.24	£49.49
838 - S.T.SEAL FITTING TOOL BDE-559673-99.A2 559673-99	£9.41	£11.29
839 - S.T.SEAL FITTING TOOL BDE-559674-99.A1 559674-99	£14.57	£17.48
840 - S.T.BEARING EXTRACTOR BDE-559675-99.A0 559675-99	£7.85	£9.42
841 - S.T.SUPPORT JIG BDE-559676-99.A1 559676-99	£30.08	£36.10
842 - SERVICE TOOL BDE-559677-99.A1 559677-99	£14.57	£17.48
843 - S.T.BEARING INSERTOR BDE-559678-99.A1 559678-99	£10.85	£13.02
844 - S.T.SEAL FITTING TOOL BDE-559680-99 559680-99	£12.17	£14.60
845 - S.T.BEARING INSERTOR BDE-559690-99.A1 559690-99	£10.85	£13.02
846 - S.T.BEARING INSERTOR BDE-559692-99.A1 559692-99	£10.85	£13.02
