Fein ASCM 18 QSW / 71161200940 Spare Parts

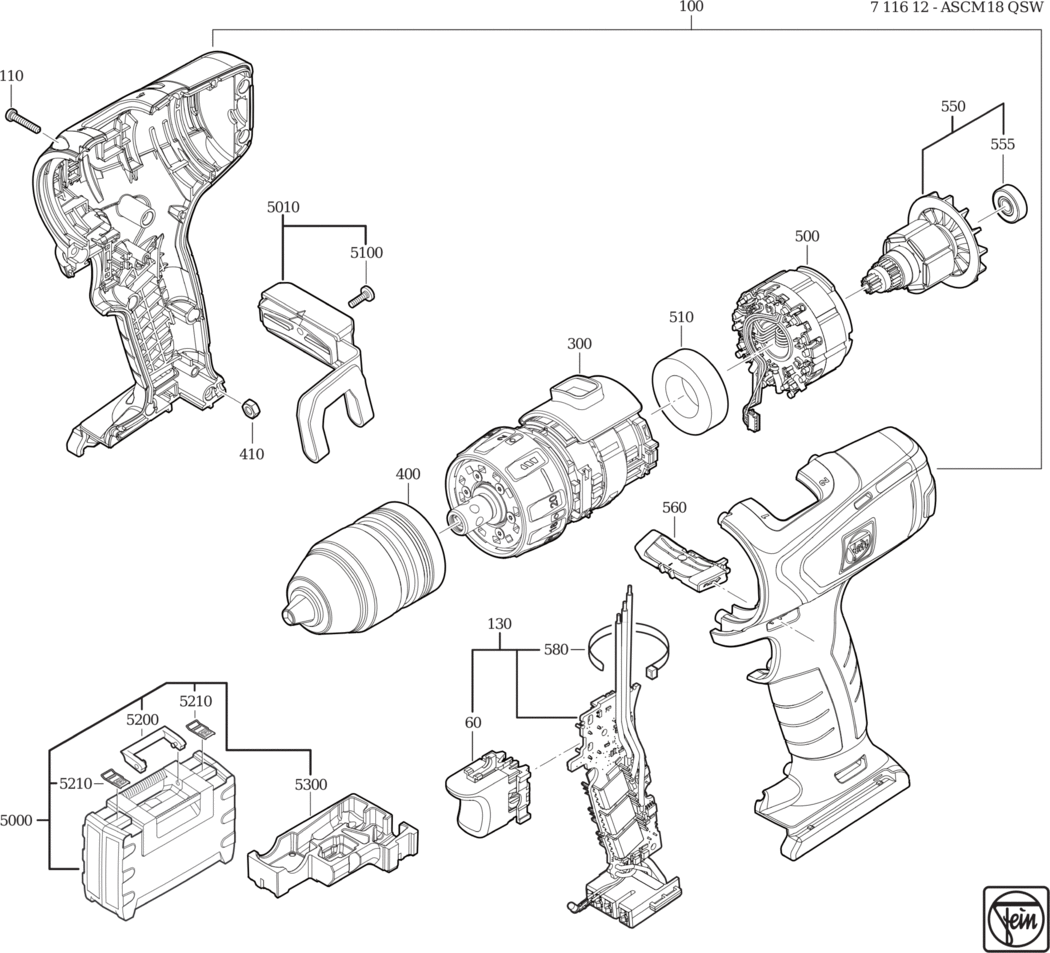

An exploded diagram and spare parts listing for the Fein ASCM 18 QSW / 71161200940

	Ex VAT	Inc VAT
60 - SWITCH FEI-30732025010.A3 30732025010	£12.58	£15.10
100 - MOTOR HOUSING FEI-31912114010.A0 31912114010	£33.17	£39.80
110 - SCREW FEI-43072015000.A59 43072015000	£1.60	£1.92
130 - ELECTRONICS WITH SWITCH FEI-30762592990.A0 30762592990	£124.82	£149.79
300 - GEARBOX FEI-30109211010.A1 30109211010	£100.47	£120.56
400 - DRILL CHUCK FEI-63208005010.A1 63208005010	£69.78	£83.74
410 - HEX NUT FEI-42001027045.A22 42001027045	£1.60	£1.92
500 - STATOR FEI-51113005920.A1 51113005920	£56.51	£67.81
510 - INSULATING RING FEI-31419074000.A1 31419074000	-
550 - ROTOR FEI-33101009010.A1 33101009010	-
555 - GROOVED BALL BEARING FEI-41701235033.A20 41701235033	£13.80	£16.56
560 - TOGGLE SWITCH FEI-30701310010.A1 30701310010	£2.90	£3.48
580 - CABLE TIE FEI-30234039000.A6 30234039000	-
5000 - PLASTIC TOOL CASES FEI-33901157320.A0 33901157320	£76.38	£91.66
5010 - HOLDER FEI-34011610020.A4 34011610020	-
5100 - SCREW FEI-31347024000.A3 31347024000	-
5200 - HANDLE FEI-32119122000.A98 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A171 30232050000	£10.78	£12.94
5300 - INSERT FEI-33904493000.A10 33904493000	£31.19	£37.43
