Fein ASCM 14 (14.40V) / 71160500950 Spare Parts

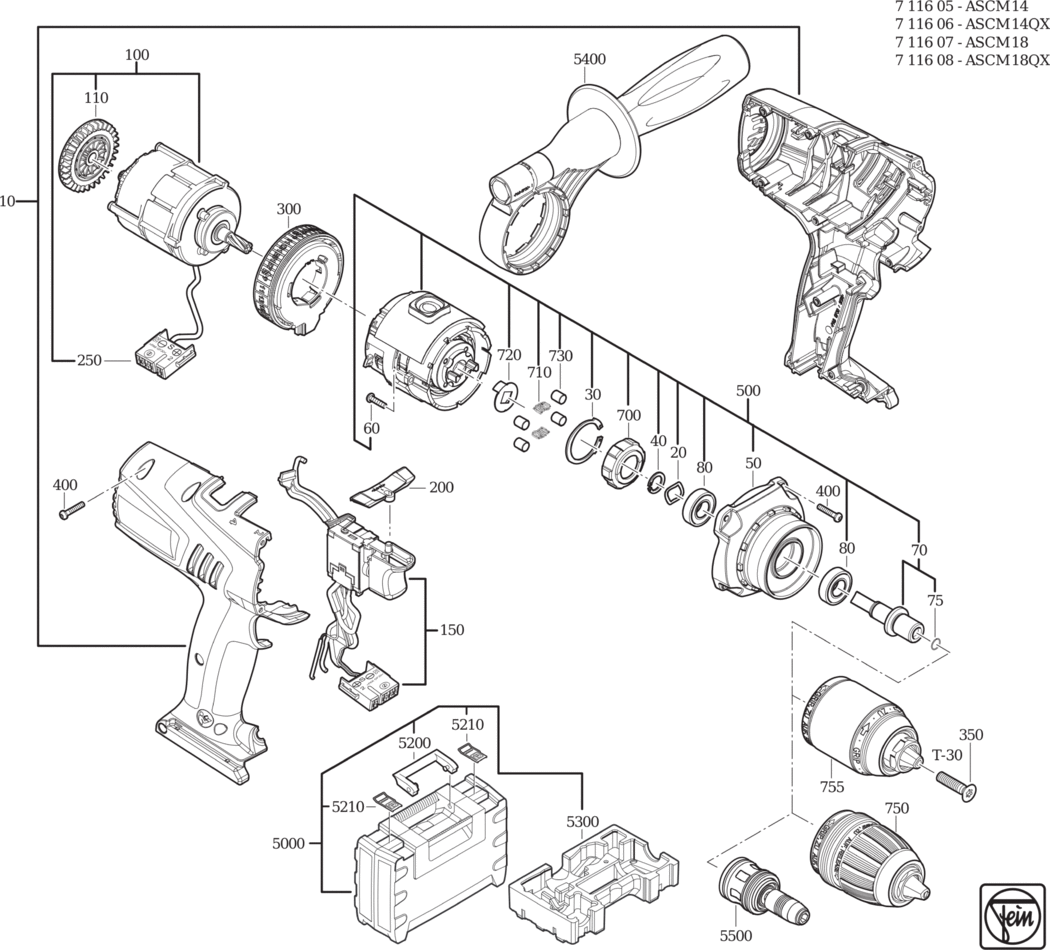

An exploded diagram and spare parts listing for the Fein ASCM 14 (14.40V) / 71160500950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912117010.A1 31912117010	-
20 - DISC FEI-30235026000.A2 30235026000	£1.60	£1.92
30 - CIRCLIP FEI-31305457000.A1 31305457000	-
40 - CIRCLIP FEI-42616013001.A47 42616013001	£1.60	£1.92
50 - HOUSING FEI-32436075000.A6 32436075000	£31.58	£37.90
60 - SCREW FEI-33024075000.A7 33024075000	-
70 - SHAFT FEI-33403119000.A3 33403119000	-
80 - GROOVED BALL BEARING FEI-31305456000.A6 31305456000	-
100 - MOTOR FEI-54113002810.A2 54113002810	£214.40	£257.28
110 - FAN WHEEL FEI-31004051000.A2 31004051000	-
150 - SWITCH FEI-30701318960.A2 30701318960	-
200 - TOGGLE SWITCH FEI-32805308000.A1 32805308000	-
250 - PLUG 14 4V FEI-30703055000.A4 30703055000	£5.22	£6.27
300 - ADJUSTING RING FEI-32816074010.A7 32816074010	£51.48	£61.78
350 - SCREW FEI-43075000004.A3 43075000004	£2.24	£2.69
400 - SCREW FEI-43072015000.A1 43072015000	£1.60	£1.92
500 - GEARBOX FEI-30109209010.A0 30109209010	£119.72	£143.67
700 - SPINDLE LOCK FEI-30240320000.A4 30240320000	-
710 - SPRING FEI-30240322000.A0 30240322000	-
720 - HOLDER FEI-30240323000.A4 30240323000	-
730 - ROLLER FEI-30240318000.A4 30240318000	-
755 - DRILL CHUCK FEI-63205037020.A4 63205037020	£37.99	£45.59
5000 - TOOL CASE FEI-33901128580.A7 33901128580	£61.28	£73.54
5200 - HANDLE FEI-32119122000.A19 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A65 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904580000.A2 33904580000	-
9000 - OPERATING INSTRUCTIONS FEI-34101193060.A1 34101193060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A36 34130054061	-
