Fein ASCS 4.8 (14.40V) / 71131000950 Spare Parts

Fein ASCS 4.8 ⠔.40V) / 71131000950 Spare Parts

Home Details Reviews Delivery

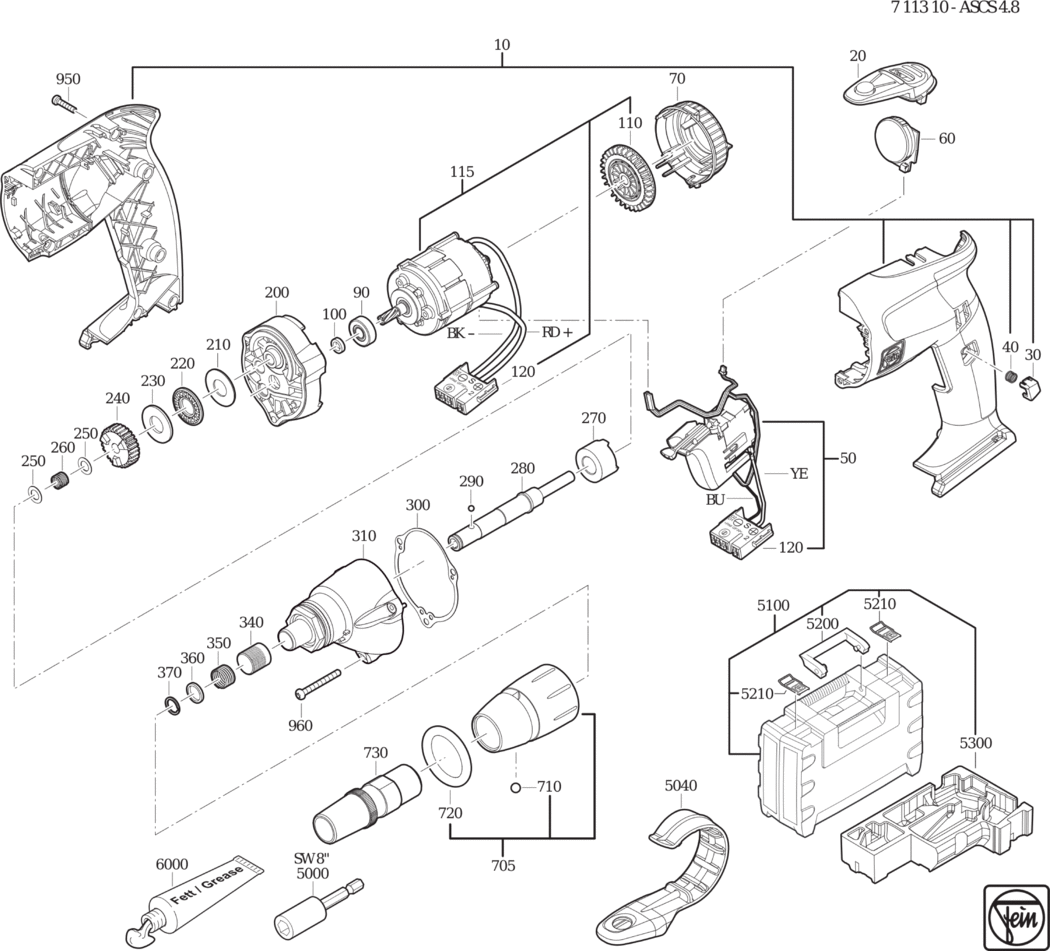

An exploded diagram and spare parts listing for the Fein ASCS 4.8 (14.40V) / 71131000950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A0 31912104020	£45.22	£54.27
20 - PRESSURE PIECE FEI-30240297000.A0 30240297000	£7.60	£9.12
30 - STOP BUTTON FEI-32816063000.A5 32816063000	£3.01	£3.61
40 - SPIRAL SPRING FEI-30901387000.A8 30901387000	-
50 - SWITCH FEI-30701318980.A1 30701318980	-
60 - SPEED SETTING SWITCH FEI-30762428020.A0 30762428020	£45.65	£54.78
70 - AIR GUIDE RING FEI-31428172000.A5 31428172000	-
90 - GROOVED BALL BEARING FEI-41701027250.A7 41701027250	£8.08	£9.69
100 - SEALING RING FEI-32612084001.A19 32612084001	£3.44	£4.13
110 - FAN WHEEL FEI-31004051000.A5 31004051000	-
115 - MOTOR FEI-54113005800.A0 54113005800	£201.00	£241.20
120 - PLUG 14 4V FEI-30703055000.A0 30703055000	£5.22	£6.27
200 - INTERMEDIATE GEAR BOX FEI-31506367014.A14 31506367014	£19.38	£23.25
210 - DISC FEI-41719026007.A16 41719026007	£2.82	£3.38
220 - NEEDLE CAGE FEI-41715029009.A0 41715029009	£5.91	£7.09
230 - DISC FEI-32408395000.A0 32408395000	£10.88	£13.05
240 - GEAR-WHEEL Z=43 FEI-33657182000.A0 33657182000	-
250 - DISC FEI-32624094032.A13 32624094032	£1.60	£1.92
260 - SPIRAL SPRING FEI-30901139007.A14 30901139007	£1.60	£1.92
270 - CLUTCH RING FEI-30103056000.A0 30103056000	£20.30	£24.36
280 - TOOL HOLDER FEI-30104141000.A0 30104141000	£44.48	£53.37
290 - BALL FEI-41708015005.A13 41708015005	£1.60	£1.92
300 - SEAL FEI-30610041000.A14 30610041000	-
310 - GEARBOX HOUSING FEI-31508293010.A0 31508293010	-
340 - SLEEVE FEI-30503144002.A11 30503144002	£10.39	£12.47
350 - SPIRAL SPRING FEI-30901315002.A25 30901315002	£3.92	£4.70
360 - RING FEI-32601242005.A37 32601242005	£6.76	£8.11
370 - CIRCLIP FEI-42615081002.A37 42615081002	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A32 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A29 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A23 40612071009	£3.89	£4.67
730 - STOP SLEEVE FEI-32127043000.A1 32127043000	£32.65	£39.18
950 - SCREW FEI-43074010000.A24 43074010000	£1.60	£1.92
960 - SCREW FEI-43072010009.A36 43072010009	£1.60	£1.92
5000 - BITS 1/4 IN FOR HEXAGON SOCKET SCREWS FEI-60505015001.A2 60505015001	£28.94	£34.73
5040 - HOLDER FEI-64203001000.A7 64203001000	£9.37	£11.24
5100 - TOOL CASE FEI-33901131030.A0 33901131030	£78.68	£94.41
5200 - HANDLE FEI-32119122000.A147 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A218 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904430000.A1 33904430000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A132 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A631 34130054061	-
