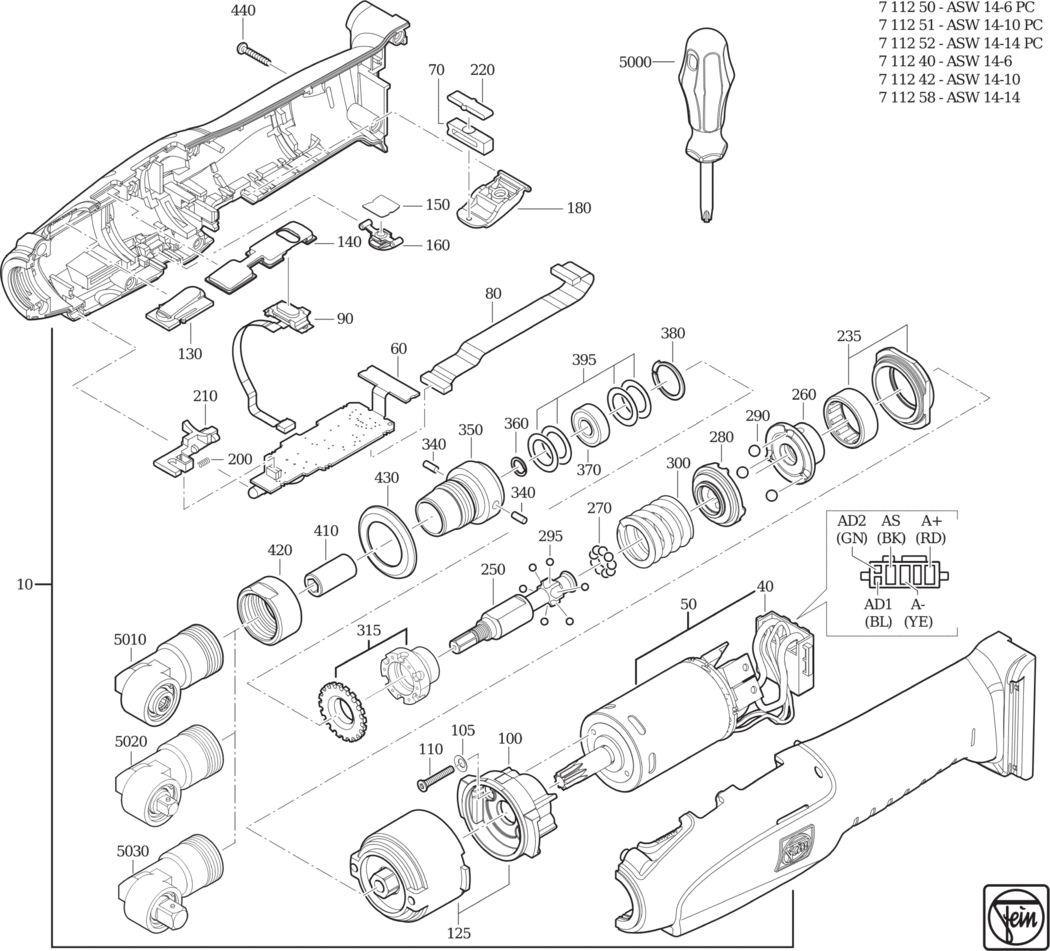

An exploded diagram and spare parts listing for the Fein ASW 14-6 PC (14.40V) / 71125000950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912105010.A7 31912105010	£67.24	£80.69
40 - PLUG FEI-30703058000.A1 30703058000	-
50 - MOTOR FEI-54199046800.A0 54199046800	-
60 - ELECTRONICS FEI-30762433990.A7 30762433990	£215.82	£258.98
70 - PRESSURE PIECE FEI-30220065000.A16 30220065000	-
80 - CONNECTING CABLE FEI-30719845010.A12 30719845010	-
90 - FOIL CONDUCTOR FEI-30762377020.A10 30762377020	-
100 - FLANGE FEI-32436074000.A16 32436074000	-
105 - CIRCLIP M4 FEI-42443003043.A59 42443003043	£1.60	£1.92
110 - COUNTERSUNK SCREW FEI-43075001030.A16 43075001030	-
125 - PLANETARY GEAR FEI-30109196020.A1 30109196020	-
130 - COVER FEI-32424025004.A16 32424025004	-
140 - COVER FEI-32424026000.A10 32424026000	-
150 - LEAF SPRING FEI-30904043000.A6 30904043000	-
160 - SWITCH PUSHBUTTON FEI-32805221000.A11 32805221000	-
180 - SWITCH PUSHBUTTON FEI-32805220000.A6 32805220000	-
200 - SPIRAL SPRING FEI-30901379000.A10 30901379000	-
210 - SLIDE SWITCH FEI-32804003010.A7 32804003010	-
220 - SWITCH PUSHBUTTON FEI-32816710000.A6 32816710000	-
235 - BUSH FEI-30508040010.A0 30508040010	-
250 - TOOL HOLDER FEI-30104143000.A6 30104143000	-
260 - CLUTCH RING FEI-30103051001.A8 30103051001	-
270 - BALL FEI-41708017002.A84 41708017002	£1.60	£1.92
280 - CLUTCH RING FEI-30103052000.A39 30103052000	-
290 - BALL FEI-41708018000.A2 41708018000	£1.60	£1.92
295 - BALL FEI-41708018000.A3 41708018000	£1.60	£1.92
300 - SPIRAL SPRING FEI-30901388000.A1 30901388000	-
315 - PRESSURE PIECE SET FEI-32602092010.A48 32602092010	-
340 - STRAIGHT PIN FEI-40201022008.A27 40201022008	-
350 - FLANGE FEI-32436073000.A1 32436073000	-
360 - CIRCLIP FEI-42615090002.A27 42615090002	£1.60	£1.92
370 - GROOVED BALL BEARING FEI-41701001260.A427 41701001260	£7.11	£8.53
380 - CIRCLIP FEI-42616033009.A71 42616033009	£1.60	£1.92
395 - DISC SET FEI-32624192990.A7 32624192990	-
410 - CLUTCH PART FEI-30101038000.A2 30101038000	-
420 - THREAD RING FEI-30509048000.A1 30509048000	-
430 - SLEEVE GRÃœN/GREEN FEI-30501354000.A2 30501354000	-
440 - SCREW FEI-43072015000.A76 43072015000	£1.60	£1.92
5000 - ADJUSTMENT SPANNER - TORQUE FEI-32123002006.A20 32123002006	£15.36	£18.43
5010 - ANGLED HEAD BASIC FEI-90102012010.A12 90102012010	£613.88	£736.66
5020 - ANGLED HEAD BASIC FEI-90102014010.A11 90102014010	£705.08	£846.09
5030 - ANGLED HEAD BASIC FEI-90102013010.A0 90102013010	£613.88	£736.66
9020 - SAFETY INSTRUCTION FEI-34130054061.A553 34130054061	-
