Fein ASW 14-14 PC (14.40V) / 71125200950 Spare Parts

Fein ASW 14-14 PC ⠔.40V) / 71125200950 Spare Parts

Home Details Reviews Delivery

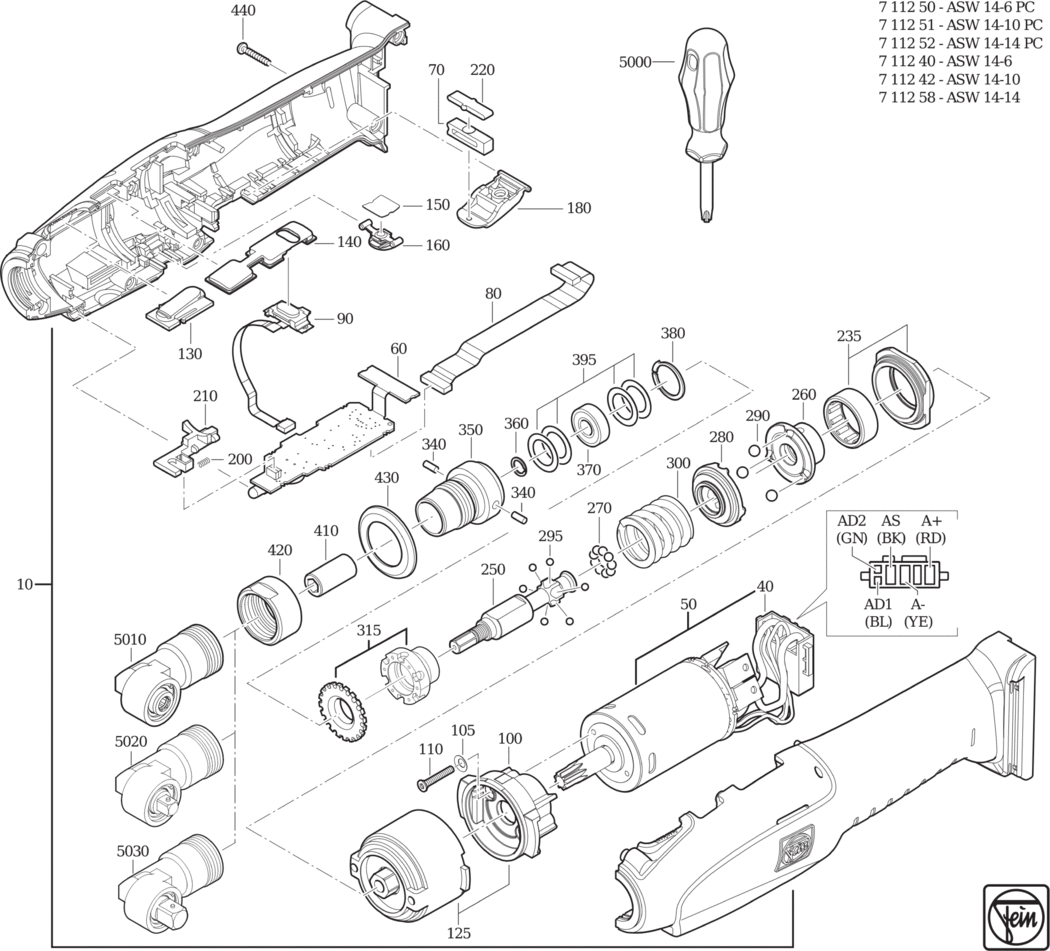

An exploded diagram and spare parts listing for the Fein ASW 14-14 PC (14.40V) / 71125200950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912105010.A2 31912105010	£67.24	£80.69
40 - PLUG FEI-30703058000.A3 30703058000	-
50 - MOTOR FEI-54199048800.A0 54199048800	-
60 - ELECTRONICS FEI-30762433990.A1 30762433990	£215.82	£258.98
70 - PRESSURE PIECE FEI-30220065000.A13 30220065000	-
80 - CONNECTING CABLE FEI-30719845010.A8 30719845010	-
90 - FOIL CONDUCTOR FEI-30762377020.A16 30762377020	-
100 - FLANGE FEI-32436074000.A12 32436074000	-
105 - CIRCLIP M4 FEI-42443003043.A149 42443003043	£1.60	£1.92
110 - COUNTERSUNK SCREW FEI-43075001030.A10 43075001030	-
125 - PLANETARY GEAR FEI-30109197020.A2 30109197020	-
130 - COVER FEI-32424025004.A2 32424025004	-
140 - COVER FEI-32424026000.A15 32424026000	-
150 - LEAF SPRING FEI-30904043000.A5 30904043000	-
160 - SWITCH PUSHBUTTON FEI-32805221000.A12 32805221000	-
180 - SWITCH PUSHBUTTON FEI-32805220000.A5 32805220000	-
200 - SPIRAL SPRING FEI-30901379000.A14 30901379000	-
210 - SLIDE SWITCH FEI-32804003010.A0 32804003010	-
220 - SWITCH PUSHBUTTON FEI-32816710000.A5 32816710000	-
235 - BUSH FEI-30508040010.A14 30508040010	-
250 - TOOL HOLDER FEI-30104143000.A2 30104143000	-
260 - CLUTCH RING FEI-30103051001.A1 30103051001	-
270 - BALL FEI-41708017002.A57 41708017002	£1.60	£1.92
280 - CLUTCH RING FEI-30103052000.A53 30103052000	-
290 - BALL FEI-41708018000.A33 41708018000	£1.60	£1.92
295 - BALL FEI-41708018000.A34 41708018000	£1.60	£1.92
300 - SPIRAL SPRING FEI-30901389000.A0 30901389000	-
315 - PRESSURE PIECE SET FEI-32602092010.A34 32602092010	-
340 - STRAIGHT PIN FEI-40201022008.A16 40201022008	-
350 - FLANGE FEI-32436073000.A3 32436073000	-
360 - CIRCLIP FEI-42615090002.A32 42615090002	£1.60	£1.92
370 - GROOVED BALL BEARING FEI-41701001260.A322 41701001260	£7.11	£8.53
380 - CIRCLIP FEI-42616033009.A90 42616033009	£1.60	£1.92
395 - DISC SET FEI-32624192990.A4 32624192990	-
410 - CLUTCH PART FEI-30101038000.A7 30101038000	-
420 - THREAD RING FEI-30509048000.A8 30509048000	-
430 - SLEEVE ROT/RED FEI-30501356000.A1 30501356000	-
440 - SCREW FEI-43072015000.A53 43072015000	£1.60	£1.92
5000 - ADJUSTMENT SPANNER - TORQUE FEI-32123002006.A16 32123002006	£15.36	£18.43
5010 - ANGLED HEAD BASIC FEI-90102012010.A10 90102012010	£613.88	£736.66
5020 - ANGLED HEAD BASIC FEI-90102014010.A9 90102014010	£705.08	£846.09
5030 - ANGLED HEAD BASIC FEI-90102013010.A2 90102013010	£613.88	£736.66
9020 - SAFETY INSTRUCTION FEI-34130054061.A736 34130054061	-
