Festool T 18+3 FL Montageset / 500474 Spare Parts

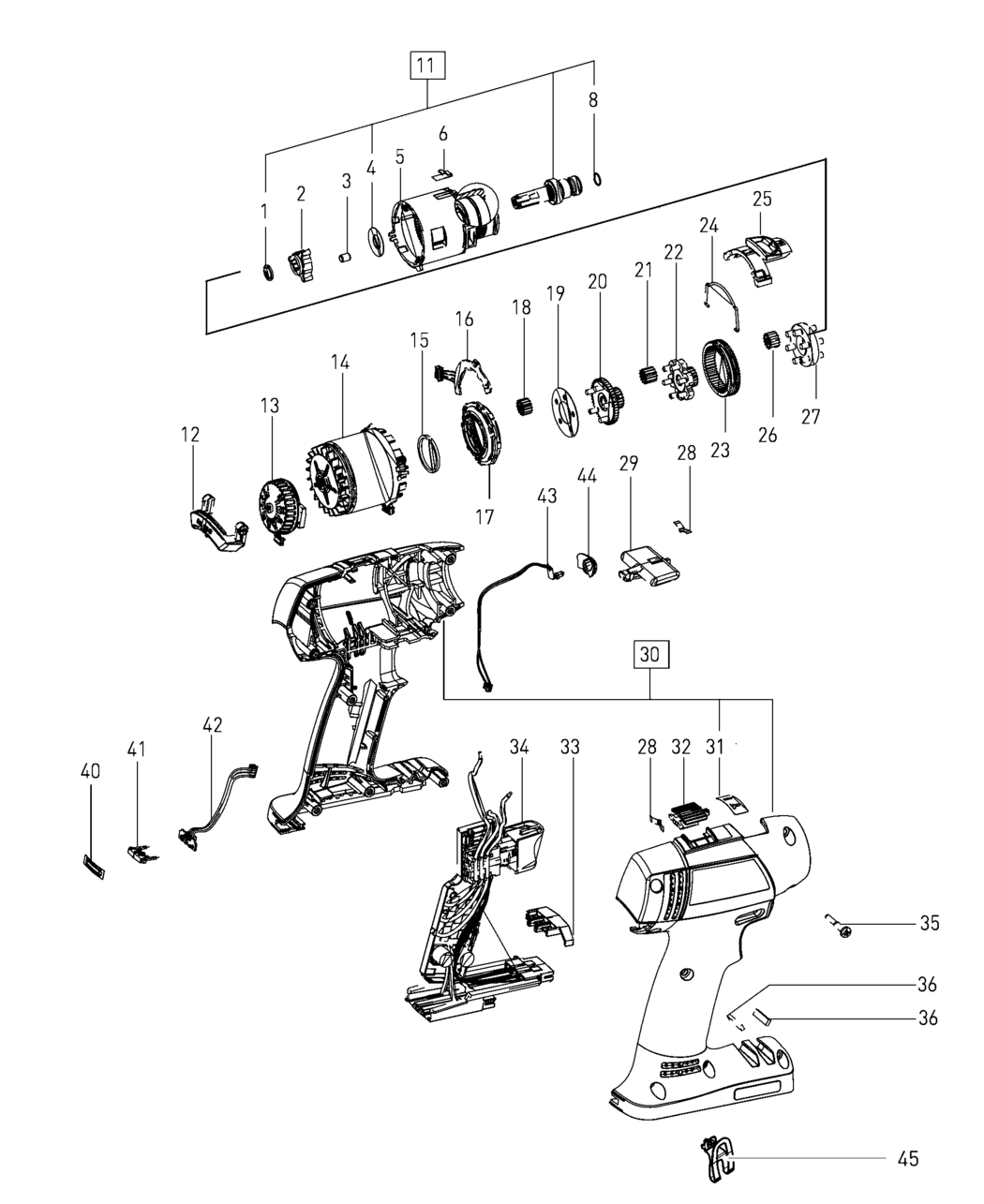

An exploded diagram and spare parts listing for the Festool T 18+3 FL Montageset / 500474

	Ex VAT	Inc VAT
1 - CIRCLIP FSP-206666.A14 206666	£2.00	£2.40
2 - STUD FSP-457751.A12 457751	£2.00	£2.40
3 - CYLINDER ROLLER FSP-457767.A17 457767	£2.00	£2.40
4 - COMPENSATING WASHER FSP-469816.A4 469816	£2.00	£2.40
5 - GEAR HOUSING FSP-495197.A7 495197	£38.80	£46.56
6 - SPRING FSP-466084.A8 466084	£2.00	£2.40
8 - CIRCLIP FSP-446416.A21 446416	£2.00	£2.40
9 - KEYLESS CHUCK FSP-769067.A6 769067	£50.03	£60.04
10 - TOOL CHUCK FSP-492135.A16 492135	£18.19	£21.83
11 - OUTPUT SHAFT FSP-493282.A14 493282	£28.70	£34.44
12 - HOUSING INSERT T 15 / T 18 FSP-472035.A3 472035	£4.06	£4.87
13 - THUMBWHEEL FSP-495198.A3 495198	£35.56	£42.67
14 - MOTOR T 18 FSP-497436.A0 497436	£146.24	£175.49
15 - SEALING RING FSP-469516.A12 469516	£2.00	£2.40
16 - ELECTRONIC FSP-204981.A1 204981	£28.58	£34.29
17 - RING GEAR T 18 FSP-479792.A0 479792	£9.22	£11.06
18 - PLANET FSP-474681.A2 474681	£2.00	£2.40
19 - WASHER FSP-469888.A10 469888	£2.00	£2.40
20 - STUD FSP-494004.A3 494004	£5.68	£6.82
21 - PLANET FSP-457744.A13 457744	£2.00	£2.40
22 - STUD FSP-490459.A10 490459	£3.75	£4.50
23 - SWITCHING RING FSP-474913.A13 474913	£6.13	£7.36
24 - SWITCHING CLIP FSP-457754.A9 457754	£2.00	£2.40
25 - SLIDE FSP-494510.A11 494510	£6.50	£7.80
26 - PLANET FSP-457748.A2 457748	£2.00	£2.40
27 - STUD FSP-490460.A5 490460	£4.49	£5.39
28 - PLATE SPRING FSP-457753.A10 457753	£2.00	£2.40
29 - DESPATCHER FSP-493540.A7 493540	£3.75	£4.50
30 - HOUSING FSP-498665.A2 498665	£34.39	£41.27
31 - STICKER FSP-472017.A5 472017	£2.00	£2.40
32 - SLIDE FSP-494511.A2 494511	£4.08	£4.90
33 - SCREEN FSP-472647.A4 472647	£2.00	£2.40
34 - ELECTRONIC FSP-720900.A0 720900	£101.92	£122.31
35 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A2 400174	£2.00	£2.40
36 - SOLENOID FSP-462693.A4 462693	£2.00	£2.40
39 - RETAINING BRACKET FSP-478516.A3 478516	£4.75	£5.70
40 - LABEL FSP-479814.A5 479814	£2.00	£2.40
41 - LENS FSP-702196.A0 702196	£2.00	£2.40
42 - ELECTRONIC FSP-204984.A1 204984	£22.96	£27.55
43 - FLEXIBLE LEAD FSP-701275.A3 701275	£6.24	£7.49
44 - LENS FSP-701274.A1 701274	£2.00	£2.40
45 - CLIP FSP-10026021.A0 10026021	£9.04	£10.85
