Festool C 12 LI / 496703 Spare Parts

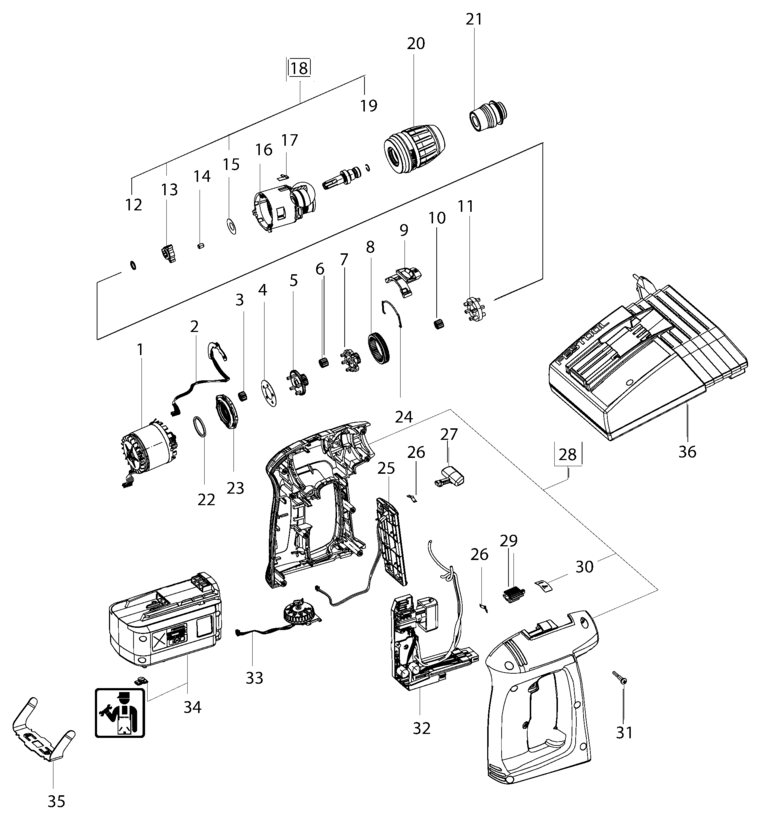

An exploded diagram and spare parts listing for the Festool C 12 LI / 496703

	Ex VAT	Inc VAT
1 - MOTOR C 12 FSP-497103.A0 497103	£170.68	£204.81
2 - ELECTRONIC FSP-498152.A2 498152	£24.01	£28.81
3 - PLANET FSP-474681.A5 474681	£2.00	£2.40
4 - WASHER FSP-469888.A6 469888	£2.00	£2.40
5 - STUD FSP-494004.A8 494004	£5.68	£6.82
6 - PLANET FSP-457744.A3 457744	£2.00	£2.40
7 - STUD FSP-490459.A5 490459	£3.75	£4.50
8 - SWITCHING RING FSP-474913.A2 474913	£6.13	£7.36
9 - SLIDE FSP-494510.A2 494510	£6.50	£7.80
10 - PLANET FSP-457748.A12 457748	£2.00	£2.40
11 - STUD FSP-490460.A10 490460	£4.49	£5.39
12 - CIRCLIP FSP-206666.A9 206666	£2.00	£2.40
13 - STUD FSP-457751.A4 457751	£2.00	£2.40
14 - CYLINDER ROLLER FSP-457767.A9 457767	£2.00	£2.40
15 - COMPENSATING WASHER FSP-469816.A9 469816	£2.00	£2.40
16 - GEAR HOUSING FSP-495197.A3 495197	£38.80	£46.56
17 - SPRING FSP-466084.A20 466084	£2.00	£2.40
18 - OUTPUT SHAFT FSP-493282.A5 493282	£28.70	£34.44
19 - CIRCLIP FSP-446416.A31 446416	£2.00	£2.40
20 - KEYLESS CHUCK FSP-769067.A11 769067	£50.03	£60.04
21 - TOOL CHUCK FSP-492135.A8 492135	£18.19	£21.83
22 - SEALING RING FSP-469516.A7 469516	£2.00	£2.40
23 - RING GEAR T 12 / T 15 FSP-469515.A0 469515	£5.23	£6.28
24 - SWITCHING CLIP FSP-457754.A2 457754	£2.00	£2.40
25 - INSERT FSP-496706.A3 496706	£26.01	£31.21
26 - PLATE SPRING FSP-457753.A19 457753	£2.00	£2.40
27 - DESPATCHER FSP-496707.A2 496707	£4.18	£5.02
28 - HOUSING FSP-498645.A3 498645	£36.81	£44.17
29 - SLIDE FSP-494511.A11 494511	£4.08	£4.90
30 - STICKER FSP-472017.A8 472017	£2.00	£2.40
31 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A14 400174	£2.00	£2.40
32 - ELECTRONIC FSP-498618.A0 498618	£107.01	£128.41
33 - THUMBWHEEL FSP-497105.A3 497105	£37.00	£44.40
34 - BATTERY PACK FSP-498336.A0 498336	£70.85	£85.02
35 - RETAINING BRACKET FSP-478516.A2 478516	£4.75	£5.70
36 - DESCRIPTION UNAVAILABLE FSP-000000.A228 000000	-
36 - CHARGER TCL 3 230-240 V FSP-499335.A15 499335	-
