Dewalt DCF610 Type 2 Screwdriver Spare Parts

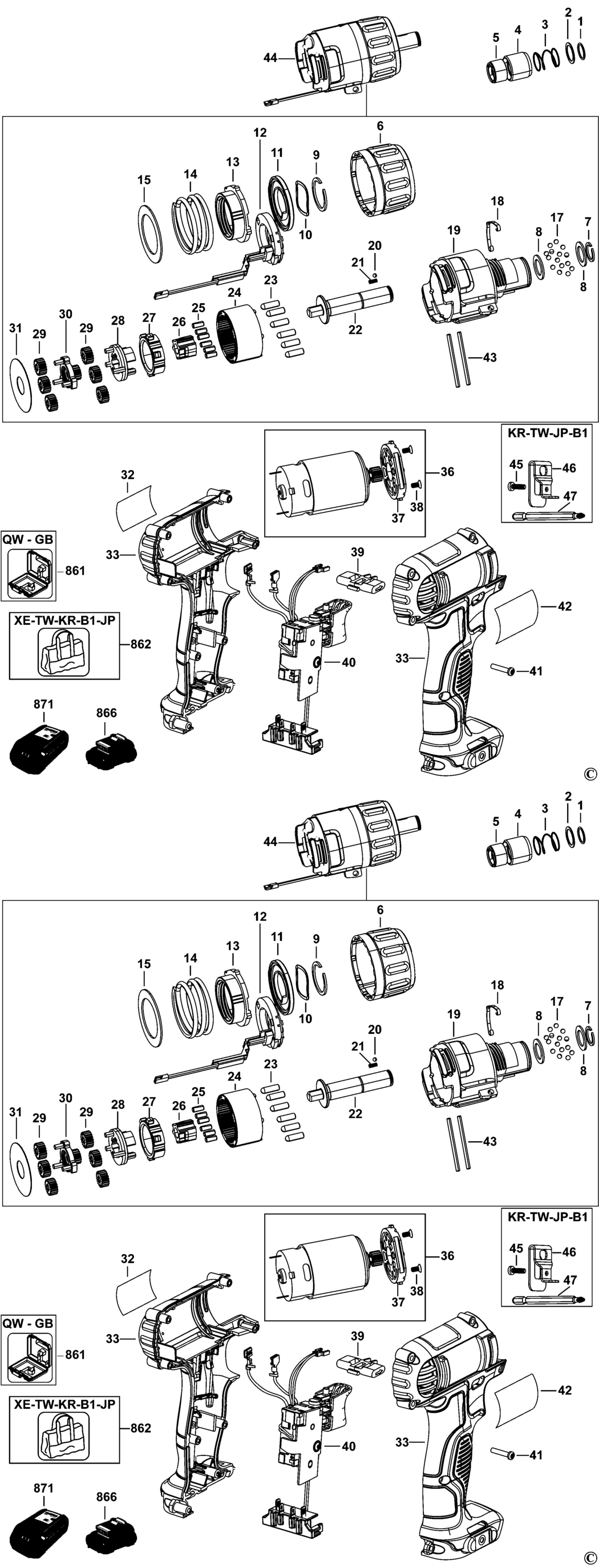

An exploded drawing and spare parts listing for the Dewalt DCF610 Type 2 Screwdriver

	Ex VAT	Inc VAT
1 - RETAINER BDE-N055051.A5 N055051	£1.50	£1.80
2 - WASHER BDE-N032311.A3 N032311	£1.50	£1.80
3 - SPRING BDE-N020154.A7 N020154	£1.50	£1.80
4 - SLEEVE BDE-N020153.A3 N020153	£3.30	£3.96
5 - SPACER BDE-N025972.A3 N025972	£1.50	£1.80
6 - COLLAR BDE-N017246.A1 N017246	£3.22	£3.86
7 - RETAINER BDE-N035362.A0 N035362	£1.50	£1.80
8 - WASHER THRUST BDE-N017233.A2 N017233	£1.50	£1.80
9 - RETAINER BDE-N035361.A2 N035361	£1.50	£1.80
10 - WASHER SPECIAL BDE-N017239.A0 N017239	£1.50	£1.80
11 - COVER BDE-N017253.A0 N017253	£1.50	£1.80
12 - LED LIGHT BDE-N078519.A1 N078519	£14.57	£17.48
13 - ADJUSTER TORQUE BDE-N026127.A0 N026127	£1.42	£1.70
14 - SPRING BDE-N017241.A1 N017241	£1.42	£1.70
15 - WASHER BDE-N025236.A2 N025236	£1.50	£1.80
17 - BALL STEEL BDE-389317-00.A4 389317-00	£1.50	£1.80
18 - DETENT BDE-N031003.A0 N031003	£1.42	£1.70
19 - GEARCASE SA BDE-N078520.A1 N078520	£15.63	£18.76
20 - BALL STEEL BDE-N022764.A4 N022764	£1.50	£1.80
21 - SPRING BDE-N020157.A3 N020157	£1.50	£1.80
22 - SPINDLE SA BDE-N078521.A0 N078521	£12.17	£14.60
23 - PIN.CONICAL BDE-N041814.A0 N041814	£1.42	£1.70
24 - GEAR BDE-N078522.A2 N078522	£4.69	£5.63
25 - PIN BDE-N032223.A2 N032223	£1.50	£1.80
26 - ANVIL BDE-N032577.A2 N032577	£1.50	£1.80
27 - LOCKING RING BDE-656987-00.A1 656987-00	£1.82	£2.19
28 - CARRIER SA BDE-N078795.A2 N078795	£1.82	£2.19
29 - GEAR BDE-N017243.A0 N017243	£1.50	£1.80
30 - CARRIER SA BDE-N078794.A0 N078794	£1.50	£1.80
31 - PLATE BDE-N017249.A2 N017249	£1.50	£1.80
32 - BRAND LABEL BDE-N127969.A9 N127969	£1.50	£1.80
33 - CLAMSHELL SET BDE-N029500.A0 N029500	£16.03	£19.24
36 - MOTOR SA BDE-N168387 N168387	£24.39	£29.27
37 - PLATE BDE-N151241 N151241	£1.42	£1.70
38 - SCREW BDE-N008721.A1 N008721	£3.30	£3.96
39 - ACTUATOR FWD/REV BDE-N017247.A0 N017247	£1.50	£1.80
40 - SWITCH SA BDE-N168378 N168378	£72.28	£86.73
41 - SCREW BDE-682211-00.A324 682211-00	£1.50	£1.80
42 - RATING PLATE GB BDE-N151323 N151323	£1.42	£1.70
43 - PIN BDE-N030622.A0 N030622	£1.50	£1.80
44 - TRANSMISSION SA BDE-N059224.A1 N059224	£58.69	£70.43
45 - SCREW BDE-N042665.A130 N042665	£1.50	£1.80
46 - HOOK BDE-N026657.A2 N026657	£3.30	£3.96
861 - KITBOX GB BDE-N488394.A15 N488394	£25.70	£30.84
866 - BATTERY 10.8V - 2.0AH - 21.6WH DCF610S2 GB BDE-N394620.A22 N394620	£55.30	£66.36
871 - CHARGER 10.8V - 18V GB BDE-N450537.A76 N450537	£157.18	£188.61
