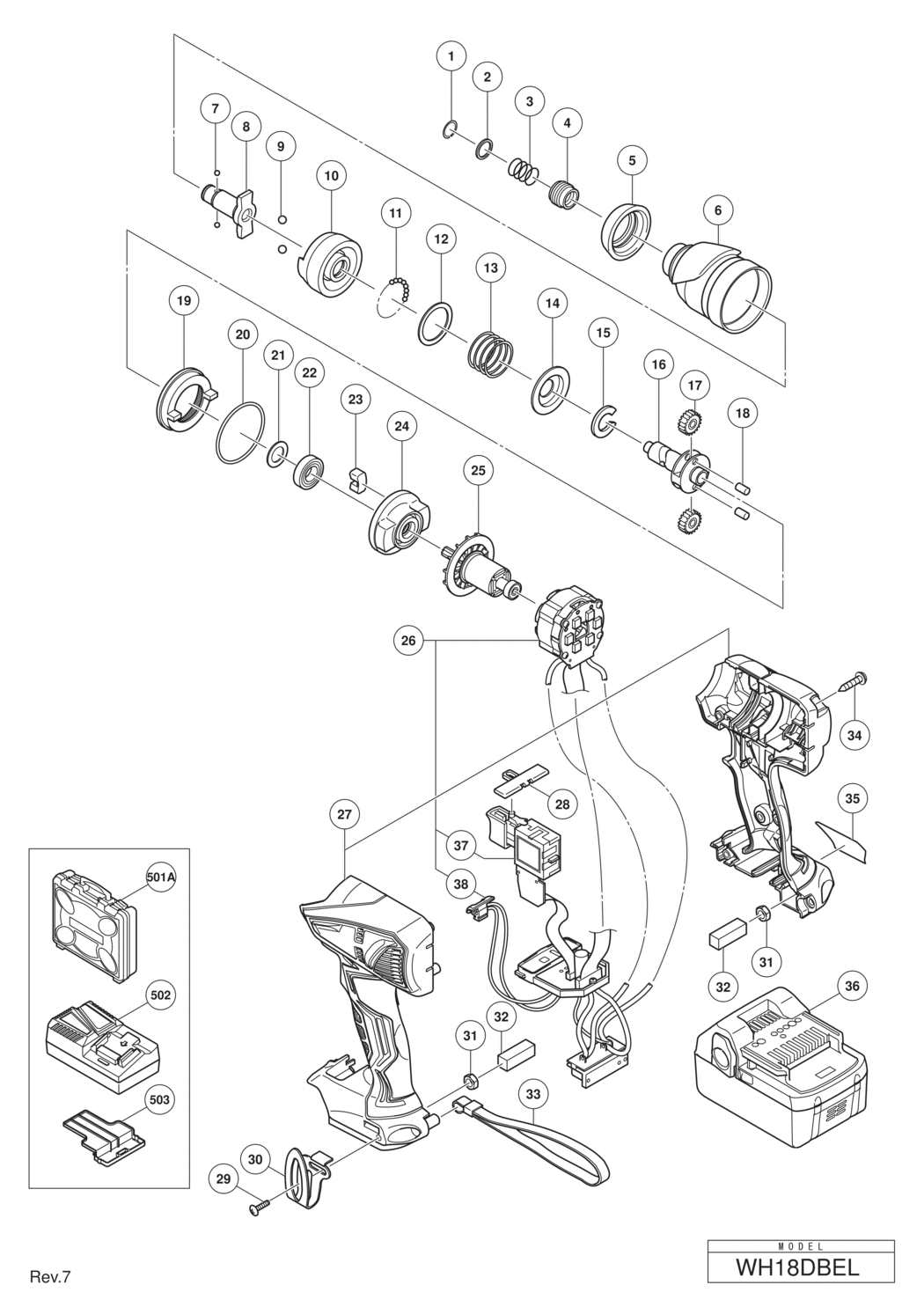

1 - RETAINING RING
HIT-330619.A13
330619
|
£1.67
|
£2.00
|
|
|
2 - WASHER (D)
HIT-330856.A14
330856
|
£2.71
|
£3.25
|
|
|
3 - GUIDE SPRING (D)
HIT-331284.A7
331284
|
£1.67
|
£2.00
|
|
|
4 - GUIDE SLEEVE (D)
HIT-322717.A11
322717
|
£4.22
|
£5.07
|
|
|
5 - FRONT CAP
HIT-335907.A1
335907
|
-
|
|
|
|
6 - HAMMER CASE
HIT-335908.A0
335908
|
-
|
|
|
|
7 - STEEL BALL D3.5 (10 PCS.)
HIT-319535.A21
319535
|
£1.67
|
£2.00
|
|
|
*8 - ANVIL (F)
HIT-335910.A1
335910
|
-
|
|
|
|
9 - STEEL BALL D5.556 (10 PCS.)
HIT-959154.A19
959154
|
£1.67
|
£2.00
|
|
|
10 - HAMMER (C)
HIT-335911.A0
335911
|
-
|
|
|
|
11 - STEEL BALL D3.175 (10 PCS.)
HIT-959148.A11
959148
|
£1.67
|
£2.00
|
|
|
12 - WASHER (J)
HIT-315978.A29
315978
|
£1.67
|
£2.00
|
|
|
13 - HAMMER SPRING (D)
HIT-331285.A1
331285
|
-
|
|
|
|
14 - WASHER (S)
HIT-316172.A24
316172
|
£1.67
|
£2.00
|
|
|
15 - STOPPER
HIT-316171.A8
316171
|
£6.09
|
£7.31
|
|
|
16 - SPINDLE (E)
HIT-335912.A1
335912
|
-
|
|
|
|
17 - IDLE GEAR SET (2 PCS.)
HIT-326295.A29
326295
|
£25.42
|
£30.51
|
|
|
18 - NEEDLE ROLLER
HIT-319914.A0
319914
|
£1.67
|
£2.00
|
|
|
19 - RING GEAR
HIT-330657.A2
330657
|
£4.89
|
£5.87
|
|
|
20 - O-RING (S-42)
HIT-983852.A9
983852
|
£1.67
|
£2.00
|
|
|
21 - WASHER (E)
HIT-319911.A26
319911
|
£1.67
|
£2.00
|
|
|
22 - BALL BEARING 6901VV
HIT-6901VV.A35
6901VV
|
£11.83
|
£14.20
|
|
|
23 - DAMPER (A)
HIT-324230.A12
324230
|
£1.67
|
£2.00
|
|
|
24 - INNER COVER
HIT-336240.A0
336240
|
-
|
|
|
|
25 - ROTOR PINION
HIT-335913.A0
335913
|
-
|
|
|
|
26 - WIRING INCLUD.37
HIT-335915.A1
335915
|
-
|
|
|
|
27 - HOUSING (A).(B)SET (GREEN)
HIT-335929.A0
335929
|
-
|
|
|
|
28 - PUSHING BUTTON (B)
HIT-324225.A1
324225
|
£2.49
|
£2.99
|
|
|
29 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A45
327001
|
£2.71
|
£3.25
|
|
|
30 - HOOK
HIT-332824.A8
332824
|
£7.12
|
£8.54
|
|
|
31 - LOCK NUT M4 (BLACK)
HIT-327002.A24
327002
|
£2.71
|
£3.25
|
|
|
32 - PACKING
HIT-328644.A3
328644
|
£1.67
|
£2.00
|
|
|
33 - STRAP (BLACK)
HIT-306952.A16
306952
|
£7.97
|
£9.57
|
|
|
34 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A158
301653
|
£1.67
|
£2.00
|
|
|
35 - NAME PLATE
HIT-000000.A1366
000000
|
-
|
|
|
|
*36 - BATTERY BSL 1840 (EUROPE AUS NZL) INCLUD.503
HIT-334421.A17
334421
|
£175.04
|
£210.05
|
|
|
37 - DC-SPEED CONTROL SWITCH
HIT-335323.A0
335323
|
£21.41
|
£25.69
|
|
|
38 - LED HOLDER
HIT-339280.A2
339280
|
-
|
|
|
|
501A - CASE
HIT-337852.A14
337852
|
£23.85
|
£28.62
|
|
|
502 - CHARGER (MODEL UC 18YFSL)
HIT-000000.A1368
000000
|
-
|
|
|
|
503 - BATTERY COVER
HIT-329897.A103
329897
|
£1.67
|
£2.00
|
|
|
601 - DRILL CHUCK AND ADAPTER SET INCLUD.616
HIT-321823.A12
321823
|
-
|
|
|
|
602 - GREASE (ATTOLUB MS NO.2) 500G
HIT-309922.A5
309922
|
£56.92
|
£68.31
|
|
|
603 - + DRIVER BIT (B) NO.2 50L
HIT-992671.A0
992671
|
-
|
|
|
|
604 - + DRIVER BIT (B) NO.3 50L
HIT-992672.A30
992672
|
£4.33
|
£5.20
|
|
|
605 - NON-MAGNETIC HEX. SOCKET 8MM 65L
HIT-996177.A22
996177
|
-
|
|
|
|
606 - NON-MAGNETIC HEX. SOCKET 10MM 65L
HIT-985329.A2
985329
|
-
|
|
|
|
607 - NON-MAGNETIC HEX. SOCKET 12MM 65L
HIT-996178.A5
996178
|
£16.59
|
£19.91
|
|
|
608 - NON-MAGNETIC HEX. SOCKET 13MM 65L
HIT-996179.A21
996179
|
-
|
|
|
|
609 - NON-MAGNETIC HEX. SOCKET 14MM 65L
HIT-996180.A5
996180
|
-
|
|
|
|
610 - NON-MAGNETIC HEX. SOCKET 15MM 65L
HIT-996185.A2
996185
|
£16.59
|
£19.91
|
|
|
611 - NON-MAGNETIC HEX. SOCKET 16MM 65L
HIT-996181.A21
996181
|
£16.59
|
£19.91
|
|
|
612 - NON-MAGNETIC HEX. SOCKET 17MM 65L
HIT-996182.A5
996182
|
-
|
|
|
|
613 - NON-MAGNETIC HEX. SOCKET 19MM 65L
HIT-996186.A16
996186
|
£16.59
|
£19.91
|
|
|
614 - HEX. SOCKET (LONG) 21MMX166L
HIT-996197.A3
996197
|
£33.82
|
£40.58
|
|
|
615 - BIT PIECE
HIT-996184.A15
996184
|
-
|
|
|
|
616 - CHUCK WRENCH FOR 10VLB-D 1
HIT-987575.A7
987575
|
-
|
|
|
|
617 - CHUCK WRENCH 6.5G
HIT-930119.A14
930119
|
£6.19
|
£7.43
|
|
|
618 - CHUCK ADAPTER
HIT-307543.A24
307543
|
-
|
|
|
|
619 - SILICONE RUBBER
HIT-306927.A10
306927
|
-
|
|
|
