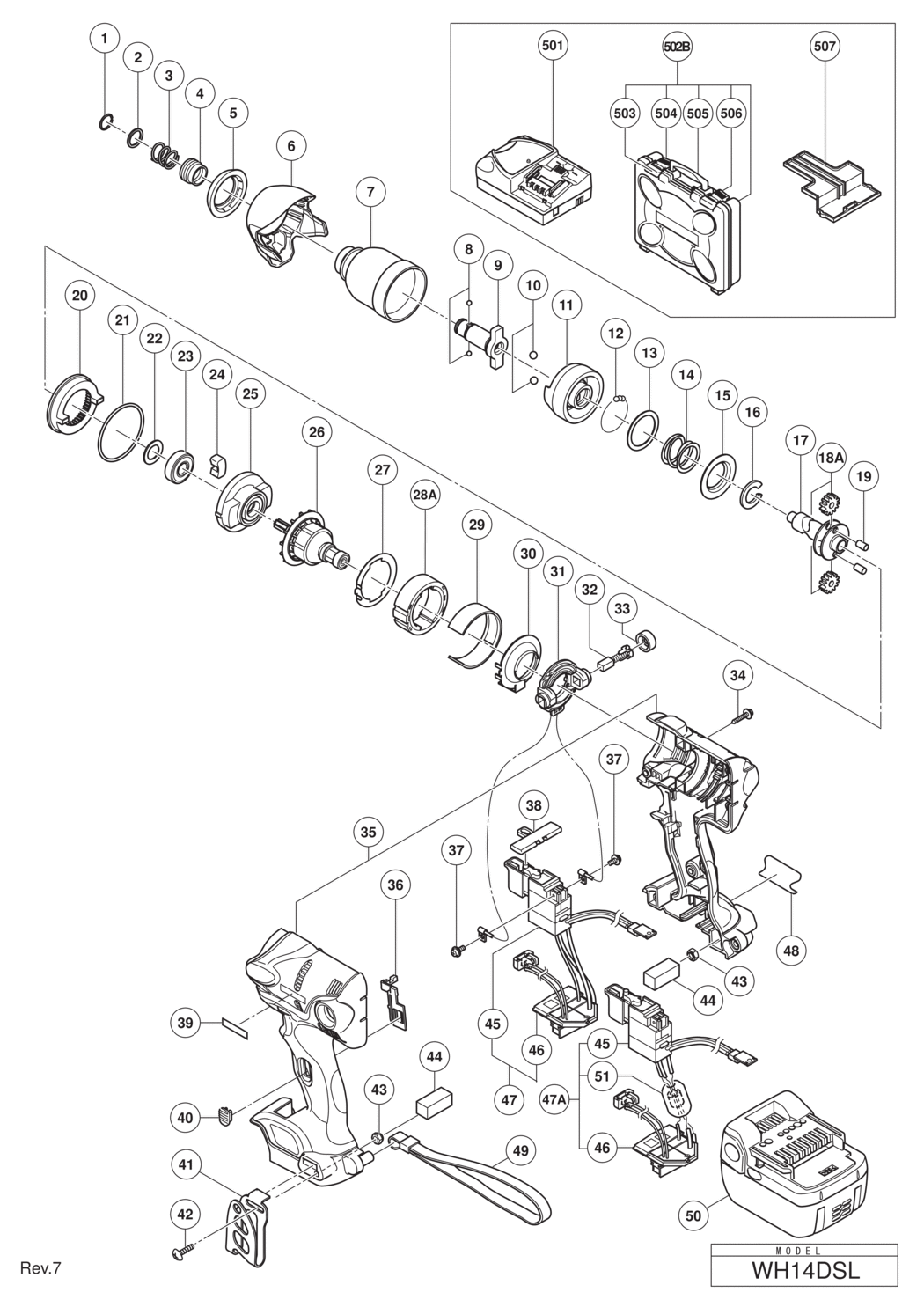

An exploded diagram and spare parts listing for the Hitachi / Hikoki WH14DSL Cordless Impact Driver
Ex VAT Inc VAT
1 - RETAINING RING HIT-315984.A7 315984 £1.67 £2.00
2 - WASHER (D) HIT-315983.A2 315983 £1.67 £2.00
3 - GUIDE SPRING (D) HIT-321657.A4 321657 £1.67 £2.00
4 - GUIDE SLEEVE (D) HIT-322717.A0 322717 £4.22 £5.07
5 - FRONT CAP (F) HIT-327766.A0 327766 £1.67 £2.00
6 - PROTECTOR (J) HIT-327765.A2 327765 £4.96 £5.95
7 - HAMMER CASE HIT-327003.A0 327003 £29.36 £35.23
8 - STEEL BALL D3.5 (10 PCS.) HIT-319535.A1 319535 £1.67 £2.00
9 - ANVIL (C) HIT-324833.A1 324833 -
9 - ANVIL (D) FOR EUROPE HIT-329709.A0 329709 £42.13 £50.56
10 - STEEL BALL D5.556 (10 PCS.) HIT-959154.A5 959154 £1.67 £2.00
11 - HAMMER(F) HIT-326789.A0 326789 £28.14 £33.77
12 - STEEL BALL D3.175 (10 PCS.) HIT-959148.A30 959148 £1.67 £2.00
13 - WASHER (J) HIT-315978.A24 315978 £1.67 £2.00
14 - HAMMER SPRING (D) HIT-321660.A1 321660 £4.99 £5.99
15 - WASHER (S) HIT-316172.A34 316172 £1.67 £2.00
16 - STOPPER HIT-316171.A1 316171 £6.09 £7.31
17 - SPINDLE (D) HIT-321666.A3 321666 -
18A - IDLE GEAR SET (2 PCS.) HIT-326295.A18 326295 £25.42 £30.51
19 - NEEDLE ROLLER HIT-319914.A12 319914 £1.67 £2.00
20 - RING GEAR(E) HIT-326787.A6 326787 £18.73 £22.48
21 - O-RING (S-42) HIT-983852.A11 983852 £1.67 £2.00
22 - WASHER (E) HIT-319911.A16 319911 £1.67 £2.00
23 - BALL BEARING 6901VV-N HIT-323118.A9 323118 £9.18 £11.02
24 - DAMPER HIT-319909.A2 319909 -
25 - INNER COVER(D) HIT-326786.A0 326786 £1.67 £2.00
26 - ARMATURE DC 14.4V HIT-360752.A1 360752 £57.42 £68.91
27 - SIDE YOKE HIT-323327.A0 323327 -
28A - MAGNET (M) HIT-334899.A2 334899 £101.86 £122.23
29 - YOKE (A) HIT-324828.A2 324828 -
30 - DUST GUARD FIN (C) HIT-324830.A1 324830 £2.71 £3.25
31 - BRUSH BLOCK HIT-321662.A1 321662 £15.82 £18.98
32 - CARBON BRUSH 5X6X11.5 (1 PAIR) HIT-999054.A8 999054 £9.48 £11.38
33 - BRUSH CAP HIT-319918.A7 319918 £4.26 £5.11
34 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A236 301653 £1.67 £2.00
*35 - HOUSING (A).(B)SET (GREEN) INCLUD.36 HIT-329710.A0 329710 £44.08 £52.90
*35 - HOUSING (A).(B)SET (WHITE) INCLUD.36 HIT-329827.A1 329827 -
*35 - HOUSING (A).(B)SET (RED) INCLUD.36 HIT-326795.A0 326795 -
*35 - HOUSING (A).(B)SET (BLUE) INCLUD.36 HIT-329828.A0 329828 -
36 - LEVER(C) HIT-326782.A1 326782 £2.71 £3.25
37 - MACHINE SCREW (W/SP. WASHER) M3X5 HIT-994532.A14 994532 £1.67 £2.00
38 - PUSHING BUTTON (A) HIT-321661.A11 321661 £1.67 £2.00
39 - BRAND LABEL HIT-000000.A1808 000000 -
40 - LEVER(B) HIT-326783.A1 326783 £2.71 £3.25
41 - HOOK (A) HIT-326790.A2 326790 £9.21 £11.05
42 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A60 327001 £2.71 £3.25
43 - LOCK NUT M4 (BLACK) HIT-327002.A5 327002 £2.71 £3.25
44 - PACKING HIT-327004.A1 327004 £2.71 £3.25
45 - DC-SPEED CONTROL SWITCH HIT-326784.A0 326784 £62.87 £75.44
46 - CONTROLLER HIT-329708.A0 329708 £38.72 £46.46
47 - SWITCH ASS'Y INCLUD.45 HIT-329707.A1 329707 £68.84 £82.61
47A - SWITCH ASS'Y INCLUD.45 HIT-334874.A0 334874 £93.98 £112.77
48 - NAME PLATE HIT-000000.A1810 000000 -
49 - STRAP (BLACK) HIT-306952.A31 306952 £7.97 £9.57
50 - BATTERY BSL 1430 (EUROPE AUS NZL) HIT-329083.A16 329083 £109.82 £131.78
51 - FERRITE SUPPORT SET SINCE 3.2012 FOR EUROPE HIT-334873.A3 334873 -
501 - CHARGER (MODEL UC 18YRSL) HIT-000000.A1812 000000 -
502B - CASE ASS'Y INCLUDE.503-506 HIT-329440.A8 329440 £63.48 £76.18
503 - LATCH (DARK GRAY) INCLUDE.503-506 HIT-324093.A2 324093 -
504 - KNOB (L) DARK GRAY HIT-324096.A0 324096 -
505 - HANDLE (DARK GRAY) HIT-324090.A0 324090 -
506 - KNOB (R) DARK GRAY HIT-324099.A2 324099 -
507 - BATTERY COVER HIT-329897.A117 329897 £1.67 £2.00
601 - DRILL CHUCK AND ADAPTER SET INCLUD.616 HIT-321823.A1 321823 -
602 - GREASE (ATTOLUB MS NO.2) 500G HIT-309922.A16 309922 £56.92 £68.31
603 - + DRIVER BIT (B) NO.2 50L HIT-992671.A14 992671 -
604 - + DRIVER BIT (B) NO.3 50L HIT-992672.A15 992672 £4.33 £5.20
605 - NON-MAGNETIC HEX. SOCKET 8MM 65L HIT-996177.A27 996177 -
606 - NON-MAGNETIC HEX. SOCKET 10MM 65L HIT-985329.A15 985329 -
607 - NON-MAGNETIC HEX. SOCKET 12MM 65L HIT-996178.A0 996178 £16.59 £19.91
608 - NON-MAGNETIC HEX. SOCKET 13MM 65L HIT-996179.A26 996179 -
609 - NON-MAGNETIC HEX. SOCKET 14MM 65L HIT-996180.A0 996180 -
610 - NON-MAGNETIC HEX. SOCKET 15MM 65L HIT-996185.A0 996185 £16.59 £19.91
611 - NON-MAGNETIC HEX. SOCKET 16MM 65L HIT-996181.A26 996181 £16.59 £19.91
612 - NON-MAGNETIC HEX. SOCKET 17MM 65L HIT-996182.A0 996182 -
613 - NON-MAGNETIC HEX. SOCKET 19MM 65L HIT-996186.A18 996186 £16.59 £19.91
614 - HEX. SOCKET (LONG) 21MMX166L HIT-996197.A0 996197 £33.82 £40.58
615 - BIT PIECE HIT-996184.A18 996184 -
616 - CHUCK WRENCH FOR 10VLB-D 1 HIT-987575.A13 987575 -
617 - CHUCK WRENCH 6.5G HIT-930119.A19 930119 £6.19 £7.43
618 - CHUCK ADAPTER HIT-307543.A29 307543 -
619 - SILICONE RUBBER HIT-306927.A20 306927 -
