Hitachi / Hikoki DV12DJ Cordless Impact Driver Drill Spare Parts

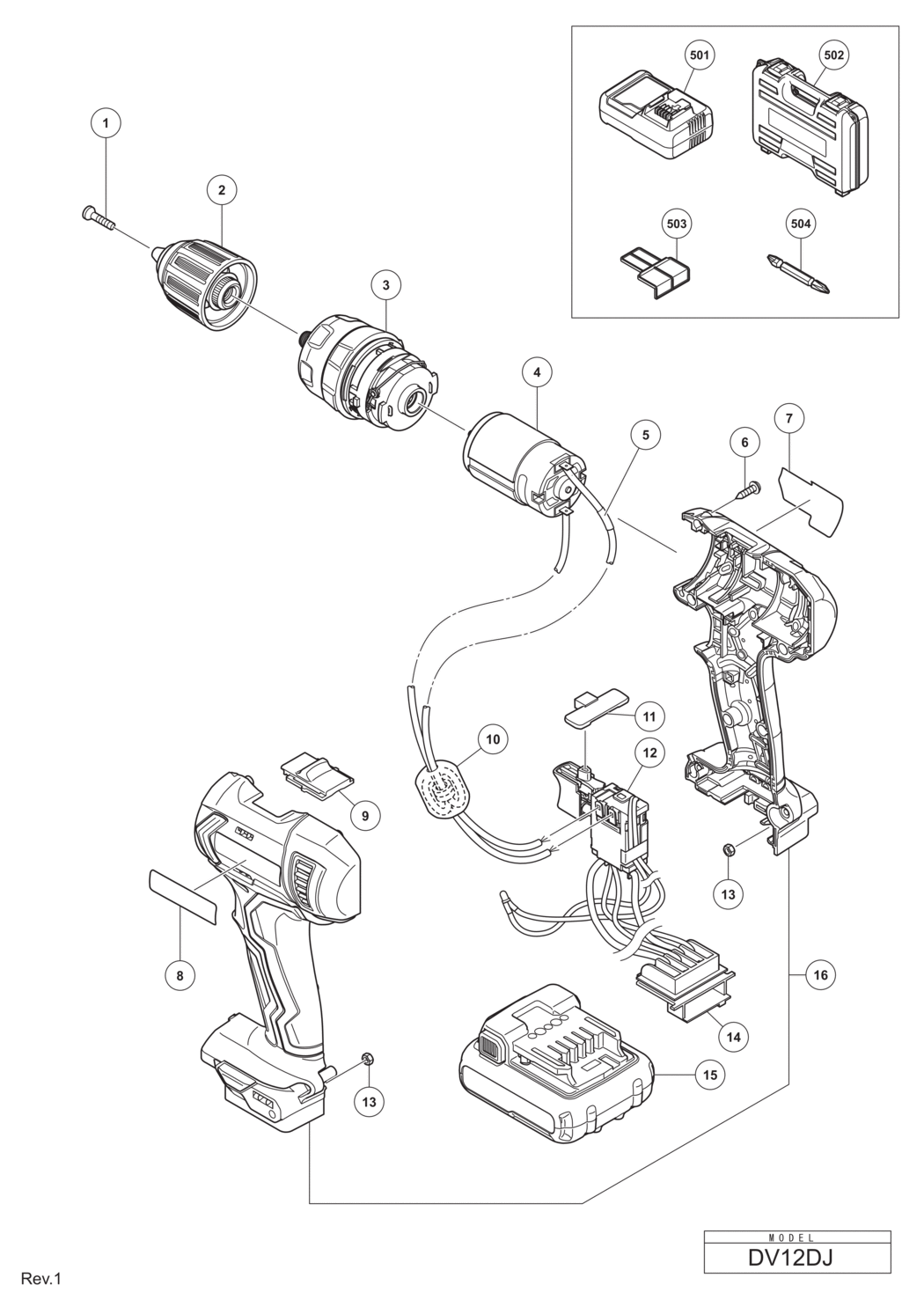

An exploded diagram and spare parts listing for the Hitachi / Hikoki DV12DJ Cordless Impact Driver Drill

	Ex VAT	Inc VAT
1 - LEFT-HAND HEXALOBULAR M5 HIT-337426.A2 337426	-
2 - DRILL CHUCK 10TLRM-N (W/O CHUCK WRENCH) HIT-337390.A4 337390	-
3 - GEAR BOX (E) HIT-374939.A1 374939	-
4 - MOTOR DC 12V HIT-374937.A0 374937	-
5 - TUBE HIT-375587.A2 375587	-
6 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A63 313687	£1.67	£2.00
7 - NAME PLATE HIT-000000.A1441 000000	-
8 - BRAND LABEL HIT-000000.A1442 000000	-
9 - SHIFT KNOB HIT-374382.A1 374382	-
10 - INTERNAL WIRE FERRITE SET HIT-375590.A3 375590	-
11 - PUSHING BUTTON (A) HIT-329548.A10 329548	£1.67	£2.00
12 - DC-SPEED CONTROL SWITCH HIT-374935.A2 374935	£11.53	£13.84
13 - LOCK NUT M4 (BLACK) HIT-327002.A15 327002	£2.71	£3.25
14 - BATTERY TERMINAL HIT-374387.A2 374387	-
15 - BATTERY BSL 1225M (EUROPE) INCLUD.503 HIT-374954.A5 374954	-
16 - HOUSING (A).(B) SET INCLUD.13 HIT-374934.A1 374934	-
501 - CHARGER (MODEL UC 12SL) HIT-000000.A1444 000000	-
502 - CASE HIT-336642.A4 336642	£22.36	£26.83
503 - BATTERY COVER HIT-374778.A6 374778	-
504 - + DRIVER BIT NO.2 65L HIT-983006.A37 983006	-
