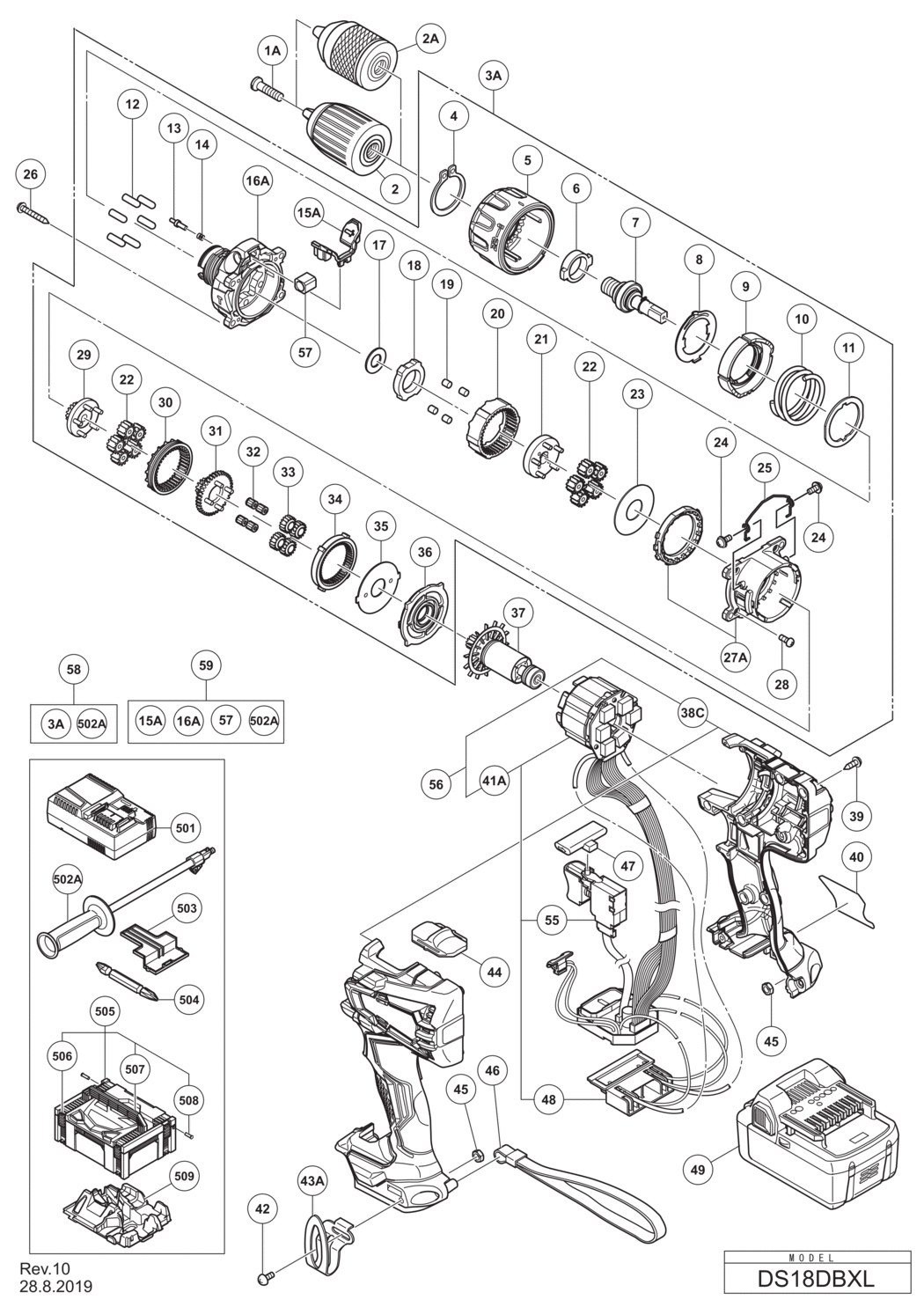

1A - SEAL LOCK FLAT HD.SCREW(LEFT HAND) M6X25
HIT-370909.A8
370909
|
£1.67
|
£2.00
|
|
|
*2A - DRILL CHUCK 13VLRY-N (W/O CHUCK WRENCH)
HIT-339723.A0
339723
|
-
|
|
|
|
3A - GEAR BOX ASS'Y INCLUD.4-14
HIT-371792.A0
371792
|
-
|
|
|
|
4 - RETAINING RING FOR D30 SHAFT
HIT-339736.A1
339736
|
-
|
|
|
|
5 - CLUTCH DIAL
HIT-339740.A0
339740
|
-
|
|
|
|
6 - METAL
HIT-339741.A3
339741
|
-
|
|
|
|
7 - SPINDLE
HIT-339743.A2
339743
|
-
|
|
|
|
8 - CLICK SPRING
HIT-339744.A0
339744
|
-
|
|
|
|
9 - NUT
HIT-339745.A4
339745
|
£3.21
|
£3.85
|
|
|
10 - SPRING
HIT-339746.A0
339746
|
-
|
|
|
|
11 - THRUST PLATE
HIT-339747.A4
339747
|
-
|
|
|
|
12 - PIN SET (6 PCS.)
HIT-333539.A12
333539
|
£11.65
|
£13.98
|
|
|
13 - STOPPER
HIT-339748.A0
339748
|
-
|
|
|
|
14 - STOPPER SPRING
HIT-331886.A1
331886
|
£2.71
|
£3.25
|
|
|
15A - SLEEVE CAP SINCE 10.2016
HIT-371795.A0
371795
|
-
|
|
|
|
16A - FRONT CASE SINCE 10.2016
HIT-371794.A0
371794
|
-
|
|
|
|
17 - WASHER (B)
HIT-328717.A2
328717
|
-
|
|
|
|
18 - LOCK RING
HIT-339752.A4
339752
|
-
|
|
|
|
19 - ROLLER
HIT-319744.A9
319744
|
£1.67
|
£2.00
|
|
|
20 - RING GEAR
HIT-339753.A0
339753
|
£8.42
|
£10.11
|
|
|
21 - CARRIER
HIT-339754.A4
339754
|
-
|
|
|
|
22 - PLANET GEAR (B) SET (5 PCS.)
HIT-339774.A1
339774
|
-
|
|
|
|
23 - WASHER (A)
HIT-331892.A1
331892
|
£2.67
|
£3.20
|
|
|
24 - SCREW SET D2 (2 PCS.)
HIT-331895.A5
331895
|
-
|
|
|
|
25 - SHIFT ARM
HIT-339755.A0
339755
|
-
|
|
|
|
26 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
HIT-305490.A29
305490
|
£1.67
|
£2.00
|
|
|
27A - REAR CASE SET
HIT-374304.A1
374304
|
-
|
|
|
|
28 - SCREW SET M3X12 (4 PCS.)
HIT-320087.A5
320087
|
£6.09
|
£7.31
|
|
|
29 - PINION (C)
HIT-339757.A4
339757
|
-
|
|
|
|
30 - SLIDE RING GEAR
HIT-339758.A0
339758
|
£8.68
|
£10.42
|
|
|
31 - PINION (B)
HIT-339759.A4
339759
|
£8.37
|
£10.04
|
|
|
32 - NEEDLE BEARING SET (4 PCS.)
HIT-331926.A8
331926
|
-
|
|
|
|
33 - PLANET GEAR (A) SET (4 PCS.)
HIT-334441.A6
334441
|
-
|
|
|
|
34 - FIRST RING GEAR
HIT-339760.A0
339760
|
-
|
|
|
|
35 - WASHER (B)
HIT-339761.A7
339761
|
-
|
|
|
|
36 - MOTOR SPACER
HIT-339762.A1
339762
|
-
|
|
|
|
37 - ROTOR PINION SET
HIT-339763.A1
339763
|
£79.16
|
£94.99
|
|
|
38C - HOUSING (A).(B) SET
HIT-378274.A0
378274
|
£20.91
|
£25.09
|
|
|
39 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A81
313687
|
£1.67
|
£2.00
|
|
|
40 - NAME PLATE
HIT-000000.A1297
000000
|
-
|
|
|
|
41A - WIRING ASS'Y INCLUD.48
HIT-370832.A1
370832
|
£110.56
|
£132.67
|
|
|
42 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A41
327001
|
£2.71
|
£3.25
|
|
|
43A - HOOK
HIT-372229.A6
372229
|
-
|
|
|
|
44 - SHIFT KNOB
HIT-334267.A10
334267
|
£12.52
|
£15.03
|
|
|
45 - LOCK NUT M4 (BLACK)
HIT-327002.A29
327002
|
£2.71
|
£3.25
|
|
|
46 - STRAP (BLACK)
HIT-306952.A9
306952
|
£7.97
|
£9.57
|
|
|
47 - PUSHING BUTTON
HIT-339768.A0
339768
|
£1.67
|
£2.00
|
|
|
48 - BATTERY TERMINAL
HIT-339769.A5
339769
|
£5.17
|
£6.20
|
|
|
55 - DC-SPEED CONTROL SWITCH
HIT-370151.A4
370151
|
£22.58
|
£27.09
|
|
|
56 - WIRING ASS'Y SET INCLUDE.38A
HIT-370836.A0
370836
|
£131.31
|
£157.57
|
|
|
57 - SLEEVE NUT M8 SINCE 10.2016
HIT-371796.A4
371796
|
-
|
|
|
|
58 - GEAR BOX SET INCLUD.3A
HIT-371784.A0
371784
|
-
|
|
|
|
59 - SIDE HANDLE SET INCLUD.15A
HIT-371788.A0
371788
|
-
|
|
|
|
502A - SIDE HANDLE SINCE 10.2016
HIT-371797.A0
371797
|
£23.15
|
£27.78
|
|
|
504 - + DRIVER BIT NO.2 65L
HIT-983006.A18
983006
|
-
|
|
|
|
601 - - DRIVER BIT (A) 3MMX70L
HIT-955657.A14
955657
|
-
|
|
|
|
602 - - DRIVER BIT (A) 4MMX70L
HIT-955659.A18
955659
|
-
|
|
|
|
603 - - DRIVER BIT (A) 6MMX70L
HIT-955674.A14
955674
|
-
|
|
|
|
604 - + DRIVER BIT NO.1 65L
HIT-983004.A27
983004
|
-
|
|
|
|
605 - + DRIVER BIT NO.3 65L
HIT-983011.A10
983011
|
-
|
|
|
|
606 - DEPTH GAUGE
HIT-303709.A5
303709
|
£1.67
|
£2.00
|
|
|
607 - SILICONE RUBBER
HIT-306927.A12
306927
|
-
|
|
|
|
608 - SCREW SET M4
HIT-370651.A4
370651
|
-
|
|
|
