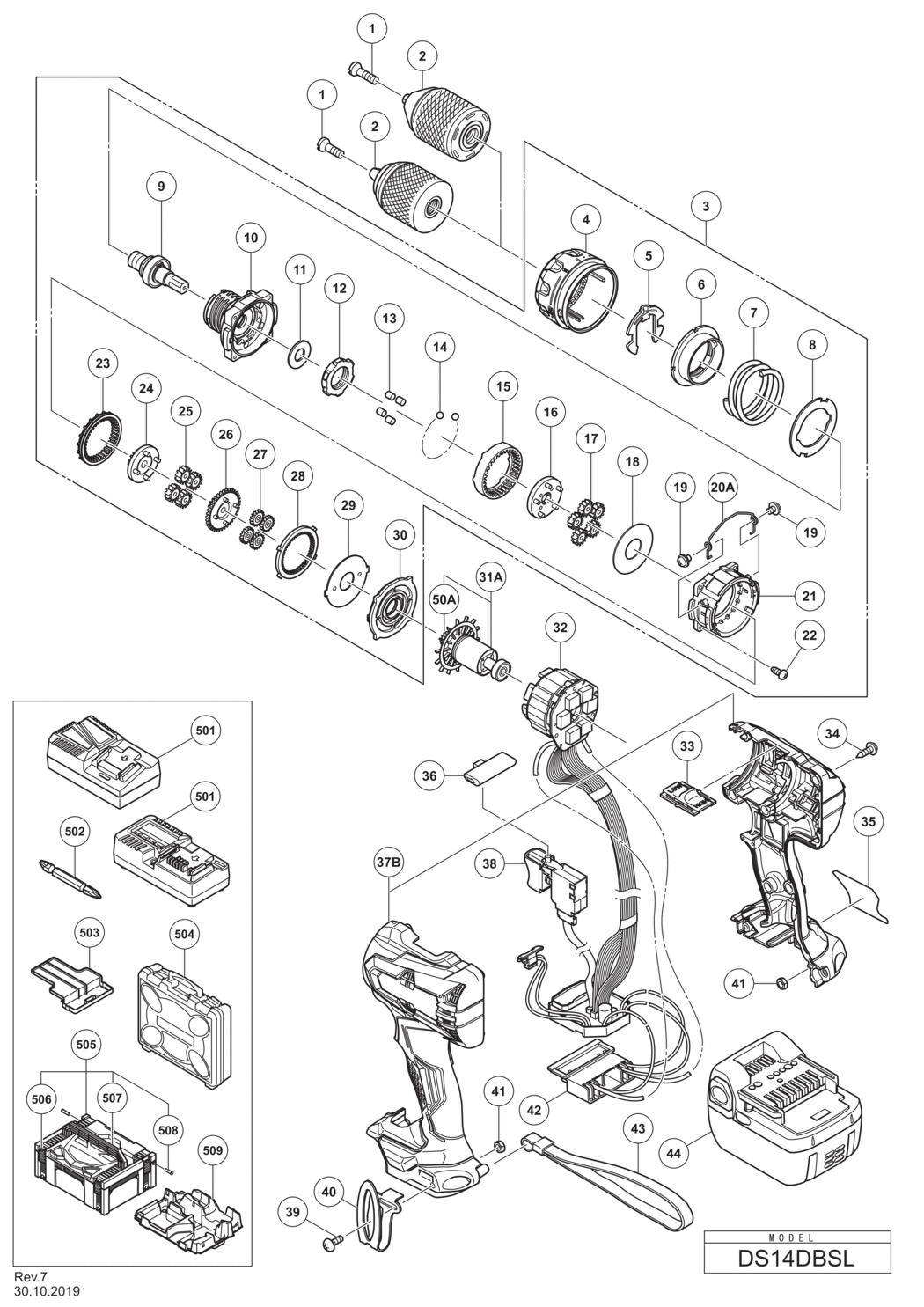

*1 - SEAL LOCK FLAT HD.SCREW(LEFT HAND)6X20.5 FOR CHUCK 13VLRU-N
HIT-370908.A0
370908
|
£1.67
|
£2.00
|
|
|
*1 - SEAL LOCK FLAT HD.SCREW(LEFT HAND) M6X25 FOR CHUCK 13VLRB-Z
HIT-370909.A6
370909
|
£1.67
|
£2.00
|
|
|
*2 - DRILL CHUCK 13VLRU-N (W/O CHUCK WRENCH) FOR EUROPE
HIT-335961.A2
335961
|
£38.46
|
£46.15
|
|
|
*2 - DRILL CHUCK 13VLRB-Z (W/O CHUCK WRENCH) FOR EUROPE
HIT-370897.A1
370897
|
£29.49
|
£35.39
|
|
|
3 - GEAR BOX ASS'Y INCLUD.4-30
HIT-370592.A1
370592
|
£81.66
|
£97.99
|
|
|
4 - CLUTCH DIAL (A)
HIT-370610.A0
370610
|
-
|
|
|
|
5 - CLICK SPRING
HIT-327146.A13
327146
|
£1.67
|
£2.00
|
|
|
6 - NUT
HIT-370602.A2
370602
|
£1.67
|
£2.00
|
|
|
7 - SPRING
HIT-370607.A1
370607
|
-
|
|
|
|
8 - THRUST PLATE
HIT-370603.A1
370603
|
-
|
|
|
|
9 - SPINDLE
HIT-370596.A1
370596
|
-
|
|
|
|
10 - FRONT CASE
HIT-370594.A0
370594
|
-
|
|
|
|
11 - WASHER (B)
HIT-328717.A5
328717
|
-
|
|
|
|
12 - LOCK RING
HIT-370609.A1
370609
|
-
|
|
|
|
13 - ROLLER
HIT-319744.A5
319744
|
£1.67
|
£2.00
|
|
|
14 - STEEL BALL D5
HIT-306936.A33
306936
|
£1.67
|
£2.00
|
|
|
15 - RING GEAR
HIT-370606.A2
370606
|
£4.08
|
£4.89
|
|
|
16 - CARRIER
HIT-370600.A2
370600
|
-
|
|
|
|
17 - PLANET GEAR (C) SET (5 PCS.)
HIT-370616.A3
370616
|
-
|
|
|
|
18 - WASHER (A)
HIT-331892.A4
331892
|
£2.67
|
£3.20
|
|
|
19 - SCREW SET D2 (2 PCS.)
HIT-331895.A7
331895
|
-
|
|
|
|
20A - SHIFT ARM
HIT-370608.A2
370608
|
£1.67
|
£2.00
|
|
|
21 - REAR CASE
HIT-370601.A1
370601
|
£3.21
|
£3.85
|
|
|
22 - SCREW SET D3X12 (4 PCS.)
HIT-324357.A17
324357
|
-
|
|
|
|
23 - SLIDE RING GEAR
HIT-370605.A1
370605
|
£6.32
|
£7.59
|
|
|
24 - PINION (C)
HIT-370599.A1
370599
|
-
|
|
|
|
25 - PLANET GEAR (B) SET (4 PCS.)
HIT-370615.A0
370615
|
-
|
|
|
|
26 - PINION (B)
HIT-370598.A2
370598
|
£5.17
|
£6.20
|
|
|
27 - PLANET GEAR (A) SET (4 PCS.)
HIT-370614.A3
370614
|
-
|
|
|
|
28 - FIRST RING GEAR
HIT-370604.A2
370604
|
£3.21
|
£3.85
|
|
|
29 - WASHER (B)
HIT-339761.A6
339761
|
-
|
|
|
|
30 - MOTOR SPACER
HIT-339762.A2
339762
|
-
|
|
|
|
31A - ROTOR PINION SET INCLUD.50A
HIT-361048.A1
361048
|
£48.77
|
£58.52
|
|
|
32 - WIRING ASS'Y INCLUD.38
HIT-370620.A0
370620
|
-
|
|
|
|
33 - SHIFT KNOB
HIT-330583.A4
330583
|
£1.67
|
£2.00
|
|
|
34 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A73
313687
|
£1.67
|
£2.00
|
|
|
35 - NAME PLATE
HIT-000000.A1316
000000
|
-
|
|
|
|
36 - PUSHING BUTTON
HIT-339768.A3
339768
|
£1.67
|
£2.00
|
|
|
37B - HOUSING (A).(B) SET
HIT-370618.A0
370618
|
£22.36
|
£26.83
|
|
|
38 - DC-SPEED CONTROL SWITCH
HIT-370151.A7
370151
|
£22.58
|
£27.09
|
|
|
39 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A43
327001
|
£2.71
|
£3.25
|
|
|
40 - HOOK
HIT-332824.A5
332824
|
£7.12
|
£8.54
|
|
|
41 - LOCK NUT M4 (BLACK)
HIT-327002.A27
327002
|
£2.71
|
£3.25
|
|
|
42 - BATTERY TERMINAL
HIT-339769.A3
339769
|
£5.17
|
£6.20
|
|
|
43 - STRAP (BLACK)
HIT-306952.A13
306952
|
£7.97
|
£9.57
|
|
|
*44 - BATTERY BSL 1450 (EUROPE AUS NZL) INCLUD.503
HIT-335786.A2
335786
|
-
|
|
|
|
*44 - BATTERY BSL 1430C (EUROPE) INCLUD.503
HIT-339780.A0
339780
|
-
|
|
|
|
*44 - BATTERY BSL 1430C (CHN) INCLUD.503
HIT-371307.A0
371307
|
-
|
|
|
|
*44 - BATTERY BSL 1430 (THA) INCLUD.503
HIT-336689.A0
336689
|
-
|
|
|
|
50A - MOTOR PINION
HIT-376019.A3
376019
|
-
|
|
|
|
501 - CHARGER (MODEL UC 18YFSL)
HIT-000000.A1318
000000
|
-
|
|
|
|
501 - CHARGER (MODEL UC 18YKSL)
HIT-000000.A1319
000000
|
-
|
|
|
|
502 - + DRIVER BIT NO.2 65L
HIT-983006.A30
983006
|
-
|
|
|
|
503 - BATTERY COVER
HIT-329897.A105
329897
|
£1.67
|
£2.00
|
|
|
*504 - CASE
HIT-337852.A12
337852
|
£23.85
|
£28.62
|
|
|
*504 - CASE LARGE SIZE
HIT-337140.A7
337140
|
-
|
|
|
|
505 - CASE ASS'Y (STACKABLE 2) INCLUD.506-508
HIT-336471.A33
336471
|
-
|
|
|
|
506 - LATCH
HIT-336472.A7
336472
|
£1.67
|
£2.00
|
|
|
507 - HANDLE
HIT-336473.A67
336473
|
£6.43
|
£7.72
|
|
|
508 - HINGE
HIT-336474.A7
336474
|
£1.67
|
£2.00
|
|
|
509 - INNER TRAY
HIT-336475.A5
336475
|
-
|
|
|
|
601 - - DRIVER BIT (A) 3MMX70L
HIT-955657.A21
955657
|
-
|
|
|
|
602 - - DRIVER BIT (A) 4MMX70L
HIT-955659.A20
955659
|
-
|
|
|
|
603 - - DRIVER BIT (A) 6MMX70L
HIT-955674.A21
955674
|
-
|
|
|
|
604 - + DRIVER BIT NO.1 65L
HIT-983004.A20
983004
|
-
|
|
|
|
605 - + DRIVER BIT NO.3 65L
HIT-983011.A15
983011
|
-
|
|
|
