Hitachi / Hikoki DS14DBL Cordless Driver Drill Spare Parts

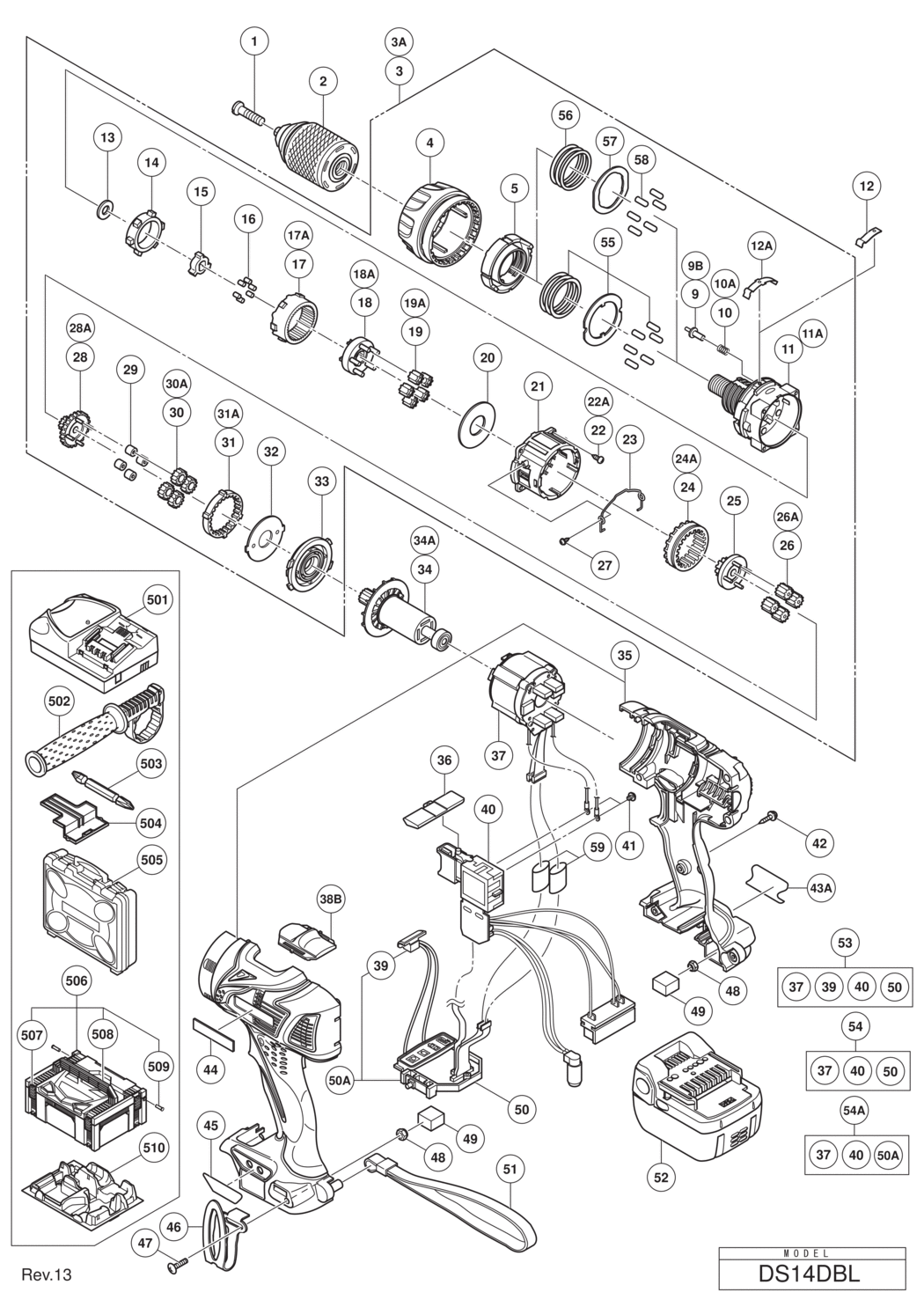

An exploded diagram and spare parts listing for the Hitachi / Hikoki DS14DBL Cordless Driver Drill

	Ex VAT	Inc VAT
1 - SPECIAL SCREW (LEFT HAND) M6X23 HIT-311959.A8 311959	£1.67	£2.00
2 - DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH) HIT-331914.A1 331914	£54.08	£64.89
*3 - GEAR BOX ASS'Y INCLUD.4-11 HIT-331709.A0 331709	£160.18	£192.22
*3A - GEAR BOX ASS'Y INCLUD.4-33 HIT-334974.A1 334974	£134.49	£161.39
4 - FRONT CAP HIT-331880.A0 331880	£23.70	£28.44
5 - NUT HIT-331881.A2 331881	-
*9 - STOPPER TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331885.A0 331885	£7.85	£9.42
*9B - STOPPER (A) SINCE 7.2012 EXCEPT FOR USA HIT-335296.A3 335296	£3.02	£3.63
*10 - STOPPER SPRING TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331886.A3 331886	£2.71	£3.25
*10A - STOPPER SPRING SINCE 7.2012 EXCEPT FOR USA HIT-333523.A5 333523	£2.71	£3.25
11 - FRONT CASE TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331887.A0 331887	£29.97	£35.96
*11A - FRONT CASE SINCE 7.2012 EXCEPT FOR USA HIT-334434.A2 334434	£94.82	£113.78
*12 - CLICK SPRING TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331905.A0 331905	£2.99	£3.59
*12A - CLICK SPRING SINCE 7.2012 EXCEPT FOR USA HIT-333516.A5 333516	£2.71	£3.25
13 - WASHER (A) HIT-331909.A2 331909	£1.67	£2.00
14 - LOCK RING (A) HIT-331903.A5 331903	£10.60	£12.72
15 - LOCK CAM HIT-331904.A2 331904	£2.71	£3.25
16 - NEEDLE ROLLER SET (6PCS.) HIT-331888.A2 331888	£2.71	£3.25
*17 - RING GEAR TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331889.A0 331889	-
*17A - RING GEAR SINCE 7.2012 EXCEPT FOR USA HIT-333519.A2 333519	£11.65	£13.98
18 - CARRIER TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331890.A1 331890	-
*18A - CARRIER SINCE 7.2012 EXCEPT FOR USA HIT-333517.A2 333517	£7.85	£9.42
19 - PLANET GEAR (C) SET (5 PCS.) TILL 6.2012 (SINCE 7.2012 FOR USA HIT-331891.A0 331891	-
*19A - PLANET GEAR (C) SET (5 PCS.) SINCE 7.2012 EXCEPT FOR USA HIT-333518.A5 333518	£5.17	£6.20
20 - WASHER (A) HIT-331892.A6 331892	£2.67	£3.20
21 - REAR CASE HIT-331893.A5 331893	£5.23	£6.28
*22 - SCREW SET D3X12 (6 PCS.) TILL 6.2012 (SINCE 7.2012 FOR USA HIT-315817.A1 315817	-
*22A - SCREW SET M3X12 (4 PCS.) SINCE 7.2012 EXCEPT FOR USA HIT-320087.A0 320087	£6.09	£7.31
23 - SHIFT ARM HIT-331894.A2 331894	£2.71	£3.25
*24 - SLIDE RING GEAR TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331896.A1 331896	-
*24A - SLIDE RING GEAR SINCE 7.2012 EXCEPT FOR USA HIT-333521.A2 333521	£7.85	£9.42
25 - PINION (C) HIT-331897.A0 331897	£9.60	£11.52
*26 - PLANET GEAR (B) SET (4 PCS.) TILL 6.2012 (SINCE 7.2012 FOR USA HIT-331898.A1 331898	-
*26A - PLANET GEAR (B) SET (4 PCS.) SINCE 7.2012 EXCEPT FOR USA HIT-333520.A5 333520	-
27 - SCREW SET D2X3.5 (2 PCS.) HIT-330579.A4 330579	£2.67	£3.20
*28 - PINION (B) TILL 6.2012 (SINCE 7.2012 FOR USA HIT-331899.A0 331899	-
*28A - PINION (B) SINCE 7.2012 EXCEPT FOR USA HIT-333524.A2 333524	£5.23	£6.28
29 - NEEDLE BEARING SET (4 PCS.) HIT-331926.A11 331926	-
*30 - PLANET GEAR (A) SET (4 PCS.) TILL 6.2012 (SINCE 7.2012 FOR USA HIT-331900.A1 331900	-
*30A - PLANET GEAR (A) SET (4 PCS.) SINCE 7.2012 EXCEPT FOR USA HIT-334441.A8 334441	-
*31 - FIRST RING GEAR TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331901.A0 331901	-
*31A - FIRST RING GEAR SINCE 7.2012 EXCEPT FOR USA HIT-334435.A1 334435	-
32 - WASHER (B) HIT-322988.A4 322988	-
33 - MOTOR SPACER HIT-331902.A2 331902	-
*34 - ROTOR PINION SET TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-331710.A1 331710	£48.05	£57.66
*34A - ROTOR PINION SET SINCE 7.2012 EXCEPT FOR USA HIT-334975.A0 334975	-
35 - HOUSING (A).(B) SET (GREEN) HIT-331718.A0 331718	-
36 - PUSHING BUTTON HIT-331907.A5 331907	£1.67	£2.00
37 - STATOR FET PCB HIT-340766.A1 340766	-
38B - SHIFT KNOB HIT-334267.A8 334267	£12.52	£15.03
*39 - LED HOLDER HIT-339280.A5 339280	-
40 - DC-SPEED CONTROL SWITCH HIT-331715.A1 331715	£40.19	£48.23
41 - MACHINE SCREW (W/SP. WASHER) M3X5 HIT-994532.A16 994532	£1.67	£2.00
42 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A59 313687	£1.67	£2.00
43A - NAME PLATE HIT-000000.A2237 000000	-
44 - BRAND PLATE HIT-329648.A12 329648	£2.81	£3.37
45 - PANEL SHEET (B) HIT-330662.A6 330662	-
46 - HOOK HIT-332824.A12 332824	£7.12	£8.54
47 - TRUSS HD. SCREW M4 (BLACK) HIT-327001.A59 327001	£2.71	£3.25
48 - LOCK NUT M4 (BLACK) HIT-327002.A10 327002	£2.71	£3.25
49 - PACKING HIT-330854.A12 330854	-
*50 - CONTROLLER TILL 6.2012 HIT-331722.A0 331722	-
*50A - CONTROLLER INCLUD.39 SINCE 7.2012 HIT-333690.A1 333690	-
51 - STRAP (BLACK) HIT-306952.A29 306952	£7.97	£9.57
*52 - BATTERY BSL 1430 (EUROPE AUS NZL) HIT-329083.A18 329083	£109.82	£131.78
*54 - WIRING ASS'Y INCLUD.37 HIT-331720.A0 331720	-
*54A - WIRING ASS'Y INCLUD.37 HIT-333437.A0 333437	£217.99	£261.59
*55 - CLUTCH PARTS SET TILL 6.2012 (SINCE 7.2012 FOR USA CAN) HIT-332546.A0 332546	-
*56 - SPRING SINCE 7.2012 EXCEPT FOR USA HIT-334432.A2 334432	-
*57 - THRUST WASHER SINCE 7.2012 EXCEPT FOR USA HIT-334433.A1 334433	-
*58 - PIN SET (6 PCS.) SINCE 7.2012 EXCEPT FOR USA HIT-333539.A9 333539	£11.65	£13.98
59 - SUMI TUBE HIT-336090.A7 336090	£1.67	£2.00
502 - SIDE HANDLE HIT-331906.A2 331906	£12.02	£14.43
503 - + DRIVER BIT NO.2 65L HIT-983006.A3 983006	-
*504 - BATTERY COVER HIT-329897.A127 329897	£1.67	£2.00
505 - CASE HIT-323230.A0 323230	£49.94	£59.93
*601 - DEPTH GAUGE HIT-303709.A19 303709	£1.67	£2.00
602 - SILICONE RUBBER HIT-306927.A22 306927	-
