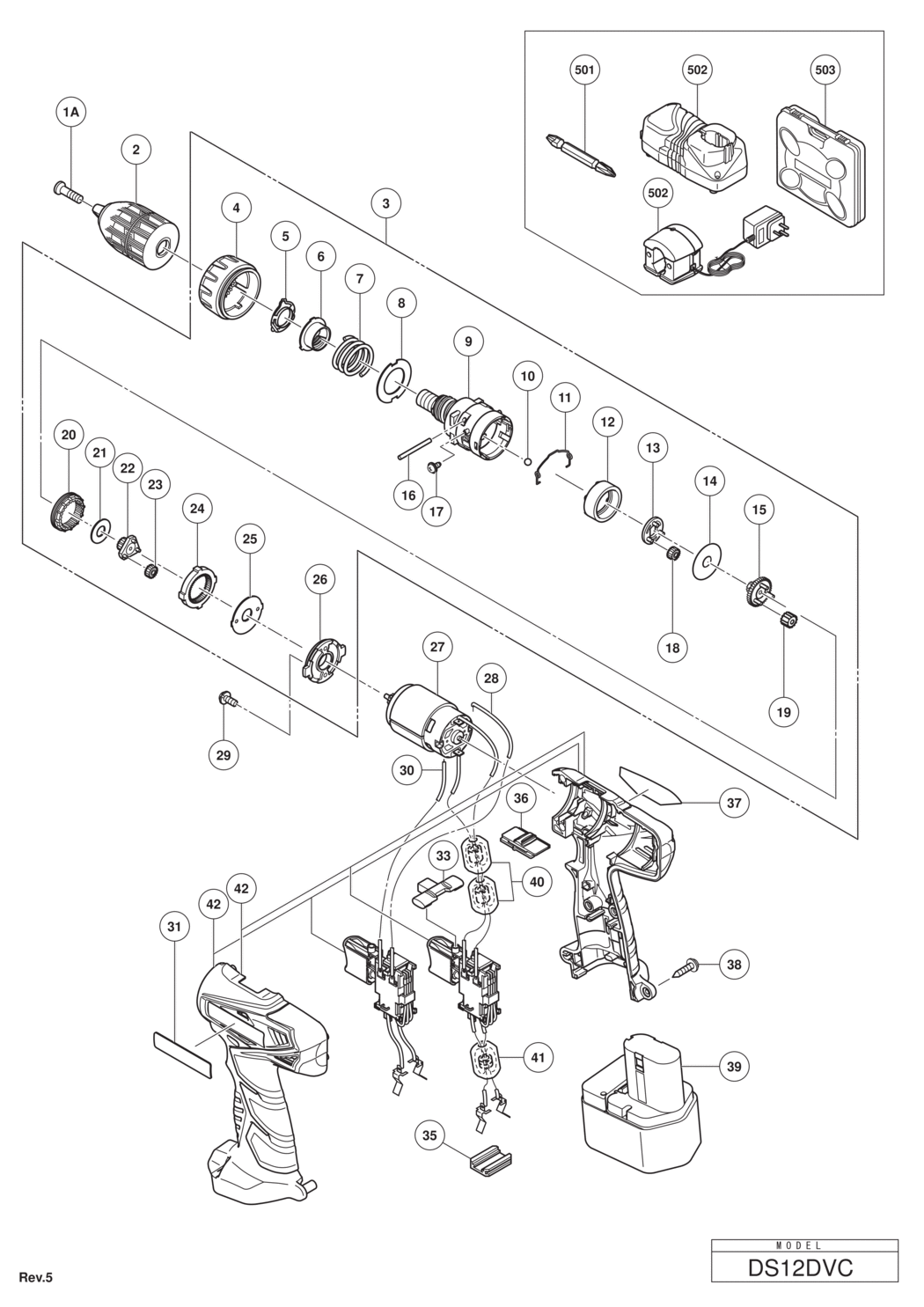

1A - LEFT-HAND HEXALOBULAR M5
HIT-337426.A6
337426
|
-
|
|
|
|
2 - DRILL CHUCK 10MM (W/O CHUCK WRENCH)
HIT-331602.A2
331602
|
£35.54
|
£42.65
|
|
|
3 - GEAR BOX ASS'Y INCLUD.4-26
HIT-331324.A0
331324
|
£38.04
|
£45.65
|
|
|
4 - CLUTCH DIAL
HIT-331587.A0
331587
|
-
|
|
|
|
5 - CLICK SPRING
HIT-329579.A2
329579
|
£1.67
|
£2.00
|
|
|
6 - NUT
HIT-331582.A2
331582
|
£1.67
|
£2.00
|
|
|
7 - SPRING
HIT-331583.A0
331583
|
-
|
|
|
|
8 - THRUST PLATE
HIT-331584.A2
331584
|
-
|
|
|
|
9 - GEAR CASE
HIT-331585.A0
331585
|
£14.58
|
£17.50
|
|
|
10 - STEEL BALL D5
HIT-306936.A15
306936
|
£1.67
|
£2.00
|
|
|
11 - SHIFT ARM
HIT-331586.A2
331586
|
-
|
|
|
|
12 - RING GEAR
HIT-331592.A2
331592
|
-
|
|
|
|
13 - CARRIER
HIT-331589.A0
331589
|
-
|
|
|
|
14 - WASHER (B)
HIT-331593.A0
331593
|
-
|
|
|
|
15 - PINION (C)
HIT-331590.A2
331590
|
£7.48
|
£8.97
|
|
|
16 - NEEDLE
HIT-331588.A2
331588
|
-
|
|
|
|
17 - SCREW SET D2X3.5 (2 PCS.)
HIT-330579.A5
330579
|
£2.67
|
£3.20
|
|
|
18 - PLANET GEAR (C) SET (3 PCS.)
HIT-331591.A0
331591
|
-
|
|
|
|
19 - PLANET GEAR (B) SET (3 PCS.)
HIT-331595.A0
331595
|
-
|
|
|
|
20 - SLIDE RING GEAR
HIT-331594.A2
331594
|
£4.99
|
£5.99
|
|
|
21 - WASHER (C)
HIT-331599.A1
331599
|
-
|
|
|
|
22 - PINION (B)
HIT-331596.A2
331596
|
-
|
|
|
|
23 - PLANET GEAR (A) SET (3 PCS.)
HIT-331597.A0
331597
|
-
|
|
|
|
24 - FIRST RING GEAR
HIT-331598.A2
331598
|
-
|
|
|
|
25 - WASHER (A)
HIT-331600.A2
331600
|
-
|
|
|
|
26 - MOTOR SPACER
HIT-331601.A0
331601
|
£2.71
|
£3.25
|
|
|
27 - MOTOR
HIT-333129.A0
333129
|
-
|
|
|
|
*28 - INTERNAL WIRE (B) (RED) EXCEPT FOR EUROPE (TILL 2.2012 FOR
HIT-306040.A1
306040
|
£1.67
|
£2.00
|
|
|
29 - MACHINE SCREW M3X8 (10 PCS.)
HIT-949203.A7
949203
|
£1.67
|
£2.00
|
|
|
*30 - INTERNAL WIRE (B) 90L (BLACK) EXCEPT FOR EUROPE (TILL 2.2012 FOR
HIT-324121.A1
324121
|
-
|
|
|
|
31 - BRAND LABEL
HIT-000000.A2209
000000
|
-
|
|
|
|
33 - PUSHING BUTTON
HIT-329181.A1
329181
|
£1.67
|
£2.00
|
|
|
35 - TERMINAL SUPPORT (A)
HIT-315141.A5
315141
|
£1.67
|
£2.00
|
|
|
36 - SHIFT KNOB
HIT-331332.A1
331332
|
£1.67
|
£2.00
|
|
|
37 - NAME PLATE
HIT-000000.A2210
000000
|
-
|
|
|
|
38 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A57
313687
|
£1.67
|
£2.00
|
|
|
*39 - BATTERY BCC 1212 (EUROPE AUS NZL)
HIT-332085.A0
332085
|
-
|
|
|
|
*40 - INTERNAL WIRE FERRITE SET SINCE 3.2012 FOR EUROPE
HIT-334862.A0
334862
|
-
|
|
|
|
*41 - TERMINAL SET SINCE 3.2012 FOR EUROPE
HIT-334883.A0
334883
|
-
|
|
|
|
*42 - HOUSING. SWITCH SET FOR EUROPE
HIT-338439.A1
338439
|
-
|
|
|
|
501 - + DRIVER BIT NO.2 65L
HIT-983006.A4
983006
|
-
|
|
|
|
*502 - CHARGER (MODEL UC18YK)
HIT-000000.A2212
000000
|
-
|
|
|
|
503 - CASE
HIT-323950.A1
323950
|
-
|
|
|
