Dewalt DCD734 Type 1 Cordless Drill Spare Parts

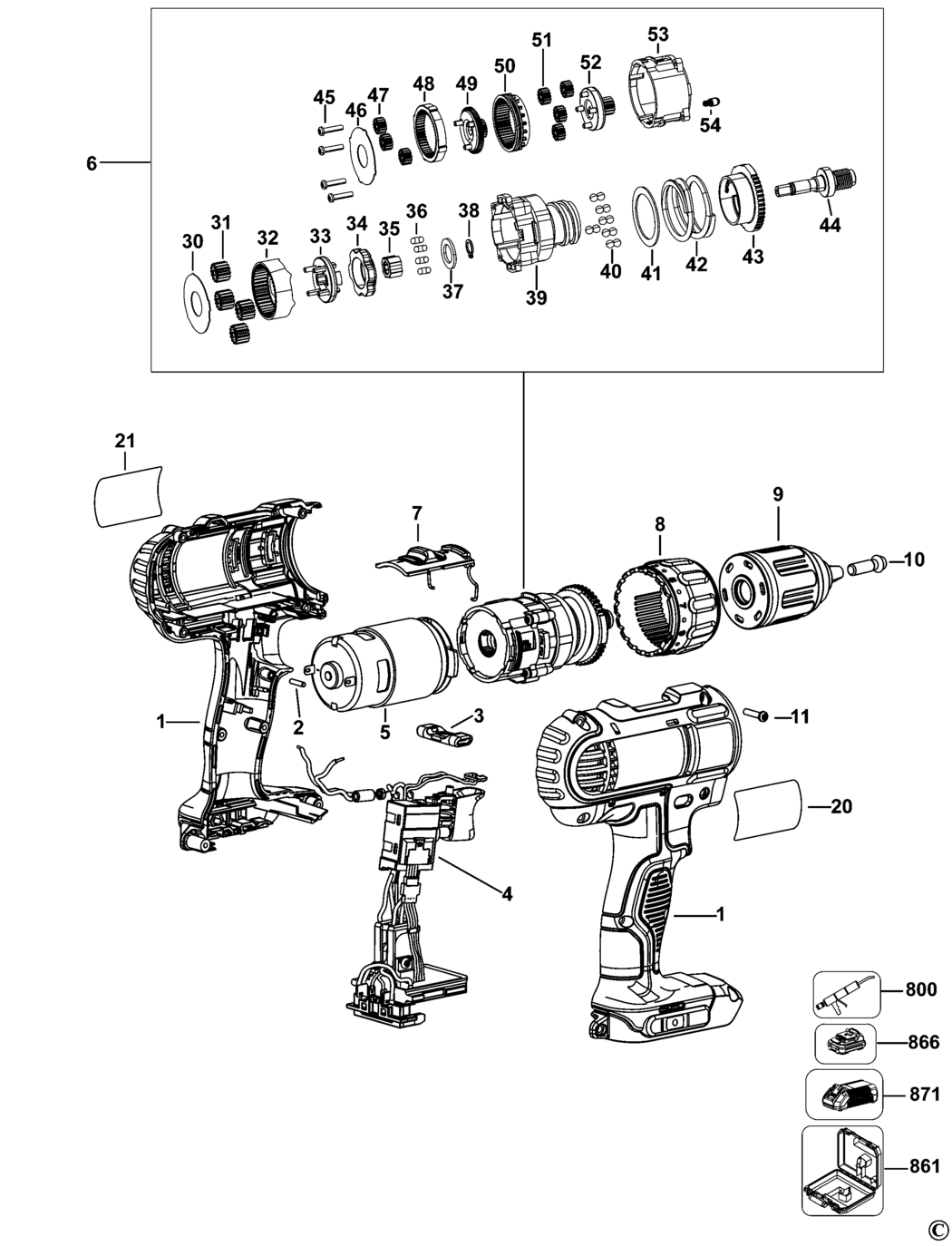

An exploded drawing and spare parts listing for the Dewalt DCD734 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N371819.A1 N371819	£16.03	£19.24
1 - CLAMSHELL SET BDE-N371819.A2 N371819	£16.03	£19.24
2 - ROLL PIN BDE-N071836.A2 N071836	£1.50	£1.80
2 - ROLL PIN BDE-N071836.A3 N071836	£1.50	£1.80
3 - ACTUATOR FWD/REV BDE-N151983.A3 N151983	£1.50	£1.80
3 - ACTUATOR FWD/REV BDE-N151983.A4 N151983	£1.50	£1.80
4 - SWITCH SA BDE-N382018.A0 N382018	£71.44	£85.73
4 - SWITCH SA GB BDE-N382018.A1 N382018	£71.44	£85.73
5 - MOTOR SA BDE-N382016.A1 N382016	£30.08	£36.10
5 - MOTOR SA BDE-N382016.A2 N382016	£30.08	£36.10
6 - TRANSMISSION SA BDE-N279940.A2 N279940	£38.80	£46.56
6 - TRANSMISSION SA BDE-N279940.A3 N279940	£38.80	£46.56
7 - SELECTOR SA BDE-N153906.A2 N153906	£2.26	£2.71
7 - SELECTOR SA BDE-N153906.A3 N153906	£2.26	£2.71
8 - COLLAR BDE-N207252.A0 N207252	£3.30	£3.96
8 - COLLAR BDE-N207252.A1 N207252	£3.30	£3.96
9 - CHUCK BDE-N472497.A2 N472497	£30.08	£36.10
9 - CHUCK BDE-N472497.A3 N472497	£30.08	£36.10
10 - SCREW BDE-N092854.A10 N092854	£1.66	£1.99
10 - SCREW BDE-N092854.A11 N092854	£1.66	£1.99
11 - SCREW BDE-682211-00.A250 682211-00	£1.50	£1.80
11 - SCREW BDE-682211-00.A251 682211-00	£1.50	£1.80
20 - RATING PLATE GB BDE-N378099 N378099	£1.50	£1.80
21 - BRAND LABEL BDE-N170447.A1 N170447	£1.42	£1.70
21 - BRAND LABEL BDE-N309544.A1 N309544	£1.50	£1.80
30 - PLATE BDE-N225459.A4 N225459	£1.50	£1.80
30 - PLATE BDE-N225459.A5 N225459	£1.50	£1.80
31 - GEAR BDE-N215913.A1 N215913	£1.50	£1.80
31 - GEAR BDE-N215913.A2 N215913	£1.50	£1.80
32 - GEAR BDE-N215912.A5 N215912	£1.82	£2.19
32 - GEAR BDE-N215912.A6 N215912	£1.82	£2.19
33 - CARRIER BDE-N362740.A6 N362740	£2.78	£3.34
33 - CARRIER BDE-N362740.A7 N362740	£2.78	£3.34
34 - LOCKING RING BDE-N209232.A6 N209232	£2.78	£3.34
34 - LOCKING RING BDE-N209232.A7 N209232	£2.78	£3.34
35 - ANVIL BDE-N218992.A5 N218992	£1.50	£1.80
35 - ANVIL BDE-N218992.A6 N218992	£1.50	£1.80
36 - PIN BDE-N236379.A4 N236379	£1.50	£1.80
36 - PIN BDE-N236379.A5 N236379	£1.50	£1.80
37 - WASHER BDE-N223513.A5 N223513	£1.50	£1.80
37 - WASHER BDE-N223513.A6 N223513	£1.50	£1.80
38 - RETAINER BDE-N034090.A3 N034090	£1.50	£1.80
38 - RETAINER BDE-N034090.A4 N034090	£1.50	£1.80
39 - HOUSING SA BDE-N376647.A2 N376647	£2.78	£3.34
39 - HOUSING SA BDE-N376647.A3 N376647	£2.78	£3.34
40 - BALL BDE-386690-00.A188 386690-00	£1.50	£1.80
40 - BALL BDE-386690-00.A189 386690-00	£1.50	£1.80
41 - WASHER BDE-N256699.A4 N256699	£1.50	£1.80
41 - WASHER BDE-N256699.A5 N256699	£1.50	£1.80
42 - SPRING BDE-N210954.A5 N210954	£1.50	£1.80
42 - SPRING BDE-N210954.A6 N210954	£1.50	£1.80
43 - SELECTOR BDE-N203616.A3 N203616	£1.50	£1.80
43 - SELECTOR BDE-N203616.A4 N203616	£1.50	£1.80
44 - SPINDLE SA BDE-N376648.A1 N376648	£12.17	£14.60
44 - SPINDLE SA BDE-N376648.A2 N376648	£12.17	£14.60
45 - SCREW BDE-N036457.A0 N036457	£1.50	£1.80
45 - SCREW BDE-N317559.A0 N317559	£1.50	£1.80
45 - SCREW BDE-N317559.A1 N317559	£1.50	£1.80
46 - PLATE BDE-N225458.A3 N225458	£1.50	£1.80
46 - PLATE BDE-N225458.A4 N225458	£1.50	£1.80
47 - GEAR BDE-N215916.A11 N215916	£1.50	£1.80
47 - GEAR BDE-N215916.A12 N215916	£1.50	£1.80
48 - GEAR BDE-N215917.A1 N215917	£1.50	£1.80
48 - GEAR BDE-N215917.A2 N215917	£1.50	£1.80
49 - CARRIER BDE-N362719.A6 N362719	£7.85	£9.42
49 - CARRIER BDE-N362719.A7 N362719	£7.85	£9.42
50 - GEAR BDE-N256760.A2 N256760	£3.30	£3.96
50 - GEAR BDE-N256760.A3 N256760	£3.30	£3.96
51 - GEAR BDE-N215916.A13 N215916	£1.50	£1.80
51 - GEAR BDE-N215916.A14 N215916	£1.50	£1.80
52 - CARRIER BDE-N362739.A0 N362739	£2.78	£3.34
52 - CARRIER BDE-N362739.A1 N362739	£2.78	£3.34
53 - HOUSING BDE-N218316.A6 N218316	£1.50	£1.80
53 - HOUSING BDE-N218316.A7 N218316	£1.50	£1.80
54 - DETENT BDE-326467-00.A262 326467-00	£1.50	£1.80
54 - DETENT BDE-326467-00.A263 326467-00	£1.50	£1.80
861 - KITBOX BDE-N237399.A1 N237399	£34.00	£40.80
861 - KITBOX BDE-N348599.A4 N348599	£34.00	£40.80
866 - BATTERY 14.4V - 1.3AH - 19WH BDE-DCB145-XJ DCB145-XJ	-
866 - BATTERY 14.4V - 2.0AH - 29WH DCD734D2 GB BDE-N342079.A4 N342079	£122.02	£146.42
871 - CHARGER 10.8V - 18V GB BDE-N450537.A83 N450537	£157.18	£188.61
