Dewalt DC984K Type 10 Combination Unit Spare Parts

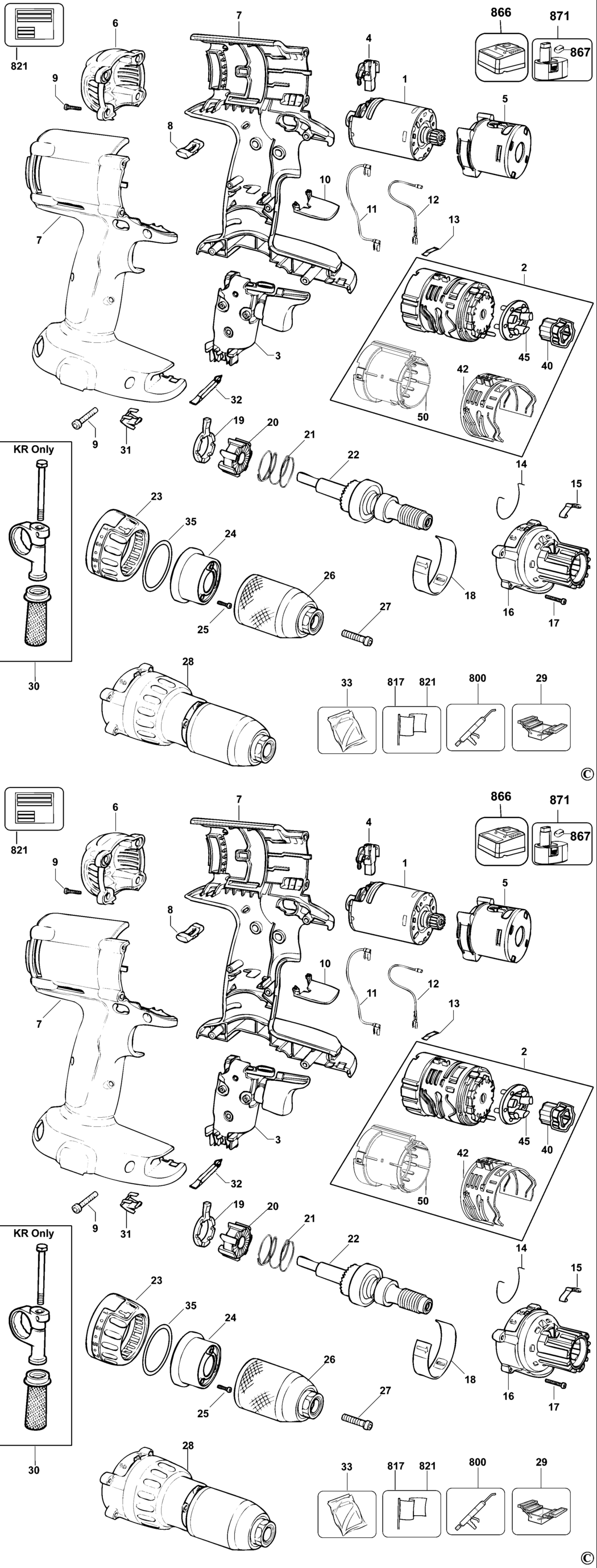

An exploded drawing and spare parts listing for the Dewalt DC984K Type 10 Combination Unit

	Ex VAT	Inc VAT
1 - MOTOR & PINION BDE-579724-04.A2 579724-04	-
1 - MOTOR & PINION BDE-579724-04.A3 579724-04	-
2 - GEARBOX SA BDE-583013-00.A13 583013-00	£78.95	£94.74
2 - GEARBOX SA BDE-583013-00.A14 583013-00	£78.95	£94.74
3 - SWITCH SA BDE-368832-09.A18 368832-09	-
3 - SWITCH SA BDE-368832-09.A19 368832-09	-
4 - BRUSH PAIR BDE-493511-00.A23 493511-00	£14.57	£17.48
4 - BRUSH PAIR BDE-493511-00.A24 493511-00	£14.57	£17.48
5 - ADAPTOR BDE-394514-01.A10 394514-01	£3.70	£4.44
5 - ADAPTOR BDE-394514-01.A11 394514-01	£3.70	£4.44
6 - END CAP BDE-394513-00.A0 394513-00	£5.72	£6.87
6 - END CAP BDE-394513-00.A1 394513-00	£5.72	£6.87
7 - NO LONGER AVAILABLE BDE-000000-00.A26180 000000-00	-
7 - CLAMSHELL BDE-394511-01 394511-01	-
8 - LEVER BDE-394517-00.A10 394517-00	-
8 - LEVER BDE-394517-00.A11 394517-00	-
9 - SCREW BDE-682211-00.A145 682211-00	£1.50	£1.80
9 - SCREW BDE-682211-00.A146 682211-00	£1.50	£1.80
10 - GUIDE BDE-603529-00.A24 603529-00	£1.42	£1.70
10 - GUIDE BDE-603529-00.A25 603529-00	£1.42	£1.70
11 - LEADWIRE BDE-398978-00.A27 398978-00	£2.26	£2.71
11 - LEADWIRE BDE-398978-00.A28 398978-00	£2.26	£2.71
12 - LEADWIRE BDE-398979-01.A2 398979-01	£1.78	£2.13
12 - LEADWIRE BDE-398979-01.A3 398979-01	£1.78	£2.13
13 - DETENT BDE-608060-00.A28 608060-00	-
13 - DETENT BDE-608060-00.A29 608060-00	-
14 - SPRING BDE-399059-00.A28 399059-00	£1.42	£1.70
14 - SPRING BDE-399059-00.A29 399059-00	£1.42	£1.70
15 - SPRING GUIDE BDE-395460-00.A5 395460-00	£1.50	£1.80
15 - SPRING GUIDE BDE-395460-00.A6 395460-00	£1.50	£1.80
16 - GEARCASE BDE-613767-01.A3 613767-01	£17.03	£20.44
16 - GEARCASE BDE-613767-01.A4 613767-01	£17.03	£20.44
17 - SCREW BDE-330019-49.A14 330019-49	£1.50	£1.80
17 - SCREW BDE-330019-49.A15 330019-49	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A26181 000000-00	-
18 - SHROUD BDE-394518-01.A0 394518-01	-
19 - CAM BDE-394545-00.A16 394545-00	£1.42	£1.70
19 - CAM BDE-394545-00.A17 394545-00	£1.42	£1.70
20 - RATCHET FIXED BDE-394542-00.A8 394542-00	£3.70	£4.44
20 - RATCHET FIXED BDE-394542-00.A9 394542-00	£3.70	£4.44
21 - NO LONGER AVAILABLE BDE-000000-00.A26182 000000-00	-
21 - SPRING BDE-619421-00.A0 619421-00	-
22 - SPINDLE SA BDE-579726-00.A6 579726-00	-
22 - SPINDLE SA BDE-579726-00.A7 579726-00	-
23 - COLLAR BDE-604643-00.A12 604643-00	£3.30	£3.96
23 - COLLAR BDE-604643-00.A13 604643-00	£3.30	£3.96
24 - END CAP BDE-609133-00.A3 609133-00	£1.42	£1.70
24 - END CAP BDE-609133-00.A4 609133-00	£1.42	£1.70
25 - SCREW BDE-330045-53.A2 330045-53	-
25 - SCREW BDE-330045-53.A3 330045-53	-
26 - CHUCK KEYLESS BDE-N242399.A44 N242399	£30.08	£36.10
26 - CHUCK KEYLESS BDE-N242399.A45 N242399	£30.08	£36.10
27 - SCREW BDE-605256-02.A50 605256-02	£1.50	£1.80
27 - SCREW BDE-605256-02.A51 605256-02	£1.50	£1.80
28 - REPAIR KIT BDE-579728-00.A6 579728-00	£131.46	£157.75
28 - REPAIR KIT BDE-579728-00.A7 579728-00	£131.46	£157.75
29 - S.T.INSERT BDE-559697-99.A4 559697-99	£55.30	£66.36
29 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A30 559661-99	£113.07	£135.68
29 - S.T.INSERT BDE-559697-99.A5 559697-99	£55.30	£66.36
29 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A31 559661-99	£113.07	£135.68
31 - HOLDER BDE-148354-03.A396 148354-03	£1.50	£1.80
31 - HOLDER BDE-148354-03.A397 148354-03	£1.50	£1.80
32 - BIT PHILLIPS BDE-297757-02.A231 297757-02	£1.82	£2.19
32 - BIT PHILLIPS BDE-297757-02.A232 297757-02	£1.82	£2.19
33 - REPAIR KIT BDE-479938-00.A4 479938-00	£17.03	£20.44
33 - REPAIR KIT BDE-479938-00.A5 479938-00	£17.03	£20.44
40 - ANVIL BDE-394532-00.A16 394532-00	£1.42	£1.70
40 - ANVIL BDE-394532-00.A17 394532-00	£1.42	£1.70
42 - SLIDER BDE-607282-00.A0 607282-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A26183 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A26184 000000-00	-
45 - CARRIER SA BDE-397302-00.A0 397302-00	-
50 - HOUSING BDE-394522-02.A1 394522-02	-
50 - NO LONGER AVAILABLE BDE-000000-00.A26185 000000-00	-
800 - GREASE 100 GMS BDE-808386-00.A171 808386-00	£55.30	£66.36
800 - GREASE 100 GMS BDE-808386-00.A172 808386-00	£55.30	£66.36
817 - BRAND LABEL BDE-578037-00.A3 578037-00	-
817 - BRAND LABEL BDE-578037-00.A4 578037-00	-
821 - RATING PLATE BDE-N042755.A0 N042755	£2.71	£3.25
821 - RATING PLATE GB BDE-N042755.A1 N042755	£2.71	£3.25
866 - CHARGER 7.2V - 18V DC984KA BDE-572576-00.A27 572576-00	£110.62	£132.74
866 - CHARGER 7.2V - 18V DC984KA BDE-572576-01.A7 572576-01	-
866 - CHARGER 7.2V - 18V DC984KA GB BDE-572576-00.A28 572576-00	£110.62	£132.74
866 - CHARGER 7.2V - 18V DC984KL GB BDE-N015877.A22 N015877	£93.62	£112.35
866 - NO LONGER AVAILABLE DC984KL BDE-000000-00.A26186 000000-00	-
867 - SAFETY CAP BDE-608522-00.A59 608522-00	£1.50	£1.80
867 - SAFETY CAP BDE-608522-00.A60 608522-00	£1.50	£1.80
871 - BATTERY 14.4V - 2.4AH DC984KA GB BDE-1006622-00.A1 1006622-00	£65.52	£78.62
871 - NO LONGER AVAILABLE DC984KL GB BDE-000000-00.A26187 000000-00	-
871 - BATTERY 14.4V - 2.4AH DC984KA BDE-1006622-00.A0 1006622-00	£65.52	£78.62
871 - BATTERY 14.4V - 2.0AH DC984KL BDE-N058103 N058103	-

Attribute Name	Value
Brand	Dewalt
