Dewalt DC732K Type 1 Cordless Drill Spare Parts

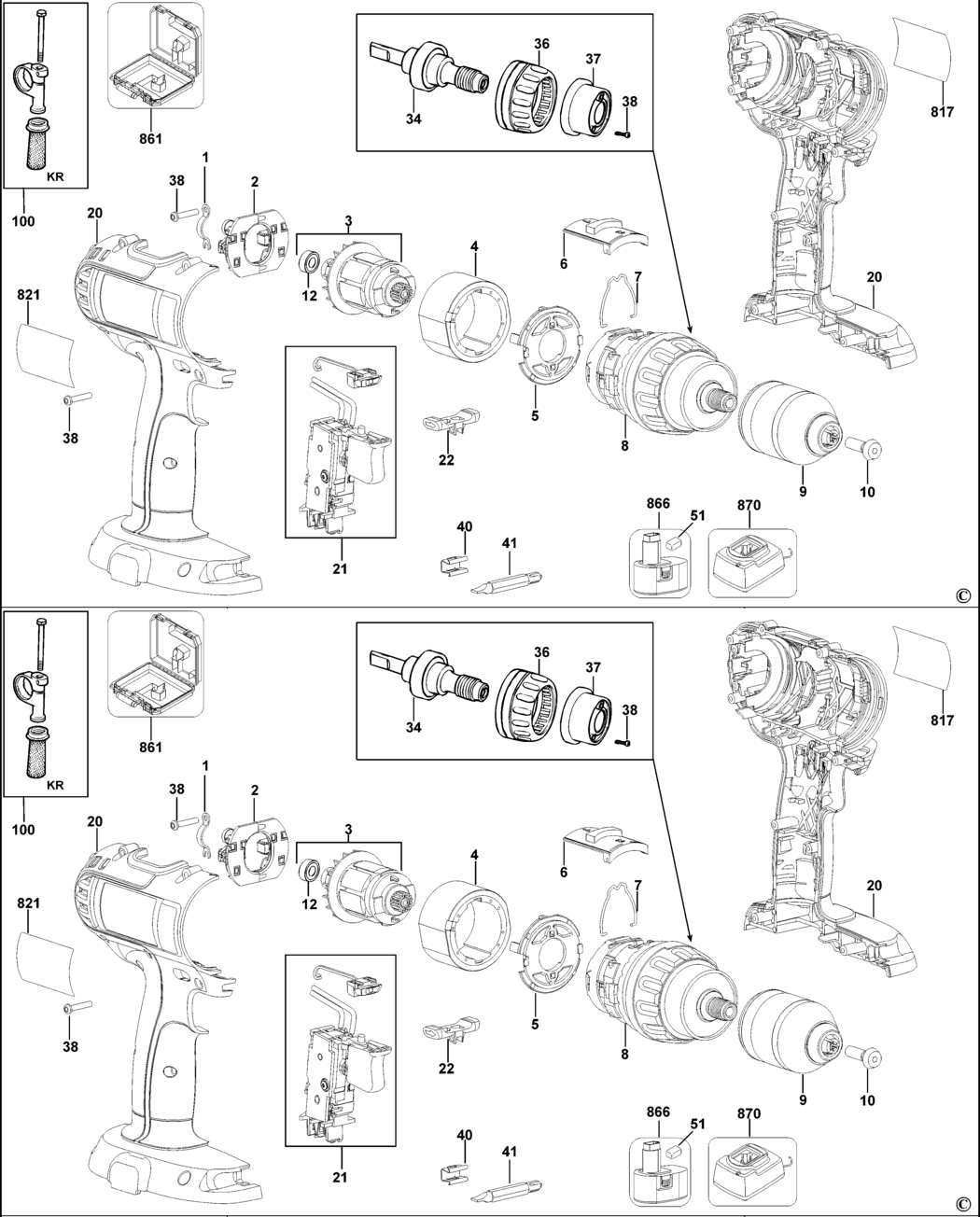

An exploded drawing and spare parts listing for the Dewalt DC732K Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - CLAMP BDE-645373-00.A25 645373-00	£1.50	£1.80
1 - CLAMP BDE-645373-00.A26 645373-00	£1.50	£1.80
2 - BRUSH & PLATE BDE-1007801-00.A12 1007801-00	£10.85	£13.02
2 - BRUSH & PLATE BDE-1007801-00.A13 1007801-00	£10.85	£13.02
3 - ARMATURE SA BDE-1007803-00.A5 1007803-00	£33.13	£39.76
3 - ARMATURE SA BDE-1007803-00.A6 1007803-00	£33.13	£39.76
4 - MAGNET SA BDE-1007805-00.A8 1007805-00	£30.08	£36.10
4 - MAGNET SA BDE-1007805-00.A9 1007805-00	£30.08	£36.10
5 - ADAPTOR BDE-632733-00.A20 632733-00	£1.50	£1.80
5 - ADAPTOR BDE-632733-00.A21 632733-00	£1.50	£1.80
6 - SLIDER BDE-656309-00.A8 656309-00	-
6 - SLIDER BDE-656309-00.A9 656309-00	-
7 - SPRING CLIP BDE-391896-00.A30 391896-00	£1.50	£1.80
7 - SPRING CLIP BDE-391896-00.A31 391896-00	£1.50	£1.80
8 - TRANSMISSION SA BDE-1007807-00.A5 1007807-00	-
8 - TRANSMISSION SA BDE-1007807-00.A6 1007807-00	-
9 - CHUCK 13MM BDE-330075-61.A11 330075-61	£74.15	£88.98
9 - CHUCK 13MM BDE-330075-61.A12 330075-61	£74.15	£88.98
10 - SCREW BDE-605256-02.A21 605256-02	£1.50	£1.80
10 - SCREW BDE-605256-02.A22 605256-02	£1.50	£1.80
12 - BEARING BDE-N110357.A7 N110357	£3.30	£3.96
12 - BEARING BDE-N110357.A22 N110357	£3.30	£3.96
20 - CLAMSHELL SET BDE-N015876.A0 N015876	£16.03	£19.24
20 - CLAMSHELL SET BDE-N015876.A1 N015876	£16.03	£19.24
21 - SWITCH SA BDE-N076359.A8 N076359	£45.88	£55.06
21 - SWITCH SA BDE-N076359.A9 N076359	£45.88	£55.06
22 - REVERSER BDE-642891-00.A32 642891-00	£1.42	£1.70
22 - REVERSER BDE-642891-00.A33 642891-00	£1.42	£1.70
34 - SPINDLE SA BDE-1007818-00.A10 1007818-00	£15.63	£18.76
34 - SPINDLE SA BDE-1007818-00.A11 1007818-00	£15.63	£18.76
36 - COLLAR BDE-N007449.A1 N007449	£3.70	£4.44
36 - COLLAR BDE-N007449.A2 N007449	£3.70	£4.44
37 - CAP BDE-656058-00.A1 656058-00	£2.26	£2.71
37 - CAP BDE-N053847.A10 N053847	£1.42	£1.70
38 - SCREW BDE-682211-00.A96 682211-00	£1.50	£1.80
38 - SCREW BDE-682211-00.A97 682211-00	£1.50	£1.80
40 - HOLDER BDE-148354-03.A380 148354-03	£1.50	£1.80
40 - HOLDER BDE-148354-03.A381 148354-03	£1.50	£1.80
41 - BIT PHILLIPS BDE-297757-02.A244 297757-02	£1.82	£2.19
41 - BIT PHILLIPS BDE-297757-02.A245 297757-02	£1.82	£2.19
51 - CAP BDE-645221-00.A101 645221-00	£1.50	£1.80
51 - CAP BDE-645221-00.A102 645221-00	£1.50	£1.80
817 - IDENTITY LABEL BDE-650190-00.A13 650190-00	£1.50	£1.80
817 - IDENTITY LABEL BDE-650190-00.A14 650190-00	£1.50	£1.80
861 - KIT BOX BDE-392088-01.A9 392088-01	£37.35	£44.82
861 - KIT BOX BDE-392088-01.A10 392088-01	£37.35	£44.82

Attribute Name	Value
Brand	Dewalt
