Stanley B6CC304SCR004 Type REV A Compressor Spare Parts

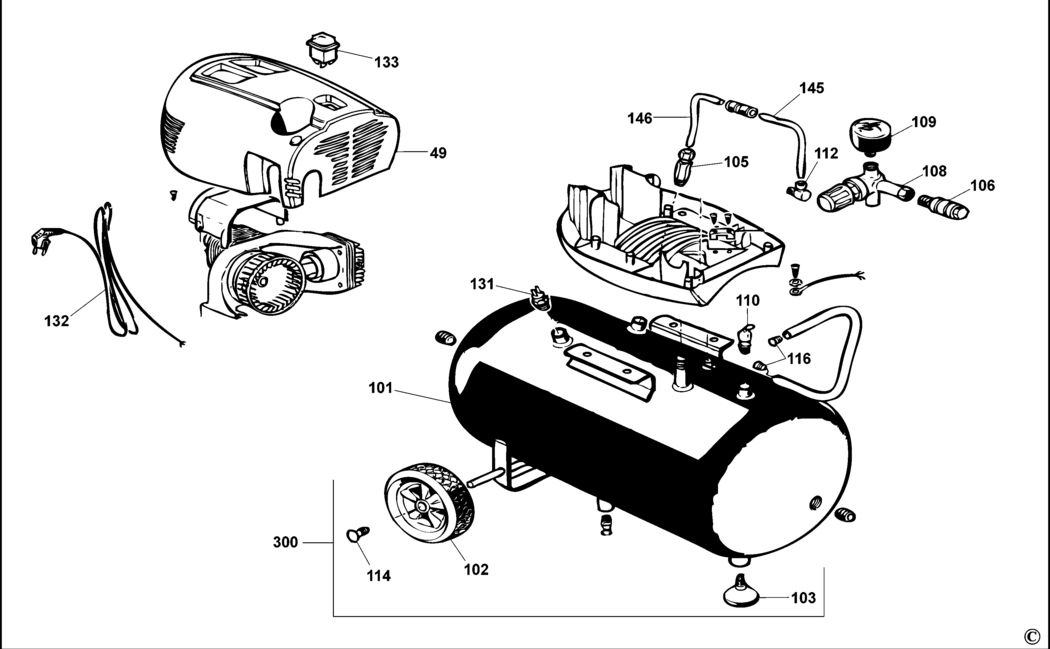

An exploded drawing and spare parts listing for the Stanley B6CC304SCR004 Type REV A Compressor

	Ex VAT	Inc VAT
49 - COVER BDE-9038362 9038362	-
101 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A190 000000-05	-
102 - WHEEL BDE-9412038.A1 9412038	£5.88	£7.06
103 - FOOT BDE-9038505 9038505	£5.88	£7.06
105 - VALVE BDE-9048058 9048058	£14.57	£17.48
106 - VALVE BDE-9047051.A0 9047051	£10.85	£13.02
108 - VALVE BDE-9051132 9051132	-
109 - GAUGE BDE-9414581 9414581	£10.57	£12.68
110 - VALVE BDE-9412464 9412464	£14.57	£17.48
112 - ELBOW TUBE BDE-9050601.A0 9050601	£14.57	£17.48
114 - PIN BDE-9011062.A1 9011062	-
116 - PLUG BDE-9038001.A3 9038001	£1.82	£2.19
124 - CONNECTOR BDE-9414249.A0 9414249	£10.85	£13.02
131 - SWITCH CUT OUT SA BDE-9063201.A1 9063201	£17.48	£20.97
132 - CORDSET GB BDE-9065657.A4 9065657	£25.70	£30.84
133 - SWITCH 220V BDE-9064185.A4 9064185	£7.18	£8.62
145 - PIPE BDE-9043222 9043222	£3.80	£4.56
146 - PIPE BDE-9043223.A1 9043223	£2.78	£3.34
300 - WHEEL SET BDE-9420578 9420578	£30.08	£36.10
