Bostitch SFC300-HP5.5 Type 1 Compressor Spare Parts

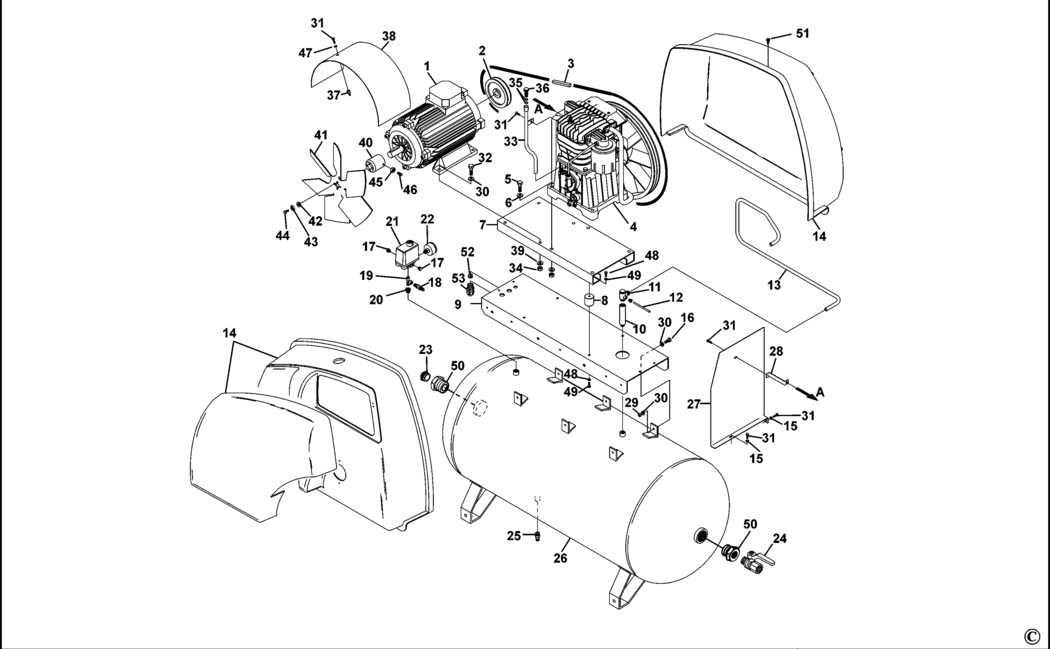

An exploded drawing and spare parts listing for the Bostitch SFC300-HP5.5 Type 1 Compressor

	Ex VAT	Inc VAT
2 - PULLEY BDE-F7408470000 F7408470000	£283.82	£340.58
3 - BELT BDE-F7371110000 F7371110000	£99.47	£119.36
4 - PUMP SA BDE-F3020630000 F3020630000	£1417.14	£1700.57
5 - SCREW BDE-F7011980000.A0 F7011980000	£1.82	£2.19
6 - WASHER M10 BDE-F7030040000.A8 F7030040000	£1.50	£1.80
8 - SUPPORT BDE-F7172160000.A2 F7172160000	£108.20	£129.84
10 - HOSE BDE-F7232030000.A2 F7232030000	£19.90	£23.88
11 - VALVE BDE-F7190150000.A5 F7190150000	£108.20	£129.84
12 - HOSE BDE-F7230010000.A1 F7230010000	£12.17	£14.60
13 - HOSE BDE-F7230840000.A0 F7230840000	£336.69	£404.03
14 - HOUSING BDE-F7153720000.A2 F7153720000	£1417.14	£1700.57
15 - WASHER BDE-F7030010000.A5 F7030010000	£1.50	£1.80
16 - SCREW BDE-F7011100000.A1 F7011100000	£1.82	£2.19
17 - PLUG BDE-F7090080000.A5 F7090080000	£2.26	£2.71
18 - VALVE BDE-F7190150000.A4 F7190150000	£108.20	£129.84
19 - JOINT BDE-F7082690000.A1 F7082690000	£38.80	£46.56
20 - JOINT BDE-F7085540000.A0 F7085540000	£30.08	£36.10
22 - PRESSURE GAUGE BDE-F7110060000.A0 F7110060000	£37.35	£44.82
23 - PLUG BDE-F7090030000.A6 F7090030000	£7.18	£8.62
24 - PLUG BDE-F7130150000.A2 F7130150000	£34.00	£40.80
25 - DRAIN COCK BDE-F7130160000.A0 F7130160000	£10.85	£13.02
26 - TANK BDE-F5151240008 F5151240008	£3250.56	£3900.67
27 - PLATE BDE-F5166230008.A0 F5166230008	£319.22	£383.07
28 - SUPPORT BDE-F5166240008.A2 F5166240008	£45.14	£54.17
29 - NUT BDE-F7020250000.A4 F7020250000	£1.82	£2.19
30 - WASHER M10 BDE-F7030040000.A4 F7030040000	£1.50	£1.80
31 - SCREW BDE-F7012240000.A8 F7012240000	£1.50	£1.80
32 - SCREW BDE-F7011170000.A2 F7011170000	£1.82	£2.19
33 - HOSE BDE-F7230850000.A1 F7230850000	£135.36	£162.43
34 - NUT BDE-F7020250000.A3 F7020250000	£1.82	£2.19
35 - RING BDE-F7070110000.A1 F7070110000	£1.50	£1.80
36 - PLUG BDE-F7091120000.A2 F7091120000	£1.50	£1.80
37 - SPACER BDE-F7018550000.A1 F7018550000	£19.90	£23.88
38 - COVER BDE-F5166250008.A0 F5166250008	£336.69	£404.03
39 - WASHER M10 BDE-F7030040000.A3 F7030040000	£1.50	£1.80
40 - DRIVE COUPLING BDE-F7583470000.A1 F7583470000	£336.69	£404.03
41 - FAN BDE-F7200011100.A1 F7200011100	£958.68	£1150.41
42 - WASHER BDE-F7030020000.A3 F7030020000	£1.50	£1.80
43 - WASHER BDE-F7030320000.A2 F7030320000	£1.82	£2.19
44 - SCREW BDE-F7011420000.A1 F7011420000	£1.50	£1.80
45 - NUT BDE-F7020060000.A1 F7020060000	£1.50	£1.80
46 - SCREW BDE-F7016120000.A1 F7016120000	£1.82	£2.19
47 - WASHER BDE-F7030010000.A6 F7030010000	£1.50	£1.80
48 - NUT BDE-F7020070000.A1 F7020070000	£1.50	£1.80
49 - SCREW BDE-F7011090000.A4 F7011090000	£1.50	£1.80
50 - JOINT BDE-F7085390000.A2 F7085390000	£45.14	£54.17
51 - SCREW BDE-F7014420000.A2 F7014420000	£1.50	£1.80
52 - CORD CLAMP SA BDE-F7500440000.A1 F7500440000	£16.03	£19.24
53 - PLUG BDE-F7090440000.A0 F7090440000	£3.80	£4.56

Attribute Name	Value
