Fein WSG 9-125 (50/60Hz 230V) / 72212500230 Spare Parts

Fein WSG 9-125 ⡐/60Hz 230V) / 72212500230 Spare Parts

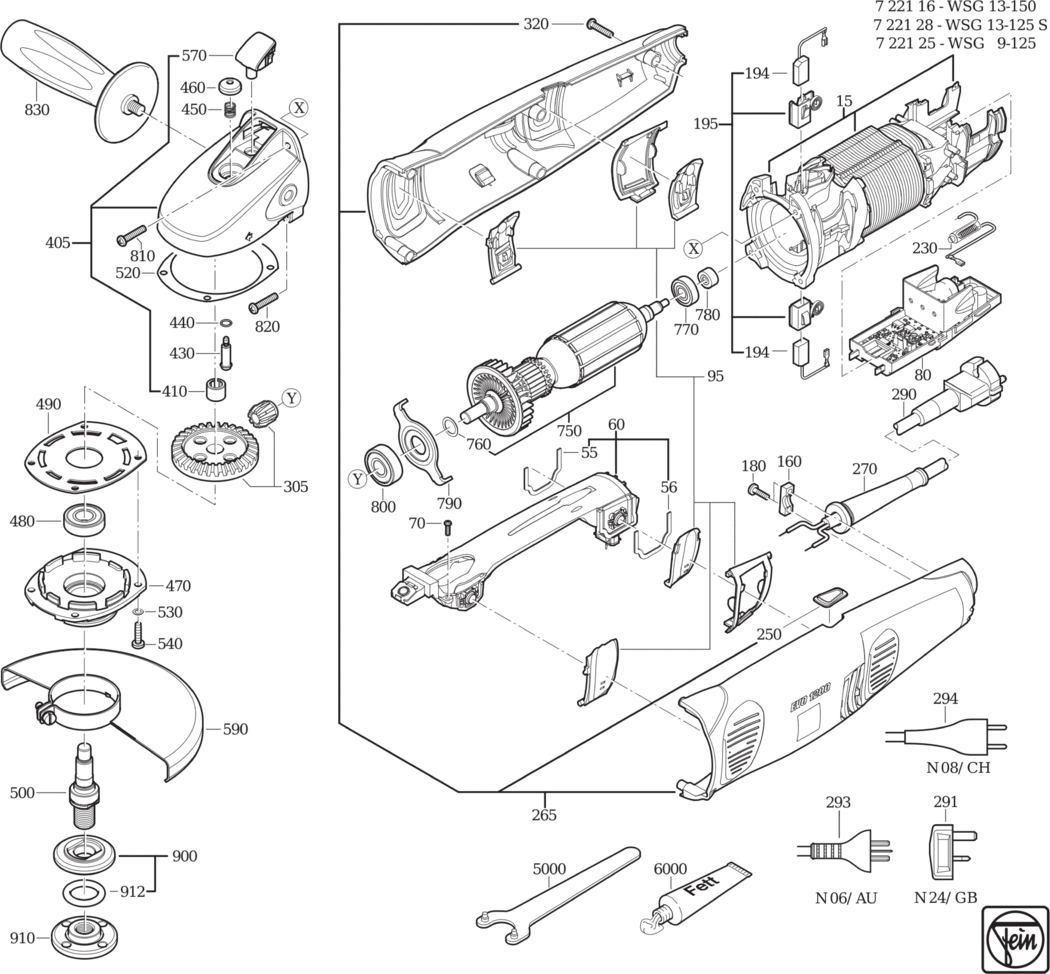

An exploded diagram and spare parts listing for the Fein WSG 9-125 (50/60Hz 230V) / 72212500230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52277008235.A3 52277008235	-
55 - SEAL FEI-31415096000.A6 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A32 31415097000	£1.60	£1.92
60 - SWITCH MODULE KS4 FEI-30701260990.A3 30701260990	£87.02	£104.43
70 - SCREW FEI-43070044007.A14 43070044007	£1.60	£1.92
80 - ELECTRONICS FEI-30762264994.A9 30762264994	-
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A26 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A2 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A11 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A22 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A48 30712093110	£30.80	£36.96
230 - CHOKE FEI-30764136006.A6 30764136006	£7.94	£9.53
250 - COVER FEI-32427123008.A1 32427123008	£1.75	£2.10
265 - MOTOR HOUSING FEI-31912067010.A4 31912067010	£41.11	£49.33
270 - CABLE GROMMET FEI-31413282000.A140 31413282000	£2.55	£3.06
290 - CABLE WITH PLUG FEI-30707403017.A2 30707403017	-
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A50 33809229012	£57.88	£69.46
320 - SCREW FEI-43070045001.A14 43070045001	-
405 - GEARBOX HOUSING FEI-31206132030.A4 31206132030	-
410 - NEEDLE SLEEVE FEI-41705019001.A116 41705019001	£9.49	£11.39
430 - BOLT FEI-30217345004.A2 30217345004	-
440 - SEALING RING FEI-40612137008.A184 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A16 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A41 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419115006.A1 32419115006	£44.60	£53.52
480 - GROOVED BALL BEARING FEI-41701010054.A76 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A7 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A47 33406284009	£33.58	£40.29
520 - DISC FEI-32624117009.A49 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A144 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A61 43064024043	-
570 - COVER FEI-32805201016.A5 32805201016	£14.27	£17.12
590 - SAFETY HOOD FEI-31810258010.A10 31810258010	£33.45	£40.14
750 - ARMATURE FEI-53277001237.A7 53277001237	£108.08	£129.70
760 - CIRCLIP FEI-42615081002.A24 42615081002	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A290 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A91 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A49 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A158 41701007266	£10.67	£12.80
810 - SCREW FEI-43070043009.A12 43070043009	£1.60	£1.92
820 - SCREW FEI-43070031003.A138 43070031003	£1.60	£1.92
830 - HANDLE FEI-32119107016.A8 32119107016	£10.15	£12.18
900 - INNER FLANGE FEI-63801182010.A1 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A8 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A216 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A264 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A233 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A639 34130054061	-
