Fein WSG 15-150 P (50Hz 110V) / 72218224110 Spare Parts

Fein WSG 15-150 P ⡐Hz 110V) / 72218224110 Spare Parts

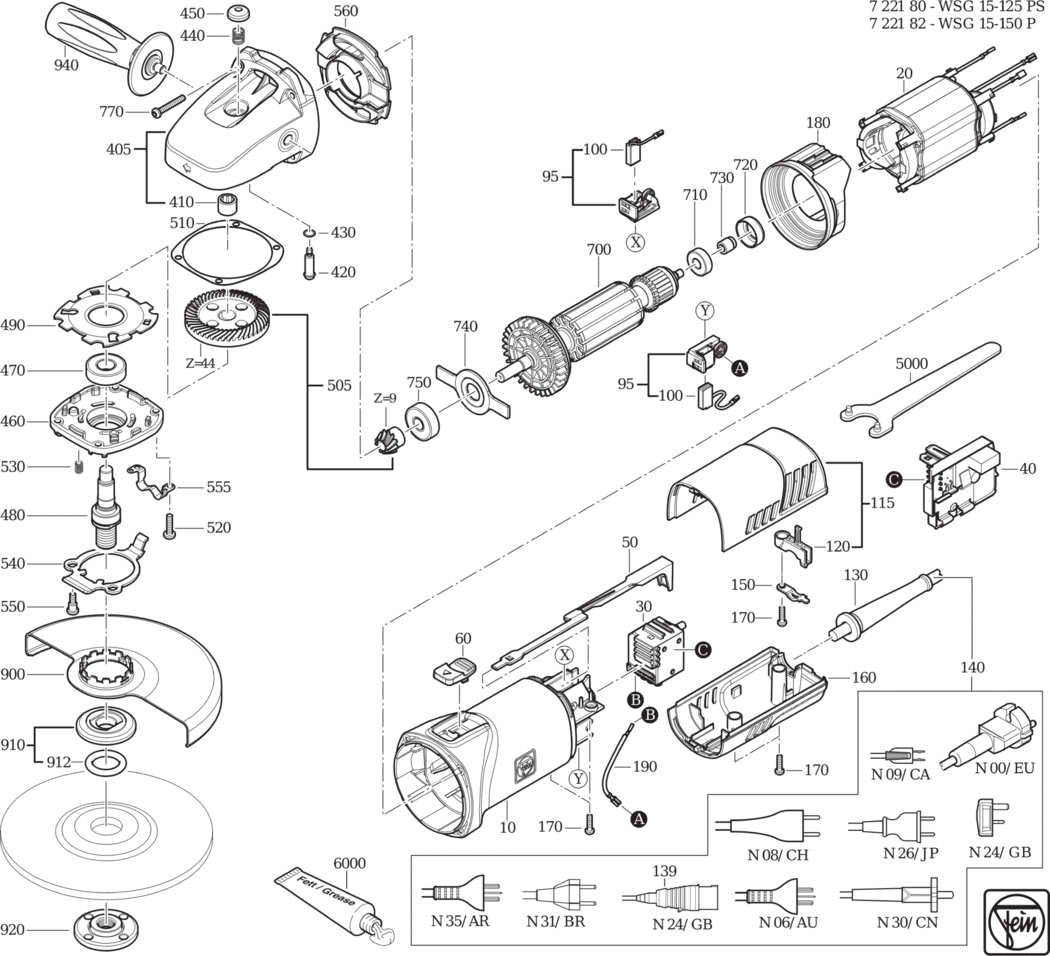

An exploded diagram and spare parts listing for the Fein WSG 15-150 P (50Hz 110V) / 72218224110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A51 31901175000	£36.82	£44.19
20 - STATOR 50HZ110V FEI-51279004110.A5 51279004110	£53.18	£63.81
30 - SWITCH FEI-30701299000.A73 30701299000	£28.81	£34.57
40 - ELECTRONICS 50/60H 100-120V FEI-30762532990.A2 30762532990	£69.72	£83.67
50 - CONTROL ROD FEI-32816080000.A30 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A90 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712096040.A30 30712096040	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 110-120V 50/60HZ FEI-30711160000.A52 30711160000	£8.15	£9.78
115 - COVER OT FEI-32427154010.A11 32427154010	£15.42	£18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A36 32431047000	-
130 - PROTECTIVE HOSE FEI-31413237000.A35 31413237000	£2.74	£3.29
139 - PLUG CEE 16A/110V FEI-30728288004.A30 30728288004	£14.25	£17.10
140 - CABLE WITH PLUG FEI-30707546010.A11 30707546010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A116 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427152000.A22 32427152000	£6.62	£7.95
170 - SCREW FEI-43072000000.A15 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A122 31428179000	£7.46	£8.95
190 - CHOKE FEI-30764169000.A18 30764169000	£7.06	£8.47
405 - GEARBOX HOUSING FEI-31206147030.A21 31206147030	-
410 - NEEDLE SLEEVE FEI-41705019001.A24 41705019001	£9.49	£11.39
420 - BOLT FEI-30217335005.A36 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A123 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A92 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A102 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419152000.A8 32419152000	-
470 - GROOVED BALL BEARING FEI-41701010054.A164 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406284009.A9 33406284009	£33.58	£40.29
490 - PLATE FEI-32416116000.A2 32416116000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A8 33809247010	-
510 - WASHER FEI-32624123020.A41 32624123020	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A145 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A56 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A1 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A13 33024073000	-
555 - CLAMP FEI-30907074000.A19 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A19 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ110V FEI-53279001110.A9 53279001110	£89.30	£107.16
710 - GROOVED BALL BEARING FEI-41701001260.A40 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A101 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A63 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A116 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A148 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A83 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜150 FEI-31810289010.A7 31810289010	£21.18	£25.42
910 - INNER FLANGE FEI-63801182010.A103 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A107 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A89 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A57 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A148 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A504 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A257 34130054061	-

Attribute Name	Value
Brand	Fein
