Fein WSG 10-115 (50/60Hz 220/230V) / 72216124230 Spare Parts

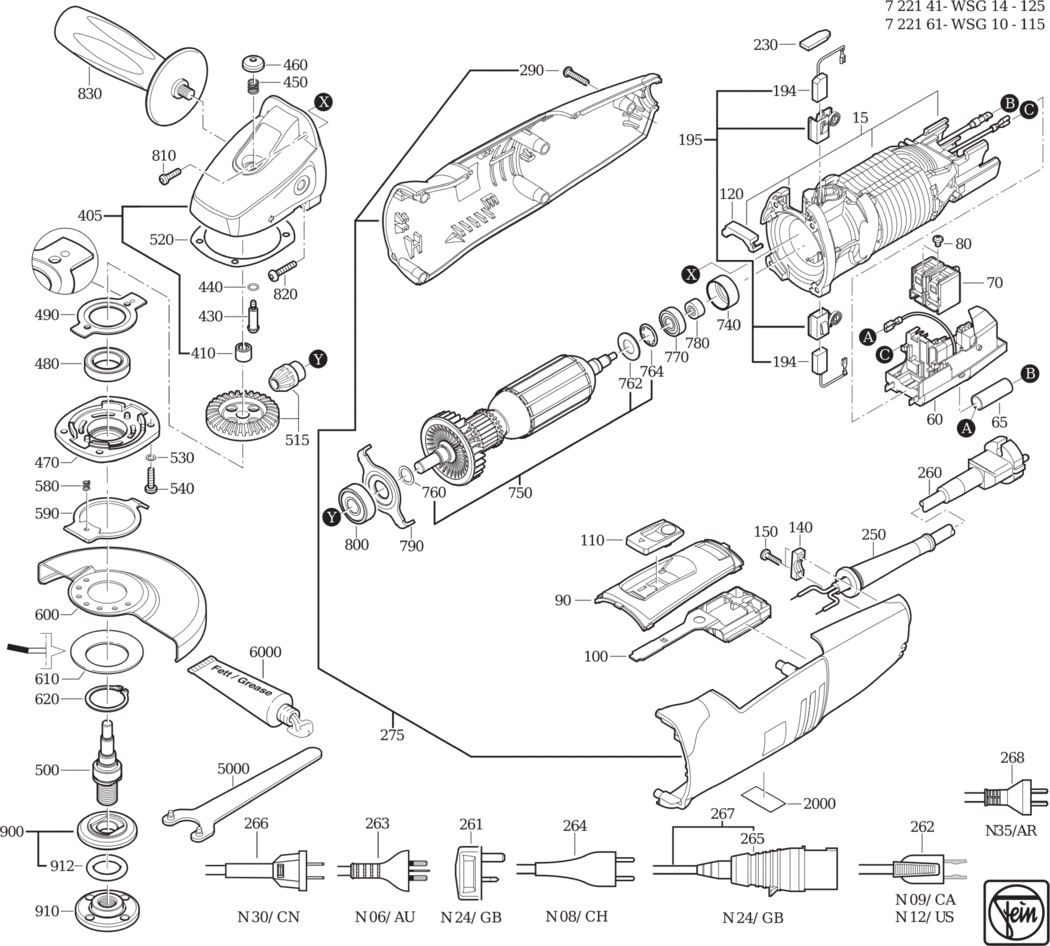

An exploded diagram and spare parts listing for the Fein WSG 10-115 (50/60Hz 220/230V) / 72216124230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A6 52277030230	£92.07	£110.48
60 - ELECTRONICS FEI-30762375990.A1 30762375990	£88.95	£106.74
65 - INSULATING HOSE FEI-31413232000.A47 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A56 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A121 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427140000.A3 32427140000	-
100 - CONTROL ROD FEI-32816072000.A8 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A6 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A38 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A112 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A14 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A9 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A35 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A15 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A164 31413282000	£2.55	£3.06
261 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A23 30707495010	-
275 - MOTOR HOUSING FEI-31912097010.A14 31912097010	-
290 - SCREW FEI-43074008000.A13 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206141020.A2 31206141020	£85.88	£103.05
410 - NEEDLE SLEEVE FEI-41705006006.A91 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A143 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A218 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A42 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A34 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A12 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A98 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A14 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A67 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A4 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A10 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A105 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A57 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A71 30901340001	£1.60	£1.92
590 - LEVER FEI-32805230000.A4 32805230000	£6.12	£7.34
600 - SAFETY HOOD FEI-31810256000.A2 31810256000	£23.91	£28.69
610 - CUP SPRING FEI-30905070000.A5 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A39 42616073005	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A198 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A1 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A7 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A11 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A16 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A296 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A74 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A52 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A156 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A56 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A68 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A92 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A57 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A60 63802052000	£14.88	£17.86
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A214 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A176 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A707 34130054061	-
