Fein WSB 13-125 (50/60Hz 230V) / 72211424230 Spare Parts

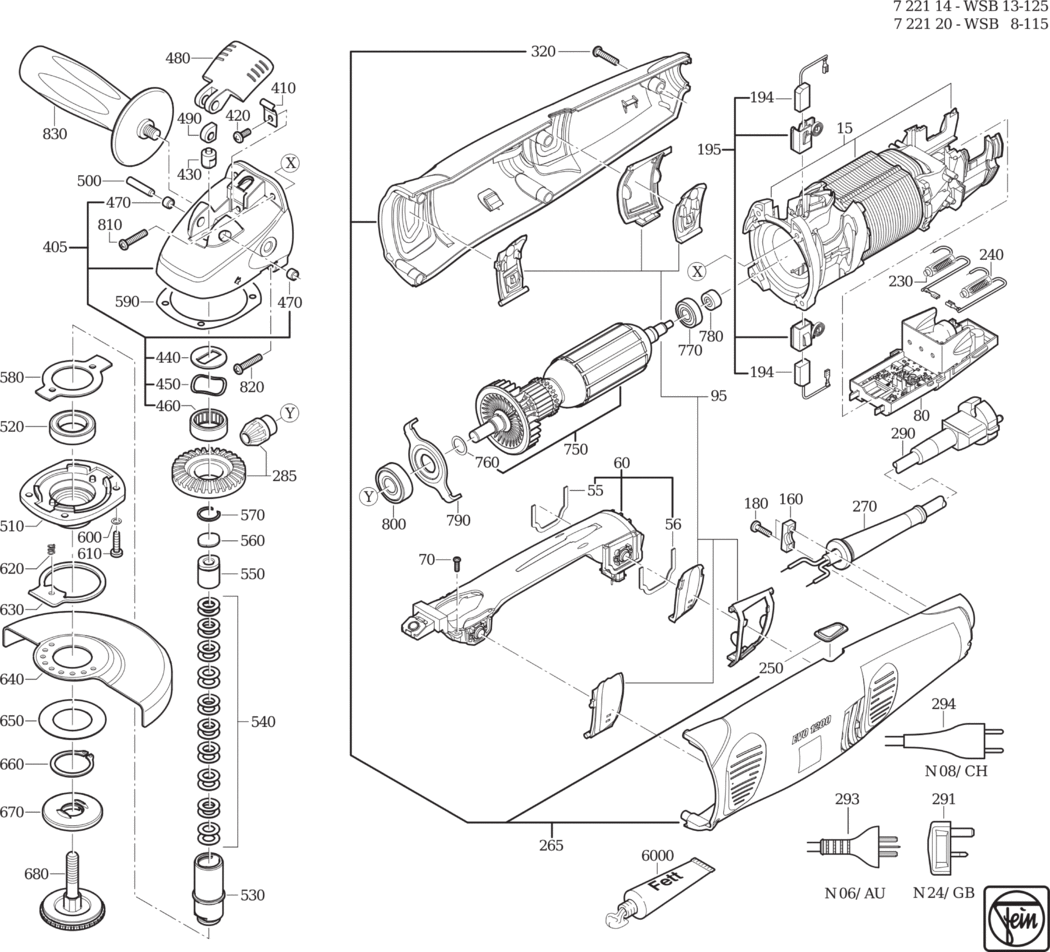

An exploded diagram and spare parts listing for the Fein WSB 13-125 (50/60Hz 230V) / 72211424230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276007236.A0 52276007236	-
55 - SEAL FEI-31415096000.A33 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A5 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS5 FEI-30701256990.A3 30701256990	£110.79	£132.95
70 - SCREW FEI-43070044007.A19 43070044007	£1.60	£1.92
80 - ELECTRONICS FEI-30762263996.A3 30762263996	£74.96	£89.95
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A20 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A96 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A95 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A47 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A4 30712093110	£30.80	£36.96
230 - CHOKE FEI-30764134009.A2 30764134009	£10.95	£13.14
240 - CHOKE FEI-30764133001.A0 30764133001	£11.53	£13.84
250 - COVER FEI-32427123008.A12 32427123008	£1.75	£2.10
265 - MOTOR HOUSING FEI-31912065010.A5 31912065010	-
270 - CABLE GROMMET FEI-31413282000.A8 31413282000	£2.55	£3.06
285 - BEVEL GEAR Z=11/41 FEI-33809227010.A22 33809227010	£39.72	£47.66
291 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A1 30707495010	-
320 - SCREW FEI-43070045001.A9 43070045001	-
405 - GEARBOX HOUSING FEI-31206130030.A11 31206130030	£94.98	£113.97
410 - LOCKING SPRING FEI-30907066008.A11 30907066008	£1.60	£1.92
420 - FILLISTER HEAD SCREW FEI-43064023045.A41 43064023045	£1.60	£1.92
430 - BOLT FEI-30217344000.A8 30217344000	£6.28	£7.53
440 - DISC FEI-32414114007.A9 32414114007	£1.60	£1.92
450 - SPRING WASHER FEI-42446022003.A10 42446022003	£1.60	£1.92
460 - NEEDLE SLEEVE FEI-41705032004.A15 41705032004	£8.75	£10.50
470 - BUSH FEI-30507220000.A39 30507220000	£2.60	£3.12
480 - LEVER FEI-32805199000.A8 32805199000	£22.79	£27.35
490 - ECCENTRIC RING FEI-32636036004.A24 32636036004	£4.08	£4.89
500 - BOLT FEI-30216144007.A18 30216144007	£1.60	£1.92
510 - BEARING PLATE FEI-32419126008.A8 32419126008	£34.57	£41.48
520 - GROOVED BALL BEARING FEI-41701108222.A18 41701108222	£19.74	£23.69
530 - SHAFT FEI-33406298007.A11 33406298007	£33.23	£39.88
540 - CUP SPRING PACKAGE FEI-30905067021.A11 30905067021	£10.36	£12.43
550 - PRESSURE PIECE FEI-30220061007.A12 30220061007	£9.25	£11.10
560 - DISC FEI-32414113009.A6 32414113009	£2.60	£3.12
570 - CIRCLIP FEI-42615148009.A1 42615148009	£1.60	£1.92
580 - PLATE FEI-32416109007.A12 32416109007	£2.34	£2.81
590 - DISC FEI-32624120028.A11 32624120028	-
600 - CIRCLIP M4 FEI-42443003043.A195 42443003043	£1.60	£1.92
610 - FILLISTER HEAD SCREW FEI-43064024043.A106 43064024043	-
620 - SPIRAL SPRING FEI-30901340001.A32 30901340001	£1.60	£1.92
630 - LEVER FEI-32805197008.A2 32805197008	£6.48	£7.77
640 - SAFETY HOOD FEI-31810257000.A9 31810257000	£21.07	£25.28
650 - CUP SPRING FEI-30905070000.A44 30905070000	£1.60	£1.92
660 - CIRCLIP FEI-42616073005.A27 42616073005	£1.60	£1.92
670 - FLANGE FEI-63801176011.A1 63801176011	£13.88	£16.65
680 - CLAMPING UNIT FEI-63802178023.A16 63802178023	£49.09	£58.91
750 - ARMATURE FEI-53276001236.A1 53276001236	-
760 - CIRCLIP FEI-42615081002.A70 42615081002	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A80 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A12 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A12 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A41 41701007266	£10.67	£12.80
810 - SCREW FEI-43070043009.A9 43070043009	£1.60	£1.92
820 - SCREW FEI-43070031003.A66 43070031003	£1.60	£1.92
830 - HANDLE FEI-32119107016.A57 32119107016	£10.15	£12.18
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A456 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A239 34130054061	-
