Fein WSB 10-115 T (50/60Hz 220/230V) / 72214624230 Spare Parts

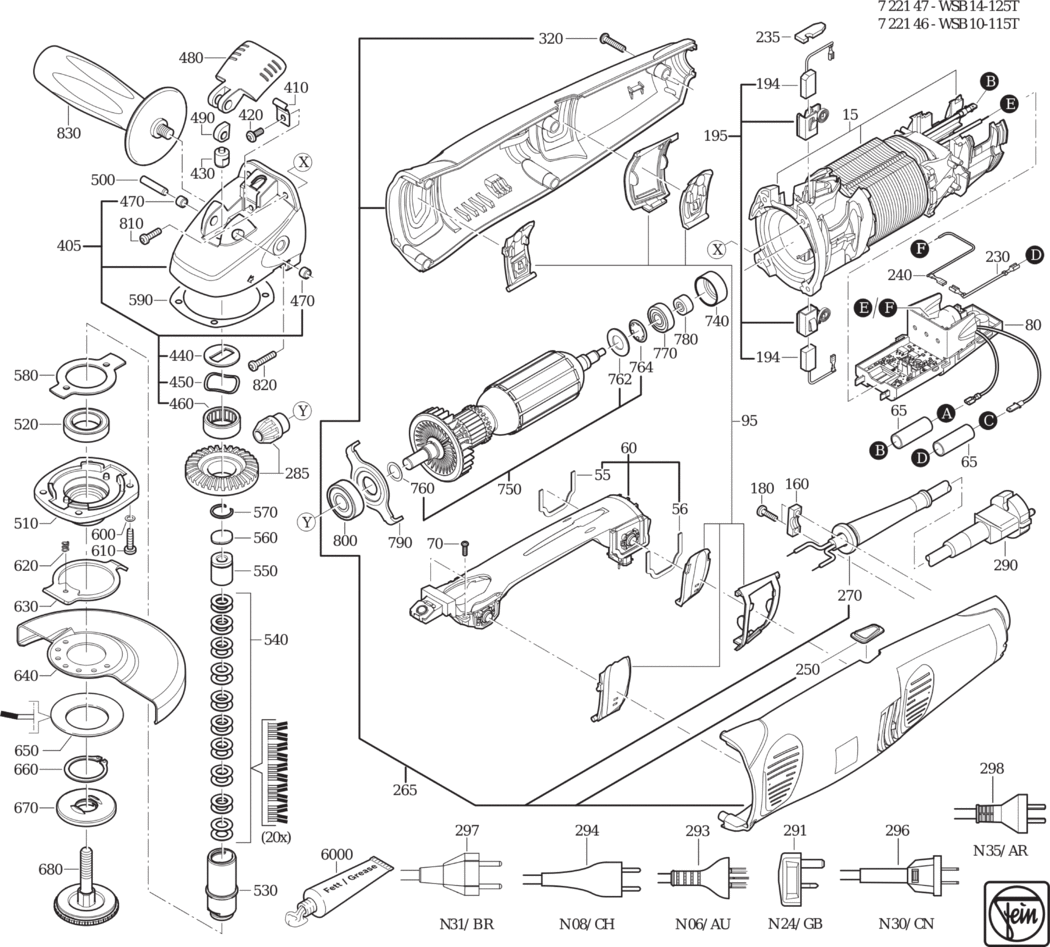

An exploded diagram and spare parts listing for the Fein WSB 10-115 T (50/60Hz 220/230V) / 72214624230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52277014230.A0 52277014230	£96.18	£115.42
55 - SEAL FEI-31415096000.A36 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A2 31415097000	£1.60	£1.92
60 - SWITCH MODULE KS5 FEI-30701259990.A3 30701259990	£100.86	£121.03
65 - INSULATING HOSE FEI-31413234000.A9 31413234000	£4.05	£4.86
70 - SCREW FEI-43070044007.A24 43070044007	£1.60	£1.92
80 - ELECTRONICS 220-230V 50/60HZ FEI-30762427990.A3 30762427990	£137.43	£164.92
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A15 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A94 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A92 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A48 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A3 30712093110	£30.80	£36.96
230 - CONNECTING CABLE FEI-30719700010.A0 30719700010	£7.90	£9.48
235 - COVER FEI-31420125000.A6 31420125000	£1.60	£1.92
240 - CONNECTING CABLE FEI-30719699010.A1 30719699010	£8.44	£10.13
250 - COVER FEI-32427128000.A0 32427128000	£1.60	£1.92
265 - MOTOR HOUSING FEI-31912067030.A1 31912067030	£41.92	£50.30
270 - CABLE GROMMET FEI-31413282000.A9 31413282000	£2.55	£3.06
285 - BEVEL GEAR Z=11/41 FEI-33809227010.A19 33809227010	£39.72	£47.66
291 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A0 30707495010	-
320 - SCREW FEI-43074008000.A92 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206130030.A10 31206130030	£94.98	£113.97
410 - LOCKING SPRING FEI-30907066008.A12 30907066008	£1.60	£1.92
420 - FILLISTER HEAD SCREW FEI-43064023045.A38 43064023045	£1.60	£1.92
430 - BOLT FEI-30217344000.A11 30217344000	£6.28	£7.53
440 - DISC FEI-32414114007.A11 32414114007	£1.60	£1.92
450 - SPRING WASHER FEI-42446022003.A12 42446022003	£1.60	£1.92
460 - NEEDLE SLEEVE FEI-41705032004.A18 41705032004	£8.75	£10.50
470 - BUSH FEI-30507220000.A41 30507220000	£2.60	£3.12
480 - LEVER FEI-32805199000.A6 32805199000	£22.79	£27.35
490 - ECCENTRIC RING FEI-32636036004.A22 32636036004	£4.08	£4.89
500 - BOLT FEI-30216144007.A15 30216144007	£1.60	£1.92
510 - BEARING PLATE FEI-32419126008.A9 32419126008	£34.57	£41.48
520 - GROOVED BALL BEARING FEI-41701108222.A19 41701108222	£19.74	£23.69
530 - SHAFT FEI-33406298007.A14 33406298007	£33.23	£39.88
540 - CUP SPRING PACKAGE FEI-30905067021.A13 30905067021	£10.36	£12.43
550 - PRESSURE PIECE FEI-30220061007.A9 30220061007	£9.25	£11.10
560 - DISC FEI-32414113009.A4 32414113009	£2.60	£3.12
570 - CIRCLIP FEI-42615148009.A4 42615148009	£1.60	£1.92
580 - PLATE FEI-32416109007.A10 32416109007	£2.34	£2.81
590 - DISC FEI-32624120028.A13 32624120028	-
600 - CIRCLIP M4 FEI-42443003043.A191 42443003043	£1.60	£1.92
610 - FILLISTER HEAD SCREW FEI-43064024043.A108 43064024043	-
620 - SPIRAL SPRING FEI-30901340001.A34 30901340001	£1.60	£1.92
630 - LEVER FEI-32805230000.A6 32805230000	£6.12	£7.34
640 - SAFETY HOOD FEI-31810256000.A5 31810256000	£23.91	£28.69
650 - CUP SPRING FEI-30905070000.A42 30905070000	£1.60	£1.92
660 - CIRCLIP FEI-42616073005.A24 42616073005	£1.60	£1.92
670 - FLANGE FEI-63801176011.A3 63801176011	£13.88	£16.65
680 - CLAMPING UNIT FEI-63802178023.A19 63802178023	£49.09	£58.91
740 - BEARING BUSH FEI-30507236000.A65 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A7 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A67 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A53 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A41 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A82 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A9 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A14 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A39 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A19 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A30 43074009000	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A459 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A242 34130054061	-
