Dewalt DW742M Type 4 Combination Saw Spare Parts

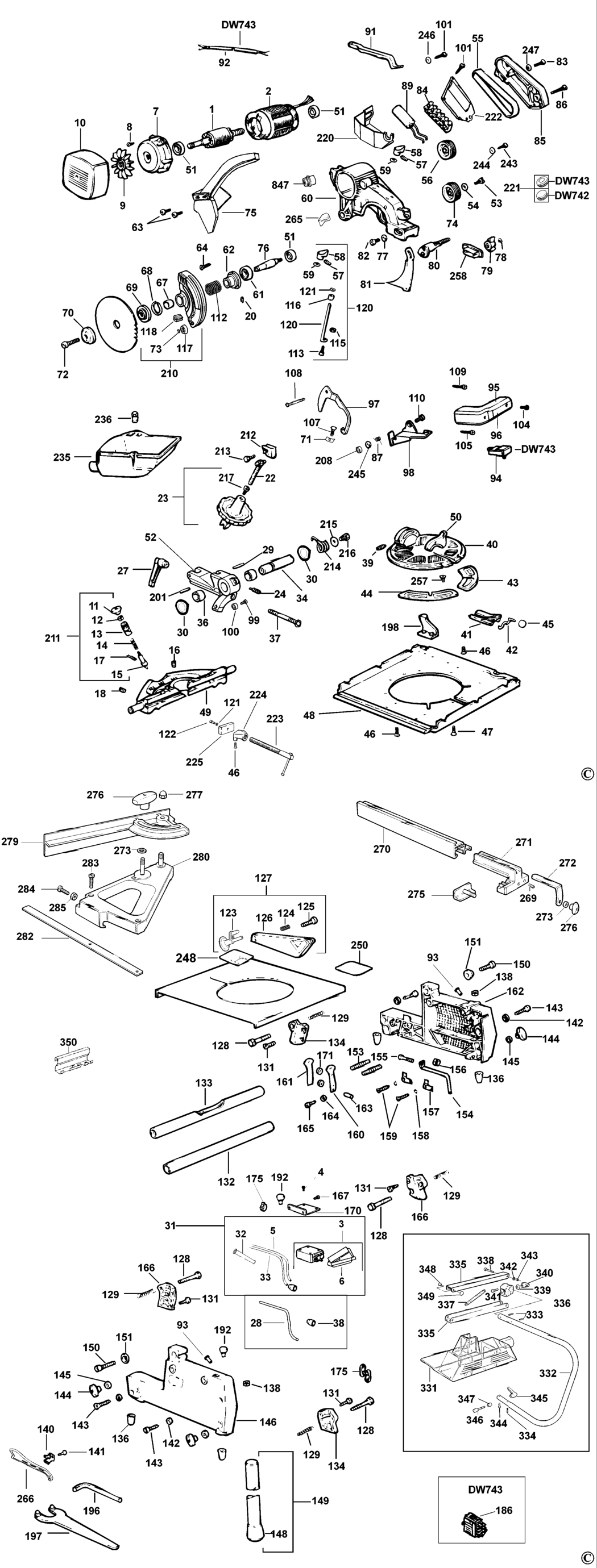

An exploded drawing and spare parts listing for the Dewalt DW742M Type 4 Combination Saw

	Ex VAT	Inc VAT
1 - ROTOR SA GB BDE-868397-01.A1 868397-01	-
1 - NO LONGER AVAILABLE LX BDE-000000-00.A90080 000000-00	-
2 - STATOR 230V GB BDE-868395-04.A6 868395-04	£232.38	£278.85
2 - STATOR 115V LX BDE-868395-06.A2 868395-06	£200.77	£240.92
3 - SWITCH 115V LX BDE-868473-01.A0 868473-01	-
3 - SWITCH GB BDE-868473-00.A7 868473-00	£78.12	£93.74
4 - SCREW BDE-930076-00.A42 930076-00	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A90081 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A90082 000000-00	-
7 - END CAP BDE-861085-04.A16 861085-04	£23.75	£28.50
8 - SCREW.TEMP BDE-860089-17.A24 860089-17	£1.50	£1.80
9 - FAN BDE-942413-02.A1 942413-02	£4.69	£5.63
10 - FAN COVER BDE-861036-00.A6 861036-00	£18.91	£22.69
11 - KNOB BDE-942453-00.A0 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A9 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A5 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A17 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A32 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A5 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A41 761065-00	£1.50	£1.80
18 - SCREW BDE-941880-00.A33 941880-00	£1.50	£1.80
20 - PIN BDE-941549-00.A1 941549-00	-
22 - SPINDLE BDE-942363-00.A3 942363-00	£34.00	£40.80
23 - WHEEL BDE-861060-01.A14 861060-01	-
24 - SCREW BDE-860088-23.A2 860088-23	-
27 - LEVER BDE-949884-01.A23 949884-01	£5.88	£7.06
28 - NO LONGER AVAILABLE LX BDE-000000-00.A90083 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A90084 000000-00	-
30 - WASHER LOCK BDE-941800-00.A1 941800-00	-
31 - NO LONGER AVAILABLE LX BDE-000000-00.A90085 000000-00	-
31 - NO LONGER AVAILABLE GB BDE-000000-00.A90086 000000-00	-
32 - PROTECTOR BDE-942277-00.A0 942277-00	£1.66	£1.99
33 - NO LONGER AVAILABLE LX BDE-000000-00.A90087 000000-00	-
33 - NO LONGER AVAILABLE GB BDE-000000-00.A90088 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A90089 000000-00	-
36 - BUSH BDE-941886-00.A14 941886-00	-
37 - SCREW BDE-860085-32.A17 860085-32	£4.69	£5.63
38 - PLUG LX BDE-865975-00.A3 865975-00	£10.85	£13.02
39 - SCREW BDE-949743-01.A6 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-01.A9 869230-01	-
41 - PLATE BDE-942364-00.A19 942364-00	-
42 - LOCKING PIN BDE-942234-00.A5 942234-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A90090 000000-00	-
44 - SCALE LH BDE-861065-00.A2 861065-00	-
45 - KNOB BDE-942450-00.A24 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A35 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A28 942272-00	-
48 - FIXED TABLE BDE-861062-00.A2 861062-00	-
49 - BACK FENCE BDE-868285-02.A0 868285-02	-
50 - CLAMP BDE-942400-01.A15 942400-01	-
51 - BEARING BDE-930563-00.A8 930563-00	£10.85	£13.02
52 - SEGMENT BDE-861993-00.A1 861993-00	-
53 - SCREW BDE-860085-28.A19 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A20 861983-01	£1.50	£1.80
55 - BELT LX BDE-861038-01.A1 861038-01	£23.75	£28.50
55 - BELT GB BDE-861038-00.A3 861038-00	£10.85	£13.02
56 - PULLEY BDE-861040-01.A2 861040-01	-
57 - PIN BDE-760233-00.A61 760233-00	£1.50	£1.80
58 - KNOB BDE-941807-00.A18 941807-00	£1.78	£2.13
59 - SPRING BDE-860491-01.A31 860491-01	£1.50	£1.80
60 - HOUSING SA BDE-868440-00.A1 868440-00	£170.23	£204.28
61 - BEARING BDE-860155-08.A10 860155-08	£7.85	£9.42
62 - FLANGE BDE-861055-01.A3 861055-01	£4.58	£5.49
63 - SCREW BDE-860084-11.A33 860084-11	£1.50	£1.80
64 - SCREW.TEMP BDE-860094-00.A145 860094-00	£1.50	£1.80
67 - BUSH BDE-942490-00.A13 942490-00	-
68 - CIRCLIP BDE-860079-05.A25 860079-05	£1.50	£1.80
69 - FLANGE BDE-942886-01.A0 942886-01	£18.42	£22.10
70 - NO LONGER AVAILABLE BDE-000000-00.A123585 000000-00	-
71 - WASHER BDE-860077-01.A35 860077-01	£1.50	£1.80
72 - SCREW BDE-761295-00.A18 761295-00	-
73 - CIRCLIP SA BDE-861705-00.A13 861705-00	£16.03	£19.24
74 - PULLEY BDE-861039-01.A1 861039-01	-
75 - GUARD REAR BDE-942394-05.A14 942394-05	-
76 - SPINDLE BDE-942500-00.A3 942500-00	£24.39	£29.27
77 - WASHER BDE-941602-00.A19 941602-00	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A44 860322-00	£1.50	£1.80
79 - KNOB BDE-942263-01.A2 942263-01	£11.87	£14.24
80 - HOLDER BDE-945767-02.A16 945767-02	-
81 - RIVING KNIFE BDE-945739-02.A2 945739-02	-
82 - SCREW BDE-949886-16.A54 949886-16	£1.50	£1.80
83 - SCREW BDE-860089-18.A23 860089-18	£1.50	£1.80
84 - NO LONGER AVAILABLE BDE-000000-00.A123586 000000-00	-
85 - BELT COVER BDE-861037-00.A12 861037-00	-
86 - SCREW BDE-860089-13.A29 860089-13	£1.42	£1.70
87 - SPRING BDE-861987-00.A2 861987-00	-
89 - CAPACITOR LX BDE-949772-49.A4 949772-49	£24.39	£29.27
89 - CAPACITOR GB BDE-949772-43.A17 949772-43	£10.85	£13.02
91 - COVER BDE-942485-00.A17 942485-00	£3.80	£4.56
92 - LEAD SA LX BDE-942467-00.A3 942467-00	-
95 - HANDLE COVER BDE-861995-00.A6 861995-00	£7.85	£9.42
96 - SWITCH HANDLE BDE-861087-00.A7 861087-00	-
97 - LEVER SA BDE-868235-00.A1 868235-00	£24.39	£29.27
98 - NO LONGER AVAILABLE BDE-000000-00.A123587 000000-00	-
99 - SCREW BDE-861989-00.A3 861989-00	£1.50	£1.80
100 - BEARING BDE-949719-04.A9 949719-04	£3.30	£3.96
101 - SCREW.TEMP BDE-720685-00.A21 720685-00	£1.50	£1.80
104 - SCREW BDE-949896-10.A17 949896-10	£1.50	£1.80
105 - SCREW BDE-860090-06.A0 860090-06	-
107 - CAP BDE-861991-00.A8 861991-00	£1.50	£1.80
108 - SCREW BDE-861054-01.A12 861054-01	-
109 - SCREW BDE-935371-00.A11 935371-00	£1.50	£1.80
110 - SCREW BDE-861478-01.A1 861478-01	£1.42	£1.70
112 - SPRING BDE-861988-00.A8 861988-00	-
113 - SCREW BDE-860085-17.A5 860085-17	-
115 - NUT M6 BDE-860083-12.A251 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A123588 000000-00	-
117 - ROLLER BDE-861096-01.A26 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A2 861095-01	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A123589 000000-00	-
121 - WASHER BDE-860073-08.A47 860073-08	£1.50	£1.80
122 - SCREW BDE-860093-07.A47 860093-07	£1.50	£1.80
123 - PIVOT BDE-N162670.A7 N162670	£3.80	£4.56
124 - SPRING BDE-941622-00.A11 941622-00	£1.50	£1.80
125 - SCREW BDE-860084-20.A4 860084-20	£1.50	£1.80
126 - GUARD UPPER BDE-N162669.A34 N162669	£17.48	£20.97
127 - GUARD SA BDE-N164678.A3 N164678	£38.80	£46.56
128 - BOLT BDE-860301-09.A33 860301-09	£1.50	£1.80
129 - SPRING BDE-761054-00.A34 761054-00	£1.50	£1.80
131 - SCREW BDE-330045-55.A4 330045-55	£1.50	£1.80
132 - NO LONGER AVAILABLE BDE-000000-00.A123590 000000-00	-
133 - NO LONGER AVAILABLE BDE-000000-00.A123591 000000-00	-
134 - CLAMP LH BDE-861078-02.A6 861078-02	-
136 - FOOT BDE-942375-00.A10 942375-00	£1.50	£1.80
140 - HOLDER BDE-391358-01.A40 391358-01	£1.50	£1.80
141 - SCREW BDE-330045-05.A122 330045-05	£1.50	£1.80
142 - WASHER BDE-98197-08.A30 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A11 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A50 941756-00	£1.50	£1.80
145 - WASHER M8 BDE-860073-03.A136 860073-03	£1.50	£1.80
146 - NO LONGER AVAILABLE BDE-000000-00.A123592 000000-00	-
148 - FOOT BDE-861073-00.A30 861073-00	£10.85	£13.02
149 - LEG SA BDE-861076-00.A14 861076-00	£17.48	£20.97
150 - SCREW BDE-942041-00.A17 942041-00	-
151 - WASHER BDE-861068-00.A14 861068-00	£3.30	£3.96
153 - SPRING BDE-942522-00.A26 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A8 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A19 942185-00	£1.50	£1.80
156 - NUT M6 BDE-860083-12.A252 860083-12	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A20 942104-00	£1.50	£1.80
158 - WASHER BDE-761035-00.A45 761035-00	£1.42	£1.70
159 - SCREW.TEMP BDE-860094-00.A94 860094-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A2 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A19 861070-00	£2.26	£2.71
162 - SIDE RH BDE-861089-02.A1 861089-02	£170.23	£204.28
163 - PIN BDE-942365-00.A7 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A34 949876-08	£1.50	£1.80
165 - SCREW.TEMP BDE-860094-00.A95 860094-00	£1.50	£1.80
166 - CLAMP RH BDE-861077-02.A1 861077-02	-
167 - SCREW BDE-860094-03.A147 860094-03	£1.50	£1.80
170 - BRACKET BDE-944341-00.A40 944341-00	£7.18	£8.62
171 - WASHER M6 BDE-860073-07.A9 860073-07	£1.50	£1.80
175 - CABLE CLAMP BDE-861091-00.A12 861091-00	£1.50	£1.80
192 - FOOT BDE-941614-00.A19 941614-00	£1.50	£1.80
196 - WRENCH 6 MM BDE-860098-04.A175 860098-04	£1.50	£1.80
197 - SPANNER BDE-939072-00.A41 939072-00	£9.41	£11.29
198 - TABLE LATCH BDE-861063-00.A17 861063-00	£4.69	£5.63
201 - PIN BDE-942045-00.A17 942045-00	£1.42	£1.70
208 - NUT M5 BDE-860092-03.A88 860092-03	£1.50	£1.80
210 - LOWER GUARD SA BDE-868216-01.A2 868216-01	-
211 - LOCKING PIN SA BDE-861084-00.A1 861084-00	£25.70	£30.84
212 - NO LONGER AVAILABLE BDE-000000-00.A123593 000000-00	-
213 - PIN BDE-860649-01.A8 860649-01	-
214 - SPRING BDE-945619-00.A1 945619-00	-
215 - WASHER BDE-941602-00.A18 941602-00	£1.50	£1.80
216 - SCREW BDE-860085-18.A23 860085-18	-
217 - SCREW BDE-941606-00.A33 941606-00	-
220 - COVER BDE-868428-01.A4 868428-01	£2.26	£2.71
221 - NO LONGER AVAILABLE BDE-000000-00.A123594 000000-00	-
222 - COVER BDE-868429-00.A3 868429-00	£2.26	£2.71
223 - SCREW.SPECIAL BDE-941812-00.A2 941812-00	£37.35	£44.82
224 - NO LONGER AVAILABLE BDE-000000-00.A123595 000000-00	-
225 - CLAMP BDE-941891-00.A2 941891-00	-
235 - GUARD SA BDE-N060146.A9 N060146	£17.48	£20.97
236 - FASTENER BDE-868303-00.A13 868303-00	£3.80	£4.56
243 - NO LONGER AVAILABLE BDE-000000-00.A123596 000000-00	-
244 - WASHER BDE-933652-00.A25 933652-00	£1.50	£1.80
245 - WASHER BDE-860073-01.A253 860073-01	£1.50	£1.80
246 - WASHER BDE-941633-00.A34 941633-00	£1.50	£1.80
247 - WASHER BDE-860073-01.A254 860073-01	£1.50	£1.80
250 - LABEL BDE-861099-00.A3 861099-00	£1.50	£1.80
257 - SCREW BDE-949795-01.A23 949795-01	£1.50	£1.80
258 - WEDGE BDE-946620-00.A1 946620-00	£37.35	£44.82
265 - SHOCK ABSORBER BDE-946315-00.A2 946315-00	£14.19	£17.03
266 - PUSHROD BDE-860610-01.A30 860610-01	£7.85	£9.42
269 - SCREW BDE-949743-03.A8 949743-03	£7.85	£9.42
270 - GUIDE BDE-942320-03.A21 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A4 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A5 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A135 860073-03	£1.50	£1.80
275 - BRACKET BDE-941819-01.A17 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A49 941756-00	£1.50	£1.80
277 - NUT BDE-860092-02.A9 860092-02	£1.50	£1.80
279 - FENCE BDE-941578-01.A24 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A8 942172-00	£12.17	£14.60
282 - RAIL BDE-942151-00.A20 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A17 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A30 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A253 860083-12	£1.50	£1.80
847 - REDUCER BDE-942308-00.A8 942308-00	£18.91	£22.69

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW742M Type 4 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW742M Type 4 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW742M Type 4 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
