Dewalt D27107XPS Type 3 Combination Saw Spare Parts

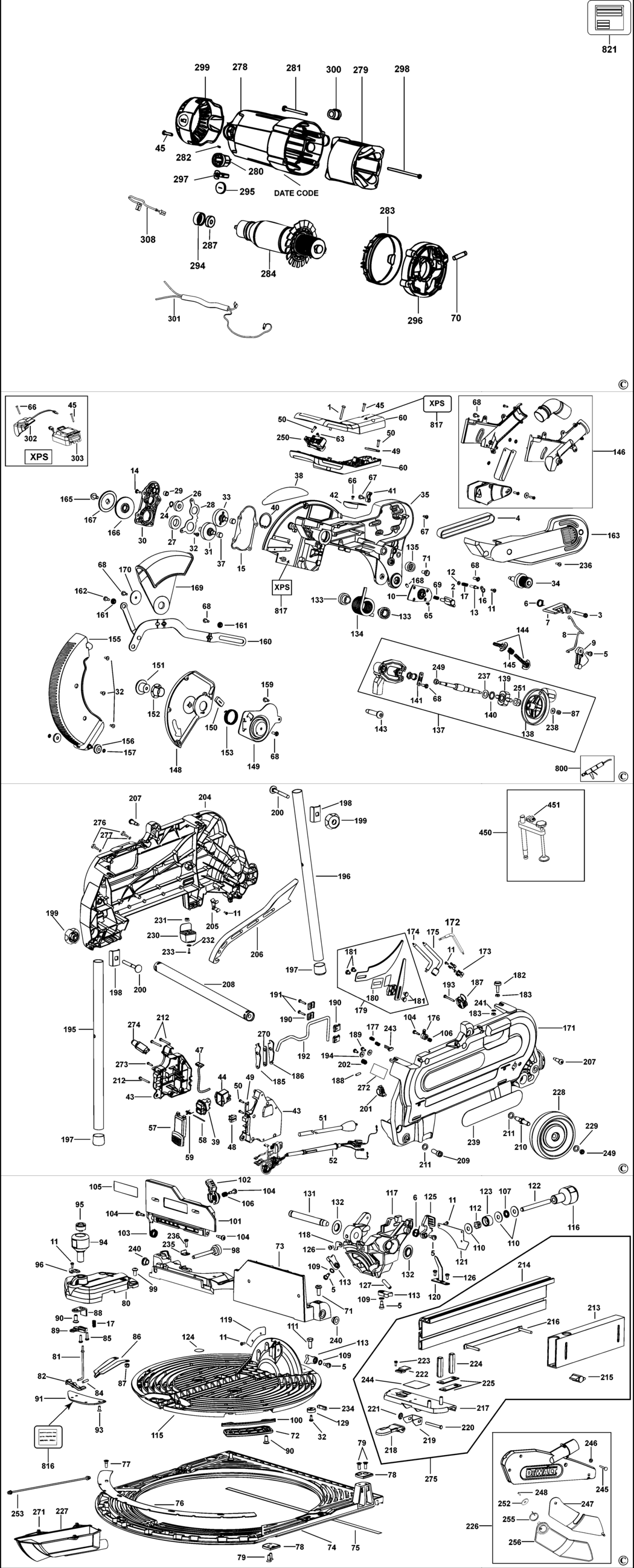

An exploded drawing and spare parts listing for the Dewalt D27107XPS Type 3 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A5 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A1 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A75 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A6 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A64 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A14 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A8 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A0 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A13 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A6 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A215 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A8 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A35 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A46 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A23 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A34 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A205 868082-00	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A84 860079-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A37 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A10 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A13 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A4 391616-00	£4.69	£5.63
30 - GEARCASE COVER BDE-621759-00.A4 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A0 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A40 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A13 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A4 N027131SV	£115.77	£138.92
35 - ARM BDE-N139375.A5 N139375	£283.82	£340.58
37 - BEARING BDE-386780-00.A55 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A13 621329-00	£3.30	£3.96
39 - SWITCH BDE-637691-00.A7 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A19 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A4 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A8 613781-00	£1.50	£1.80
43 - HOUSING SWITCH BDE-605786-01.A8 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A5 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A316 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A3 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A3 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A6 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A30 330013-22	-
51 - CORDSET GB BDE-330060-85.A5 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A4 639912-01	-
57 - SWITCH COVER BDE-N377629.A9 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A8 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A4 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A5 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A63 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A15 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A2 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A27 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A26 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A24 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A17 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A1 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A5 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A1 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A9 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A4 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A1 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A0 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A13 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A11 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A10 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A3 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A5 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A11 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A154 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A2 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A19 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A3 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A2 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A11 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A11 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A12 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A11 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A4 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A1 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A2 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A22 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A0 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A3 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A0 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A13 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A0 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A4 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A10 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A28 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A15 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A48 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A9 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A10 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A23 391347-00	£1.50	£1.80
115 - ROTARY TABLE BDE-869233-02.A3 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A2 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A9 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A9 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A11 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A2 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A11 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A1 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A12 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A19 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A3 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A4 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A26 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A5 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A2 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A20 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A48 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A11 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A37 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A8 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A2 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A11 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A9 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A5 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A2 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A11 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A11 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A0 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A3 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A3 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A11 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A13 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A2 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A11 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A8 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A12 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A0 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A20 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A2 N225776	-
161 - SLEEVE BDE-146740-02.A24 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A3 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A13 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-647776-00.A4 647776-00	£1.66	£1.99
166 - WASHER INNER CLAMP BDE-616319-00.A20 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A0 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A99 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A8 605593-00	-
170 - WASHER BDE-607536-00.A7 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A8 656421-00	£245.11	£294.13
172 - WRENCH SPECIAL BDE-N040940.A24 N040940	£9.41	£11.29
173 - HOLDER BDE-391358-01.A21 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A3 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A22 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A4 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A25 946866-00	£1.50	£1.80
179 - RIVING KNIFE KIT BDE-N097056.A4 N097056	£55.30	£66.36
180 - SHIM BDE-609497-00.A2 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A11 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A9 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A1 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A2 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A11 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A5 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A11 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A20 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A1 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A0 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A6 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A26 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A37 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A6 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A13 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A37 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A2 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A7 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A2 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A6 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A90 860112-11	£1.50	£1.80
204 - FRAME LH BDE-655032-00.A0 655032-00	£144.10	£172.92
205 - CLIP BDE-615994-00.A14 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A41 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A4 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A9 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A23 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A4 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A38 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A13 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A4 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A3 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A14 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A4 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A2 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A5 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A5 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A15 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A20 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A15 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A169 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A13 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A8 605790-00	£1.50	£1.80
226 - GUARD SA BDE-N162338.A5 N162338	£47.08	£56.49
226 - GUARD KIT BDE-N181532.A3 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A9 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A13 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A0 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A8 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A118 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A297 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A30 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A13 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A11 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A107 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A5 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A52 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A5 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A0 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A41 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A7 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A2 624373-00	£1.50	£1.80
245 - SCREW BDE-860085-20.A31 860085-20	£1.50	£1.80
246 - NUT BDE-860092-05.A79 860092-05	£1.50	£1.80
247 - GUARD PLATE BDE-N162668.A2 N162668	£7.18	£8.62
248 - SCREW BDE-860084-11.A17 860084-11	£1.50	£1.80
249 - NUT BDE-860092-05.A80 860092-05	£1.50	£1.80
250 - SWITCH BDE-394375-02P.A10 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A7 330021-08	£1.50	£1.80
252 - WASHER BDE-860075-01.A20 860075-01	£1.50	£1.80
253 - CORD BDE-N060144.A12 N060144	£3.80	£4.56
255 - SPRING BDE-N056486.A0 N056486	£1.50	£1.80
256 - GUARD PLATE BDE-N164679.A8 N164679	£7.18	£8.62
270 - SPACER BDE-626334-00.A2 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A19 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A6 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A7 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A8 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A0 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A0 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A0 N025823	£17.48	£20.97
279 - FIELD 230V BDE-N071929.A7 N071929	£74.15	£88.98
280 - BRUSH HOLDER BDE-622440-00.A13 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A76 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A17 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A52 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A9 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A35 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A8 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A5 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A33 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A4 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A0 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A7 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A50 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A0 N025819	£12.17	£14.60
302 - LED LIGHT BDE-N172058.A0 N172058	£74.15	£88.98
303 - SA POWER SUPPLY GB BDE-N172059.A3 N172059	£96.55	£115.86
308 - BRUSH LEAD BDE-N025820.A11 N025820	£1.50	£1.80
450 - CLAMP SA BDE-630065-00.A4 630065-00	£14.57	£17.48
451 - KNOB LOWER BDE-147107-02.A7 147107-02	£2.26	£2.71
800 - GREASE BDE-5140061-28.A5 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A6 N045702	£2.78	£3.34
817 - WARNING LABEL BDE-N174417.A11 N174417	£1.50	£1.80
821 - RATING LABEL GB BDE-N203384 N203384	£7.18	£8.62

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107XPS Type 3 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27107XPS Type 3 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27107XPS Type 3 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
