Dewalt D27107XPS Type 2 Combination Saw Spare Parts

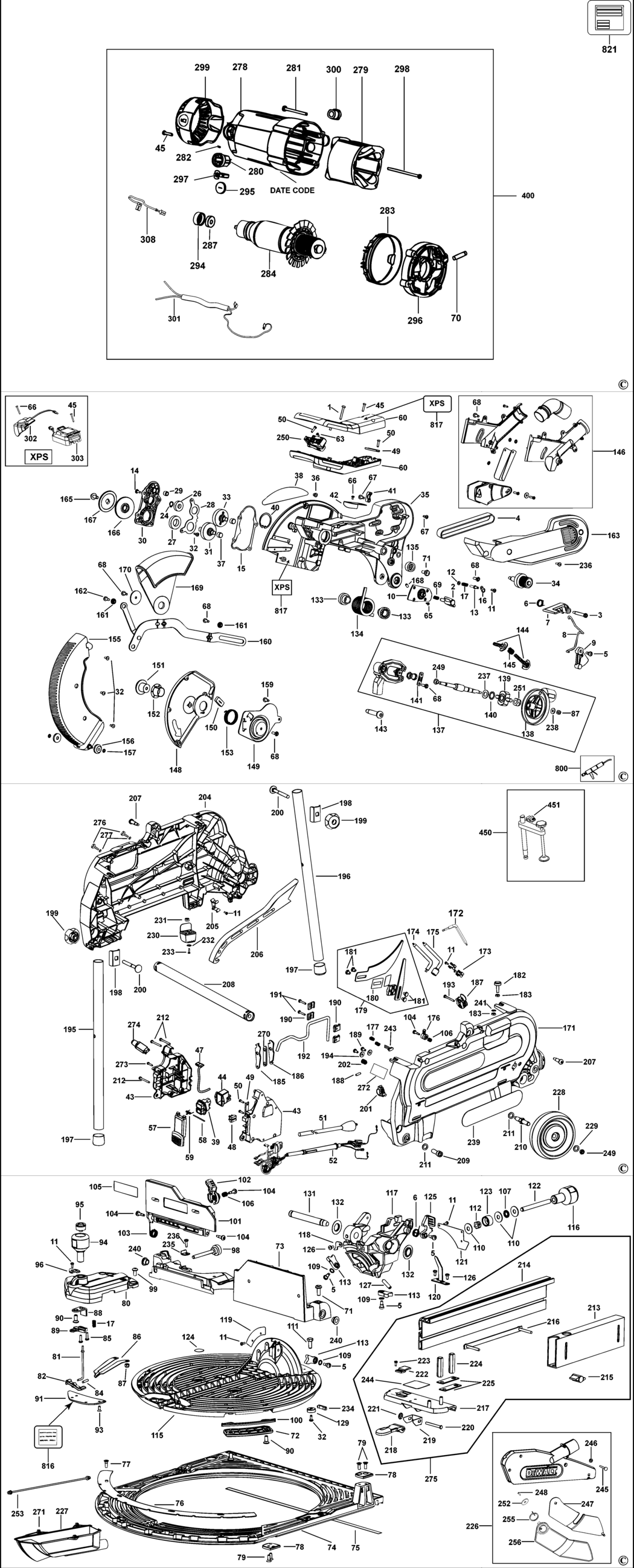

An exploded drawing and spare parts listing for the Dewalt D27107XPS Type 2 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A8 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A22 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A44 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A12 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A44 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A6 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A4 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A9 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A4 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A1 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A118 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A4 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A10 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A23 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A22 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A8 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A94 868082-00	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A44 860079-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A2 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A16 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A4 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A21 391616-00	£4.69	£5.63
30 - GEARCASE COVER + 29 BDE-621759-00.A12 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A11 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A92 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A2 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A7 N027131SV	£115.77	£138.92
35 - ARM BDE-N139375.A0 N139375	£283.82	£340.58
36 - INSERT BDE-148608-00.A12 148608-00	£1.50	£1.80
37 - BEARING BDE-386780-00.A23 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A1 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A4 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A1 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A11 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A4 613781-00	£1.50	£1.80
43 - HOUSING SWITCH GB BDE-605786-01.A6 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A7 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A2 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A9 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A32 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A4 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A16 330013-22	-
51 - CORDSET GB BDE-330060-85.A12 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A7 639912-01	-
57 - SWITCH COVER BDE-N377629.A0 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A4 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A9 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A9 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A117 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A3 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A150 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A113 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A84 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A5 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A22 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A29 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A13 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A10 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A5 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A11 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A10 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A11 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A0 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A8 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A3 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A6 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A7 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A3 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A85 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A7 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A48 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A12 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A7 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A6 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A6 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A8 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A3 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A8 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A11 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A11 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A11 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A13 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A9 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A12 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A1 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A15 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A21 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A21 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A19 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A62 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A14 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A6 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A3 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A6 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A8 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A10 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A6 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A6 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A6 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A11 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A2 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A9 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A2 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A3 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A12 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A15 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A6 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A10 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A9 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A42 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A8 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A4 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A9 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A6 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A10 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A7 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A14 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A7 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A12 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A4 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A3 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A9 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A12 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A10 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A5 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A33 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A6 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A5 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A6 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A67 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A16 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A52 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A6 N225776	-
161 - SLEEVE BDE-146740-02.A8 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A7 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A1 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-869245-00.A86 869245-00	£3.54	£4.25
166 - WASHER INNER CLAMP BDE-616319-00.A14 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A25 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A14 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A4 605593-00	-
170 - WASHER BDE-607536-00.A3 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A5 656421-00	£245.11	£294.13
172 - WRENCH SPECIAL BDE-N040940.A1 N040940	£9.41	£11.29
173 - HOLDER BDE-391358-01.A82 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A13 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A11 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A12 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A10 946866-00	£1.50	£1.80
179 - GUARD KIT BDE-N181532.A22 N181532	£110.62	£132.74
179 - RIVING KNIFE KIT BDE-N097056.A0 N097056	£55.30	£66.36
180 - SHIM BDE-609497-00.A7 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A2 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A2 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A94 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A10 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A3 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A11 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A0 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A71 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A20 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A12 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A10 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A15 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A39 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A11 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A3 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A20 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A11 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A6 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A12 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A16 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A44 860112-11	£1.50	£1.80
204 - FSO KIT BDE-656421-01.A4 656421-01	£165.92	£199.11
205 - CLIP BDE-615994-00.A1 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A64 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A17 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A2 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A50 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A9 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A10 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A4 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A8 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A17 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A32 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A10 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A9 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A10 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A10 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A10 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A7 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A10 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A117 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A4 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A5 605790-00	£1.50	£1.80
226 - GUARD SA BDE-N162338.A1 N162338	£47.08	£56.49
226 - GUARD KIT BDE-N181532.A23 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A0 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A2 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A142 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A3 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A27 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A468 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A5 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A0 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A0 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A65 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A13 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A166 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A11 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A14 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A21 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A8 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A10 624373-00	£1.50	£1.80
245 - SCREW BDE-860085-20.A4 860085-20	£1.50	£1.80
246 - NUT BDE-860092-05.A3 860092-05	£1.50	£1.80
247 - GUARD PLATE BDE-N162668.A5 N162668	£7.18	£8.62
248 - SCREW BDE-860084-11.A80 860084-11	£1.50	£1.80
249 - NUT BDE-860092-05.A4 860092-05	£1.50	£1.80
250 - SWITCH GB BDE-394375-02P.A33 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A3 330021-08	£1.50	£1.80
252 - WASHER BDE-860075-01.A3 860075-01	£1.50	£1.80
253 - CORD BDE-N060144.A3 N060144	£3.80	£4.56
255 - SPRING BDE-N056486.A9 N056486	£1.50	£1.80
256 - GUARD PLATE BDE-N164679.A3 N164679	£7.18	£8.62
270 - SPACER BDE-626334-00.A8 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A2 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A16 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A10 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A2 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A15 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A93 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A6 N025823	£17.48	£20.97
279 - FIELD 230V GB BDE-N071929.A4 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A1 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A28 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A4 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A5 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A2 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A182 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A3 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A18 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A16 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A9 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A17 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A0 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A11 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A6 N025819	£12.17	£14.60
302 - LED LIGHT GB BDE-N172058.A2 N172058	£74.15	£88.98
303 - SA POWER SUPPLY GB BDE-N172059.A1 N172059	£96.55	£115.86
308 - BRUSH LEAD GB BDE-N025820.A2 N025820	£1.50	£1.80
400 - MOTOR SA 230V GB BDE-N158402.A5 N158402	£301.55	£361.86
800 - GREASE BDE-5140061-28.A60 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A4 N045702	£2.78	£3.34
817 - WARNING LABEL BDE-N174417.A3 N174417	£1.50	£1.80
821 - RATING PLATE GB BDE-N161901 N161901	£9.41	£11.29

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107XPS Type 2 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
