Dewalt D27107 Type 3 Combination Saw Spare Parts

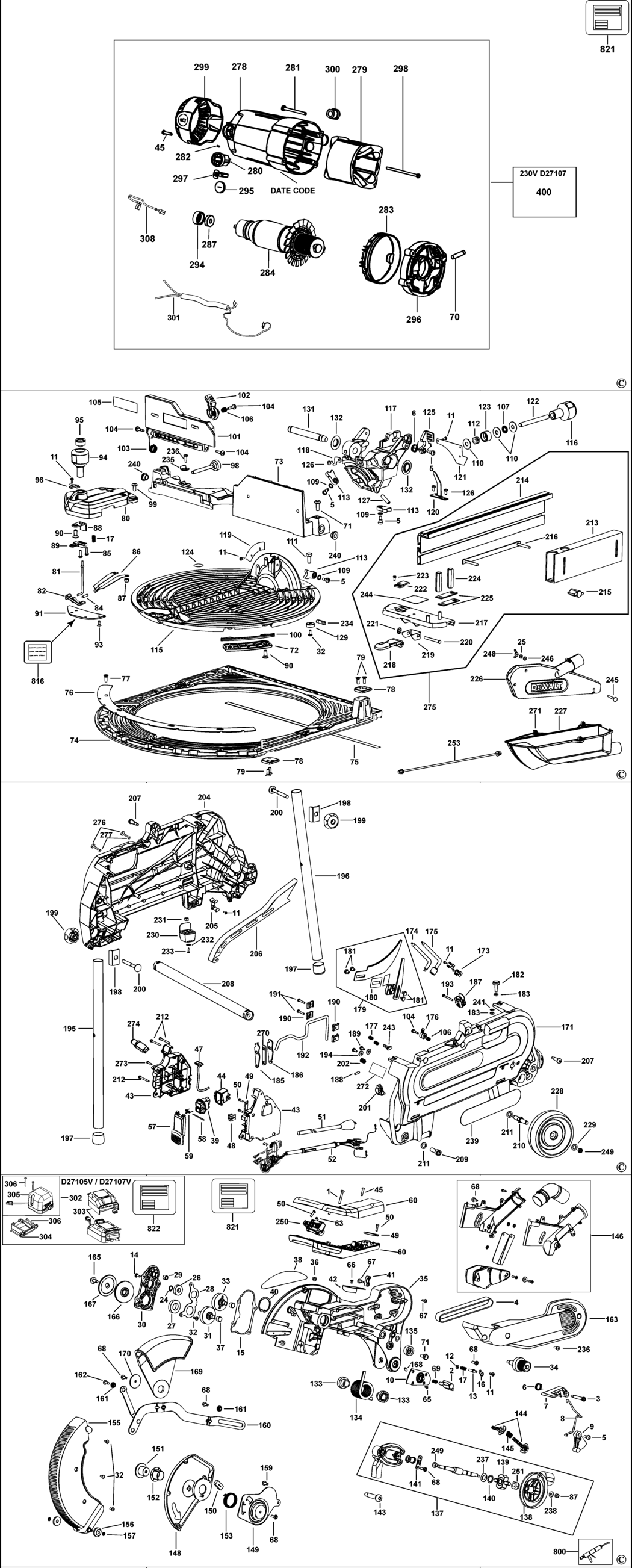

An exploded drawing and spare parts listing for the Dewalt D27107 Type 3 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A2 98094-35	£1.66	£1.99
2 - KNOB BDE-147107-06.A9 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A57 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A2 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A76 153639-00	£1.66	£1.99
6 - SPRING TORSION BDE-398472-00.A19 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A13 605603-00	£1.66	£1.99
8 - LINKAGE SA BDE-606278-00.A3 606278-00	£1.66	£1.99
9 - PLATE BDE-606279-00.A10 606279-00	£1.66	£1.99
10 - PLATE BDE-607221-00.A9 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A143 330045-05	£1.66	£1.99
12 - WASHER FELT BDE-618480-00.A13 618480-00	£1.66	£1.99
13 - LOCKING PIN BDE-153561-00.A40 153561-00	£1.66	£1.99
14 - SCREW BDE-385915-01.A33 385915-01	£1.66	£1.99
15 - GASKET BDE-391315-00.A30 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A41 393071-00	£1.66	£1.99
17 - SPRING BDE-868082-00.A151 868082-00	£1.66	£1.99
24 - CIRCLIP BDE-860079-03.A67 860079-03	£1.66	£1.99
25 - WASHER M8 BDE-860073-03.A188 860073-03	£1.66	£1.99
26 - BEARING BDE-605040-59.A25 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A7 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A9 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A10 391616-00	£4.69	£5.63
30 - GEARCASE COVER + 29 BDE-621759-00.A2 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A2 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A7 330045-49	£1.66	£1.99
33 - SPINDLE & GEAR SA BDE-869219-07.A11 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A2 N027131SV	£115.77	£138.92
35 - ARM + 36373839 BDE-612349-00.A2 612349-00	£209.59	£251.51
35 - ARM BDE-N063737.A0 N063737	£209.59	£251.51
36 - INSERT BDE-148608-00.A46 148608-00	£1.66	£1.99
37 - BEARING BDE-386780-00.A40 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A9 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A9 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A10 616726-00	£1.66	£1.99
41 - CORD CLAMP BDE-612350-00.A3 612350-00	£1.66	£1.99
42 - COVER BDE-613781-00.A13 613781-00	£1.66	£1.99
43 - HOUSING SWITCH GB BDE-605786-01.A13 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A1 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A490 330019-13	£1.66	£1.99
47 - CONNECTING WIRE BDE-652121-00.A2 652121-00	£1.66	£1.99
48 - TERMINAL BLOCK BDE-326057-00.A0 326057-00	£1.66	£1.99
49 - CORD CLAMP BDE-607858-00.A8 607858-00	£1.66	£1.99
50 - SCREW BDE-330013-22.A31 330013-22	-
51 - CORDSET GB BDE-330060-85.A3 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A2 639912-01	-
57 - SWITCH COVER BDE-N377629.A11 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A10 607854-00	£1.66	£1.99
59 - SPRING TORSION BDE-613782-01.A5 613782-01	£1.66	£1.99
60 - HANDLE SA BDE-607855-00.A3 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A47 384127-01	£1.66	£1.99
65 - SCREW BDE-860091-04.A14 860091-04	£1.66	£1.99
66 - SCREW BDE-860094-03.A11 860094-03	£1.66	£1.99
67 - SCREW BDE-330045-15.A14 330045-15	£1.66	£1.99
68 - SCREW.SPECIAL BDE-330045-23.A12 330045-23	£1.66	£1.99
69 - SPRING BDE-606014-00.A21 606014-00	£1.66	£1.99
70 - SCREW BDE-394034-00.A11 394034-00	£1.66	£1.99
71 - SCREW BDE-330045-32.A8 330045-32	£1.66	£1.99
72 - PLATE BDE-621647-00.A3 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A2 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A8 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A3 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A0 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A2 615876-00	£1.66	£1.99
78 - PLATE BDE-607103-00.A11 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A13 98104-16	£1.66	£1.99
80 - NOSE BDE-N162168.A12 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A5 605799-00	£1.66	£1.99
82 - ACTUATOR BDE-399162-00.A3 399162-00	£1.66	£1.99
84 - PIN BDE-399009-00.A13 399009-00	£1.66	£1.99
85 - SCREW.TEMP BDE-860094-00.A153 860094-00	£1.66	£1.99
86 - DETENT BDE-606898-00.A0 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A11 860092-02	£1.66	£1.99
88 - PLATE BDE-606900-00.A5 606900-00	£1.66	£1.99
89 - PAD BDE-606896-00.A0 606896-00	£1.66	£1.99
90 - SCREW BDE-617561-00.A13 617561-00	£1.66	£1.99
91 - COVER BDE-606897-00.A13 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A11 860205-01	£1.66	£1.99
94 - KNOB BDE-399004-00.A13 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A5 605785-00	£1.66	£1.99
96 - POINTER BDE-611991-00.A2 611991-00	£1.66	£1.99
98 - KNOB BDE-606198-00.A0 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A23 N409486	£1.66	£1.99
100 - PAD BDE-607129-00.A2 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A5 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A2 610251-00	£1.66	£1.99
103 - SPRING BDE-610250-00.A11 610250-00	£1.66	£1.99
104 - SCREW BDE-N399933.A3 N399933	£1.66	£1.99
105 - WARNING LABEL BDE-610710-00.A0 610710-00	£1.66	£1.99
106 - SPRING BDE-941586-00.A12 941586-00	£1.66	£1.99
107 - BEARING THRUST BDE-153451-00.A25 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A26 153655-00	£1.66	£1.99
110 - WASHER BDE-153781-00.A57 153781-00	£1.66	£1.99
111 - SCREW BDE-153797-03.A8 153797-03	£1.66	£1.99
112 - NUT BDE-330021-10.A8 330021-10	£1.66	£1.99
113 - PAWL BDE-391347-00.A21 391347-00	£1.66	£1.99
115 - ROTARY TABLE + 122 124 BDE-869233-02.A5 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A0 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A8 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A8 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A13 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A0 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A13 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A0 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A13 606362-00	£1.66	£1.99
124 - WARNING LABEL BDE-610707-00.A21 610707-00	£1.66	£1.99
125 - LATCH BDE-613709-00.A4 613709-00	£1.66	£1.99
126 - SCREW BDE-860094-06.A2 860094-06	£1.66	£1.99
127 - SCREW BDE-153576-03.A15 153576-03	£1.66	£1.99
129 - ADJUSTER BDE-615589-00.A0 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A0 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A16 148296-00	£1.66	£1.99
133 - SPACER BDE-146732-00.A61 146732-00	£1.66	£1.99
134 - SPRING BDE-619571-00.A12 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A41 146753-00	£1.66	£1.99
137 - ADJUSTER HEIGHT BDE-609837-00.A12 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A1 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A12 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A4 604107-00	£1.66	£1.99
141 - CLAMP BDE-609840-00.A1 609840-00	£1.66	£1.99
143 - BOLT BDE-610254-00.A1 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A13 614072-00	£1.66	£1.99
145 - SPRING BDE-606688-00.A12 606688-00	£1.66	£1.99
146 - DUST PORT BDE-N166053.A5 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A4 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A5 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A13 609514-00	£1.66	£1.99
151 - RETAINING PLATE BDE-146750-03.A4 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A0 609314-00	£1.66	£1.99
153 - SPRING TORSION BDE-609496-00.A13 609496-00	£1.66	£1.99
155 - GUARD BDE-N298999.A13 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A14 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A14 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A0 394589-01	£1.66	£1.99
160 - LEVER SA BDE-N225776.A1 N225776	-
161 - SLEEVE BDE-146740-02.A26 146740-02	£1.66	£1.99
162 - SCREW BDE-605590-00.A4 605590-00	£1.66	£1.99
163 - BELT COVER BDE-610556-01.A8 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-869245-00.A78 869245-00	£3.54	£4.25
166 - WASHER INNER CLAMP BDE-616319-00.A23 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A11 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A71 150075-00	£1.66	£1.99
169 - GUARD BDE-605593-00.A7 605593-00	-
170 - WASHER BDE-607536-00.A12 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A6 656421-00	£245.11	£294.13
173 - HOLDER BDE-391358-01.A15 391358-01	£1.66	£1.99
174 - WRENCH SPECIAL BDE-385567-01.A1 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A30 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A5 615993-00	£1.66	£1.99
177 - SPRING BDE-946866-00.A14 946866-00	£1.66	£1.99
179 - GUARD KIT GB BDE-N181532.A2 N181532	£110.62	£132.74
180 - SHIM BDE-609497-00.A0 609497-00	£1.66	£1.99
181 - SCREW BDE-607181-00.A5 607181-00	£1.66	£1.99
182 - BUMPER BDE-616634-00.A8 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A63 860083-15	£1.66	£1.99
185 - LOCK BDE-606233-00.A1 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A12 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A6 605601-00	£1.66	£1.99
188 - PIN BDE-607132-00.A12 607132-00	£1.66	£1.99
189 - SCREW BDE-330045-55.A45 330045-55	£1.66	£1.99
190 - BEARING BLOCK BDE-153379-00.A8 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A6 610574-00	£1.66	£1.99
192 - ROD BDE-611094-00.A0 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A30 861090-00	£1.66	£1.99
194 - WASHER BDE-860073-14.A7 860073-14	£1.66	£1.99
195 - FRONT LEG BDE-613233-00.A0 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A8 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A24 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A0 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A12 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A1 98131-90	£1.66	£1.99
201 - CABLE CLAMP BDE-861091-00.A2 861091-00	£1.66	£1.99
202 - SPRING BDE-860112-11.A61 860112-11	£1.66	£1.99
204 - FSO KIT BDE-656421-01.A3 656421-01	£165.92	£199.11
205 - CLIP BDE-615994-00.A12 615994-00	£1.66	£1.99
206 - PUSHROD BDE-860610-01.A11 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A5 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A7 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A7 942447-00	£1.66	£1.99
210 - AXLE STUB BDE-611623-00.A5 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A45 98197-08	£1.66	£1.99
212 - SCREW BDE-330045-50.A9 330045-50	£1.66	£1.99
213 - FENCE BDE-605789-00.A6 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A1 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A0 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A5 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A0 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A8 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A8 605796-00	£1.66	£1.99
220 - CLEVIS PIN BDE-605795-00.A12 605795-00	£1.66	£1.99
221 - WASHER CLAMP BDE-392948-00.A11 392948-00	£1.66	£1.99
222 - POINTER BDE-605798-00.A12 605798-00	£1.66	£1.99
223 - SCREW BDE-330045-05.A186 330045-05	£1.66	£1.99
224 - NUT BDE-612284-00.A7 612284-00	£1.66	£1.99
225 - WASHER BDE-605790-00.A6 605790-00	£1.66	£1.99
226 - GUARD KIT GB BDE-N181532.A1 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A10 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A7 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A44 941602-00	£1.66	£1.99
230 - FOOT BDE-N219072.A7 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A67 860083-14	£1.66	£1.99
232 - WASHER M8 BDE-860073-03.A117 860073-03	£1.66	£1.99
233 - SCREW BDE-860085-20.A27 860085-20	£1.66	£1.99
234 - SHOE BDE-621653-00.A7 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A12 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A164 330045-14	£1.66	£1.99
237 - WASHER BDE-623499-00.A7 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A8 860075-00	£1.66	£1.99
239 - IDENTITY LABEL BDE-617108-00.A6 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A7 607182-00	£1.66	£1.99
241 - WASHER BDE-860078-02.A42 860078-02	£1.66	£1.99
243 - SPRING CLIP BDE-620327-00.A1 620327-00	£1.66	£1.99
244 - IDENTITY LABEL BDE-624373-00.A1 624373-00	£1.66	£1.99
245 - SCREW BDE-931997-00.A11 931997-00	£1.66	£1.99
246 - WASHER BDE-720959-00.A162 720959-00	£1.66	£1.99
248 - WING NUT BDE-720929-00.A16 720929-00	£1.66	£1.99
249 - NUT BDE-860092-05.A58 860092-05	£1.66	£1.99
250 - SWITCH GB BDE-394375-02P.A12 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A14 330021-08	£1.66	£1.99
253 - CORD BDE-N060144.A10 N060144	£3.80	£4.56
270 - SPACER BDE-626334-00.A0 626334-00	£1.66	£1.99
271 - FASTENER BDE-868303-00.A21 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A7 626191-00	£1.66	£1.99
273 - SCREW BDE-146679-00.A0 146679-00	£1.66	£1.99
275 - FENCE BDE-611713-01.A7 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A8 949701-05	£1.66	£1.99
277 - NUT BDE-860083-15.A64 860083-15	£1.66	£1.99
278 - FIELD CASE BDE-N025823.A2 N025823	£17.48	£20.97
279 - FIELD 230V GB BDE-N071929.A6 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A16 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A57 98094-55	£1.66	£1.99
282 - SCREW BDE-330022-16.A20 330022-16	£1.66	£1.99
283 - BAFFLE FAN BDE-391375-00.A57 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A5 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A105 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A6 650234-00	£1.66	£1.99
295 - BRUSH CAP BDE-622441-00.A2 622441-00	£1.66	£1.99
296 - MOUNTING BRACKET BDE-391282-00.A21 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A0 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A12 330019-34	£1.66	£1.99
299 - END CAP BDE-660498-00.A5 660498-00	£1.66	£1.99
300 - BUSHING BDE-605155-00.A37 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A2 N025819	£12.17	£14.60
302 - LASER HEAD SA D27107V BDE-635797-00.A10 635797-00	£84.42	£101.30
303 - SA POWER SUPPLY D27107V BDE-627631-00.A1 627631-00	£51.90	£62.28
304 - WINDOW D27107V BDE-615498-00.A1 615498-00	£12.17	£14.60
305 - LASER HEAD SA D27107V BDE-635797-00.A11 635797-00	£84.42	£101.30
306 - SCREW D27107V BDE-860094-03.A12 860094-03	£1.66	£1.99
308 - BRUSH LEAD GB BDE-N025820.A9 N025820	£1.66	£1.99
400 - MOTOR SA 230V >212010 GB BDE-N158402.A3 N158402	£301.55	£361.86
400 - MOTOR SA 230V <212010 GB BDE-N158402.A4 N158402	£301.55	£361.86
800 - GREASE BDE-5140061-28.A27 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A8 N045702	£2.78	£3.34
821 - RATING PLATE GB BDE-N047935 N047935	-
822 - RATING PLATE GB BDE-N047939 N047939	£9.41	£11.29

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107 Type 3 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
