Festool TS 55 REQ GB 110V / 500900 Spare Parts

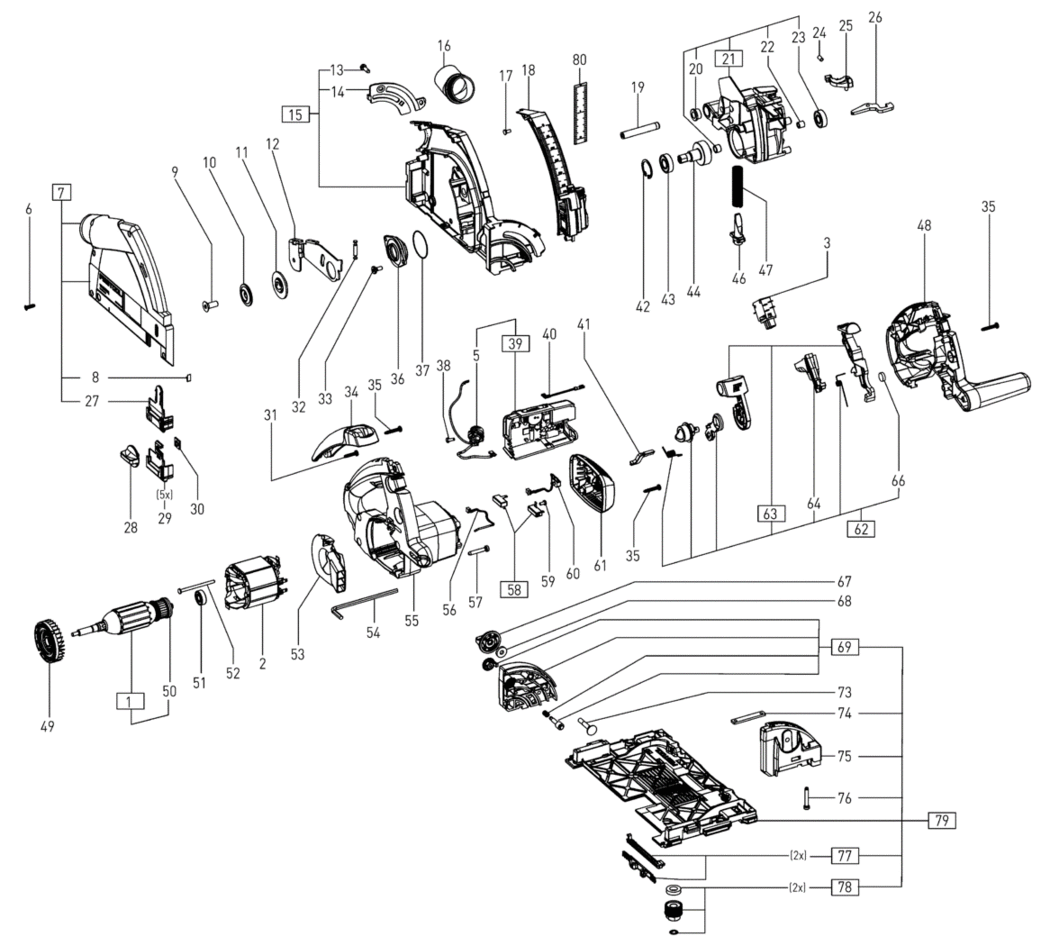

An exploded diagram and spare parts listing for the Festool TS 55 REQ GB 110V / 500900

	Ex VAT	Inc VAT
1 - ARMATURE 110 - 120V FSP-491746.A0 491746	£108.55	£130.26
2 - FIELD ASSEMBLY 110 - 120V FSP-491745.A7 491745	£58.13	£69.76
3 - SWITCH 230 V FSP-491703.A6 491703	£19.83	£23.80
5 - SOCKET HOUSING GB 110V FSP-491927.A4 491927	£23.70	£28.44
6 - SCREW 4.0 X 15 MM FSP-400710.A20 400710	£2.00	£2.40
7 - COVER FSP-10488426.A10 10488426	£53.57	£64.28
8 - SPRING FSP-466084.A31 466084	£2.00	£2.40
9 - FLAT HEAD SCREW M8 X 18 FSP-459186.A6 459186	£3.23	£3.88
10 - COUNTER FLANGE FSP-10014832.A6 10014832	£5.60	£6.72
11 - CLAMPING FLANGE FSP-10014834.A15 10014834	£12.48	£14.97
12 - WEDGE FSP-10000418.A8 10000418	£8.37	£10.04
13 - RAISED-HEAD SCREW FSP-10016393.A23 10016393	£2.00	£2.40
14 - BOARD SEGMENT FSP-10000164.A14 10000164	£6.06	£7.27
15 - PROTECTIVE COVER FSP-10017862.A6 10017862	£64.67	£77.60
16 - ANGLE PIECE CLEANTEC FSP-202096.A29 202096	£23.34	£28.01
17 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A71 400014	£2.00	£2.40
18 - DEPTH STOP FSP-10001569.A0 10001569	£18.84	£22.61
19 - BOLT FSP-10002634.A19 10002634	£2.00	£2.40
20 - FLANGE BUSHING FSP-459181.A4 459181	£2.00	£2.40
21 - GEAR HOUSING FSP-499283.A6 499283	£71.20	£85.44
22 - NEEDLE SLEEVE FSP-410223.A8 410223	£3.66	£4.39
23 - BALL BEARING FSP-228798.A53 228798	£5.38	£6.45
24 - PRESSURE SPRING FSP-459225.A1 459225	£2.00	£2.40
25 - DETENT LEVER FSP-459224.A17 459224	£2.00	£2.40
26 - LEVER FSP-459229.A7 459229	£2.82	£3.38
27 - FLAG WINDOW. VISION PANEL FSP-499012.A4 499012	£5.42	£6.50
28 - ROTARY KNOB FSP-481984.A1 481984	£3.67	£4.40
29 - SPLINTER GUARD FSP-499011.A6 499011	£13.32	£15.99
30 - NUT FSP-462760.A1 462760	£2.00	£2.40
31 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A5 228567	£2.00	£2.40
32 - DRAW SPRING FSP-10000568.A5 10000568	£2.82	£3.38
33 - FLANGE BOLT FSP-453547.A7 453547	£2.00	£2.40
34 - SOFT HANDLE FSP-459226.A24 459226	£6.72	£8.07
35 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A30 400695	£2.00	£2.40
36 - BEARING FLANGE FSP-459185.A3 459185	£15.93	£19.12
37 - O-RING FSP-459253.A16 459253	£2.00	£2.40
38 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A62 219031	£2.00	£2.40
39 - ELECTRONIC FSP-204695.A0 204695	£61.20	£73.44
40 - SET OF FLEXIBLE LEADS 110V USA FSP-491727.A0 491727	£20.72	£24.86
41 - LOCK BOLT FSP-459222.A7 459222	£2.00	£2.40
42 - SNAP RING FSP-401244.A21 401244	£2.00	£2.40
43 - BALL BEARING FSP-401576.A17 401576	£7.86	£9.43
44 - GEAR SHAFT FSP-495798.A10 495798	£41.59	£49.91
46 - TENONS FSP-10018287.A5 10018287	£2.00	£2.40
47 - PRESSURE SPRING FSP-459187.A3 459187	£2.00	£2.40
48 - GRIP FSP-10007029.A3 10007029	£17.97	£21.56
49 - FAN FSP-459199.A3 459199	£3.03	£3.64
50 - SOLENOID RING FSP-488965.A2 488965	£3.38	£4.05
51 - BALL BEARING FSP-401525.A58 401525	£4.72	£5.66
52 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A43 228708	£2.00	£2.40
53 - AIR GUIDE WASHER FSP-459179.A15 459179	£2.00	£2.40
54 - HEXAGON WRENCH FSP-459255.A15 459255	£2.00	£2.40
55 - MOTOR HOUSING FSP-10017629.A9 10017629	£19.84	£23.81
56 - PTC RESISTOR FSP-721509.A5 721509	£19.35	£23.22
57 - SCREW FSP-10002348.A18 10002348	£2.00	£2.40
58 - BRUSH (PAIR) 100-120V FSP-492014.A2 492014	£17.85	£21.42
59 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A101 219047	£2.00	£2.40
60 - SPEED INDICATOR EB / EBQ FSP-491723.A3 491723	£28.82	£34.59
61 - COVER FSP-491718.A7 491718	£22.20	£26.64
62 - SPINDLE STOP FSP-500430.A3 500430	£41.05	£49.26
63 - LEVER FSP-500431.A21 500431	£25.20	£30.24
64 - PUSHER FSP-459195.A27 459195	£2.66	£3.19
66 - SILICONE WASHER FSP-459220.A8 459220	£2.00	£2.40
67 - ROTARY KNOB FSP-10001354.A11 10001354	£4.12	£4.95
68 - WASHER FSP-402935.A57 402935	£2.00	£2.40
69 - SWIVELING SEGMENT FSP-10009124.A4 10009124	£11.42	£13.71
73 - CLAMPING SCREW FSP-10000160.A7 10000160	£2.98	£3.57
74 - STRIP FSP-10000916.A11 10000916	£2.00	£2.40
75 - SWIVELING SEGMENT FSP-10027116.A11 10027116	£8.40	£10.08
76 - CHEESE HEAD SCREW FSP-10014865.A12 10014865	£2.00	£2.40
77 - GLIDE PADS FSP-200173.A11 200173	£21.84	£26.21
78 - ADJUSTING KNOB FSP-200174.A8 200174	£25.32	£30.39
79 - GUIDE PLATE FSP-10515819.A0 10515819	£64.54	£77.45

Attribute Name	Value
Brand	Festool
