Festool HKC 55 EB Li / 203120 Spare Parts

Home Details Reviews Delivery

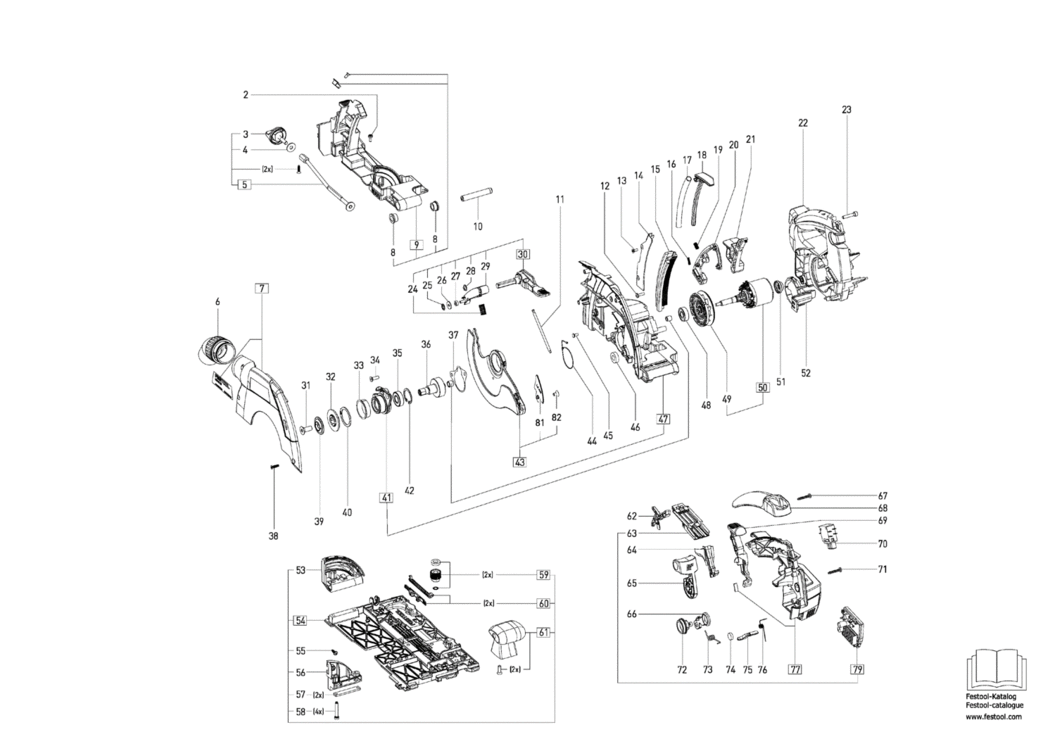

An exploded diagram and spare parts listing for the Festool HKC 55 EB Li / 203120

	Ex VAT	Inc VAT
2 - RAISED-HEAD SCREW FSP-476787.A18 476787	£2.00	£2.40
3 - ROTARY KNOB M6 FSP-486202.A7 486202	£2.88	£3.45
4 - WASHER 6.4 MM FSP-228546.A26 228546	£2.00	£2.40
5 - CLAMPING SCREW FSP-10018751.A4 10018751	£39.03	£46.84
6 - ANGLE PIECE CLEANTEC FSP-202096.A5 202096	£23.34	£28.01
7 - COVER FSP-10018739.A1 10018739	£24.33	£29.20
8 - FLANGE BUSHING FSP-459181.A11 459181	£2.00	£2.40
9 - SUPPORT FSP-203125.A0 203125	£75.49	£90.59
10 - BOLT FSP-10002634.A2 10002634	£2.00	£2.40
11 - DRAW SPRING FSP-10017179.A5 10017179	£3.56	£4.27
12 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A18 445566	£2.00	£2.40
13 - FLAT HEAD SCREW M4 X 10 FSP-228736.A10 228736	£2.00	£2.40
14 - GUIDE PLATE FSP-10019254.A5 10019254	£4.69	£5.63
15 - SCALE FSP-10007406.A1 10007406	£6.68	£8.01
16 - PRESSURE SPRING FSP-10014874.A4 10014874	£2.00	£2.40
17 - PRESSURE SPRING FSP-10020191.A2 10020191	£3.38	£4.05
18 - GUIDE ELEMENT FSP-10008313.A4 10008313	£2.00	£2.40
19 - PRESSURE SPRING FSP-10014877.A4 10014877	£2.00	£2.40
20 - GUIDING PROFILE FSP-10007409.A4 10007409	£2.00	£2.40
21 - LOCK BOLT FSP-10007407.A4 10007407	£3.19	£3.83
22 - MOTOR HOUSING FSP-10037635.A1 10037635	£25.96	£31.15
23 - CHEESE HEAD SCREW M5 X 25 FSP-400526.A7 400526	£2.00	£2.40
24 - PRESSURE SPRING FSP-464334.A8 464334	£2.00	£2.40
25 - CLAMP WASHER FSP-10016156.A1 10016156	£2.00	£2.40
26 - WASHER FSP-10016159.A1 10016159	£2.00	£2.40
27 - BALL BEARING FSP-10007877.A1 10007877	£4.13	£4.96
28 - SNAP RING FSP-615119.A1 615119	£2.00	£2.40
29 - LEVER FSP-10012145.A2 10012145	£6.75	£8.10
30 - OPERATING LEVER FSP-10018752.A2 10018752	£45.77	£54.92
31 - FLAT HEAD SCREW M8 X 18 FSP-459186.A19 459186	£3.23	£3.88
32 - CLAMPING FLANGE FSP-10014834.A5 10014834	£12.48	£14.97
33 - BUSH FSP-10008221.A1 10008221	£2.00	£2.40
34 - FLAT HEAD SCREW FSP-626097.A2 626097	£3.25	£3.90
35 - BALL BEARING FSP-401576.A34 401576	£7.86	£9.43
36 - GEAR SHAFT FSP-495798.A5 495798	£41.59	£49.91
37 - FLANGE GASKET FSP-10021810.A4 10021810	£2.00	£2.40
38 - SCREW FSP-10012927.A2 10012927	£2.00	£2.40
39 - COUNTER FLANGE FSP-10014832.A16 10014832	£5.60	£6.72
40 - SNAP RING FSP-10012383.A4 10012383	£2.00	£2.40
41 - BEARING FLANGE FSP-10018742.A1 10018742	£58.18	£69.81
42 - SNAP RING FSP-401244.A17 401244	£2.00	£2.40
43 - PENDULUM GUARD FSP-10018744.A1 10018744	£45.66	£54.79
44 - FLEXIBLE LEAD FSP-10007875.A1 10007875	£8.36	£10.03
45 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A22 400014	£2.00	£2.40
46 - BUFFER RING FSP-10008387.A3 10008387	£2.00	£2.40
47 - HOUSING FSP-10018743.A5 10018743	£59.64	£71.57
48 - BALL BEARING FSP-228798.A69 228798	£5.38	£6.45
49 - FAN FSP-10010953.A1 10010953	£3.81	£4.57
50 - MOTOR FSP-10018747.A1 10018747	£142.32	£170.78
51 - CAP FSP-10004673.A5 10004673	£2.00	£2.40
52 - CABLE HOLDER FSP-10011747.A1 10011747	£2.00	£2.40
53 - SWIVELING SEGMENT FSP-10008229.A5 10008229	£7.43	£8.92
54 - GUIDE PLATE FSP-10018745.A5 10018745	£81.05	£97.26
55 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A48 219071	£2.00	£2.40
56 - SWIVELING SEGMENT FSP-10008230.A1 10008230	£3.68	£4.42
57 - STRIP FSP-10000916.A3 10000916	£2.00	£2.40
58 - CHEESE HEAD SCREW FSP-10014865.A18 10014865	£2.00	£2.40
59 - ADJUSTING KNOB FSP-200174.A13 200174	£25.32	£30.39
60 - GLIDE PADS FSP-200173.A6 200173	£21.84	£26.21
61 - AUXILIARY HANDLE FSP-10018750.A1 10018750	£26.33	£31.60
62 - DETENT LEVER FSP-10007408.A2 10007408	£2.00	£2.40
63 - HOLDER FSP-479156.A2 479156	£2.00	£2.40
64 - PUSHER FSP-459195.A16 459195	£2.66	£3.19
65 - LEVER FSP-10009468.A4 10009468	£4.88	£5.85
66 - SLIDE FSP-459221.A4 459221	£2.00	£2.40
67 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A74 228567	£2.00	£2.40
68 - SOFT HANDLE FSP-459226.A27 459226	£6.72	£8.07
69 - LEVER FSP-10005746.A2 10005746	£3.53	£4.24
70 - SWITCH FSP-10019001.A0 10019001	£36.79	£44.15
71 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A0 400695	£2.00	£2.40
72 - ECCENTRIC BOLT FSP-10008420.A7 10008420	£2.00	£2.40
73 - TORSION SPRING FSP-10003505.A4 10003505	£2.00	£2.40
74 - SILICONE WASHER FSP-459220.A13 459220	£2.00	£2.40
75 - LOCK BOLT FSP-459222.A4 459222	£2.00	£2.40
76 - LEG SPRING FSP-10029935.A4 10029935	£2.00	£2.40
77 - D-HANDLE FSP-203121.A2 203121	£41.54	£49.85
79 - ELECTRONIC FSP-10035215.A0 10035215	£99.28	£119.14
80 - NO LONGER AVAILABLE FSP-00000.A2699 00000	-
81 - WEDGE FSP-10018073.A1 10018073	£7.62	£9.14
82 - FLAT HEAD SCREW M5 X 8 FSP-400693.A6 400693	£2.00	£2.40
