Festool ATF 55 EB 230V / 487900 Spare Parts

Home Details Reviews Delivery

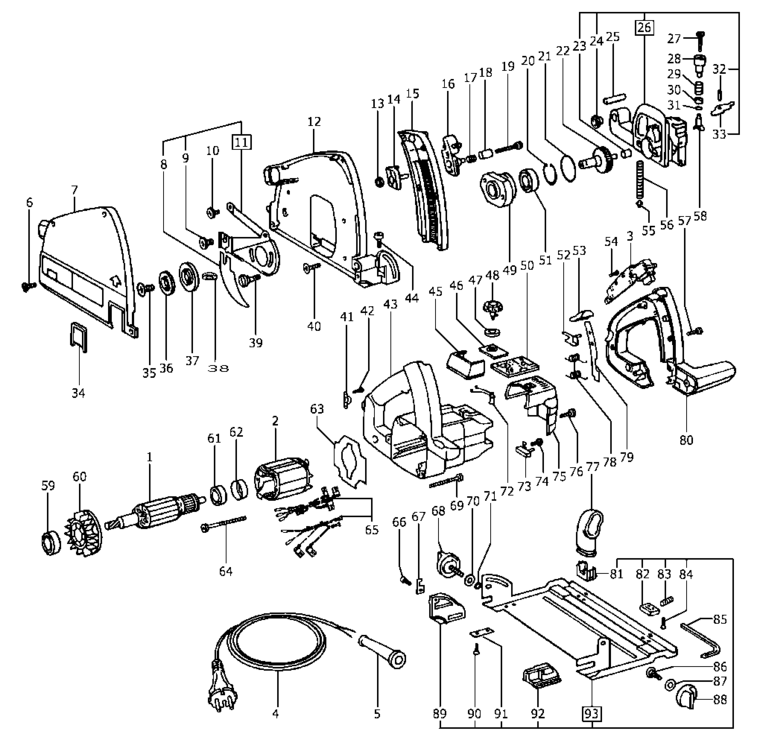

An exploded diagram and spare parts listing for the Festool ATF 55 EB 230V / 487900

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493218.A14 493218	£107.33	£128.80
2 - FIELD ASSEMBLY 230 V FSP-493221.A1 493221	£63.43	£76.12
3 - BRAKE MODULE FSP-489831.A0 489831	£72.55	£87.06
4 - CABLE EU FSP-457408.A7 457408	£28.95	£34.74
5 - CABLE CONDUIT FSP-432436.A8 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A57 228736	£2.00	£2.40
7 - COVER FSP-703602.A12 703602	£54.32	£65.19
8 - NO LONGER AVAILABLE FSP-00000.A4706 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A4707 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A4708 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A4709 00000	-
12 - PROTECTIVE COVER FSP-447207.A17 447207	£48.66	£58.39
13 - HEXAGON NUT M5 FSP-200717.A10 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A4711 00000	-
15 - SEGMENT FSP-440495.A5 440495	£8.85	£10.62
16 - DEPTH STOP FSP-445503.A7 445503	£2.00	£2.40
17 - PRESSURE SPRING FSP-201134.A23 201134	£2.00	£2.40
18 - KNOB FSP-439956.A12 439956	-
19 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A14 203740	£2.00	£2.40
20 - SNAP RING FSP-401246.A70 401246	£2.00	£2.40
21 - O-RING FSP-440457.A10 440457	£2.00	£2.40
22 - GEAR SHAFT FSP-443336.A12 443336	£45.88	£55.05
23 - CYLINDER BEARING FSP-439042.A21 439042	£2.00	£2.40
24 - FLANGE BUSHING FSP-439331.A21 439331	£2.00	£2.40
25 - CYLINDER PIN FSP-439972.A12 439972	£3.14	£3.77
26 - NO LONGER AVAILABLE FSP-00000.A4712 00000	-
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A32 228591	£2.00	£2.40
28 - KNOB FSP-440441.A12 440441	£2.87	£3.44
29 - PRESSURE SPRING FSP-201134.A24 201134	£2.00	£2.40
30 - SUPPORTING RING FSP-444142.A23 444142	£2.00	£2.40
31 - O-RING FSP-444234.A13 444234	£2.00	£2.40
32 - SLEEVE 5 X 12 MM FSP-228692.A47 228692	£2.00	£2.40
33 - DIVERSION FSP-439889.A1 439889	£11.18	£13.42
34 - LENS FSP-438943.A11 438943	£3.50	£4.20
35 - FLAT HEAD SCREW FSP-439269.A0 439269	£2.00	£2.40
36 - COUNTER FLANGE FSP-440089.A0 440089	£5.12	£6.15
37 - FLANGE 11.5 MM FSP-455953.A6 455953	£12.57	£15.08
38 - NO LONGER AVAILABLE FSP-00000.A4697 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A4698 00000	-
40 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A20 219102	£2.00	£2.40
41 - CABLE CLAMP FSP-439288.A22 439288	£2.00	£2.40
42 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A36 228663	£2.00	£2.40
43 - MOTOR HOUSING FSP-446282.A9 446282	£19.34	£23.21
44 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A15 228617	£2.00	£2.40
45 - COVER FSP-438607.A34 438607	£3.68	£4.42
46 - LENS FSP-438198.A30 438198	£2.00	£2.40
47 - SEALING RING FSP-438509.A13 438509	£2.00	£2.40
48 - ADJUSTING KNOB FSP-440991.A10 440991	£5.24	£6.29
49 - BEARING SLEEVE FSP-440228.A18 440228	£27.32	£32.79
50 - CONTROL ELECTRONICS FSP-488598.A7 488598	£65.58	£78.70
51 - BALL BEARING FSP-228659.A28 228659	£7.68	£9.21
52 - SLIDE FSP-451680.A15 451680	£2.00	£2.40
53 - KNOB FSP-434341.A22 434341	£2.82	£3.39
54 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A15 228718	£2.00	£2.40
55 - BOLT FSP-440554.A1 440554	£2.00	£2.40
56 - PRESSURE SPRING FSP-440209.A1 440209	£3.00	£3.60
57 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A17 228580	£2.00	£2.40
58 - BOLT FSP-444114.A19 444114	£8.56	£10.27
59 - BALL BEARING FSP-228798.A8 228798	£5.38	£6.45
60 - FAN FSP-715024.A23 715024	£2.00	£2.40
61 - BALL BEARING FSP-228559.A46 228559	£4.06	£4.87
62 - BEARING RING FSP-438613.A60 438613	£2.00	£2.40
63 - AIR GUIDE WASHER FSP-457606.A1 457606	£12.78	£15.33
64 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A24 228708	£2.00	£2.40
65 - NO LONGER AVAILABLE FSP-00000.A4696 00000	-
66 - FLAT HEAD SCREW M4 X 10 FSP-228727.A42 228727	£2.00	£2.40
67 - INDICATOR FSP-439275.A1 439275	£2.00	£2.40
68 - ROTARY KNOB M6 FSP-486202.A43 486202	£2.88	£3.45
69 - CHEESE HEAD SCREW FSP-203780.A10 203780	£2.00	£2.40
70 - WASHER 6.4 MM FSP-228546.A153 228546	£2.00	£2.40
71 - O-RING FSP-200052.A8 200052	£2.00	£2.40
72 - COIL SHELL FSP-486744.A10 486744	£16.95	£20.34
73 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A27 488915	£19.04	£22.85
74 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A12 219047	£2.00	£2.40
75 - CAP FSP-439824.A1 439824	£8.68	£10.42
76 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A18 228580	£2.00	£2.40
77 - CHIP DEFLECTOR FSP-439696.A50 439696	£8.94	£10.73
78 - TORSION SPRING FSP-439973.A14 439973	£2.00	£2.40
79 - LEVER FSP-439890.A26 439890	£3.45	£4.14
80 - COVER FSP-440102.A26 440102	£24.26	£29.11
81 - ADJUSTING PIECE FSP-442809.A14 442809	£2.00	£2.40
82 - ADJUSTING PIECE FSP-443971.A18 443971	£2.00	£2.40
83 - THREADED PIN M6 X 12 FSP-442597.A38 442597	£2.00	£2.40
84 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A53 400014	£2.00	£2.40
85 - PIN KEY FSP-439236.A25 439236	£3.50	£4.20
86 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A16 228592	£2.00	£2.40
87 - WASHER 6.4 MM FSP-228546.A154 228546	£2.00	£2.40
88 - ROTARY KNOB FSP-440713.A84 440713	£2.64	£3.17
89 - SWIVELING SEGMENT FSP-438855.A12 438855	£2.00	£2.40
90 - FLAT HEAD SCREW M4 X 10 FSP-228727.A43 228727	£2.00	£2.40
91 - THREADED RAIL FSP-439789.A14 439789	£2.00	£2.40
92 - SWIVELING SEGMENT FSP-438856.A14 438856	£2.00	£2.40
93 - PLATE FSP-484685.A11 484685	£42.35	£50.82
99 - NO LONGER AVAILABLE FSP-00000.A4704 00000	-

Attribute Name	Value
Brand	Festool
