Festool ATF 55 EB / 487412 Spare Parts

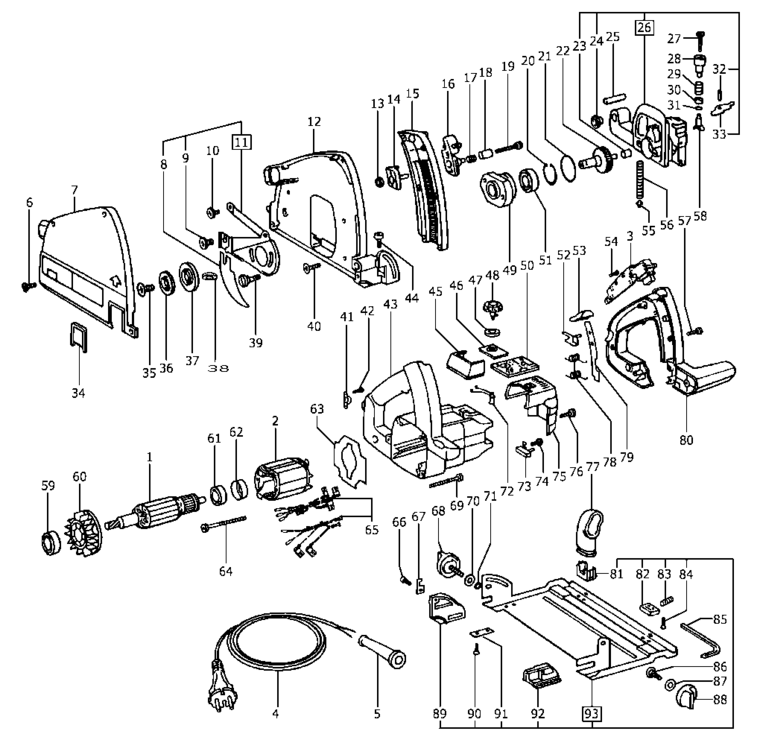

An exploded diagram and spare parts listing for the Festool ATF 55 EB / 487412

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493218.A15 493218	£107.33	£128.80
2 - FIELD ASSEMBLY 230 V FSP-493221.A0 493221	£63.43	£76.12
3 - BRAKE MODULE FSP-489831.A5 489831	£72.55	£87.06
4 - CABLE EU FSP-457408.A11 457408	£28.95	£34.74
5 - CABLE CONDUIT FSP-432436.A12 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A53 228736	£2.00	£2.40
7 - COVER FSP-703602.A13 703602	£54.32	£65.19
8 - NO LONGER AVAILABLE FSP-00000.A4792 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A4793 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A4794 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A4795 00000	-
12 - PROTECTIVE COVER FSP-447207.A14 447207	£48.66	£58.39
13 - HEXAGON NUT M5 FSP-200717.A2 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A4796 00000	-
15 - SEGMENT FSP-440495.A9 440495	£8.85	£10.62
16 - DEPTH STOP FSP-445503.A12 445503	£2.00	£2.40
17 - PRESSURE SPRING FSP-201134.A36 201134	£2.00	£2.40
18 - KNOB FSP-439956.A17 439956	-
19 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A19 203740	£2.00	£2.40
20 - SNAP RING FSP-401246.A66 401246	£2.00	£2.40
21 - O-RING FSP-440457.A6 440457	£2.00	£2.40
22 - GEAR SHAFT FSP-443336.A14 443336	£45.88	£55.05
23 - CYLINDER BEARING FSP-439042.A25 439042	£2.00	£2.40
24 - FLANGE BUSHING FSP-439331.A25 439331	£2.00	£2.40
25 - CYLINDER PIN FSP-439972.A11 439972	£3.14	£3.77
26 - NO LONGER AVAILABLE FSP-00000.A4800 00000	-
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A42 228591	£2.00	£2.40
28 - KNOB FSP-440441.A23 440441	£2.87	£3.44
29 - PRESSURE SPRING FSP-201134.A37 201134	£2.00	£2.40
30 - SUPPORTING RING FSP-444142.A15 444142	£2.00	£2.40
31 - O-RING FSP-444234.A21 444234	£2.00	£2.40
32 - SLEEVE 5 X 12 MM FSP-228692.A43 228692	£2.00	£2.40
33 - DIVERSION FSP-439889.A2 439889	£11.18	£13.42
34 - LENS FSP-438943.A20 438943	£3.50	£4.20
35 - FLAT HEAD SCREW FSP-439269.A4 439269	£2.00	£2.40
36 - COUNTER FLANGE FSP-440089.A4 440089	£5.12	£6.15
37 - FLANGE 11.5 MM FSP-455953.A8 455953	£12.57	£15.08
38 - NO LONGER AVAILABLE FSP-00000.A4798 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A4799 00000	-
40 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A24 219102	£2.00	£2.40
41 - CABLE CLAMP FSP-439288.A18 439288	£2.00	£2.40
42 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A42 228663	£2.00	£2.40
43 - MOTOR HOUSING FSP-446282.A12 446282	£19.34	£23.21
44 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A26 228617	£2.00	£2.40
45 - COVER FSP-438607.A38 438607	£3.68	£4.42
46 - LENS FSP-438198.A34 438198	£2.00	£2.40
47 - SEALING RING FSP-438509.A10 438509	£2.00	£2.40
48 - ADJUSTING KNOB FSP-440991.A11 440991	£5.24	£6.29
49 - BEARING SLEEVE FSP-440228.A14 440228	£27.32	£32.79
50 - CONTROL ELECTRONICS FSP-488598.A10 488598	£65.58	£78.70
51 - BALL BEARING FSP-228659.A23 228659	£7.68	£9.21
52 - SLIDE FSP-451680.A10 451680	£2.00	£2.40
53 - KNOB FSP-434341.A18 434341	£2.82	£3.39
54 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A23 228718	£2.00	£2.40
55 - BOLT FSP-440554.A2 440554	£2.00	£2.40
56 - PRESSURE SPRING FSP-440209.A0 440209	£3.00	£3.60
57 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A19 228580	£2.00	£2.40
58 - BOLT FSP-444114.A20 444114	£8.56	£10.27
59 - BALL BEARING FSP-228798.A9 228798	£5.38	£6.45
60 - FAN FSP-715024.A22 715024	£2.00	£2.40
61 - BALL BEARING FSP-228559.A45 228559	£4.06	£4.87
62 - BEARING RING FSP-438613.A61 438613	£2.00	£2.40
63 - AIR GUIDE WASHER FSP-457606.A0 457606	£12.78	£15.33
64 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A23 228708	£2.00	£2.40
65 - NO LONGER AVAILABLE FSP-00000.A4705 00000	-
66 - FLAT HEAD SCREW M4 X 10 FSP-228727.A44 228727	£2.00	£2.40
67 - INDICATOR FSP-439275.A2 439275	£2.00	£2.40
68 - ROTARY KNOB M6 FSP-486202.A42 486202	£2.88	£3.45
69 - CHEESE HEAD SCREW FSP-203780.A9 203780	£2.00	£2.40
70 - WASHER 6.4 MM FSP-228546.A155 228546	£2.00	£2.40
71 - O-RING FSP-200052.A7 200052	£2.00	£2.40
72 - COIL SHELL FSP-486744.A11 486744	£16.95	£20.34
73 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A28 488915	£19.04	£22.85
74 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A13 219047	£2.00	£2.40
75 - CAP FSP-439824.A0 439824	£8.68	£10.42
76 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A20 228580	£2.00	£2.40
77 - CHIP DEFLECTOR FSP-439696.A49 439696	£8.94	£10.73
78 - TORSION SPRING FSP-439973.A13 439973	£2.00	£2.40
79 - LEVER FSP-439890.A25 439890	£3.45	£4.14
80 - COVER FSP-440102.A27 440102	£24.26	£29.11
81 - ADJUSTING PIECE FSP-442809.A13 442809	£2.00	£2.40
82 - ADJUSTING PIECE FSP-443971.A17 443971	£2.00	£2.40
83 - THREADED PIN M6 X 12 FSP-442597.A39 442597	£2.00	£2.40
84 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A52 400014	£2.00	£2.40
85 - PIN KEY FSP-439236.A24 439236	£3.50	£4.20
86 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A15 228592	£2.00	£2.40
87 - WASHER 6.4 MM FSP-228546.A156 228546	£2.00	£2.40
88 - ROTARY KNOB FSP-440713.A85 440713	£2.64	£3.17
89 - SWIVELING SEGMENT FSP-438855.A11 438855	£2.00	£2.40
90 - FLAT HEAD SCREW M4 X 10 FSP-228727.A45 228727	£2.00	£2.40
91 - THREADED RAIL FSP-439789.A15 439789	£2.00	£2.40
92 - SWIVELING SEGMENT FSP-438856.A15 438856	£2.00	£2.40
93 - PLATE FSP-484685.A12 484685	£42.35	£50.82
99 - NO LONGER AVAILABLE FSP-00000.A4710 00000	-

Attribute Name	Value
Brand	Festool
