Festool ATF 55 / 485785 Spare Parts

Home Details Reviews Delivery

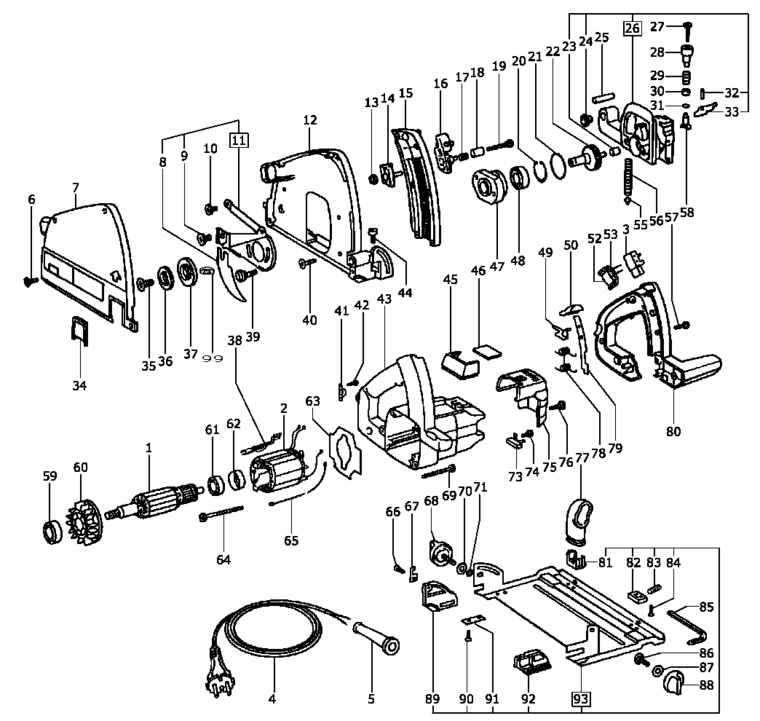

An exploded diagram and spare parts listing for the Festool ATF 55 / 485785

	Ex VAT	Inc VAT
1 - ARMATURE 230V FSP-493219.A1 493219	£128.52	£154.22
2 - FIELD ASSEMBLY 230V FSP-493220.A7 493220	£66.34	£79.61
3 - SWITCH 230 V FSP-490844.A1 490844	£19.83	£23.80
4 - MAINS CABLE GB 240V FSP-441749.A62 441749	£25.08	£30.09
4 - CABLE EU FSP-457410.A1 457410	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A10 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A51 228736	£2.00	£2.40
7 - COVER FSP-703602.A15 703602	£54.32	£65.19
8 - NO LONGER AVAILABLE FSP-00000.A4806 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A4807 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A4808 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A4809 00000	-
12 - PROTECTIVE COVER FSP-447207.A16 447207	£48.66	£58.39
13 - HEXAGON NUT M5 FSP-200717.A3 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A4810 00000	-
15 - SEGMENT FSP-440495.A7 440495	£8.85	£10.62
16 - DEPTH STOP FSP-445503.A14 445503	£2.00	£2.40
17 - PRESSURE SPRING FSP-201134.A33 201134	£2.00	£2.40
18 - KNOB FSP-439956.A19 439956	-
19 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A20 203740	£2.00	£2.40
20 - SNAP RING FSP-401246.A68 401246	£2.00	£2.40
21 - O-RING FSP-440457.A8 440457	£2.00	£2.40
22 - GEAR SHAFT FSP-443336.A13 443336	£45.88	£55.05
23 - CYLINDER BEARING FSP-439042.A23 439042	£2.00	£2.40
24 - FLANGE BUSHING FSP-439331.A27 439331	£2.00	£2.40
25 - CYLINDER PIN FSP-439972.A8 439972	£3.14	£3.77
26 - NO LONGER AVAILABLE FSP-00000.A4812 00000	-
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A41 228591	£2.00	£2.40
28 - KNOB FSP-440441.A22 440441	£2.87	£3.44
29 - PRESSURE SPRING FSP-201134.A34 201134	£2.00	£2.40
30 - SUPPORTING RING FSP-444142.A16 444142	£2.00	£2.40
31 - O-RING FSP-444234.A20 444234	£2.00	£2.40
32 - SLEEVE 5 X 12 MM FSP-228692.A44 228692	£2.00	£2.40
33 - DIVERSION FSP-439889.A3 439889	£11.18	£13.42
34 - LENS FSP-438943.A22 438943	£3.50	£4.20
35 - FLAT HEAD SCREW FSP-439269.A3 439269	£2.00	£2.40
36 - COUNTER FLANGE FSP-440089.A3 440089	£5.12	£6.15
37 - FLANGE 11.5 MM FSP-455953.A10 455953	£12.57	£15.08
38 - PLUG-IN BRACKET FSP-443331.A1 443331	£2.00	£2.40
39 - NO LONGER AVAILABLE FSP-00000.A4811 00000	-
40 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A59 400014	£2.00	£2.40
41 - CABLE CLAMP FSP-431899.A65 431899	£2.00	£2.40
41 - CABLE CLAMP FSP-439288.A17 439288	£2.00	£2.40
42 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A41 228663	£2.00	£2.40
43 - MOTOR HOUSING FSP-446282.A10 446282	£19.34	£23.21
44 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A25 228617	£2.00	£2.40
45 - COVER FSP-438607.A40 438607	£3.68	£4.42
46 - NO LONGER AVAILABLE FSP-00000.A4805 00000	-
47 - BEARING SLEEVE FSP-440228.A15 440228	£27.32	£32.79
48 - BALL BEARING FSP-228659.A25 228659	£7.68	£9.21
49 - SLIDE FSP-451680.A7 451680	£2.00	£2.40
50 - KNOB FSP-434341.A20 434341	£2.82	£3.39
52 - CAPACITOR FSP-492778.A1 492778	£19.73	£23.68
53 - FOAM STRIP FSP-434716.A15 434716	£2.00	£2.40
55 - BOLT FSP-440554.A4 440554	£2.00	£2.40
56 - PRESSURE SPRING FSP-440209.A4 440209	£3.00	£3.60
57 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A24 228580	£2.00	£2.40
58 - BOLT FSP-444114.A27 444114	£8.56	£10.27
59 - BALL BEARING FSP-228798.A14 228798	£5.38	£6.45
60 - FAN FSP-715024.A24 715024	£2.00	£2.40
61 - BALL BEARING FSP-228559.A37 228559	£4.06	£4.87
62 - BEARING RING FSP-438613.A55 438613	£2.00	£2.40
63 - AIR GUIDE WASHER FSP-457606.A4 457606	£12.78	£15.33
64 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A26 228708	£2.00	£2.40
65 - FLEXIBLE LEAD FSP-434951.A0 434951	£3.32	£3.98
66 - FLAT HEAD SCREW M4 X 10 FSP-228727.A38 228727	£2.00	£2.40
67 - INDICATOR FSP-439275.A4 439275	£2.00	£2.40
68 - ROTARY KNOB M6 FSP-486202.A40 486202	£2.88	£3.45
69 - CHEESE HEAD SCREW FSP-203780.A3 203780	£2.00	£2.40
70 - WASHER 6.4 MM FSP-228546.A167 228546	£2.00	£2.40
73 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A22 488915	£19.04	£22.85
74 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A22 219047	£2.00	£2.40
75 - CAP FSP-439824.A10 439824	£8.68	£10.42
76 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A23 228580	£2.00	£2.40
77 - CHIP DEFLECTOR FSP-439696.A54 439696	£8.94	£10.73
78 - TORSION SPRING FSP-439973.A16 439973	£2.00	£2.40
79 - LEVER FSP-439890.A19 439890	£3.45	£4.14
80 - COVER FSP-440102.A19 440102	£24.26	£29.11
81 - ADJUSTING PIECE FSP-442809.A3 442809	£2.00	£2.40
82 - ADJUSTING PIECE FSP-443971.A15 443971	£2.00	£2.40
83 - THREADED PIN M6 X 12 FSP-442597.A53 442597	£2.00	£2.40
84 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A60 400014	£2.00	£2.40
85 - PIN KEY FSP-439236.A20 439236	£3.50	£4.20
86 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A1 228592	£2.00	£2.40
87 - WASHER 6.4 MM FSP-228546.A166 228546	£2.00	£2.40
88 - ROTARY KNOB FSP-440713.A80 440713	£2.64	£3.17
89 - SWIVELING SEGMENT FSP-438855.A13 438855	£2.00	£2.40
90 - FLAT HEAD SCREW M4 X 10 FSP-228727.A37 228727	£2.00	£2.40
91 - THREADED RAIL FSP-439789.A10 439789	£2.00	£2.40
92 - SWIVELING SEGMENT FSP-438856.A13 438856	£2.00	£2.40
93 - PLATE FSP-484685.A13 484685	£42.35	£50.82
99 - NO LONGER AVAILABLE FSP-00000.A4791 00000	-

Attribute Name	Value
Brand	Festool
