Festool AP 68 E / 561880 Spare Parts

Home Details Reviews Delivery

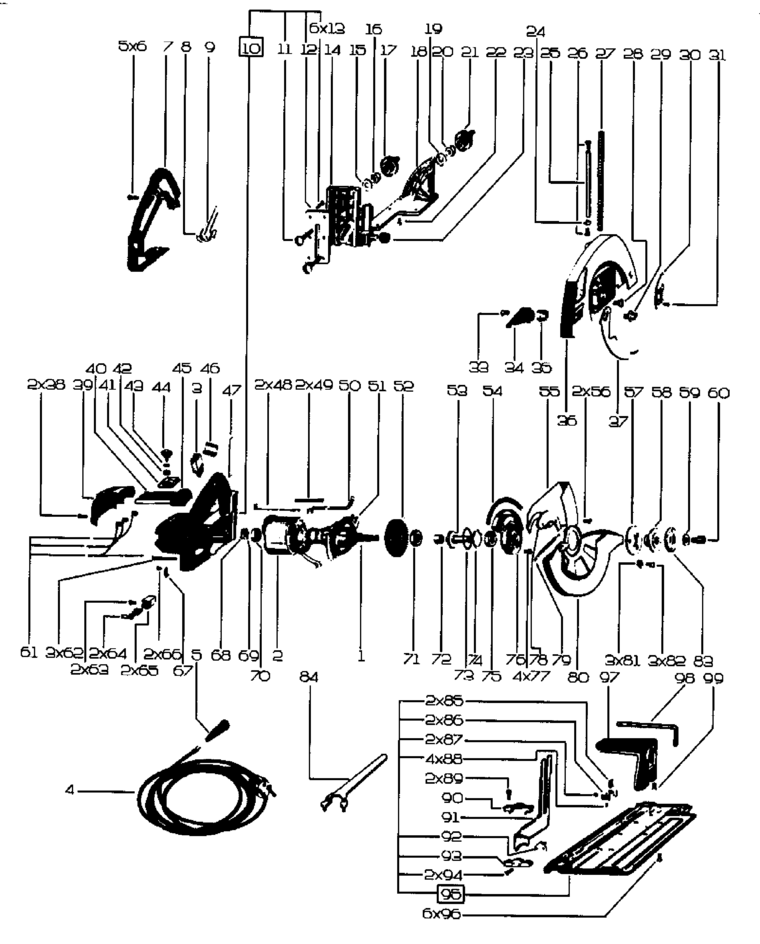

An exploded diagram and spare parts listing for the Festool AP 68 E / 561880

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE FSP-00000.A4628 00000	-
3 - SWITCH 220V FSP-411603.A0 411603	£14.32	£17.18
4 - MAINS CABLE GB 240V FSP-441749.A58 441749	£25.08	£30.09
4 - CABLE EU FSP-457410.A3 457410	£25.08	£30.09
4 - CABLE EU FSP-457603.A12 457603	£25.58	£30.69
5 - CABLE CONDUIT FSP-432436.A7 432436	£2.00	£2.40
6 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A5 228580	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A4629 00000	-
8 - FOAM STRIP FSP-434716.A10 434716	£2.00	£2.40
9 - CAPACITOR FSP-492778.A5 492778	£19.73	£23.68
10 - NO LONGER AVAILABLE FSP-00000.A4625 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A4626 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A4627 00000	-
13 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A207 228567	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A4630 00000	-
15 - WASHER 8.4 MM FSP-219049.A51 219049	£2.00	£2.40
16 - HEXAGON NUT M8 FSP-200735.A9 200735	£2.00	£2.40
17 - NO LONGER AVAILABLE FSP-00000.A4631 00000	-
18 - NO LONGER AVAILABLE FSP-00000.A4632 00000	-
19 - WASHER 8.4 MM FSP-219049.A52 219049	£2.00	£2.40
20 - HEXAGON NUT M8 FSP-200735.A8 200735	£2.00	£2.40
21 - NO LONGER AVAILABLE FSP-00000.A4623 00000	-
22 - FLAT HEAD SCREW M4 X 12 FSP-219053.A5 219053	£2.00	£2.40
23 - BUFFER FSP-714434.A25 714434	£4.24	£5.09
24 - WASHER 6.4 MM FSP-200578.A143 200578	£2.00	£2.40
25 - NO LONGER AVAILABLE FSP-00000.A3080 00000	-
26 - NO LONGER AVAILABLE FSP-00000.A3081 00000	-
27 - PRESSURE SPRING FSP-435089.A0 435089	£2.00	£2.40
28 - NO LONGER AVAILABLE FSP-00000.A3088 00000	-
29 - NO LONGER AVAILABLE FSP-00000.A3089 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A3090 00000	-
31 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A31 228509	£2.00	£2.40
33 - FLAT HEAD SCREW M6 X 10 FSP-402365.A11 402365	£2.00	£2.40
34 - NO LONGER AVAILABLE FSP-00000.A3083 00000	-
35 - NO LONGER AVAILABLE FSP-00000.A3084 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A3085 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A3086 00000	-
38 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A76 228580	£2.00	£2.40
39 - CAP FSP-438172.A1 438172	£6.98	£8.38
40 - NO LONGER AVAILABLE FSP-00000.A3082 00000	-
41 - LENS FSP-438198.A5 438198	£2.00	£2.40
42 - SEALING RING FSP-438509.A48 438509	£2.00	£2.40
43 - SHIM RING FSP-219112.A3 219112	£2.00	£2.40
44 - ADJUSTING KNOB FSP-440991.A47 440991	£5.24	£6.29
45 - COVER FSP-637528.A15 637528	£7.99	£9.59
46 - PLATE FSP-410394.A8 410394	£2.00	£2.40
47 - NO LONGER AVAILABLE FSP-00000.A3076 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A3077 00000	-
49 - NO LONGER AVAILABLE FSP-00000.A3078 00000	-
50 - NO LONGER AVAILABLE FSP-00000.A3079 00000	-
51 - AIR GUIDE WASHER FSP-438048.A9 438048	£2.82	£3.39
52 - FAN FSP-483808.A6 483808	£23.53	£28.24
53 - GEAR SHAFT FSP-438107.A0 438107	£90.07	£108.08
54 - PRESSURE SPRING FSP-435069.A1 435069	£2.00	£2.40
55 - NO LONGER AVAILABLE FSP-00000.A3075 00000	-
56 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A65 228570	£2.00	£2.40
57 - WASHER FSP-435057.A9 435057	£8.18	£9.81
58 - FLANGE FSP-435738.A0 435738	£17.81	£21.37
59 - WASHER 8.4 MM FSP-228527.A4 228527	£2.00	£2.40
60 - CHEESE HEAD SCREW M8 X 20 FSP-200692.A9 200692	£2.00	£2.40
61 - NO LONGER AVAILABLE FSP-00000.A3074 00000	-
62 - CHEESE HEAD SCREW FSP-203780.A56 203780	£2.00	£2.40
63 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A87 228567	£2.00	£2.40
64 - BRUSH (PAIR) 230V FSP-488920.A16 488920	£18.09	£21.71
65 - BRUSH HOLDER FSP-482182.A6 482182	£17.85	£21.42
66 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A32 228584	£2.00	£2.40
67 - CABLE CLAMP FSP-431899.A24 431899	£2.00	£2.40
68 - SHIM RING FSP-434608.A16 434608	£2.00	£2.40
69 - SPRING DISC FSP-411613.A1 411613	£2.00	£2.40
70 - BALL BEARING FSP-789573.A18 789573	£7.76	£9.31
71 - BALL BEARING FSP-219061.A2 219061	£27.58	£33.10
72 - CYLINDER BEARING FSP-436181.A2 436181	£2.00	£2.40
73 - O-RING FSP-232517.A2 232517	£2.00	£2.40
74 - SNAP RING FSP-205454.A6 205454	£2.48	£2.97
75 - BALL BEARING FSP-789775.A0 789775	£9.65	£11.58
76 - NO LONGER AVAILABLE FSP-00000.A3035 00000	-
77 - FLAT HEAD SCREW M4 X 10 FSP-228581.A8 228581	£2.00	£2.40
78 - NO LONGER AVAILABLE FSP-00000.A3042 00000	-
79 - NO LONGER AVAILABLE FSP-00000.A3043 00000	-
80 - NO LONGER AVAILABLE FSP-00000.A3044 00000	-
81 - NO LONGER AVAILABLE FSP-00000.A3045 00000	-
82 - FLAT HEAD SCREW M4 X 10 FSP-228581.A7 228581	£2.00	£2.40
83 - NO LONGER AVAILABLE FSP-00000.A3036 00000	-
84 - PIN KEY FSP-437315.A3 437315	£23.32	£27.98
85 - NO LONGER AVAILABLE FSP-00000.A3050 00000	-
86 - NO LONGER AVAILABLE FSP-00000.A3051 00000	-
87 - CHEESE HEAD SCREW M4 X 10 FSP-200525.A3 200525	£2.00	£2.40
88 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A45 219102	£2.00	£2.40
89 - NO LONGER AVAILABLE FSP-00000.A3037 00000	-
90 - NO LONGER AVAILABLE FSP-00000.A3038 00000	-
91 - NO LONGER AVAILABLE FSP-00000.A3039 00000	-
92 - NO LONGER AVAILABLE FSP-00000.A3040 00000	-
93 - NO LONGER AVAILABLE FSP-00000.A3041 00000	-
94 - FLAT HEAD SCREW M4 X 12 FSP-228555.A23 228555	£2.00	£2.40
95 - NO LONGER AVAILABLE FSP-00000.A3052 00000	-
96 - NO LONGER AVAILABLE FSP-00000.A3053 00000	-
97 - NO LONGER AVAILABLE FSP-00000.A3054 00000	-
98 - PIN KEY FSP-439274.A21 439274	£3.56	£4.27
99 - FLAT HEAD SCREW 5.0 X 16 MM FSP-439494.A15 439494	£2.00	£2.40

Attribute Name	Value
Brand	Festool
