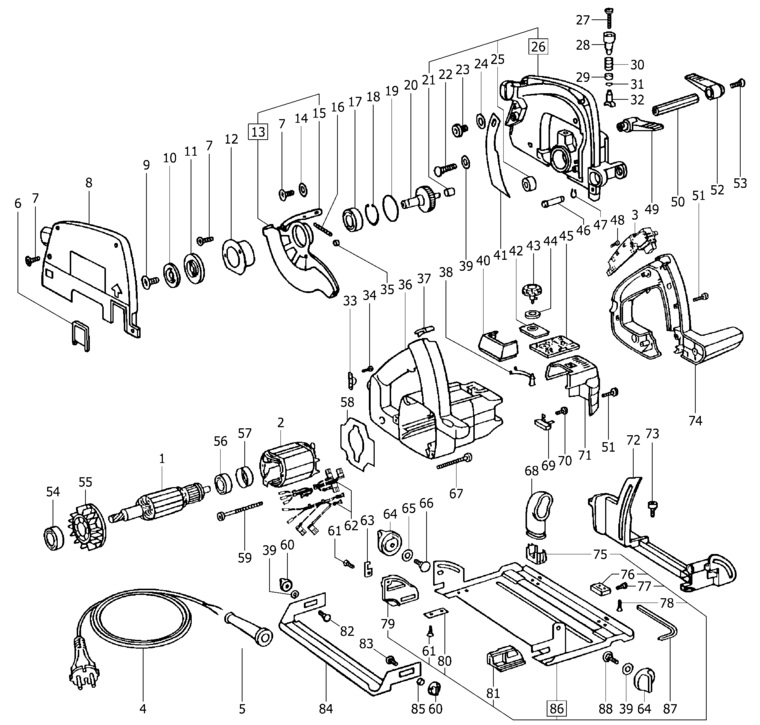

An exploded diagram and spare parts listing for the Festool AP 55 EB/1 / 489968
Ex VAT Inc VAT
1 - ARMATURE 230 V FSP-493218.A2 493218 £107.33 £128.80
2 - FIELD ASSEMBLY 230 V FSP-493221.A13 493221 £63.43 £76.12
3 - BRAKE MODULE FSP-489830.A5 489830 £69.05 £82.86
4 - MAINS CABLE GB 240V FSP-441749.A33 441749 £25.08 £30.09
4 - CABLE EU FSP-457408.A1 457408 £28.95 £34.74
5 - CABLE CONDUIT FSP-432436.A71 432436 £2.00 £2.40
6 - LENS FSP-438943.A30 438943 £3.50 £4.20
7 - FLAT HEAD SCREW M4 X 10 FSP-228736.A28 228736 £2.00 £2.40
8 - NO LONGER AVAILABLE FSP-00000.A906 00000 -
9 - FLAT HEAD SCREW FSP-439269.A24 439269 £2.00 £2.40
10 - COUNTER FLANGE FSP-440089.A21 440089 £5.12 £6.15
11 - NO LONGER AVAILABLE FSP-00000.A909 00000 -
12 - NO LONGER AVAILABLE FSP-00000.A910 00000 -
13 - PENDULUM GUARD FSP-488077.A3 488077 £56.25 £67.50
14 - NO LONGER AVAILABLE FSP-00000.A907 00000 -
15 - NO LONGER AVAILABLE FSP-00000.A908 00000 -
16 - DRAW SPRING FSP-440723.A4 440723 £2.00 £2.40
17 - BALL BEARING FSP-228659.A14 228659 £7.68 £9.21
18 - SNAP RING FSP-401246.A16 401246 £2.00 £2.40
19 - O-RING FSP-215499.A2 215499 £2.00 £2.40
20 - GEAR SHAFT FSP-441034.A1 441034 £45.98 £55.18
21 - CYLINDER BEARING FSP-439042.A2 439042 £2.00 £2.40
22 - ROUND-HEAD SCREW FSP-444362.A10 444362 £2.00 £2.40
23 - CHEESE HEAD SCREW M6 X 12 FSP-774326.A7 774326 £2.00 £2.40
24 - WASHER 6.4 MM FSP-228546.A65 228546 £2.00 £2.40
25 - BUFFER FSP-714434.A19 714434 £4.24 £5.09
26 - PROTECTIVE COVER FSP-487572.A4 487572 £93.68 £112.41
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A5 228591 £2.00 £2.40
28 - KNOB FSP-440441.A38 440441 £2.87 £3.44
29 - SUPPORTING RING FSP-444142.A36 444142 £2.00 £2.40
30 - PRESSURE SPRING FSP-201134.A56 201134 £2.00 £2.40
31 - O-RING FSP-444234.A26 444234 £2.00 £2.40
32 - BOLT FSP-444114.A7 444114 £8.56 £10.27
33 - CABLE CLAMP FSP-439288.A116 439288 £2.00 £2.40
34 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A118 228663 £2.00 £2.40
35 - NO LONGER AVAILABLE FSP-00000.A900 00000 -
36 - MOTOR HOUSING FSP-446281.A0 446281 £25.45 £30.54
37 - NO LONGER AVAILABLE FSP-00000.A903 00000 -
38 - COIL SHELL FSP-486744.A26 486744 £16.95 £20.34
39 - WASHER FSP-402935.A69 402935 £2.00 £2.40
40 - COVER FSP-438607.A10 438607 £3.68 £4.42
41 - SPACER WEDGE FSP-440035.A6 440035 £6.19 £7.43
42 - LENS FSP-438198.A18 438198 £2.00 £2.40
43 - ADJUSTING KNOB FSP-440991.A32 440991 £5.24 £6.29
44 - SEALING RING FSP-438509.A39 438509 £2.00 £2.40
45 - CONTROL ELECTRONICS FSP-488598.A12 488598 £65.58 £78.70
46 - NO LONGER AVAILABLE FSP-00000.A901 00000 -
47 - NO LONGER AVAILABLE FSP-00000.A902 00000 -
48 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A29 228718 £2.00 £2.40
49 - LEVER FSP-486639.A6 486639 £7.86 £9.43
50 - CLAMPING NUT FSP-438950.A4 438950 £14.69 £17.63
51 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A96 228580 £2.00 £2.40
52 - LEVER FSP-438944.A9 438944 £2.00 £2.40
53 - FLAT HEAD SCREW M6 X 10 FSP-402365.A3 402365 £2.00 £2.40
54 - BALL BEARING FSP-228798.A56 228798 £5.38 £6.45
55 - FAN FSP-715024.A13 715024 £2.00 £2.40
56 - BALL BEARING FSP-228559.A62 228559 £4.06 £4.87
57 - BEARING RING FSP-438613.A33 438613 £2.00 £2.40
58 - AIR GUIDE WASHER FSP-457606.A18 457606 £12.78 £15.33
59 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A45 228708 £2.00 £2.40
60 - ROTARY KNOB M6 FSP-440712.A20 440712 £2.00 £2.40
61 - FLAT HEAD SCREW M4 X 10 FSP-228727.A0 228727 £2.00 £2.40
62 - NO LONGER AVAILABLE FSP-00000.A904 00000 -
63 - INDICATOR FSP-439275.A25 439275 £2.00 £2.40
64 - ROTARY KNOB FSP-440713.A42 440713 £2.64 £3.17
65 - WASHER 6.4 MM FSP-228546.A64 228546 £2.00 £2.40
66 - ROUND-HEAD SCREW M6 X 25 FSP-228603.A12 228603 £2.00 £2.40
67 - CHEESE HEAD SCREW FSP-203780.A46 203780 £2.00 £2.40
68 - CHIP DEFLECTOR FSP-439696.A8 439696 £8.94 £10.73
69 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A44 488915 £19.04 £22.85
70 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A77 219047 £2.00 £2.40
71 - CAP FSP-439824.A29 439824 £8.68 £10.42
72 - SUPPORT FSP-439012.A3 439012 £63.67 £76.40
73 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A44 228617 £2.00 £2.40
74 - COVER FSP-438637.A12 438637 £13.03 £15.64
75 - ADJUSTING PIECE FSP-442809.A40 442809 £2.00 £2.40
76 - ADJUSTING PIECE FSP-443971.A31 443971 £2.00 £2.40
77 - THREADED PIN M6 X 12 FSP-442597.A31 442597 £2.00 £2.40
78 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A26 400014 £2.00 £2.40
79 - SWIVELING SEGMENT FSP-438855.A26 438855 £2.00 £2.40
80 - THREADED RAIL FSP-439789.A20 439789 £2.00 £2.40
81 - SWIVELING SEGMENT FSP-438856.A0 438856 £2.00 £2.40
82 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A41 228592 £2.00 £2.40
83 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A5 228661 £2.00 £2.40
84 - EXTENSION TABLE FSP-438857.A5 438857 £19.03 £22.84
85 - SPACER BUSH FSP-439715.A2 439715 £2.00 £2.40
86 - PLATE FSP-484685.A16 484685 £42.35 £50.82
87 - PIN KEY FSP-439236.A1 439236 £3.50 £4.20
88 - ROUND-HEAD SCREW FSP-444362.A11 444362 £2.00 £2.40
