Festool AP 55 / 486899 Spare Parts

Home Details Reviews Delivery

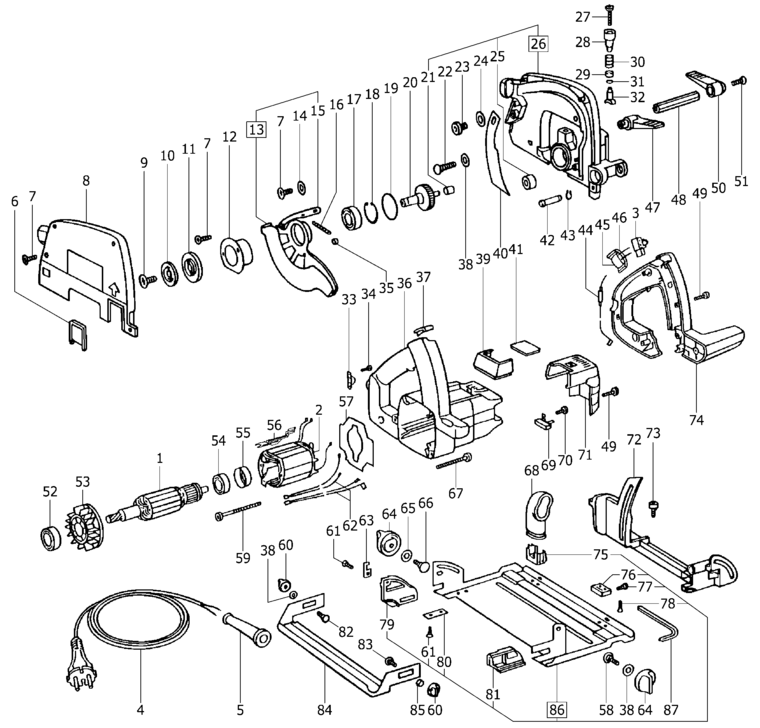

An exploded diagram and spare parts listing for the Festool AP 55 / 486899

	Ex VAT	Inc VAT
1 - ARMATURE 230V FSP-493219.A3 493219	£128.52	£154.22
2 - FIELD ASSEMBLY 230V FSP-493220.A4 493220	£66.34	£79.61
3 - SWITCH FSP-490843.A6 490843	£45.68	£54.81
4 - CABLE EU FSP-461124.A6 461124	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A27 432436	£2.00	£2.40
6 - LENS FSP-438943.A9 438943	£3.50	£4.20
7 - FLAT HEAD SCREW M4 X 10 FSP-228736.A41 228736	£2.00	£2.40
8 - NO LONGER AVAILABLE FSP-00000.A4276 00000	-
9 - FLAT HEAD SCREW FSP-439269.A7 439269	£2.00	£2.40
10 - COUNTER FLANGE FSP-440089.A6 440089	£5.12	£6.15
11 - NO LONGER AVAILABLE FSP-00000.A4277 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A4278 00000	-
13 - PENDULUM GUARD FSP-488077.A5 488077	£56.25	£67.50
14 - NO LONGER AVAILABLE FSP-00000.A4274 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A4275 00000	-
16 - DRAW SPRING FSP-440723.A1 440723	£2.00	£2.40
17 - BALL BEARING FSP-228659.A38 228659	£7.68	£9.21
18 - SNAP RING FSP-401246.A44 401246	£2.00	£2.40
19 - O-RING FSP-215499.A5 215499	£2.00	£2.40
20 - GEAR SHAFT FSP-441034.A7 441034	£45.98	£55.18
21 - CYLINDER BEARING FSP-439042.A10 439042	£2.00	£2.40
22 - ROUND-HEAD SCREW FSP-444362.A17 444362	£2.00	£2.40
23 - CHEESE HEAD SCREW M6 X 12 FSP-774326.A4 774326	£2.00	£2.40
24 - WASHER 6.4 MM FSP-228546.A130 228546	£2.00	£2.40
25 - BUFFER FSP-714434.A36 714434	£4.24	£5.09
26 - PROTECTIVE COVER FSP-487572.A1 487572	£93.68	£112.41
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A19 228591	£2.00	£2.40
28 - KNOB FSP-440441.A9 440441	£2.87	£3.44
29 - SUPPORTING RING FSP-444142.A10 444142	£2.00	£2.40
30 - PRESSURE SPRING FSP-201134.A17 201134	£2.00	£2.40
31 - O-RING FSP-444234.A9 444234	£2.00	£2.40
32 - BOLT FSP-444114.A40 444114	£8.56	£10.27
33 - CABLE CLAMP FSP-439288.A57 439288	£2.00	£2.40
34 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A1 228663	£2.00	£2.40
35 - NO LONGER AVAILABLE FSP-00000.A4280 00000	-
36 - MOTOR HOUSING FSP-446281.A5 446281	£25.45	£30.54
37 - NO LONGER AVAILABLE FSP-00000.A4279 00000	-
38 - WASHER FSP-402935.A48 402935	£2.00	£2.40
39 - COVER FSP-438607.A27 438607	£3.68	£4.42
40 - SPACER WEDGE FSP-440035.A1 440035	£6.19	£7.43
41 - NO LONGER AVAILABLE FSP-00000.A4281 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A4282 00000	-
43 - NO LONGER AVAILABLE FSP-00000.A4283 00000	-
45 - CAPACITOR FSP-492778.A21 492778	£19.73	£23.68
46 - FOAM STRIP FSP-434716.A1 434716	£2.00	£2.40
47 - LEVER FSP-486639.A13 486639	£7.86	£9.43
48 - CLAMPING NUT FSP-438950.A1 438950	£14.69	£17.63
49 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A33 228580	£2.00	£2.40
50 - LEVER FSP-438944.A22 438944	£2.00	£2.40
51 - FLAT HEAD SCREW M6 X 10 FSP-402365.A17 402365	£2.00	£2.40
52 - BALL BEARING FSP-228798.A40 228798	£5.38	£6.45
53 - FAN FSP-715024.A35 715024	£2.00	£2.40
54 - BALL BEARING FSP-228559.A16 228559	£4.06	£4.87
55 - BEARING RING FSP-438613.A50 438613	£2.00	£2.40
56 - PLUG-IN BRACKET FSP-443331.A23 443331	£2.00	£2.40
57 - AIR GUIDE WASHER FSP-457606.A15 457606	£12.78	£15.33
58 - ROUND-HEAD SCREW FSP-444362.A18 444362	£2.00	£2.40
59 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A0 228708	£2.00	£2.40
60 - ROTARY KNOB M6 FSP-440712.A15 440712	£2.00	£2.40
61 - FLAT HEAD SCREW M4 X 10 FSP-228727.A20 228727	£2.00	£2.40
62 - NO LONGER AVAILABLE FSP-00000.A4284 00000	-
63 - INDICATOR FSP-439275.A6 439275	£2.00	£2.40
64 - ROTARY KNOB FSP-440713.A45 440713	£2.64	£3.17
65 - WASHER 6.4 MM FSP-228546.A129 228546	£2.00	£2.40
66 - ROUND-HEAD SCREW M6 X 25 FSP-228603.A4 228603	£2.00	£2.40
67 - CHEESE HEAD SCREW FSP-203780.A22 203780	£2.00	£2.40
68 - CHIP DEFLECTOR FSP-439696.A30 439696	£8.94	£10.73
69 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A12 488915	£19.04	£22.85
70 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A54 219047	£2.00	£2.40
71 - CAP FSP-439824.A16 439824	£8.68	£10.42
72 - SUPPORT FSP-439012.A6 439012	£63.67	£76.40
73 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A11 228617	£2.00	£2.40
74 - COVER FSP-438637.A7 438637	£13.03	£15.64
75 - ADJUSTING PIECE FSP-442809.A25 442809	£2.00	£2.40
76 - ADJUSTING PIECE FSP-443971.A8 443971	£2.00	£2.40
77 - THREADED PIN M6 X 12 FSP-442597.A56 442597	£2.00	£2.40
78 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A92 400014	£2.00	£2.40
79 - SWIVELING SEGMENT FSP-438855.A8 438855	£2.00	£2.40
80 - THREADED RAIL FSP-439789.A8 439789	£2.00	£2.40
81 - SWIVELING SEGMENT FSP-438856.A18 438856	£2.00	£2.40
82 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A29 228592	£2.00	£2.40
83 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A12 228661	£2.00	£2.40
84 - EXTENSION TABLE FSP-438857.A1 438857	£19.03	£22.84
85 - SPACER BUSH FSP-439715.A7 439715	£2.00	£2.40
86 - PLATE FSP-484685.A8 484685	£42.35	£50.82
87 - PIN KEY FSP-439236.A17 439236	£3.50	£4.20
