Festool AP 55 / 485775 Spare Parts

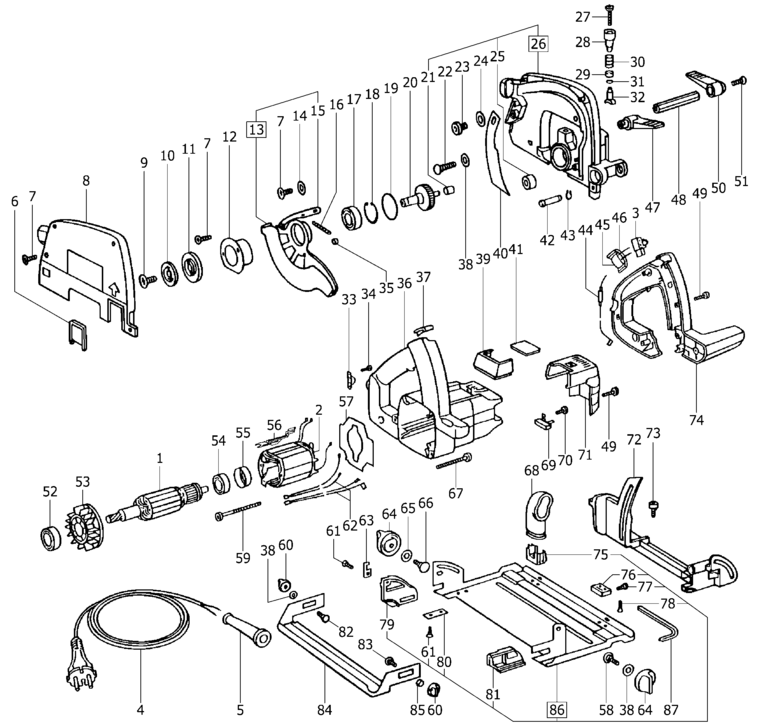

An exploded diagram and spare parts listing for the Festool AP 55 / 485775

	Ex VAT	Inc VAT
1 - ARMATURE 230V FSP-493219.A2 493219	£128.52	£154.22
2 - FIELD ASSEMBLY 230V FSP-493220.A5 493220	£66.34	£79.61
3 - SWITCH FSP-490843.A5 490843	£45.68	£54.81
4 - CABLE EU FSP-461124.A5 461124	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A25 432436	£2.00	£2.40
6 - LENS FSP-438943.A6 438943	£3.50	£4.20
7 - FLAT HEAD SCREW M4 X 10 FSP-228736.A42 228736	£2.00	£2.40
8 - NO LONGER AVAILABLE FSP-00000.A4305 00000	-
9 - FLAT HEAD SCREW FSP-439269.A5 439269	£2.00	£2.40
10 - COUNTER FLANGE FSP-440089.A7 440089	£5.12	£6.15
11 - NO LONGER AVAILABLE FSP-00000.A4301 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A4302 00000	-
13 - PENDULUM GUARD FSP-488077.A6 488077	£56.25	£67.50
14 - NO LONGER AVAILABLE FSP-00000.A4303 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A4304 00000	-
16 - DRAW SPRING FSP-440723.A0 440723	£2.00	£2.40
17 - BALL BEARING FSP-228659.A40 228659	£7.68	£9.21
18 - SNAP RING FSP-401246.A46 401246	£2.00	£2.40
19 - O-RING FSP-215499.A6 215499	£2.00	£2.40
20 - GEAR SHAFT FSP-441034.A5 441034	£45.98	£55.18
21 - CYLINDER BEARING FSP-439042.A11 439042	£2.00	£2.40
22 - ROUND-HEAD SCREW FSP-444362.A15 444362	£2.00	£2.40
23 - CHEESE HEAD SCREW M6 X 12 FSP-774326.A3 774326	£2.00	£2.40
24 - WASHER 6.4 MM FSP-228546.A128 228546	£2.00	£2.40
25 - BUFFER FSP-714434.A35 714434	£4.24	£5.09
26 - PROTECTIVE COVER FSP-487572.A2 487572	£93.68	£112.41
27 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A20 228591	£2.00	£2.40
28 - KNOB FSP-440441.A10 440441	£2.87	£3.44
29 - SUPPORTING RING FSP-444142.A9 444142	£2.00	£2.40
30 - PRESSURE SPRING FSP-201134.A16 201134	£2.00	£2.40
31 - O-RING FSP-444234.A10 444234	£2.00	£2.40
32 - BOLT FSP-444114.A41 444114	£8.56	£10.27
33 - CABLE CLAMP FSP-439288.A56 439288	£2.00	£2.40
34 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A0 228663	£2.00	£2.40
35 - NO LONGER AVAILABLE FSP-00000.A4286 00000	-
36 - MOTOR HOUSING FSP-446281.A6 446281	£25.45	£30.54
37 - NO LONGER AVAILABLE FSP-00000.A4285 00000	-
38 - WASHER FSP-402935.A47 402935	£2.00	£2.40
39 - COVER FSP-438607.A28 438607	£3.68	£4.42
40 - SPACER WEDGE FSP-440035.A2 440035	£6.19	£7.43
41 - NO LONGER AVAILABLE FSP-00000.A4287 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A4288 00000	-
43 - NO LONGER AVAILABLE FSP-00000.A4289 00000	-
45 - CAPACITOR FSP-492778.A20 492778	£19.73	£23.68
46 - FOAM STRIP FSP-434716.A0 434716	£2.00	£2.40
47 - LEVER FSP-486639.A12 486639	£7.86	£9.43
48 - CLAMPING NUT FSP-438950.A2 438950	£14.69	£17.63
49 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A32 228580	£2.00	£2.40
50 - LEVER FSP-438944.A21 438944	£2.00	£2.40
51 - FLAT HEAD SCREW M6 X 10 FSP-402365.A18 402365	£2.00	£2.40
52 - BALL BEARING FSP-228798.A41 228798	£5.38	£6.45
53 - FAN FSP-715024.A36 715024	£2.00	£2.40
54 - BALL BEARING FSP-228559.A17 228559	£4.06	£4.87
55 - BEARING RING FSP-438613.A49 438613	£2.00	£2.40
56 - PLUG-IN BRACKET FSP-443331.A24 443331	£2.00	£2.40
57 - AIR GUIDE WASHER FSP-457606.A14 457606	£12.78	£15.33
58 - ROUND-HEAD SCREW FSP-444362.A16 444362	£2.00	£2.40
59 - RAISED-HEAD SCREW 4.0 X 60 MM FSP-228708.A1 228708	£2.00	£2.40
60 - ROTARY KNOB M6 FSP-440712.A14 440712	£2.00	£2.40
61 - FLAT HEAD SCREW M4 X 10 FSP-228727.A19 228727	£2.00	£2.40
62 - NO LONGER AVAILABLE FSP-00000.A4290 00000	-
63 - INDICATOR FSP-439275.A7 439275	£2.00	£2.40
64 - ROTARY KNOB FSP-440713.A46 440713	£2.64	£3.17
65 - WASHER 6.4 MM FSP-228546.A127 228546	£2.00	£2.40
66 - ROUND-HEAD SCREW M6 X 25 FSP-228603.A3 228603	£2.00	£2.40
67 - CHEESE HEAD SCREW FSP-203780.A23 203780	£2.00	£2.40
68 - CHIP DEFLECTOR FSP-439696.A31 439696	£8.94	£10.73
69 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A13 488915	£19.04	£22.85
70 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A55 219047	£2.00	£2.40
71 - CAP FSP-439824.A15 439824	£8.68	£10.42
72 - SUPPORT FSP-439012.A5 439012	£63.67	£76.40
73 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A12 228617	£2.00	£2.40
74 - COVER FSP-438637.A8 438637	£13.03	£15.64
75 - ADJUSTING PIECE FSP-442809.A24 442809	£2.00	£2.40
76 - ADJUSTING PIECE FSP-443971.A7 443971	£2.00	£2.40
77 - THREADED PIN M6 X 12 FSP-442597.A57 442597	£2.00	£2.40
78 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A91 400014	£2.00	£2.40
79 - SWIVELING SEGMENT FSP-438855.A7 438855	£2.00	£2.40
80 - THREADED RAIL FSP-439789.A9 439789	£2.00	£2.40
81 - SWIVELING SEGMENT FSP-438856.A19 438856	£2.00	£2.40
82 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A28 228592	£2.00	£2.40
83 - ROUND-HEAD SCREW M6 X 20 FSP-228661.A13 228661	£2.00	£2.40
84 - EXTENSION TABLE FSP-438857.A0 438857	£19.03	£22.84
85 - SPACER BUSH FSP-439715.A6 439715	£2.00	£2.40
86 - PLATE FSP-484685.A9 484685	£42.35	£50.82
87 - PIN KEY FSP-439236.A18 439236	£3.50	£4.20

Attribute Name	Value
Brand	Festool
