Dewalt DW770GP Type 2 Mitre Saw Spare Parts

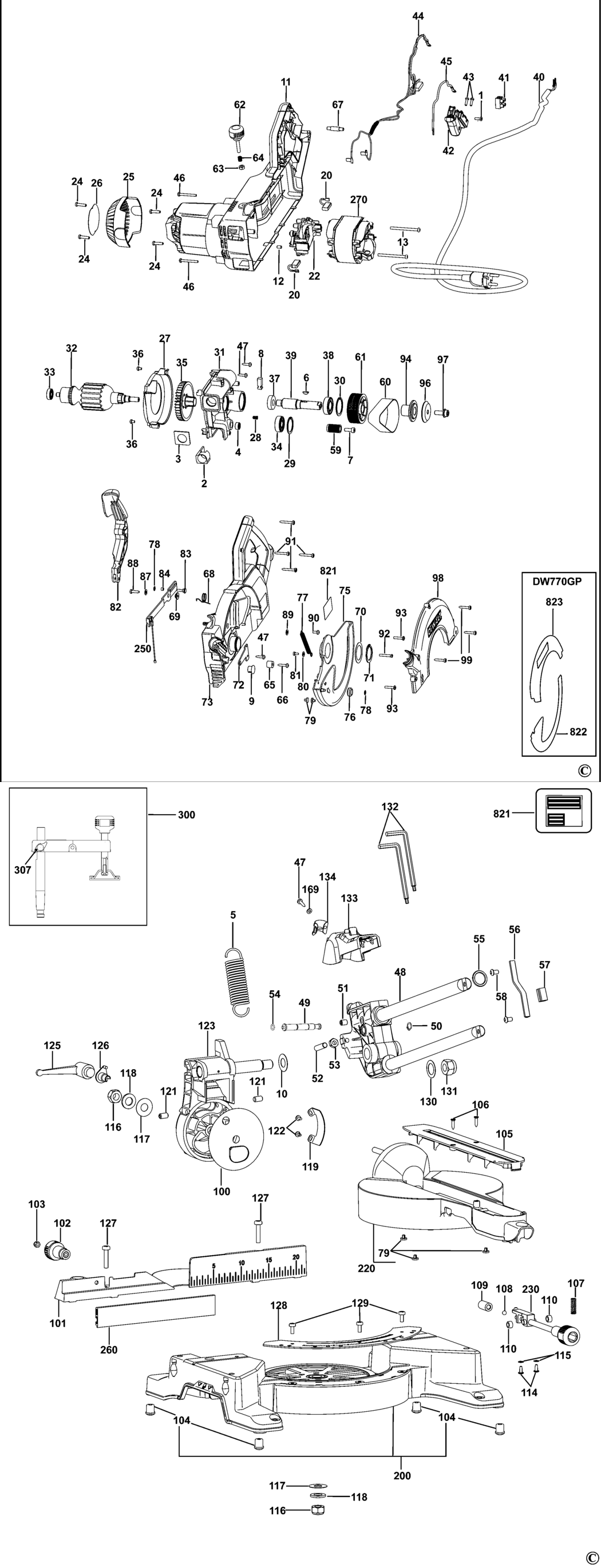

An exploded drawing and spare parts listing for the Dewalt DW770GP Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-06.A264 330065-06	£1.50	£1.80
2 - INSERT BDE-947018-00.A15 947018-00	£1.50	£1.80
3 - SEAL BDE-947638-00.A21 947638-00	£1.50	£1.80
4 - ADJUSTER BDE-946874-00.A20 946874-00	£1.66	£1.99
5 - SPRING BDE-869142-00.A6 869142-00	£14.57	£17.48
6 - KEY BDE-940441-00.A10 940441-00	£1.50	£1.80
7 - SCREW BDE-949886-26.A14 949886-26	£1.82	£2.19
8 - STOP RUBBER BDE-869275-01.A6 869275-01	£1.50	£1.80
9 - PLUG BDE-947067-00.A7 947067-00	£1.50	£1.80
10 - WASHER BDE-869163-01.A3 869163-01	£1.50	£1.80
11 - FIELDCASE BDE-869159-00.A2 869159-00	£78.12	£93.74
12 - PLUG BDE-145312-00.A15 145312-00	£1.50	£1.80
13 - SCREW BDE-330019-19.A124 330019-19	£1.50	£1.80
20 - BRUSH PAIR BDE-659512-00.A14 659512-00	£12.17	£14.60
22 - BRUSH & HOLDER SA BDE-659513-00.A1 659513-00	£24.39	£29.27
24 - SCREW BDE-330019-13.A288 330019-13	£1.50	£1.80
25 - END CAP BDE-391933-00.A19 391933-00	£4.69	£5.63
26 - LABEL BDE-N625165.A29 N625165	£1.50	£1.80
27 - BAFFLE FAN BDE-869138-00.A3 869138-00	£7.18	£8.62
28 - SPRING BDE-869246-00.A14 869246-00	£1.50	£1.80
29 - CIRCLIP BDE-949729-02.A32 949729-02	£1.50	£1.80
30 - CIRCLIP BDE-949729-03.A3 949729-03	£1.50	£1.80
31 - BRACKET SA BDE-869312-02.A5 869312-02	£74.15	£88.98
32 - ARMATURE 115V LX BDE-N379144.A1 N379144	£119.32	£143.19
32 - ARMATURE 230V GB BDE-N379145.A0 N379145	£115.77	£138.92
33 - BEARING BDE-N110359.A62 N110359	£3.75	£4.50
34 - BEARING BDE-861721-13.A21 861721-13	£7.85	£9.42
35 - FAN BDE-869139-00.A6 869139-00	£3.80	£4.56
36 - SCREW BDE-860094-02.A153 860094-02	£1.50	£1.80
37 - BEARING BDE-605040-59.A38 605040-59	£3.30	£3.96
38 - BEARING BDE-861721-10.A22 861721-10	£7.85	£9.42
39 - SPINDLE BDE-869316-00.A5 869316-00	£16.03	£19.24
40 - CABLE SA GB BDE-N411964.A1 N411964	£30.08	£36.10
40 - CABLE SA LX BDE-N411965.A0 N411965	£38.80	£46.56
41 - TERMINAL BLOCK GB BDE-326057-00.A7 326057-00	£1.50	£1.80
41 - TERMINAL BLOCK LX BDE-656549-00.A3 656549-00	£5.88	£7.06
42 - SWITCH BDE-394375-02P.A16 394375-02P	£14.57	£17.48
43 - SCREW BDE-384127-01.A51 384127-01	£1.50	£1.80
44 - CAPACITOR SA GB BDE-869334-00.A1 869334-00	£14.57	£17.48
44 - CAPACITOR SA LX BDE-869334-01.A2 869334-01	£17.48	£20.97
45 - LEAD BDE-869277-00.A2 869277-00	£4.69	£5.63
46 - SCREW BDE-330045-10.A3 330045-10	£9.41	£11.29
47 - SCREW BDE-949896-12.A48 949896-12	£1.50	£1.80
48 - RAIL SA BDE-869318-00.A9 869318-00	£99.47	£119.36
49 - PIN BDE-N325259.A2 N325259	£12.17	£14.60
50 - CIRCLIP BDE-860079-02.A1 860079-02	£1.50	£1.80
51 - GRUB SCREW BDE-330022-17.A0 330022-17	£1.50	£1.80
52 - SCREW BDE-760242-00.A29 760242-00	£1.50	£1.80
53 - NUT BDE-860083-14.A89 860083-14	£1.50	£1.80
54 - O RING BDE-949746-02.A5 949746-02	£1.50	£1.80
55 - O RING BDE-869141-00.A6 869141-00	£1.50	£1.80
56 - BRACKET BDE-947613-00.A24 947613-00	£2.78	£3.34
57 - BUMPER BDE-869275-00.A2 869275-00	£1.50	£1.80
58 - SCREW BDE-949609-03.A11 949609-03	£1.50	£1.80
59 - DRIVE PULLEY BDE-869147-00.A8 869147-00	£12.17	£14.60
60 - BELT GROOVED BDE-869150-00.A8 869150-00	£14.57	£17.48
61 - PULLEY BDE-869149-00.A3 869149-00	£30.08	£36.10
62 - LOCKING KNOB BDE-869140-00.A3 869140-00	£5.88	£7.06
63 - NUT M6 BDE-860083-12.A215 860083-12	£1.50	£1.80
64 - SPRING BDE-868082-00.A208 868082-00	£1.50	£1.80
65 - BUMPER BDE-761306-00.A37 761306-00	£1.50	£1.80
66 - SCREW BDE-949896-13.A18 949896-13	£1.50	£1.80
67 - PIVOT BDE-760296-01.A30 760296-01	£1.50	£1.80
68 - SPRING TORSION BDE-869161-00.A3 869161-00	£1.50	£1.80
69 - BUSH BDE-869192-00.A14 869192-00	£1.82	£2.19
70 - WASHER BDE-760270-01.A3 760270-01	£1.50	£1.80
71 - CIRCLIP BDE-949727-04.A20 949727-04	£1.50	£1.80
72 - LOCKING DEVICE BDE-869166-00.A10 869166-00	£2.78	£3.34
73 - HANDLE & COVER BDE-N295980.A1 N295980	£24.39	£29.27
75 - GUARD LOWER BDE-869420-00 869420-00	£25.70	£30.84
76 - ROLLER BDE-861367-02.A9 861367-02	£1.66	£1.99
77 - SPRING BDE-760295-01.A6 760295-01	£1.66	£1.99
78 - WASHER BDE-860077-01.A54 860077-01	£1.50	£1.80
79 - INSERT BDE-760298-01.A6 760298-01	£1.66	£1.99
80 - WASHER BDE-860074-01.A36 860074-01	£1.50	£1.80
81 - SCREW BDE-943022-01.A13 943022-01	£1.50	£1.80
82 - LEVER BDE-N464700.A6 N464700	£3.80	£4.56
83 - PIN BDE-869156-00.A6 869156-00	£3.80	£4.56
84 - BUSH BDE-869295-00.A5 869295-00	£1.50	£1.80
87 - WASHER BDE-939625-00.A10 939625-00	£3.80	£4.56
88 - SCREW BDE-930076-01.A12 930076-01	£1.50	£1.80
89 - WASHER BDE-860073-00.A35 860073-00	£1.50	£1.80
90 - SCREW BDE-860084-20.A45 860084-20	£1.50	£1.80
91 - SCREW BDE-949896-10.A7 949896-10	£1.50	£1.80
92 - SCREW BDE-949894-04.A23 949894-04	£1.50	£1.80
93 - SCREW BDE-330045-05.A285 330045-05	£1.50	£1.80
94 - INNER FLANGE BDE-N292720.A0 N292720	£7.18	£8.62
96 - OUTER FLANGE BDE-869292-00.A6 869292-00	£9.41	£11.29
97 - SCREW BDE-869245-00.A14 869245-00	£3.54	£4.25
98 - GUARD UPPER BDE-N358479 N358479	-
99 - SCREW BDE-N456928.A23 N456928	£1.82	£2.19
100 - PLATE BDE-947614-00.A0 947614-00	£2.08	£2.50
101 - BACK FENCE BDE-N785466.A2 N785466	£45.14	£54.17
102 - KNOB BDE-869195-00.A1 869195-00	£7.18	£8.62
103 - NUT M5 BDE-860092-03.A61 860092-03	£1.50	£1.80
104 - FOOT BDE-868777-00.A25 868777-00	£1.50	£1.80
105 - INSERT BDE-868688-02.A2 868688-02	£3.80	£4.56
106 - SCREW BDE-860205-08.A19 860205-08	£1.50	£1.80
107 - SPRING BDE-868778-00.A3 868778-00	£1.50	£1.80
108 - BALL BDE-868708-00.A23 868708-00	£1.50	£1.80
109 - BUSH BDE-868707-01.A3 868707-01	£1.66	£1.99
110 - BUSH BDE-N299799.A11 N299799	£1.50	£1.80
114 - SCREW BDE-330045-05.A234 330045-05	£1.50	£1.80
115 - WASHER BDE-860074-01.A37 860074-01	£1.50	£1.80
116 - NUT BDE-860092-07.A21 860092-07	£1.50	£1.80
117 - WASHER BDE-949705-01.A31 949705-01	£1.50	£1.80
118 - WASHER BDE-860073-05.A13 860073-05	£1.50	£1.80
119 - SCALE BDE-869091-00.A6 869091-00	£7.85	£9.42
121 - SCREW BDE-949743-02.A53 949743-02	£1.66	£1.99
122 - SCREW BDE-949894-12.A42 949894-12	£1.50	£1.80
123 - SEGMENT SA BDE-869319-00.A1 869319-00	£47.08	£56.49
125 - LEVER BDE-861840-03.A3 861840-03	£7.29	£8.75
126 - INSERT BDE-868680-00.A24 868680-00	£4.79	£5.75
127 - SCREW BDE-330045-26.A40 330045-26	£1.82	£2.19
128 - SCALE BDE-868677-00.A2 868677-00	£18.91	£22.69
129 - SCREW BDE-330045-49.A43 330045-49	£1.50	£1.80
130 - WASHER BDE-869163-00.A8 869163-00	£1.50	£1.80
131 - NUT BDE-860092-09.A3 860092-09	£1.50	£1.80
132 - HEX KEY BDE-868682-00.A12 868682-00	£1.50	£1.80
133 - GUARD LOWER BDE-N295979.A8 N295979	£2.26	£2.71
134 - INLET BDE-869310-00.A2 869310-00	£2.78	£3.34
169 - WASHER BDE-249233-00.A52 249233-00	£1.50	£1.80
200 - TABLE SA BDE-869313-00.A9 869313-00	£119.32	£143.19
220 - TABLE ROTARY BDE-869313-01.A6 869313-01	£93.62	£112.35
230 - LOCKING DEVICE BDE-868943-02.A23 868943-02	£24.39	£29.27
250 - LEVER SA BDE-N467382.A2 N467382	£9.41	£11.29
260 - FENCE BDE-868743-02.A5 868743-02	£34.00	£40.80
270 - FIELD 115V LX BDE-N379142.A1 N379142	£80.98	£97.18
270 - FIELD 230V GB BDE-N379143.A0 N379143	£80.98	£97.18
300 - CLAMP SA BDE-869311-00.A7 869311-00	£18.91	£22.69
307 - SCREW WING BDE-326573-01.A117 326573-01	£1.82	£2.19
821 - RATING LABEL GB BDE-N306070 N306070	£2.26	£2.71
821 - RATING LABEL LX BDE-N306071 N306071	£3.80	£4.56
822 - LABEL BDE-N325881 N325881	£1.50	£1.80
823 - LABEL BDE-N325880 N325880	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
