Bosch GKS 65 CE / 3601F68731 / CH 230 Volt Spare Parts

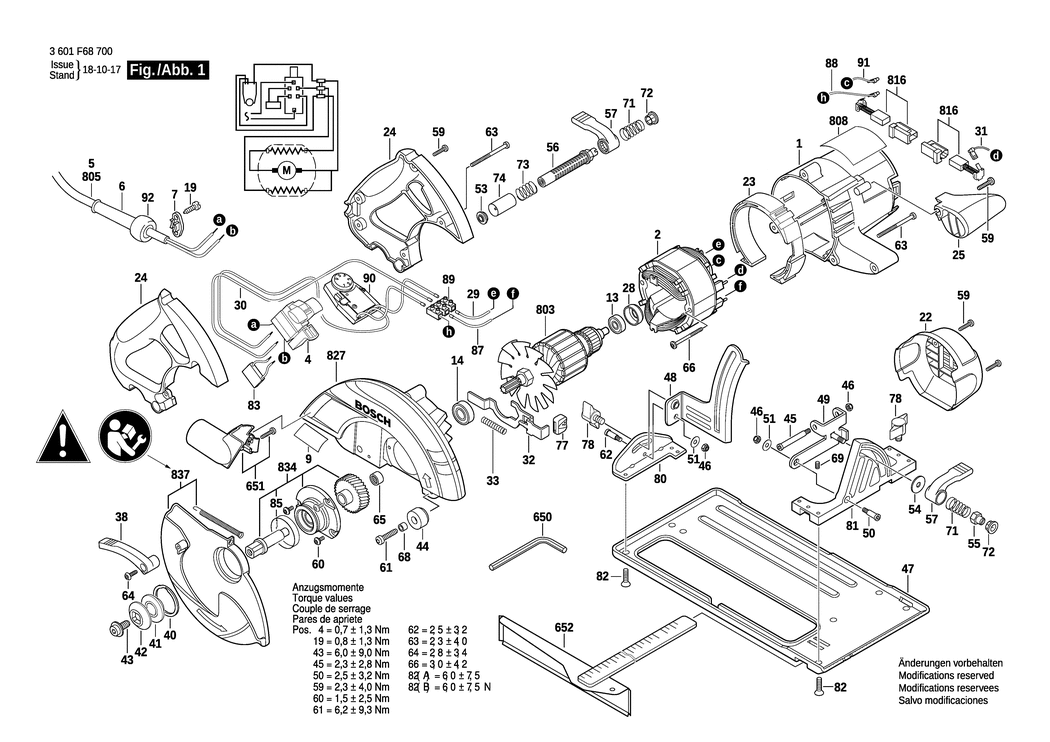

An exploded drawing and listing for the Bosch GKS 65 CE / 3601F68731 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610934305.A5 2610934305	£18.96	£22.75
2 - FIELD 230V BSD-1619P01571.A4 1619P01571	£30.28	£36.33
4 - SWITCH BSD-2610925421.A5 2610925421	£11.30	£13.56
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 RN-F BSD-1604460400.A3 1604460400	£16.41	£19.69
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A856 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2610993191.A6 2610993191	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2610925213.A2 2610925213	£4.26	£5.11
13 - GROOVE BALL BEARING BSD-2610017348.A44 2610017348	£11.30	£13.56
14 - GROOVE BALL BEARING BSD-2610350311.A11 2610350311	£12.04	£14.45
19 - SCREW BSD-1619X00504.A15 1619X00504	£1.75	£2.10
22 - SEALING CAP BSD-2610917052.A4 2610917052	£5.30	£6.36
23 - BAFFLE BSD-2610924448.A9 2610924448	£5.58	£6.70
24 - HANDLE BSD-2610933955.A2 2610933955	£14.91	£17.89
25 - AUXILIARY HANDLE BSD-2610924143.A9 2610924143	£5.30	£6.36
28 - RUBBER RING BSD-1619P01127.A24 1619P01127	£1.75	£2.10
29 - CABLE BSD-2610921019.A7 2610921019	£1.75	£2.10
30 - CABLE BSD-2610921020.A2 2610921020	£1.75	£2.10
31 - CABLE BSD-2610918148.A17 2610918148	£2.16	£2.59
32 - LOCKING BOLT BSD-2610937399.A9 2610937399	£3.72	£4.47
33 - COMPRESSION SPRING BSD-1619P01642.A32 1619P01642	£1.75	£2.10
38 - LEVER BSD-2610919868.A9 2610919868	£2.16	£2.59
40 - RETAINING SNAP RING BSD-2610921144.A3 2610921144	£1.75	£2.10
41 - WASHER BSD-2610924449.A9 2610924449	£5.87	£7.04
42 - CONICAL SPRING WASHER BSD-1605703107.A54 1605703107	£3.72	£4.47
43 - FLANGE BOLT BSD-1619X01613.A5 1619X01613	£2.49	£2.99
44 - BUMPER BSD-2610918151.A9 2610918151	£1.75	£2.10
45 - SHOULDER SCREW BSD-2610924636.A8 2610924636	£2.61	£3.13
46 - HEX NUT DIN 985-M 5-8-A BSD-2915061003.A62 2915061003	£2.16	£2.59
47 - BASE PLATE BSD-2610922569.A9 2610922569	£40.80	£48.96
48 - SUPPORT BRACKET BSD-2610922572.A9 2610922572	£8.67	£10.41
49 - HINGE BSD-2610934311.A1 2610934311	£5.58	£6.70
50 - SHOULDER SCREW BSD-2610924635.A5 2610924635	£1.75	£2.10
51 - WASHER BSD-2610917048.A5 2610917048	£2.16	£2.59
53 - WASHER BSD-1619P01535.A11 1619P01535	£1.75	£2.10
54 - WASHER BSD-1619X00942.A66 1619X00942	£1.75	£2.10
55 - NUT BSD-1619X01791.A8 1619X01791	£1.75	£2.10
56 - ROD BSD-2610917191.A14 2610917191	£2.61	£3.13
57 - LEVER BSD-2610924368.A9 2610924368	£2.89	£3.47
59 - SCREW BSD-1619P01505.A15 1619P01505	£1.75	£2.10
60 - CONTACT SCREW BSD-1619X07057.A9 1619X07057	£1.75	£2.10
61 - SCREW BSD-2610920385.A9 2610920385	£1.75	£2.10
62 - SHOULDER SCREW BSD-2610923224.A15 2610923224	£1.75	£2.10
63 - SCREW BSD-2610925864.A13 2610925864	£1.75	£2.10
64 - SCREW BSD-1619X06749.A6 1619X06749	£1.75	£2.10
65 - NEEDLE-ROLLER BEARING BSD-2610020639.A10 2610020639	£3.72	£4.47
66 - SCREW BSD-2610931997.A24 2610931997	£2.61	£3.13
68 - SPACER TUBE BSD-2610918985.A9 2610918985	£1.75	£2.10
69 - ADJUSTING SCREW BSD-2610924685.A5 2610924685	£1.75	£2.10
71 - SPRING BSD-1619X01792.A6 1619X01792	£1.75	£2.10
72 - COVER BSD-1619P17212.A9 1619P17212	£2.61	£3.13
73 - SPRING BSD-2610919467.A9 2610919467	£1.75	£2.10
74 - COVER SLEEVE BSD-2610919327.A9 2610919327	£1.75	£2.10
77 - COVER BSD-2610921530.A15 2610921530	£1.75	£2.10
78 - ADJUSTMENT KNOB BSD-2610990806.A17 2610990806	£2.41	£2.89
80 - HINGE BRACKET BSD-2610922570.A5 2610922570	£8.67	£10.41
81 - HINGE BRACKET BSD-2610922568.A4 2610922568	£16.41	£19.69
82 - COUNTERSUNK-HEAD SCREW BSD-2610924687.A19 2610924687	£1.75	£2.10
83 - SUPPRESSION FILTER BSD-2610916645.A13 2610916645	£3.72	£4.47
85 - COVER SLEEVE BSD-2610920799.A9 2610920799	£1.75	£2.10
87 - CABLE BSD-2610921021.A7 2610921021	£1.75	£2.10
88 - CABLE BSD-2610921023.A6 2610921023	£1.75	£2.10
89 - TERMINAL BLOCK BSD-2610925211.A3 2610925211	£2.61	£3.13
90 - SPEED GOVERNOR BSD-2610921905.A3 2610921905	£45.67	£54.80
91 - CABLE BSD-2610921017.A2 2610921017	£2.16	£2.59
92 - LOCKING ELEMENT BSD-1603231014.A34 1603231014	£2.16	£2.59
650 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A596 1907950006	£4.26	£5.11
651 - VACUUM ADAPTER BSD-2610925244.A5 2610925244	£4.27	£5.12
652 - MITRE FENCE BSD-1619X01612.A11 1619X01612	£11.30	£13.56
803 - ARMATURE 230V BSD-1619X01696.A6 1619X01696	£59.53	£71.44
808 - NAMEPLATE BSD-1619X02055.A0 1619X02055	-
816 - CARBON-BRUSH SET BSD-2610925372.A11 2610925372	£21.52	£25.83
827 - UPPER GUARD BSD-2610925374.A11 2610925374	£54.42	£65.30
834 - GEAR SHAFT BSD-2610925373.A5 2610925373	£31.64	£37.97
837 - LOWER GUARD BSD-1619P14440.A6 1619P14440	£21.68	£26.01
