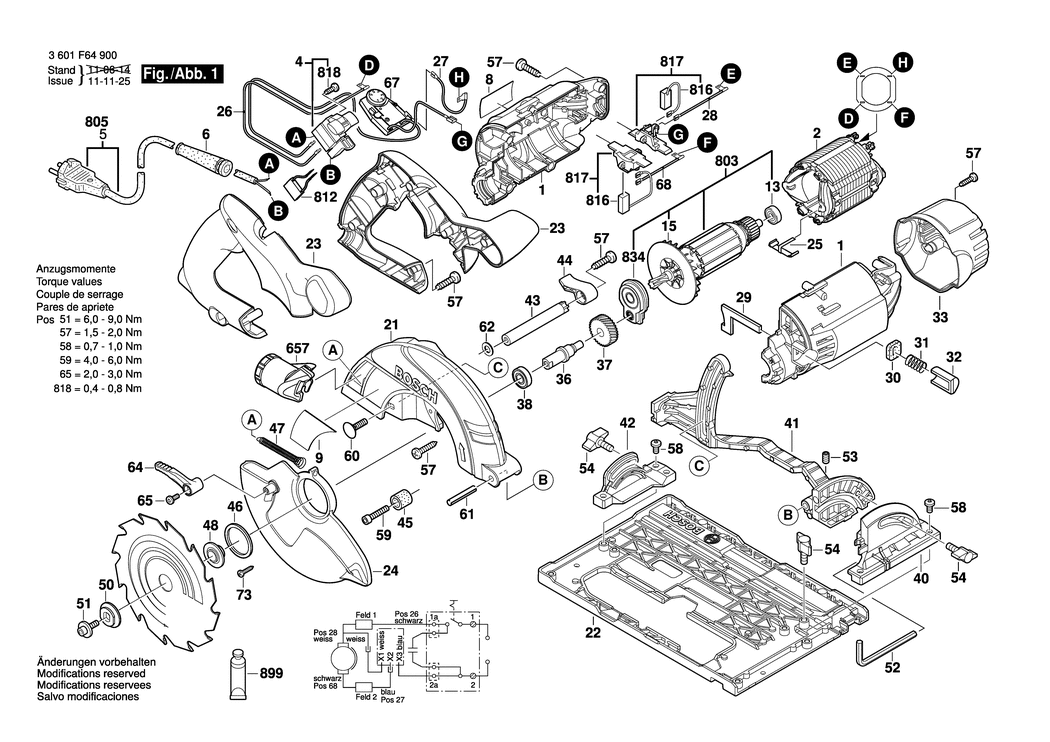

1 - MOTOR HOUSING
BSD-1605108244.A1
1605108244
|
£23.86
|
£28.63
|
|
|
2 - FIELD 230V
BSD-1604220346.A3
1604220346
|
£33.74
|
£40.49
|
|
|
4 - SWITCH
BSD-1607200198.A54
1607200198
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460196.A16
1604460196
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A661
2600703017
|
£2.61
|
£3.13
|
|
|
8 - NAMEPLATE
BSD-2601111866.A0
2601111866
|
£2.33
|
£2.80
|
|
|
9 - MANUFACTURER'S NAMEPLATE GKS 55 GCE
BSD-2601111867.A0
2601111867
|
£2.80
|
£3.36
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A506
2600905032
|
£5.30
|
£6.36
|
|
|
15 - FAN
BSD-1606610145.A4
1606610145
|
£2.80
|
£3.36
|
|
|
21 - PROTECTIVE COVER
BSD-1605510335.A1
1605510335
|
£33.74
|
£40.49
|
|
|
22 - BASE PLATE
BSD-2601016099.A1
2601016099
|
£63.50
|
£76.20
|
|
|
23 - HANDLE
BSD-1605500248.A5
1605500248
|
£13.12
|
£15.75
|
|
|
24 - PIVOTING BLADE GUARD
BSD-1605510337.A20
1605510337
|
£33.74
|
£40.49
|
|
|
25 - CONTACT SPRING
BSD-1601290010.A51
1601290010
|
£1.75
|
£2.10
|
|
|
26 - CONNECTING PIPING
BSD-1604449024.A0
1604449024
|
£2.16
|
£2.59
|
|
|
27 - CONNECTING PIPING
BSD-1604449017.A13
1604449017
|
£2.16
|
£2.59
|
|
|
28 - CONNECTING PIPING
BSD-1604449025.A22
1604449025
|
£2.16
|
£2.59
|
|
|
29 - SAFETY CATCH
BSD-1601900005.A28
1601900005
|
£1.95
|
£2.34
|
|
|
30 - FELT SEAL
BSD-1601015033.A31
1601015033
|
£1.75
|
£2.10
|
|
|
31 - COMPRESSION SPRING
BSD-1604610018.A43
1604610018
|
£1.75
|
£2.10
|
|
|
32 - PUSH-BUTTON
BSD-1603231019.A9
1603231019
|
-
|
|
|
|
33 - HOUSING COVER
BSD-1605500242.A2
1605500242
|
£10.10
|
£12.12
|
|
|
36 - DRIVE SHAFT
BSD-1603124133.A31
1603124133
|
£10.10
|
£12.12
|
|
|
37 - CYLINDRICAL GEAR
BSD-1606320600.A41
1606320600
|
£5.87
|
£7.04
|
|
|
38 - GROOVE BALL BEARING 12x28x8
BSD-1600905031.A18
1600905031
|
£6.52
|
£7.83
|
|
|
40 - CARRIER
BSD-2601322046.A1
2601322046
|
£12.04
|
£14.45
|
|
|
41 - BRIDGE
BSD-2601302077.A2
2601302077
|
£37.72
|
£45.27
|
|
|
42 - CARRIER
BSD-2601322047.A2
2601322047
|
£6.52
|
£7.83
|
|
|
43 - SPACER TUBE
BSD-2600360016.A2
2600360016
|
£6.52
|
£7.83
|
|
|
44 - TENSIONING LEVER
BSD-1602002006.A3
1602002006
|
£1.75
|
£2.10
|
|
|
45 - RUBBER BUFFER
BSD-1600305002.A28
1600305002
|
£1.32
|
£1.58
|
|
|
46 - CLAMP RING
BSD-1600102024.A30
1600102024
|
£2.16
|
£2.59
|
|
|
47 - EXTENSION SPRING
BSD-1604650018.A0
1604650018
|
£2.61
|
£3.13
|
|
|
48 - CLAMPING-FLANGE
BSD-1605703133.A1
1605703133
|
£5.58
|
£6.70
|
|
|
50 - CONICAL SPRING WASHER
BSD-1605703108.A7
1605703108
|
£2.80
|
£3.36
|
|
|
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A352
1603414007
|
£2.29
|
£2.75
|
|
|
52 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A606
1907950006
|
£4.26
|
£5.11
|
|
|
53 - SET SCREW
BSD-2603402008.A2
2603402008
|
£2.61
|
£3.13
|
|
|
54 - WING SCREW M 6x16 MM
BSD-2603480003.A155
2603480003
|
£2.61
|
£3.13
|
|
|
57 - SCREW 4x16
BSD-2603490022.A545
2603490022
|
£1.75
|
£2.10
|
|
|
58 - THREAD-FORMING TAP. SCREW
BSD-2914491411.A0
2914491411
|
£1.75
|
£2.10
|
|
|
59 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A30
1603414010
|
£1.75
|
£2.10
|
|
|
60 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A35
2910281201
|
£1.75
|
£2.10
|
|
|
61 - SLOTTED SPRING PIN 6x36 DIN 7346
BSD-2917780157.A18
2917780157
|
£1.75
|
£2.10
|
|
|
62 - PLAIN WASHER
BSD-2916011894.A20
2916011894
|
£1.75
|
£2.10
|
|
|
64 - LEVER
BSD-1602002011.A0
1602002011
|
£2.16
|
£2.59
|
|
|
65 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12
BSD-2914491409.A39
2914491409
|
£1.66
|
£1.99
|
|
|
67 - SPEED GOVERNOR
BSD-1607233210.A2
1607233210
|
£54.42
|
£65.30
|
|
|
68 - CONNECTING CABLE
BSD-1604449013.A24
1604449013
|
£1.75
|
£2.10
|
|
|
73 - TORX OVAL-HEAD SCREW 3x10 ST
BSD-1613435033.A4
1613435033
|
£1.75
|
£2.10
|
|
|
657 - ADAPTER
BSD-1608005008.A1
1608005008
|
£2.80
|
£3.36
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1607000A57.A7
1607000A57
|
£93.88
|
£112.65
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A16
160111A3H3
|
£2.61
|
£3.13
|
|
|
812 - SUPPRESSION FILTER
BSD-1607328028.A752
1607328028
|
£5.30
|
£6.36
|
|
|
816 - CARBON BRUSH
BSD-1607014161.A0
1607014161
|
£13.12
|
£15.75
|
|
|
817 - BRUSH PLATE
BSD-1604336050.A9
1604336050
|
£21.68
|
£26.01
|
|
|
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A12
2603410001
|
£1.75
|
£2.10
|
|
|
834 - BEARING BRACKET
BSD-1607000A53.A20
1607000A53
|
£16.41
|
£19.69
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A100
1605430003
|
£33.74
|
£40.49
|
|
