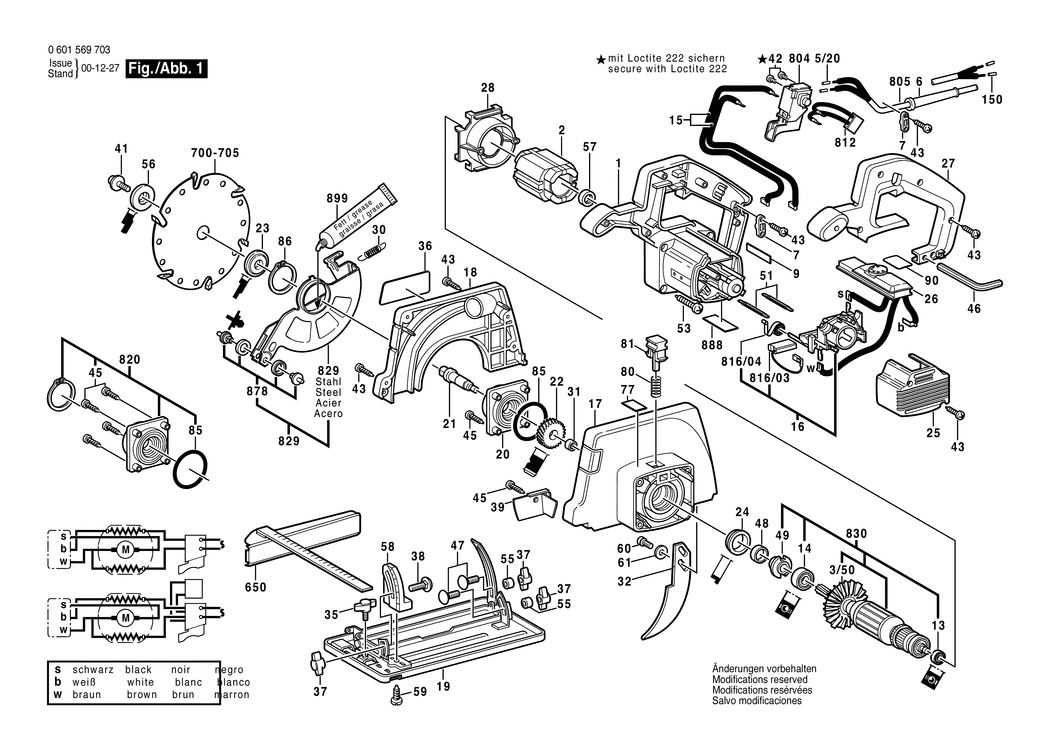

1 - MOTOR HOUSING
BSD-1605108155.A2
1605108155
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220353.A9
1604220353
|
-
|
|
|
|
3/50 - FAN
BSD-3606610002.A10
3606610002
|
£2.45
|
£2.94
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A26
1600703024
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A926
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A91
2601110601
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1013
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 9x26x8
BSD-1610905009.A117
1610905009
|
£15.46
|
£18.55
|
|
|
15 - CONNECTING CABLE L=330 MM
BSD-1604449012.A1
1604449012
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336024.A8
1604336024
|
£15.49
|
£18.59
|
|
|
17 - GEAR HOUSING
BSD-1605806444.A7
1605806444
|
-
|
|
|
|
18 - COVERING HOOD
BSD-1605510211.A1
1605510211
|
£22.50
|
£27.00
|
|
|
19 - BASE PLATE 145x290 MM
BSD-1608000106.A26
1608000106
|
-
|
|
|
|
20 - PARTS SET
BSD-1607000243.A29
1607000243
|
£14.72
|
£17.67
|
|
|
21 - DRIVE SHAFT M6. dia12 MM
BSD-1603124114.A9
1603124114
|
£8.49
|
£10.19
|
|
|
22 - CYLINDRICAL GEAR Z=35
BSD-1606320079.A2
1606320079
|
-
|
|
|
|
23 - CLAMPING-FLANGE
BSD-1605703097.A21
1605703097
|
-
|
|
|
|
24 - INTERMEDIATE RING
BSD-1600221003.A59
1600221003
|
£2.74
|
£3.29
|
|
|
25 - SEALING CAP
BSD-1605500156.A6
1605500156
|
-
|
|
|
|
26 - SPEED GOVERNOR 230-240V
BSD-1607233034.A2
1607233034
|
£61.70
|
£74.04
|
|
|
27 - HANDLE COVER
BSD-1605500163.A8
1605500163
|
-
|
|
|
|
28 - AIR-DEFLECTOR RING
BSD-3600591002.A48
3600591002
|
-
|
|
|
|
30 - EXTENSION SPRING
BSD-1604650010.A84
1604650010
|
£1.84
|
£2.21
|
|
|
31 - NEEDLE BEARING
BSD-1600910020.A13
1600910020
|
-
|
|
|
|
32 - RIVING KNIFE
BSD-1600025017.A6
1600025017
|
£3.99
|
£4.79
|
|
|
35 - WING SCREW M6
BSD-1603480018.A94
1603480018
|
£2.27
|
£2.72
|
|
|
36 - MANUFACTURER'S NAMEPLATE
BSD-1601110828.A4
1601110828
|
£2.45
|
£2.94
|
|
|
37 - WING NUT M6
BSD-1603339006.A188
1603339006
|
£2.64
|
£3.17
|
|
|
38 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A163
2910281201
|
£1.84
|
£2.21
|
|
|
39 - COVER PLATE
BSD-1605510210.A7
1605510210
|
-
|
|
|
|
41 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A178
1603414007
|
£2.29
|
£2.75
|
|
|
42 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A795
2603410001
|
£1.84
|
£2.21
|
|
|
43 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A109
2912401019
|
£1.84
|
£2.21
|
|
|
45 - THREAD-FORMING TAP. SCREW
BSD-1603435032.A9
1603435032
|
£1.75
|
£2.10
|
|
|
46 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A114
1907950006
|
£4.48
|
£5.37
|
|
|
47 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A19
2910281203
|
£2.74
|
£3.29
|
|
|
48 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A218
1600290016
|
£2.74
|
£3.29
|
|
|
49 - LOCKING RING
BSD-1600390013.A22
1600390013
|
£5.26
|
£6.31
|
|
|
51 - BLADE TERMINAL
BSD-1604477005.A198
1604477005
|
£2.74
|
£3.29
|
|
|
53 - THREAD-FORMING TAP. SCREW TT M5x30 MM
BSD-1603435022.A65
1603435022
|
£1.75
|
£2.10
|
|
|
55 - SPACER BUSHING
BSD-1600309010.A34
1600309010
|
£2.74
|
£3.29
|
|
|
56 - CONICAL SPRING WASHER
BSD-1605703108.A88
1605703108
|
£2.80
|
£3.36
|
|
|
57 - INTERMEDIATE RING
BSD-1600502011.A182
1600502011
|
£2.74
|
£3.29
|
|
|
58 - MITER SQUARE
BSD-1608190010.A18
1608190010
|
£2.64
|
£3.17
|
|
|
59 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A329
2910211017
|
-
|
|
|
|
60 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A177
1603414007
|
£2.29
|
£2.75
|
|
|
61 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916011013.A124
2916011013
|
£1.75
|
£2.10
|
|
|
77 - REFERENCE PLATE
BSD-1601110470.A74
1601110470
|
£1.84
|
£2.21
|
|
|
80 - COMPRESSION SPRING
BSD-1604611029.A0
1604611029
|
£1.38
|
£1.66
|
|
|
81 - STOPPING DEVICE
BSD-1603231011.A1
1603231011
|
-
|
|
|
|
85 - O-RING 38.0x1.5 MM
BSD-1600210038.A25
1600210038
|
£2.61
|
£3.13
|
|
|
86 - SPRING RETAINING RING DIN 471-40x1.75-FST
BSD-2916650020.A50
2916650020
|
-
|
|
|
|
90 - REFERENCE PLATE
BSD-1601110656.A6
1601110656
|
-
|
|
|
|
650 - EDGE GUIDE
BSD-2608190002.A113
2608190002
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607000231.A16
1607000231
|
£19.91
|
£23.89
|
|
|
805 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460403.A182
1604460403
|
£16.41
|
£19.69
|
|
|
812 - SUPPRESSION FILTER
BSD-1607328028.A434
1607328028
|
£5.57
|
£6.68
|
|
|
816/03 - CARBON-BRUSH SET
BSD-1607014133.A9
1607014133
|
£8.49
|
£10.19
|
|
|
816/04 - SPIRAL SPRING
BSD-2604652008.A71
2604652008
|
-
|
|
|
|
820 - PARTS SET
BSD-1607000243.A26
1607000243
|
£14.72
|
£17.67
|
|
|
829 - PIVOTING BLADE GUARD
BSD-1605510170.A24
1605510170
|
-
|
|
|
|
830 - ARMATURE 220-240V
BSD-1604010449.A2
1604010449
|
-
|
|
|
|
878 - PARTS SET
BSD-1607000205.A41
1607000205
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1689
160111A3H3
|
£2.74
|
£3.29
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A229
1605430003
|
£35.42
|
£42.51
|
|
