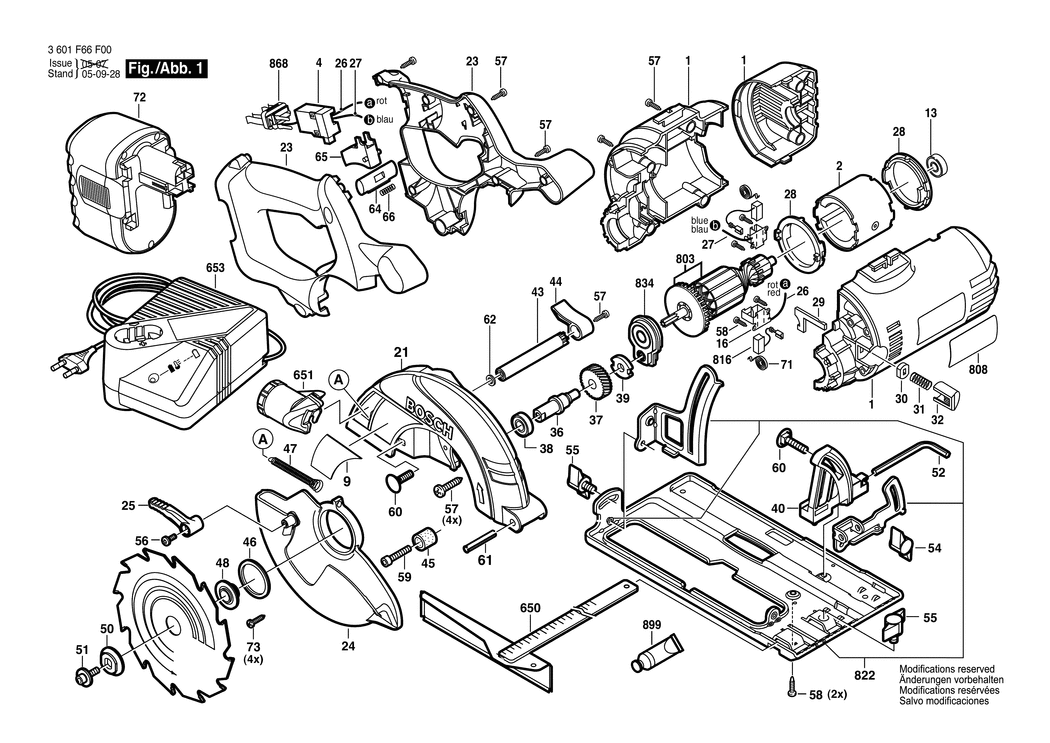

1 - MOTOR HOUSING
BSD-1605108234.A1
1605108234
|
£33.45
|
£40.14
|
|
|
2 - POLE HOUSING 14;4-24V
BSD-2610942109.A72
2610942109
|
£21.68
|
£26.01
|
|
|
4 - ON-OFF SWITCH
BSD-2610997469.A1
2610997469
|
£31.64
|
£37.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118K11.A0
1601118K11
|
-
|
|
|
|
13 - GROOVE BALL BEARING DIN 625-608-2Z-C3
BSD-3130900056.A6
3130900056
|
£6.52
|
£7.83
|
|
|
16 - BRUSH HOLDER
BSD-1611323003.A6
1611323003
|
£2.52
|
£3.02
|
|
|
21 - PROTECTIVE COVER
BSD-1605510335.A31
1605510335
|
£33.74
|
£40.49
|
|
|
23 - HANDLE
BSD-1605500234.A1
1605500234
|
£30.28
|
£36.33
|
|
|
24 - PIVOTING BLADE GUARD
BSD-1605510337.A0
1605510337
|
£33.74
|
£40.49
|
|
|
25 - LEVER
BSD-1602002011.A21
1602002011
|
£2.16
|
£2.59
|
|
|
26 - CONNECTING CABLE L=370 MM
BSD-1604448018.A5
1604448018
|
£2.33
|
£2.80
|
|
|
27 - CONNECTING CABLE L=270 MM
BSD-1604448019.A1
1604448019
|
£2.33
|
£2.80
|
|
|
28 - LOCATING RING
BSD-1610290043.A55
1610290043
|
£2.16
|
£2.59
|
|
|
29 - SAFETY CATCH
BSD-1601900005.A24
1601900005
|
£1.95
|
£2.34
|
|
|
30 - FELT SEAL
BSD-1601015033.A59
1601015033
|
£1.75
|
£2.10
|
|
|
31 - COMPRESSION SPRING
BSD-1604610018.A24
1604610018
|
£1.75
|
£2.10
|
|
|
32 - PUSH-BUTTON
BSD-1603231019.A32
1603231019
|
-
|
|
|
|
36 - DRIVE SHAFT
BSD-1603124137.A5
1603124137
|
£14.75
|
£17.70
|
|
|
37 - TOOTHED GEAR
BSD-2610910451.A6
2610910451
|
£14.75
|
£17.70
|
|
|
38 - GROOVE BALL BEARING 12x28x8
BSD-1600905031.A0
1600905031
|
£6.52
|
£7.83
|
|
|
39 - SCREEN DISC
BSD-1600190044.A0
1600190044
|
£2.52
|
£3.02
|
|
|
40 - MITER SQUARE
BSD-1608190027.A19
1608190027
|
-
|
|
|
|
43 - SPACER TUBE
BSD-1600360004.A52
1600360004
|
£2.61
|
£3.13
|
|
|
44 - TENSIONING LEVER
BSD-1602002006.A0
1602002006
|
£1.75
|
£2.10
|
|
|
45 - RUBBER BUFFER
BSD-1600305002.A11
1600305002
|
£1.32
|
£1.58
|
|
|
46 - CLAMP RING
BSD-1600102024.A53
1600102024
|
£2.16
|
£2.59
|
|
|
47 - EXTENSION SPRING
BSD-1604650018.A21
1604650018
|
£2.61
|
£3.13
|
|
|
48 - CLAMPING-FLANGE
BSD-1605703133.A31
1605703133
|
£5.58
|
£6.70
|
|
|
50 - CONICAL SPRING WASHER
BSD-1605703108.A35
1605703108
|
£2.80
|
£3.36
|
|
|
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A332
1603414007
|
£2.29
|
£2.75
|
|
|
52 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A630
1907950006
|
£4.26
|
£5.11
|
|
|
54 - WING NUT M6
BSD-1603339006.A16
1603339006
|
£2.52
|
£3.02
|
|
|
55 - WING SCREW
BSD-1603480022.A37
1603480022
|
-
|
|
|
|
56 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12
BSD-2914491409.A52
2914491409
|
£1.66
|
£1.99
|
|
|
57 - SCREW 4x16
BSD-2603490022.A508
2603490022
|
£1.75
|
£2.10
|
|
|
58 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1033
2603490017
|
£2.16
|
£2.59
|
|
|
59 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A43
1603414010
|
£1.75
|
£2.10
|
|
|
60 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A68
2910281201
|
£1.75
|
£2.10
|
|
|
61 - SLOTTED SPRING PIN 6x36 DIN 7346
BSD-2917780157.A45
2917780157
|
£1.75
|
£2.10
|
|
|
62 - PLAIN WASHER
BSD-2916011894.A44
2916011894
|
£1.75
|
£2.10
|
|
|
64 - SWITCH BUTTON
BSD-2610997470.A1
2610997470
|
£2.52
|
£3.02
|
|
|
65 - TRIGGER
BSD-2610997461.A3
2610997461
|
£3.72
|
£4.47
|
|
|
66 - COMPRESSION SPRING
BSD-1604611035.A5
1604611035
|
£1.75
|
£2.10
|
|
|
71 - SPIRAL SPRING
BSD-1619P14306.A19
1619P14306
|
£3.72
|
£4.47
|
|
|
72 - BATTERY PACK 24V.2.6Ah.NiMh
BSD-2607335561.A10
2607335561
|
-
|
|
|
|
73 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1034
2603490017
|
£2.16
|
£2.59
|
|
|
650 - PARALLEL-GUIDE
BSD-2608005036.A142
2608005036
|
£8.67
|
£10.41
|
|
|
651 - ADAPTER
BSD-1608005008.A31
1608005008
|
£2.80
|
£3.36
|
|
|
653 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A8
2607225027
|
£120.11
|
£144.13
|
|
|
653 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A157
2607225029
|
£88.07
|
£105.68
|
|
|
803 - ARMATURE WITH FAN 24V
BSD-1607000731.A4
1607000731
|
£116.15
|
£139.38
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A130
160111A3H3
|
£2.61
|
£3.13
|
|
|
816 - CARBON-BRUSH SET
BSD-1617014131.A60
1617014131
|
-
|
|
|
|
822 - BASE PLATE
BSD-1607000741.A16
1607000741
|
£46.82
|
£56.18
|
|
|
834 - BEARING BRACKET
BSD-1607000C02.A0
1607000C02
|
£14.72
|
£17.67
|
|
|
868 - CONTACT STRIP
BSD-1607000732.A1
1607000732
|
£8.49
|
£10.19
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A51
1605430003
|
£33.74
|
£40.49
|
|
