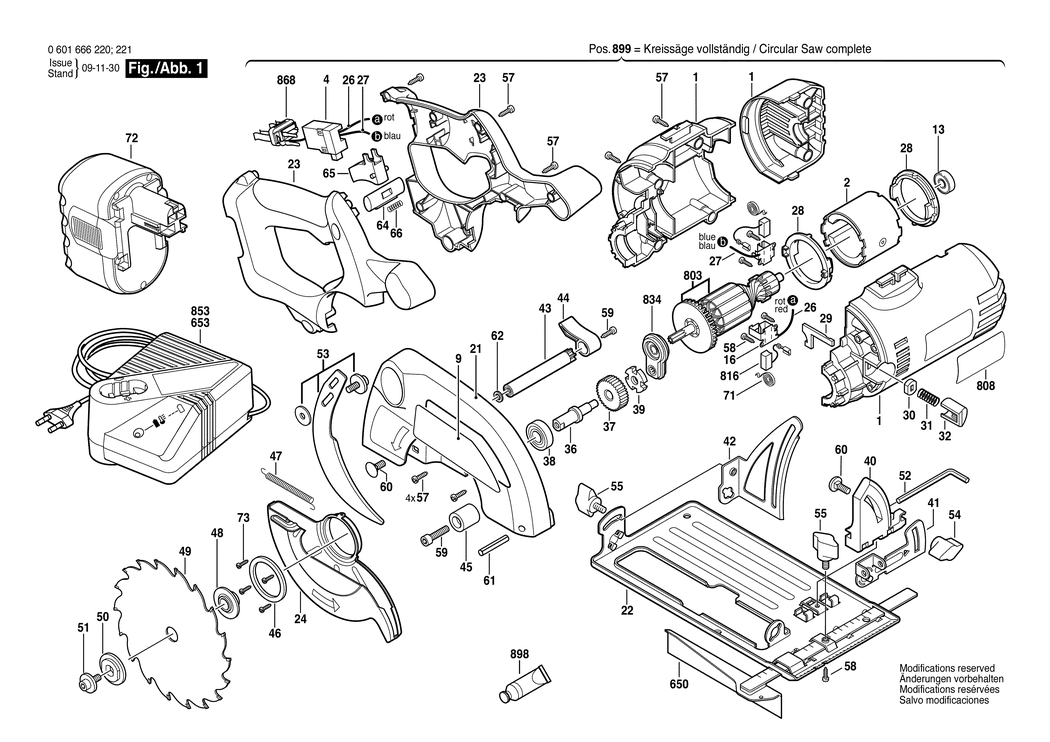

An exploded drawing and listing for the Bosch BACCS-24V / 3601F66222 / EU 24 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108242.A1 1605108242 -
2 - POLE HOUSING 14;4-24V BSD-2610942109.A65 2610942109 £21.68 £26.01
4 - ON-OFF SWITCH BSD-2610997469.A3 2610997469 £31.64 £37.97
9 - MANUFACTURER'S NAMEPLATE BSD-1601118F67.A0 1601118F67 £3.34 £4.01
13 - GROOVE BALL BEARING DIN 625-608-2Z-C3 BSD-3130900056.A4 3130900056 £6.52 £7.83
16 - BRUSH HOLDER BSD-1611323003.A2 1611323003 £2.52 £3.02
21 - PROTECTIVE COVER BSD-1605510298.A10 1605510298 -
22 - BASE PLATE BSD-1608000117.A10 1608000117 £16.74 £20.09
23 - HANDLE BSD-1605500240.A1 1605500240 -
24 - PIVOTING BLADE GUARD BSD-1605510265.A28 1605510265 £16.41 £19.69
26 - CONNECTING CABLE L=370 MM BSD-1604448018.A0 1604448018 £2.33 £2.80
27 - CONNECTING CABLE L=270 MM BSD-1604448019.A6 1604448019 £2.33 £2.80
28 - LOCATING RING BSD-1610290043.A59 1610290043 £2.16 £2.59
29 - SAFETY CATCH BSD-1601900005.A25 1601900005 £1.95 £2.34
30 - FELT SEAL BSD-1601015033.A35 1601015033 £1.75 £2.10
31 - COMPRESSION SPRING BSD-1604610018.A44 1604610018 £1.75 £2.10
32 - PUSH-BUTTON BSD-1603231025.A1 1603231025 £1.32 £1.58
36 - DRIVE SHAFT BSD-1603124137.A0 1603124137 £14.75 £17.70
37 - TOOTHED GEAR BSD-2610910451.A5 2610910451 £14.75 £17.70
38 - GROOVE BALL BEARING 12x28x8 BSD-1600905031.A14 1600905031 £6.52 £7.83
39 - SCREEN DISC BSD-2610967327.A1 2610967327 £1.75 £2.10
40 - MITER SQUARE BSD-1608190024.A27 1608190024 £2.33 £2.80
41 - BOW BSD-1601329031.A10 1601329031 £1.95 £2.34
42 - GUIDE BRACKET BSD-1601329032.A12 1601329032 £5.01 £6.01
43 - SPACER TUBE BSD-1600360004.A38 1600360004 £2.61 £3.13
44 - TENSIONING LEVER BSD-1602002009.A1 1602002009 -
45 - RUBBER BUFFER BSD-1600305002.A29 1600305002 £1.32 £1.58
46 - CLAMP RING BSD-1600102024.A29 1600102024 £2.16 £2.59
47 - EXTENSION SPRING BSD-1604650010.A76 1604650010 £1.75 £2.10
48 - CLAMPING-FLANGE BSD-1605703125.A0 1605703125 -
49 - CIRCULAR SAW BLADE BSD-1608640098.A1 1608640098 -
50 - CONICAL SPRING WASHER BSD-1605703108.A8 1605703108 £2.80 £3.36
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A351 1603414007 £2.29 £2.75
52 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A607 1907950006 £4.26 £5.11
53 - RIVING KNIFE BSD-1600025022.A13 1600025022 -
54 - WING NUT M6 BSD-1603339006.A4 1603339006 £2.52 £3.02
55 - WING SCREW M6 BSD-1603480018.A3 1603480018 £2.16 £2.59
57 - SCREW 4x16 BSD-2603490022.A544 2603490022 £1.75 £2.10
58 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A998 2603490017 £2.16 £2.59
59 - THREAD-FORMING TAP. SCREW M6x25 MM BSD-1603414010.A31 1603414010 £1.75 £2.10
60 - ROUND-HEAD BOLT DIN 603-M6x16 BSD-2910281197.A1 2910281197 £1.75 £2.10
61 - SLOTTED SPRING PIN 6x36 DIN 7346 BSD-2917780157.A19 2917780157 £1.75 £2.10
62 - PLAIN WASHER BSD-2916011894.A22 2916011894 £1.75 £2.10
64 - KNOB BSD-1601990010.A0 1601990010 -
65 - SWITCHING UNIT BSD-1601990009.A1 1601990009 £3.34 £4.01
66 - COMPRESSION SPRING BSD-1604611035.A3 1604611035 £1.75 £2.10
71 - SPIRAL SPRING BSD-1614652008.A0 1614652008 £2.16 £2.59
72 - BATTERY PACK 24V.2.0Ah.NiCd BSD-2607335637.A1 2607335637 -
73 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1001 2603490017 £2.16 £2.59
650 - PARALLEL-GUIDE BSD-2608005036.A141 2608005036 £8.67 £10.41
803 - ARMATURE WITH FAN 24V BSD-1607000731.A3 1607000731 £116.15 £139.38
808 - NAMEPLATE BSD-160111A3H3.A14 160111A3H3 £2.61 £3.13
816 - CARBON-BRUSH SET BSD-1617014131.A59 1617014131 -
834 - BEARING BRACKET BSD-1607000C02.A5 1607000C02 £14.72 £17.67
853 - FAST CHARGER EU 230/7.2-24V.1h BSD-2607225021.A3 2607225021 £120.11 £144.13
868 - CONTACT STRIP BSD-1607000732.A2 1607000732 £8.49 £10.19
898 - GREASE TUBE 225 ML BSD-1605430003.A99 1605430003 £33.74 £40.49
