Hitachi / Hikoki C7U3 Circular Saw Spare Parts

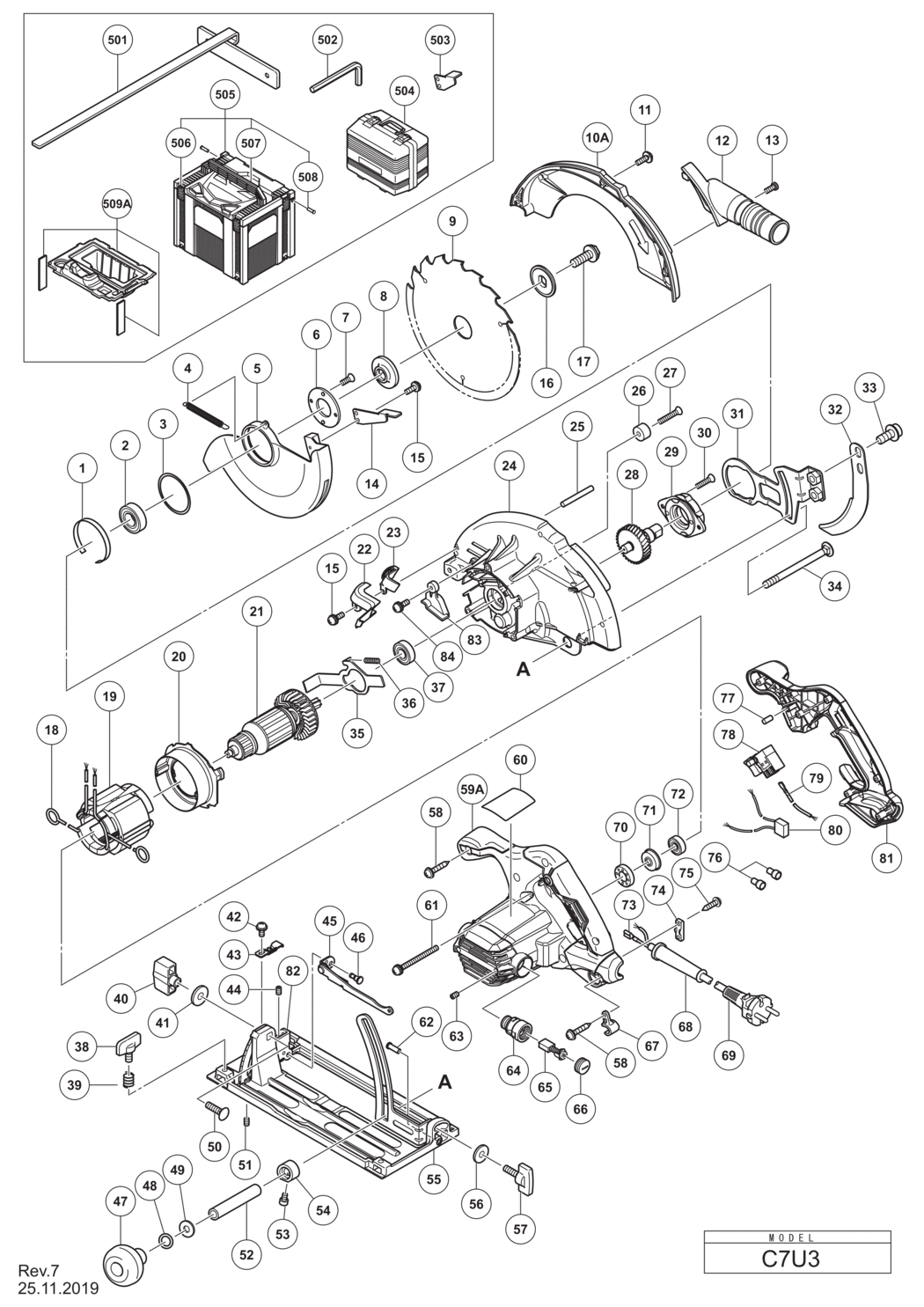

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7U3 Circular Saw

	Ex VAT	Inc VAT
1 - LINER HIT-998887.A3 998887	£10.39	£12.47
2 - BALL BEARING 6003VVCM (NYLON RETAINER) HIT-327694.A6 327694	£7.92	£9.51
3 - WASHER HIT-370591.A3 370591	-
4 - RETURN SPRING HIT-370373.A1 370373	£1.67	£2.00
5 - LOWER GUARD HIT-370356.A1 370356	£16.20	£19.44
6 - BEARING COVER HIT-302435.A3 302435	£2.78	£3.34
7 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A1 990430	£1.67	£2.00
*8 - WASHER (A) HIT-370272.A1 370272	£4.01	£4.81
*9 - TCT SAW BLADE 190MM-D30 HOLE-NT18 HIT-324668.A1 324668	-
10A - SAW COVER HIT-370354.A0 370354	-
11 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A7 951039	£1.67	£2.00
*12 - DUST COLLECTOR EXCEPT FOR CHN HIT-997247.A2 997247	£8.28	£9.94
*13 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) EXCEPT FOR CHN HIT-935196.A59 935196	£1.67	£2.00
14 - LEVER HIT-370542.A4 370542	£1.67	£2.00
15 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A58 935196	£1.67	£2.00
16 - WASHER (B) HIT-370279.A1 370279	£3.92	£4.70
17 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A6 324662	£3.02	£3.63
18 - BRUSH TERMINAL HIT-930703.A28 930703	£3.28	£3.93
*19 - STATOR ASS'Y 110V INCLUD.18 HIT-340945C.A0 340945C	-
*19 - STATOR ASS'Y 220V-230V INCLUD.18 HIT-340945E.A0 340945E	-
20 - FAN GUIDE HIT-370342.A1 370342	-
*21 - ARMATURE 110V HIT-361037C.A1 361037C	-
*21 - ARMATURE 220V-230V HIT-361037E.A0 361037E	£40.01	£48.01
22 - FLOW GUIDE (B) HIT-370344.A1 370344	-
23 - FLOW GUIDE (A) HIT-370343.A0 370343	-
24 - GEAR COVER HIT-370349.A0 370349	-
25 - ROLL PIN D6X40 (10 PCS.) HIT-949686.A5 949686	£8.48	£10.18
26 - CUSHION HIT-961729.A3 961729	£1.67	£2.00
27 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A6 949794	£1.67	£2.00
28 - SPINDLE AND GEAR SET HIT-370371.A0 370371	£16.20	£19.44
29 - BEARING HOLDER HIT-370353.A1 370353	-
30 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A14 992013	£1.67	£2.00
31 - ARM HIT-370364.A0 370364	-
32 - RIVING KNIFE HIT-370365.A1 370365	-
33 - HEX. SOCKET HD. BOLT M8 HIT-370287.A2 370287	£1.67	£2.00
34 - DIAGONAL BOLT M8 HIT-370663.A1 370663	-
35 - LOCK LEVER HIT-370363.A1 370363	-
36 - SPRING (A) HIT-330982.A2 330982	-
37 - BALL BEARING 6001VV HIT-6001VV.A7 6001VV	£8.68	£10.42
38 - WING BOLT M6X15 HIT-301806.A27 301806	£1.67	£2.00
39 - LOCK SPRING HIT-947859.A11 947859	£1.67	£2.00
40 - WING NUT M8 HIT-324658.A4 324658	£4.57	£5.48
41 - BOLT WASHER M8 (10 PCS.) HIT-949433.A43 949433	£1.67	£2.00
42 - MACHINE SCREW (W/SP. WASHER) M4(BLACK) HIT-331003.A4 331003	-
43 - GUIDE PIECE HIT-324659.A9 324659	£3.02	£3.63
44 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A17 319541	£1.67	£2.00
45 - PLATE HIT-370368.A1 370368	-
46 - STEP PIN HIT-370295.A2 370295	£1.67	£2.00
47 - KNOB HIT-324660.A5 324660	£6.82	£8.18
48 - O-RING (P-7) HIT-676531.A6 676531	£1.67	£2.00
49 - BOLT WASHER M8 (10 PCS.) HIT-949433.A44 949433	£1.67	£2.00
50 - BOLT (SQUARE) M8X30 HIT-302457.A8 302457	£1.67	£2.00
51 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A4 302469	£1.67	£2.00
52 - SLEEVE (A) HIT-370267.A2 370267	-
53 - SEAL LOCK HEX. SOCKET HD. BOLT M4X6 HIT-370278.A2 370278	-
54 - SLEEVE (B) HIT-370268.A1 370268	£5.07	£6.08
55 - BASE ASS'Y INCLUD.62 HIT-370359.A0 370359	£27.57	£33.08
56 - WASHER M6 (10 PCS.) HIT-949425.A17 949425	£1.67	£2.00
57 - WING BOLT M6X17 HIT-302459.A13 302459	£1.67	£2.00
58 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A246 301653	£1.67	£2.00
*59A - HOUSING ASS'Y INCLUD.63 HIT-370339.A0 370339	-
*60 - NAME PLATE HIT-000000.A2097 000000	-
61 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK) HIT-997841.A2 997841	£1.67	£2.00
62 - RIVET D6X17 HIT-308480.A5 308480	£1.67	£2.00
63 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A39 938477	£1.67	£2.00
64 - BRUSH HOLDER HIT-958900.A7 958900	£8.24	£9.89
65 - CARBON BRUSH (1 PAIR) HIT-999043.A24 999043	£5.54	£6.65
66 - BRUSH CAP HIT-945161.A16 945161	£1.67	£2.00
67 - CORD HOLDER HIT-370269.A2 370269	-
68 - CORD ARMOR D8.8 HIT-953327.A106 953327	£1.67	£2.00
*69 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500440Z.A6 500440Z	£22.75	£27.30
*69 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500517Z.A2 500517Z	-
70 - RUBBER BUSHING HIT-331006.A4 331006	-
71 - BEARING BUSHING HIT-322089.A8 322089	£6.50	£7.80
72 - BALL BEARING 608VV HIT-333945.A7 333945	-
73 - FASTON HIT-331707.A0 331707	£1.67	£2.00
74 - CORD CLIP HIT-937631.A30 937631	£1.67	£2.00
75 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A230 984750	£1.67	£2.00
76 - CONNECTOR 50092 (10 PCS.) HIT-959141.A64 959141	£7.12	£8.54
77 - BEARING LOCK HIT-931701.A6 931701	£1.67	£2.00
*78 - SWITCH HIT-334474.A3 334474	£12.61	£15.13
79 - INTERNAL WIRE HIT-370661.A0 370661	-
80 - NOISE SUPPRESSOR HIT-930039.A41 930039	£3.85	£4.62
81 - HANDLE COVER HIT-370341.A0 370341	-
82 - BEVEL PLATE HIT-370367.A0 370367	-
83 - PLATE (C) HIT-371213.A0 371213	-
84 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A55 935196	£1.67	£2.00
501 - GUIDE HIT-370587.A0 370587	-
502 - HEX. BAR WRENCH 6MM HIT-872422.A8 872422	£1.67	£2.00
*503 - LEVER EXCEPT FOR CHN HIT-370264.A2 370264	£1.67	£2.00
*505 - CASE ASS'Y (STACKABLE 4) INCLUD.506-508 FOR EUROPE HIT-337528.A16 337528	-
*506 - LATCH FOR EUROPE HIT-336472.A30 336472	£1.67	£2.00
*507 - HANDLE FOR EUROPE HIT-336473.A44 336473	£6.43	£7.72
*508 - HINGE FOR EUROPE HIT-336474.A30 336474	£1.67	£2.00
*509A - INNER TRAY SET FOR EUROPE HIT-376125.A0 376125	-
601 - GUIDE RAIL ASS'Y INCLUD.602-607 HIT-331762.A0 331762	£19.98	£23.97
602 - GUIDE RAIL ADAPTER HIT-330968.A1 330968	-
603 - GUIDE RAIL PLATE HIT-330978.A0 330978	-
604 - GUIDE BAR HIT-330979.A5 330979	-
605 - GUIDE BAR HIT-330980.A0 330980	-
606 - WING BOLT M6X12 HIT-307947.A9 307947	£1.67	£2.00
607 - MACHINE SCREW (W/SP. WASHER) M5X12(BLACK HIT-331761.A5 331761	-
